Description
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

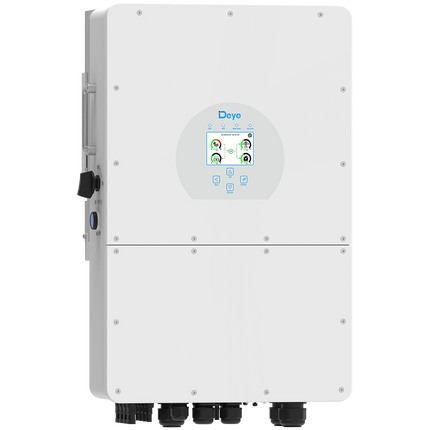

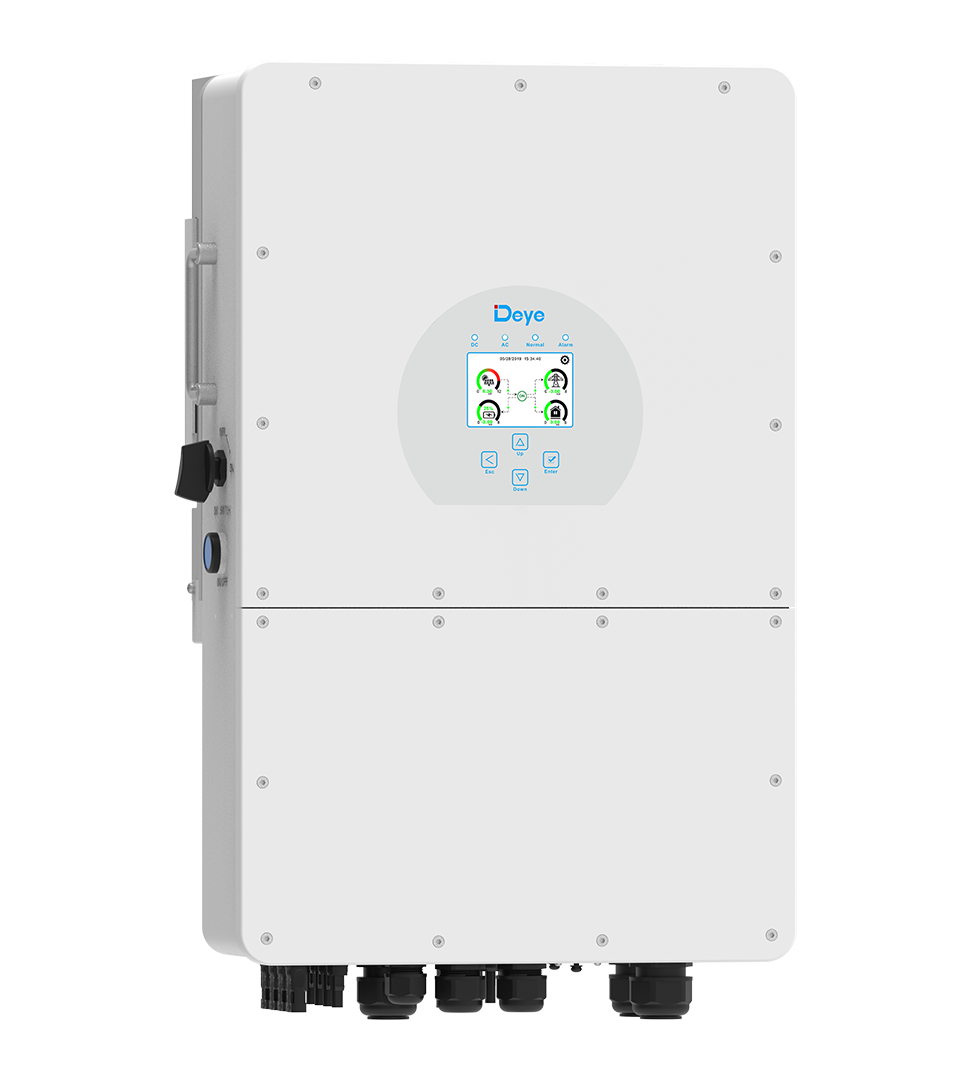

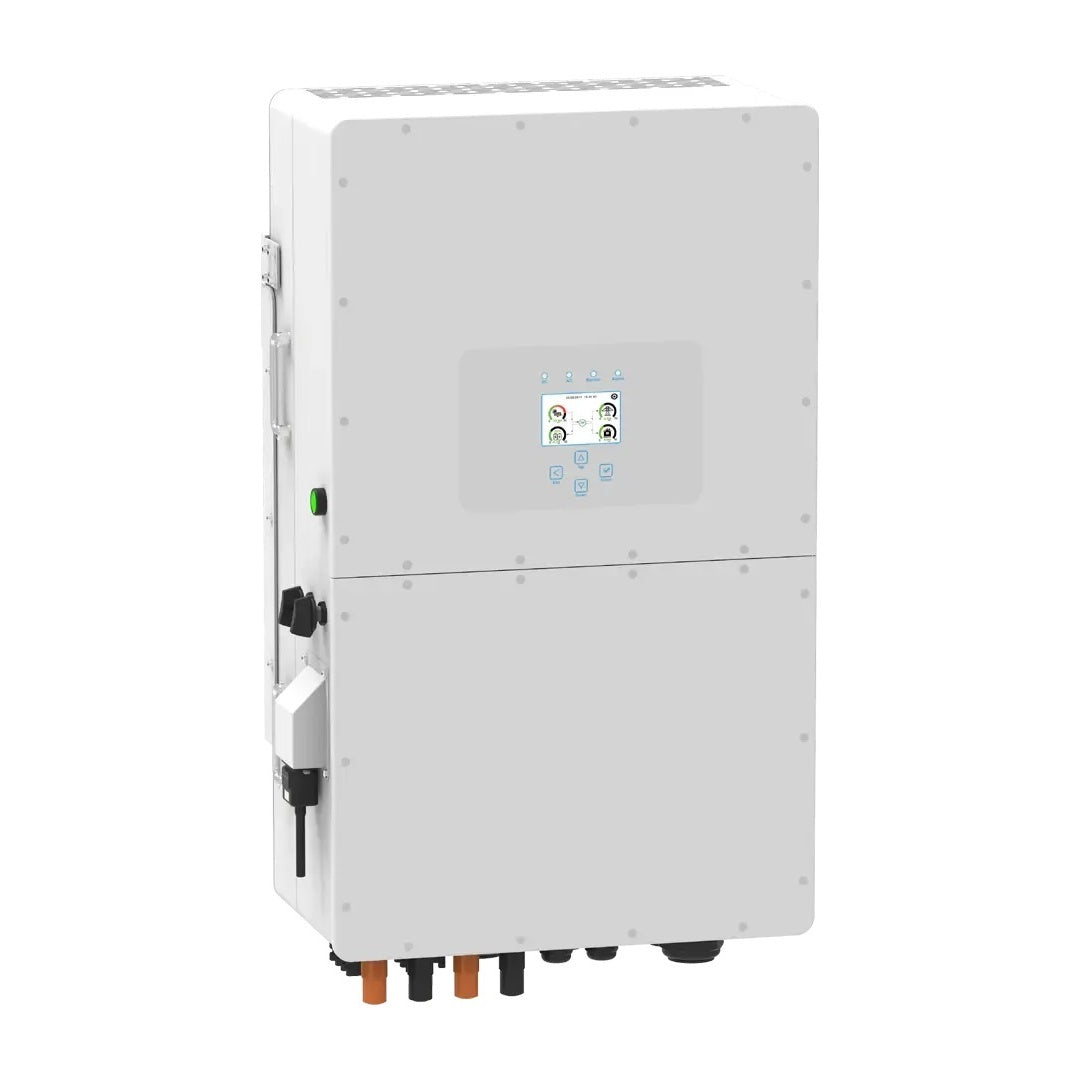

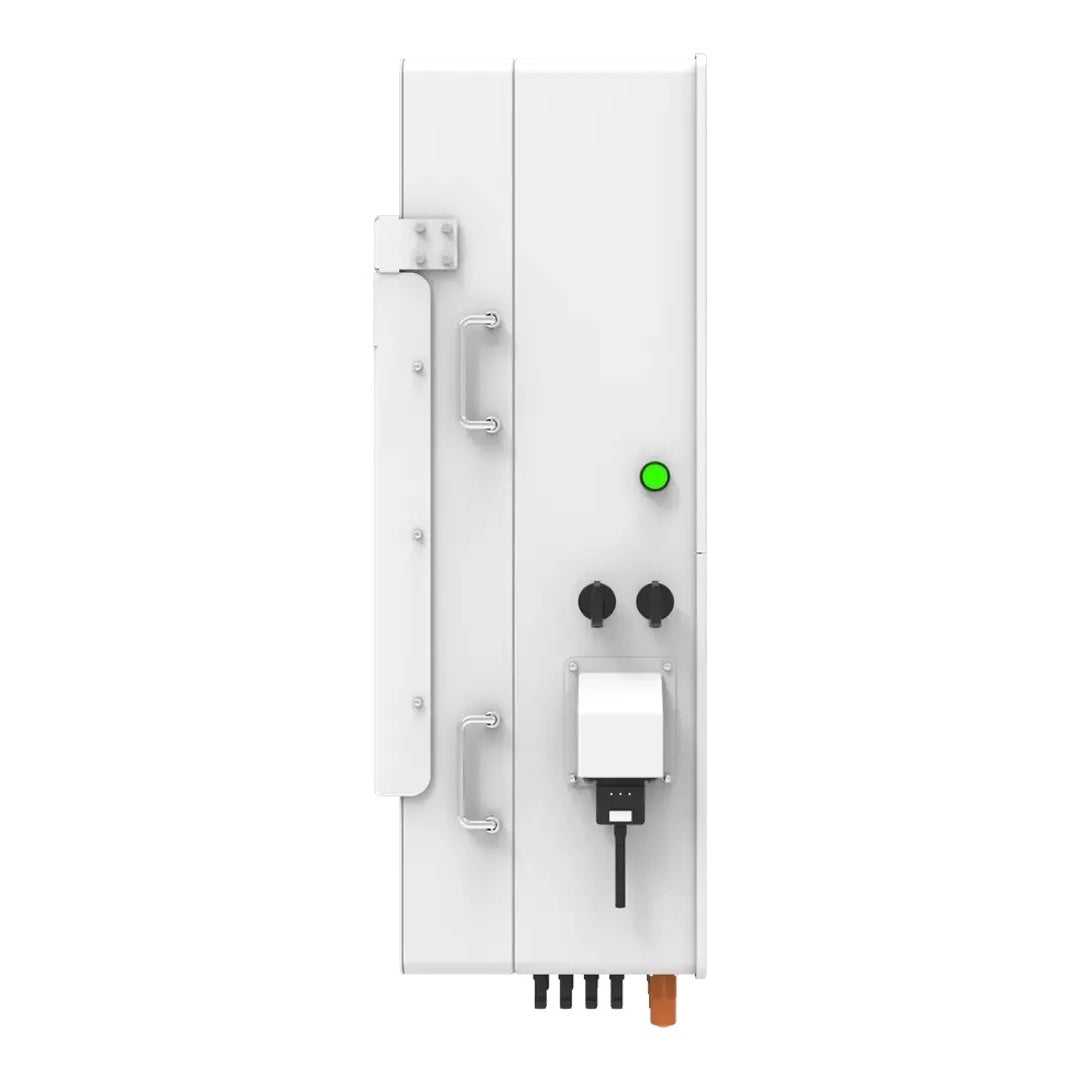

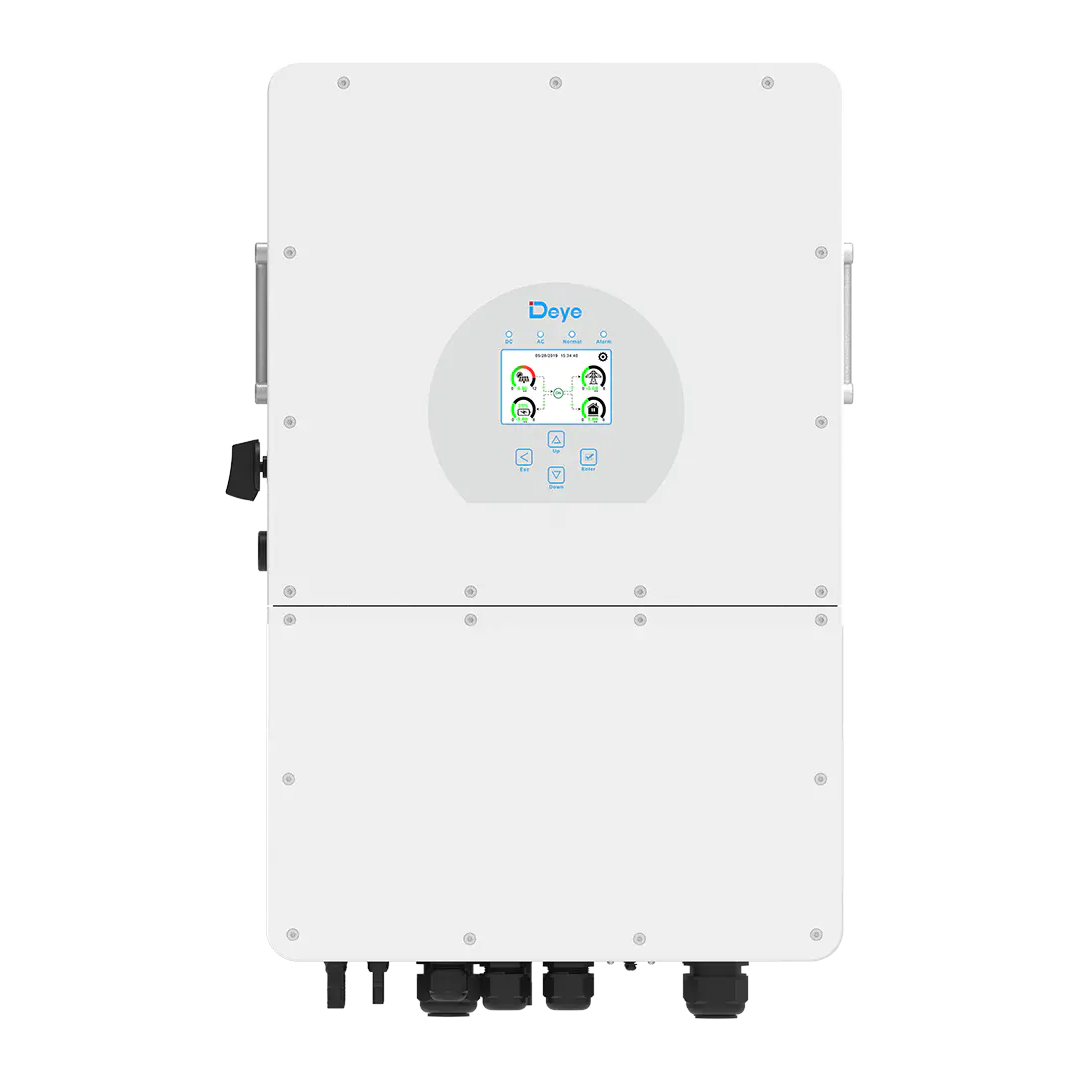

Deye SUN-8K-SG01HP3-AU-AM2 Three Phase Hybrid Inverter
SUN-8K-SG01HP3-AU-AM2 | 8kW | Three Phase | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase.
AC couple to retrofit existing solar system.
Max. 16pcs parallel for on-grid and off-grid operation;
Max. charging/discharging current of 50A.
High voltage battery, higher efficiency.
6 time periods for battery charging/discharging
Support storing energy from diesel generator.

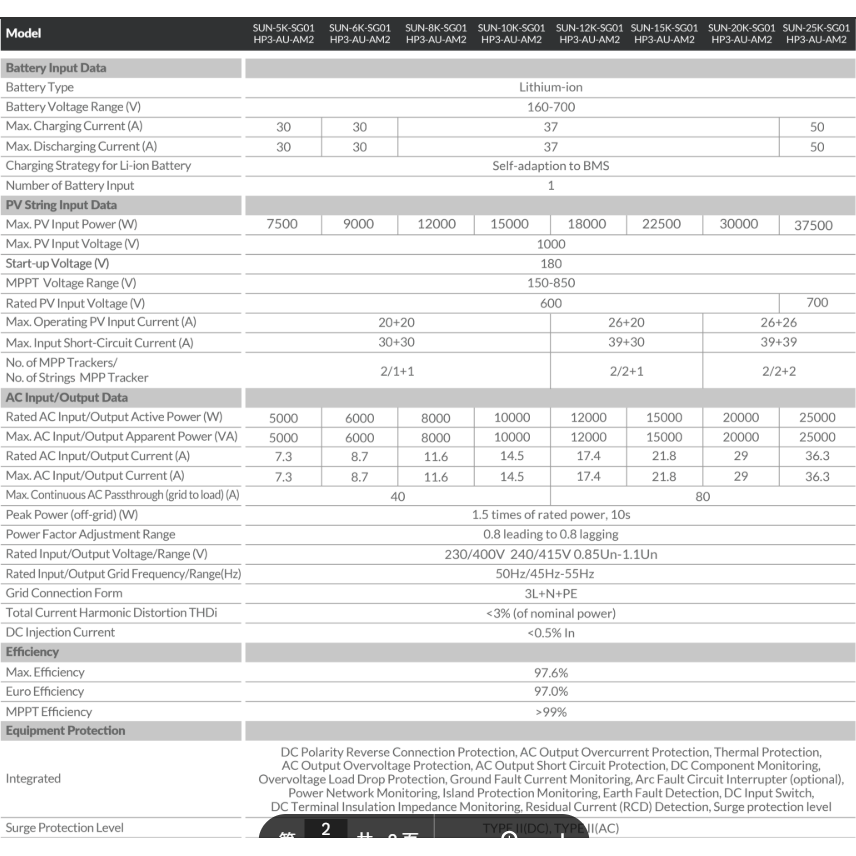

Model:SUN-8K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-700
Max. Charging Current (A): 37
Max. Discharging Current (A):37
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Input Power (W): 12000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated PV Input Voltage (V): 600
Max. Operating PV Input Current (A): 20+20
Max. Input Short-Circuit Current (A): 30+30
No. of MPP Trackers/ No. of Strings MPP Tracker: 2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power (W):8000
Max. AC Input/Output Apparent Power (VA):8000
Rated AC Input/Output Current (A): 11.6
Max. AC Input/Output Current (A): 11.6
Max. Continuous AC Passthrough (grid to load) (A):40
Peak Power (off-grid) (W): 1.5 times of rated power, 10s
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
Ingress Protection(IP) Rating: IP65
Cabinet Size (WxHxD mm):408×638×237 (Excluding Connectors and Brackets)
Weight (kg):30.5
Grid Regulation: AS/NZS 4777.2
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
