Description
Brand: Deye
Model: SUN-XL02-B
Product Type: PV Optimizer / Solar Optimizer
Product Description

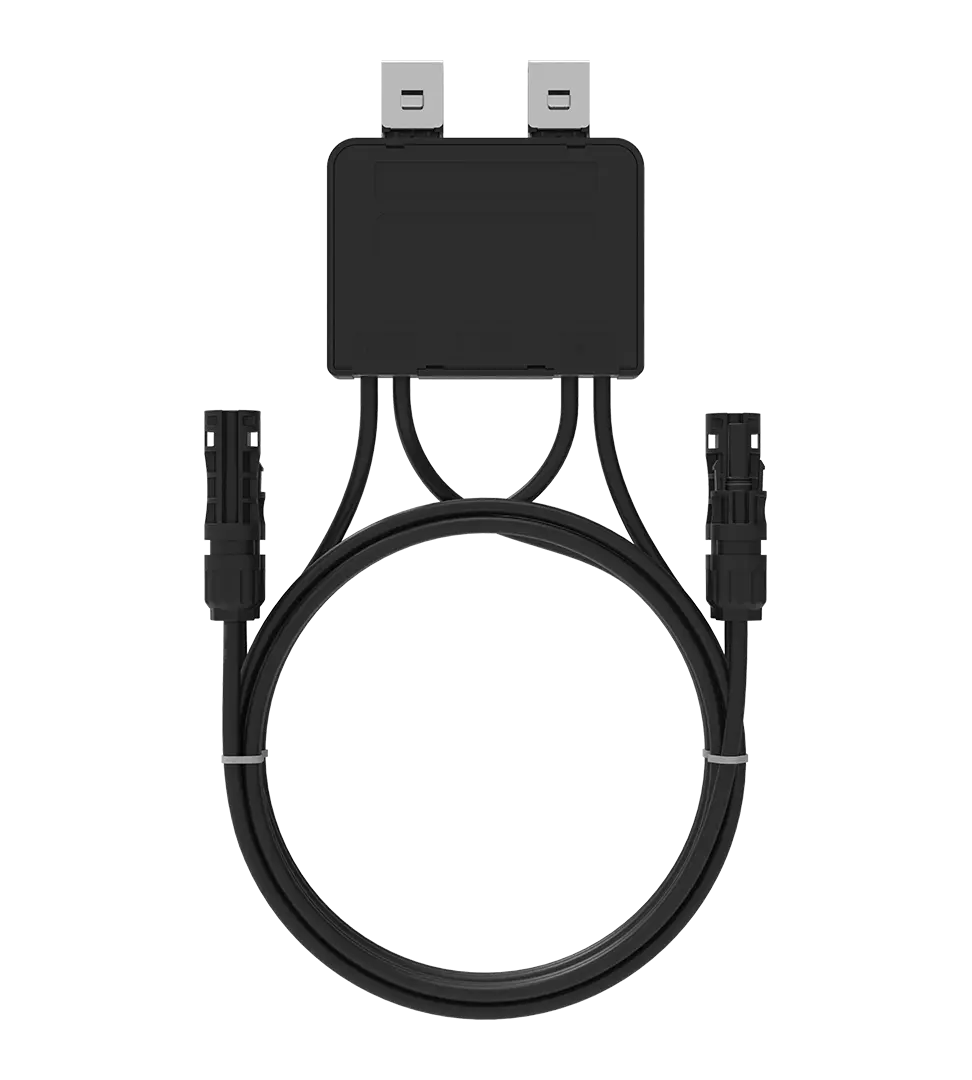

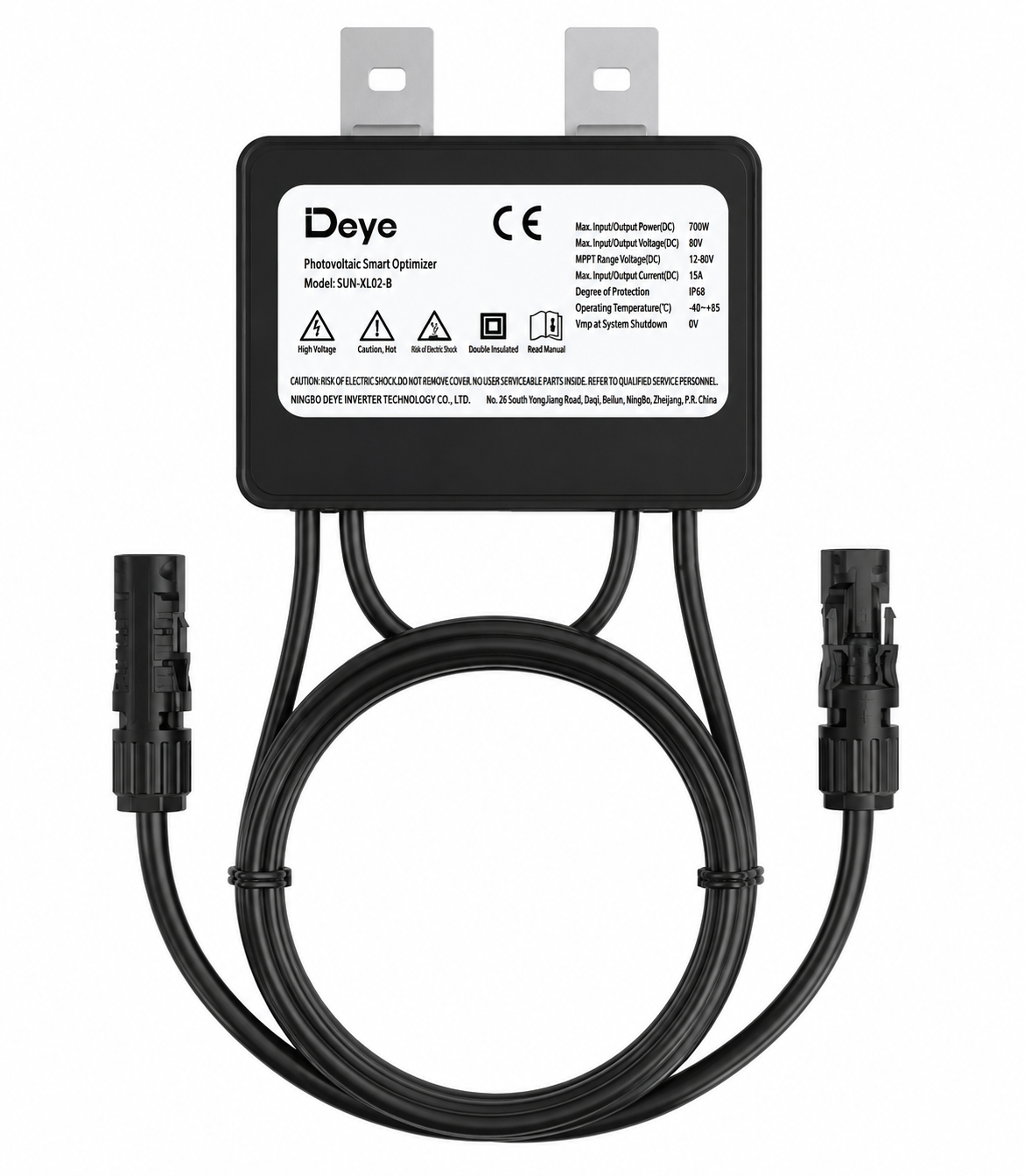

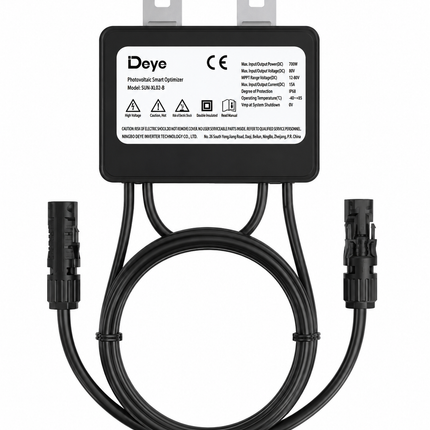

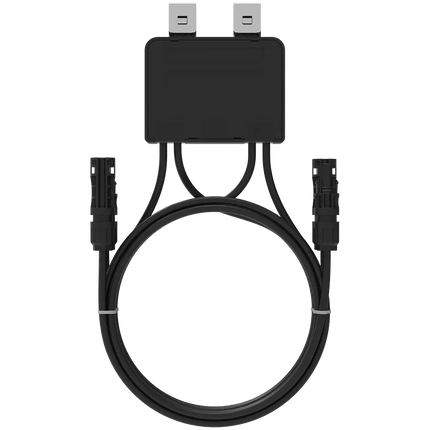

The Deye SUN-XL02-B is a smart PV module optimizer designed to improve the performance, monitoring and safety of solar PV systems.

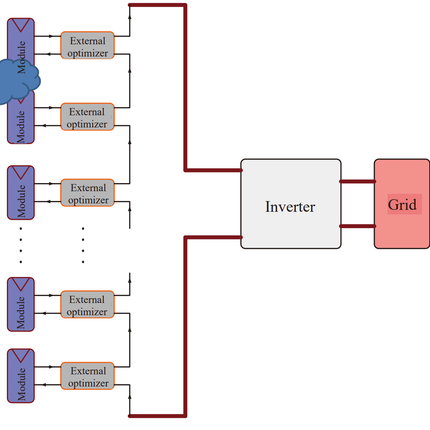

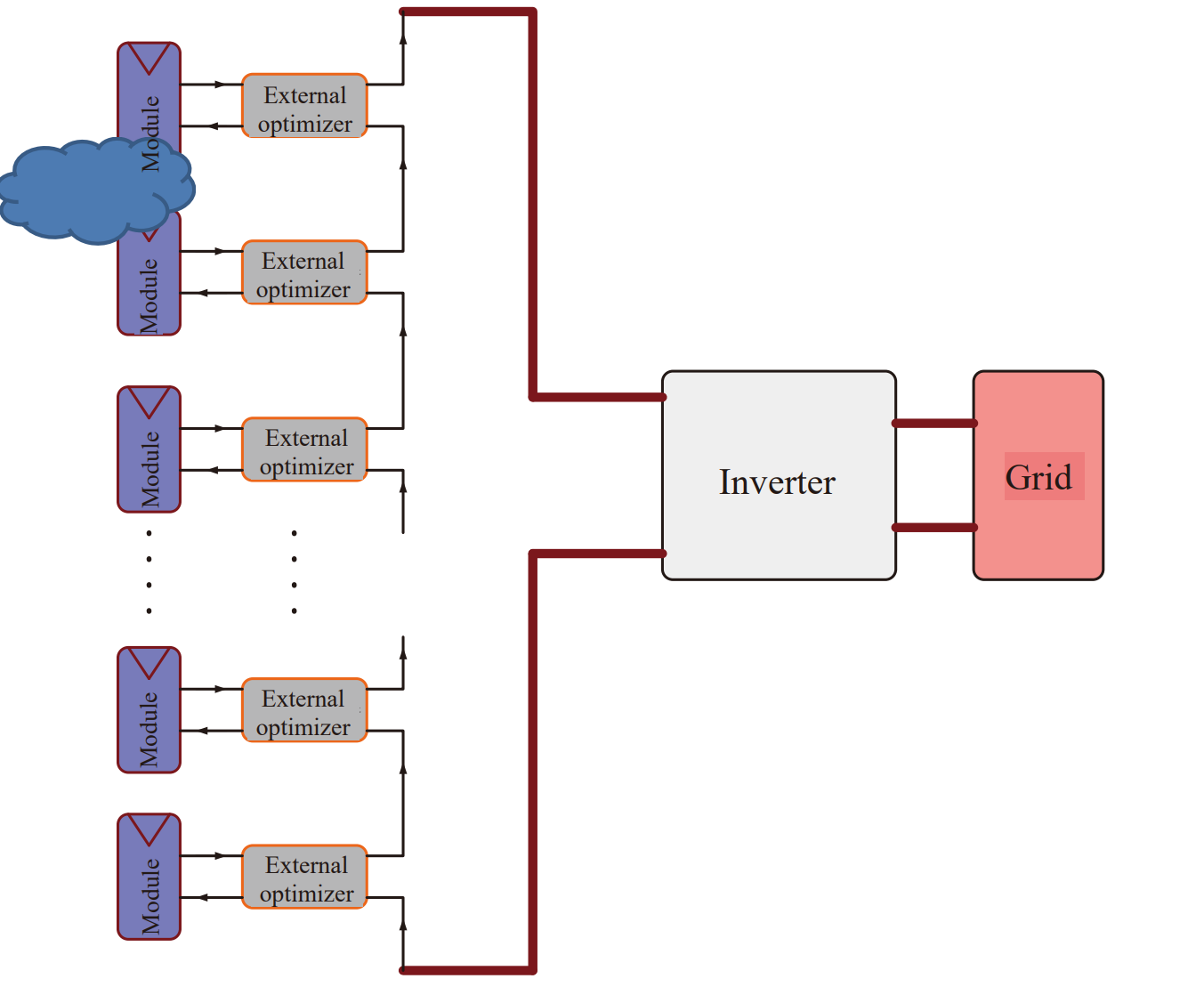

Featuring module-level Maximum Power Point Tracking (MPPT), the SUN-XL02-B allows each solar panel to operate closer to its individual maximum power point, helping reduce the impact of shading, module mismatch and varying installation conditions.
With support for PV modules up to 700W, a maximum input voltage of 80V, maximum current of 15A, and peak conversion efficiency of 99.5%, it is suitable for modern high-power solar modules.
Key Features
- Module-level MPPT optimisation
- Supports PV modules up to 700W
- Up to 99.5% peak conversion efficiency
- Real-time module-level monitoring*
- PLC communication through existing PV cables*
- Rapid shutdown capability*
- IP68 protection for outdoor installation
- MC4 or MC4-compatible connectors
- Wide operating temperature range from -40°C to +85°C
*Module-level platform monitoring and rapid shutdown functions require use with a compatible Deye Optimizer Concentrator, such as the SUN-XL20-B.

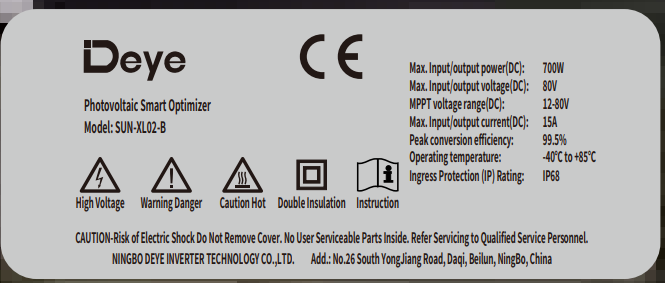

Technical Specifications
| Specification |
SUN-XL02-B |
| Maximum Input / Output Power |
700W DC |
| Maximum Input / Output Voltage |
80V DC |
| MPPT Voltage Range |
12–80V DC |
| Maximum Input / Output Current |
15A DC |
| Peak Conversion Efficiency |
99.5% |
| Communication |
PLC |
| Connector |
MC4 / MC4 Compatible |
| Cable |
4.0mm² |
| Input Cable Length |
700mm |
| Output Cable Length |
1000mm |
| Dimensions |
105 × 105 × 22mm |
| Weight |
660g |
| Operating Temperature |
-40°C to +85°C |
| Protection Rating |
IP68 |
| Certification |
CE |
