Description

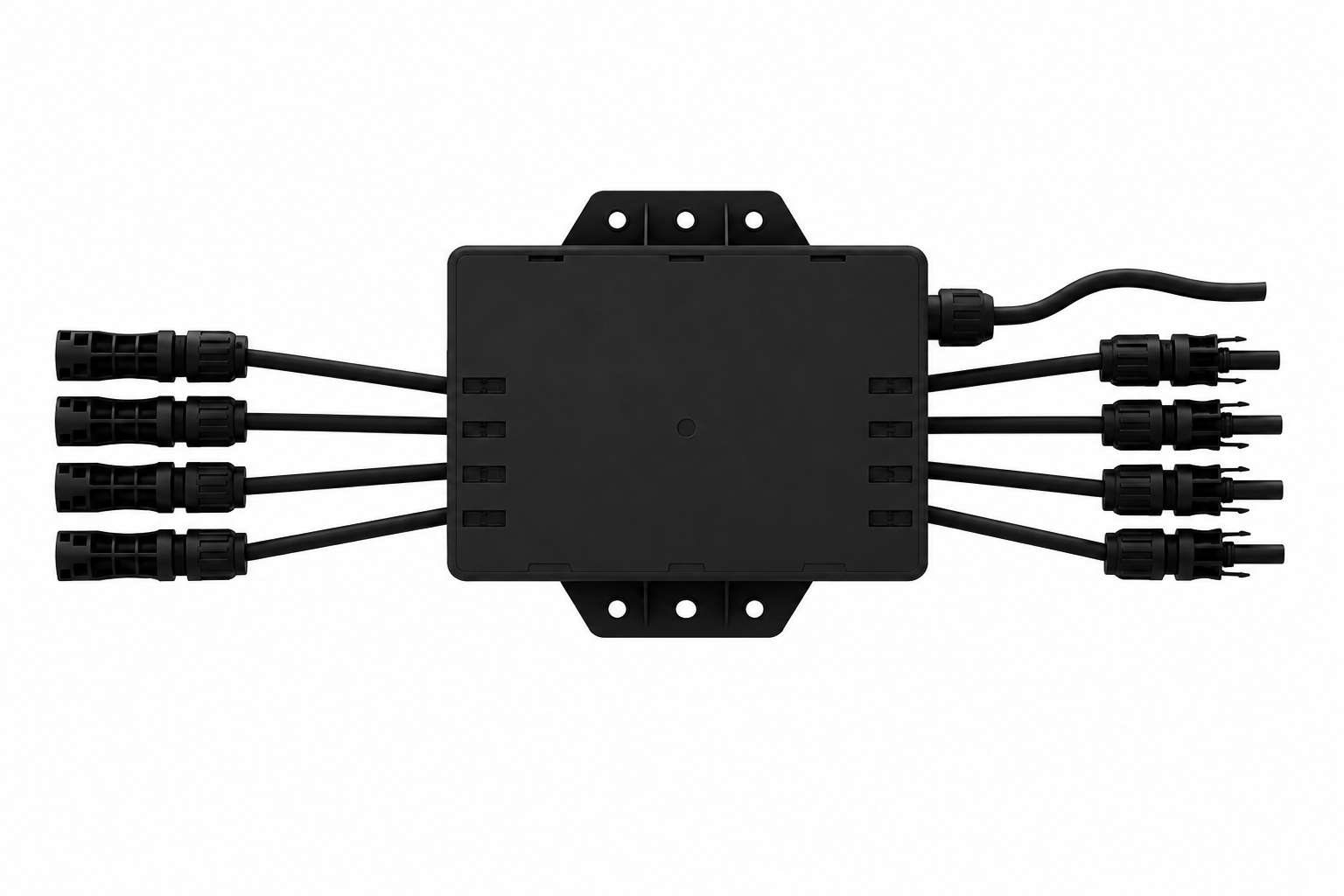

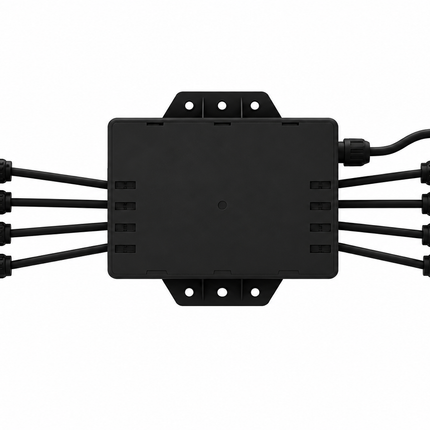

The Deye SUN-XL20-B Optimizer Concentrator is designed to work together with Deye SUN-XL02-B PV module optimizers, providing reliable communication, rapid shutdown and platform monitoring for solar PV systems.
Using PLC (Power Line Communication) through the existing PV cables, the SUN-XL20-B enables stable communication without the need for additional communication cables. One concentrator can support up to four PV strings, making it suitable for residential and commercial solar installations.
With an IP68 protection rating, MC4-compatible connectors and a wide operating temperature range, the SUN-XL20-B is designed for reliable outdoor operation in demanding solar environments.
Key Features
- Works with Deye SUN-XL02-B PV module optimizers
- Supports rapid shutdown functionality*
- Supports platform monitoring*
- Connects up to 4 PV strings
- PLC communication via existing PV cables
- No additional communication cables required
- Supports 1000V / 1500V PV systems
- Maximum input current: 20A
- IP68 protection rating
- MC4 or MC4-compatible connectors
- Wide operating temperature range: -40°C to +65°C
- Compact and durable outdoor design
*Rapid shutdown and platform monitoring functions are achieved when the SUN-XL20-B is used together with compatible SUN-XL02-B optimizers.

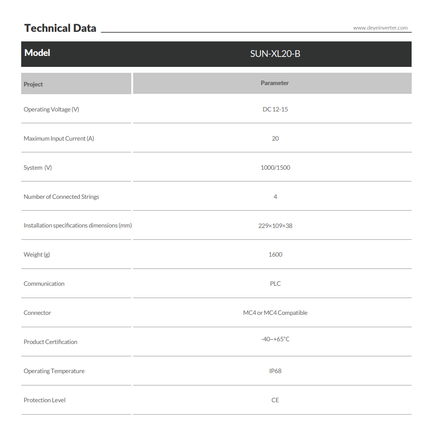

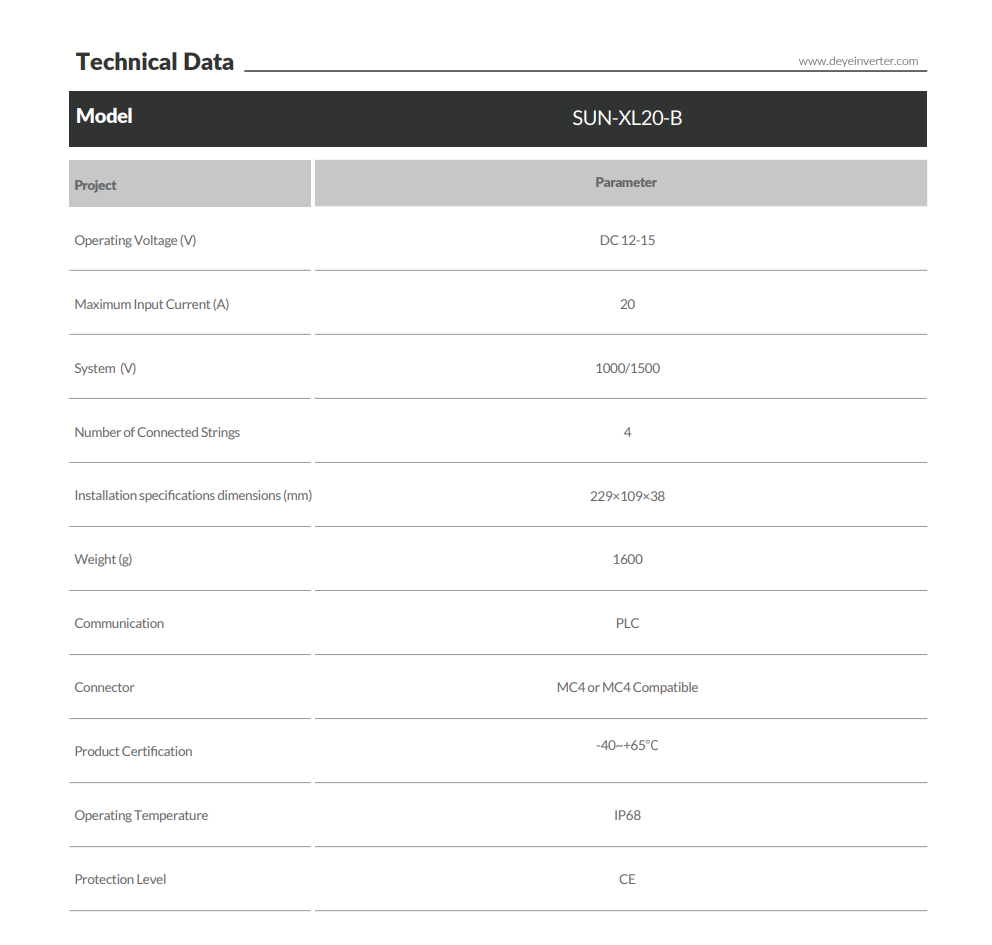

Technical Specifications
| Specification |
SUN-XL20-B |
| Product Type |
Optimizer Concentrator |
| Operating Voltage |
DC 12–15V |
| Maximum Input Current |
20A |
| System Voltage |
1000V / 1500V |
| Number of Connected Strings |
4 |
| Communication |
PLC |
| Connector |
MC4 or MC4 Compatible |
| Protection Rating |
IP68 |
| Operating Temperature |
-40°C to +65°C |
| Dimensions |
229 × 109 × 38mm |
| Weight |
1600g |
| Certification |
CE |
