Description

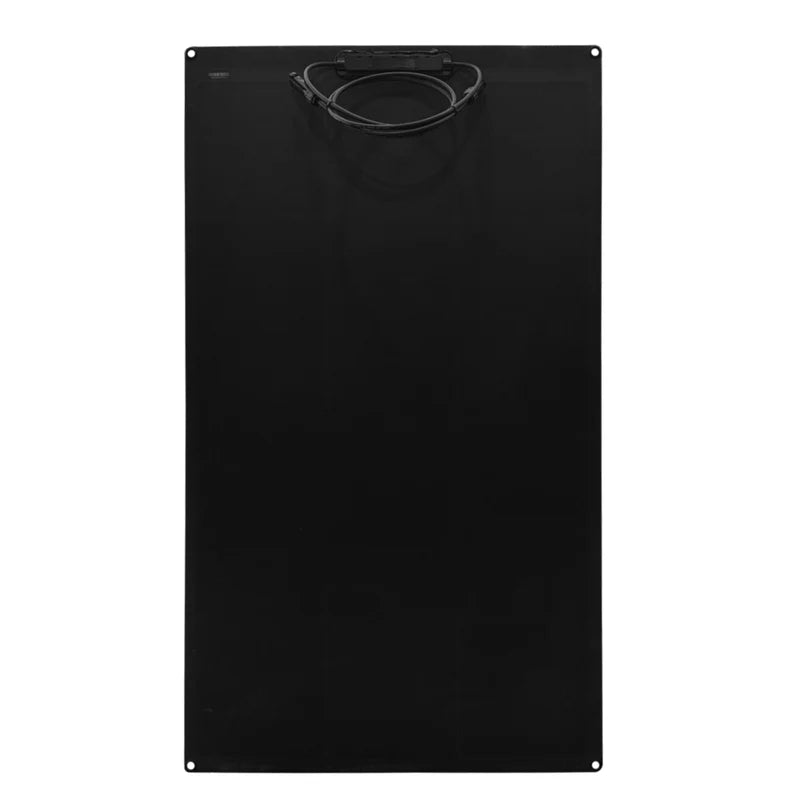

Flagsun FSF-HB100 WP 100W flexible solar panel for lightweight, space-conscious solar installations. Its slim 3 mm ETFE construction measures 1075 × 535 mm and weighs only 2.0 kg. LONGi HPBC solar cells deliver up to 25.6% cell efficiency, while an IP68-rated junction box and integrated MC4 twist-lock connectors support dependable outdoor use.
Key features
• 100W maximum power at STC
• Flexible, frameless ETFE construction
• Compact 1075 × 535 × 3 mm profile
• Lightweight 2.0 kg design
• LONGi HPBC solar cells, 3 × 11 cell layout
• IP68-rated junction box
• 900 mm positive and negative 4.0 mm² cables
• Integrated MC4 twist-lock connectors
• Designed to tolerate stepping and walking as stated by the manufacturer
Electrical specifications
• Model: FSF-HB100 WP
• Maximum power: 100W
• Optimum operating voltage (Vmp): 20.29V
• Optimum operating current (Imp): 4.92A
• Open-circuit voltage (Voc): 23.58V
• Short-circuit current (Isc): 5.54A
• Maximum system voltage: 1000V DC (IEC) / 600V DC (UL)
• Maximum series fuse rating: 10A
• Power tolerance: 0 to +3%
• Operating module temperature: -20°C to +65°C
Temperature coefficients
• Pmax: -0.44%/°C
• Voc: -0.33%/°C
• Isc: 0.055%/°C
• Nominal operating cell temperature: 25 ± 2°C
Warranty
• 3-year material and workmanship warranty
• 5-year power output warranty

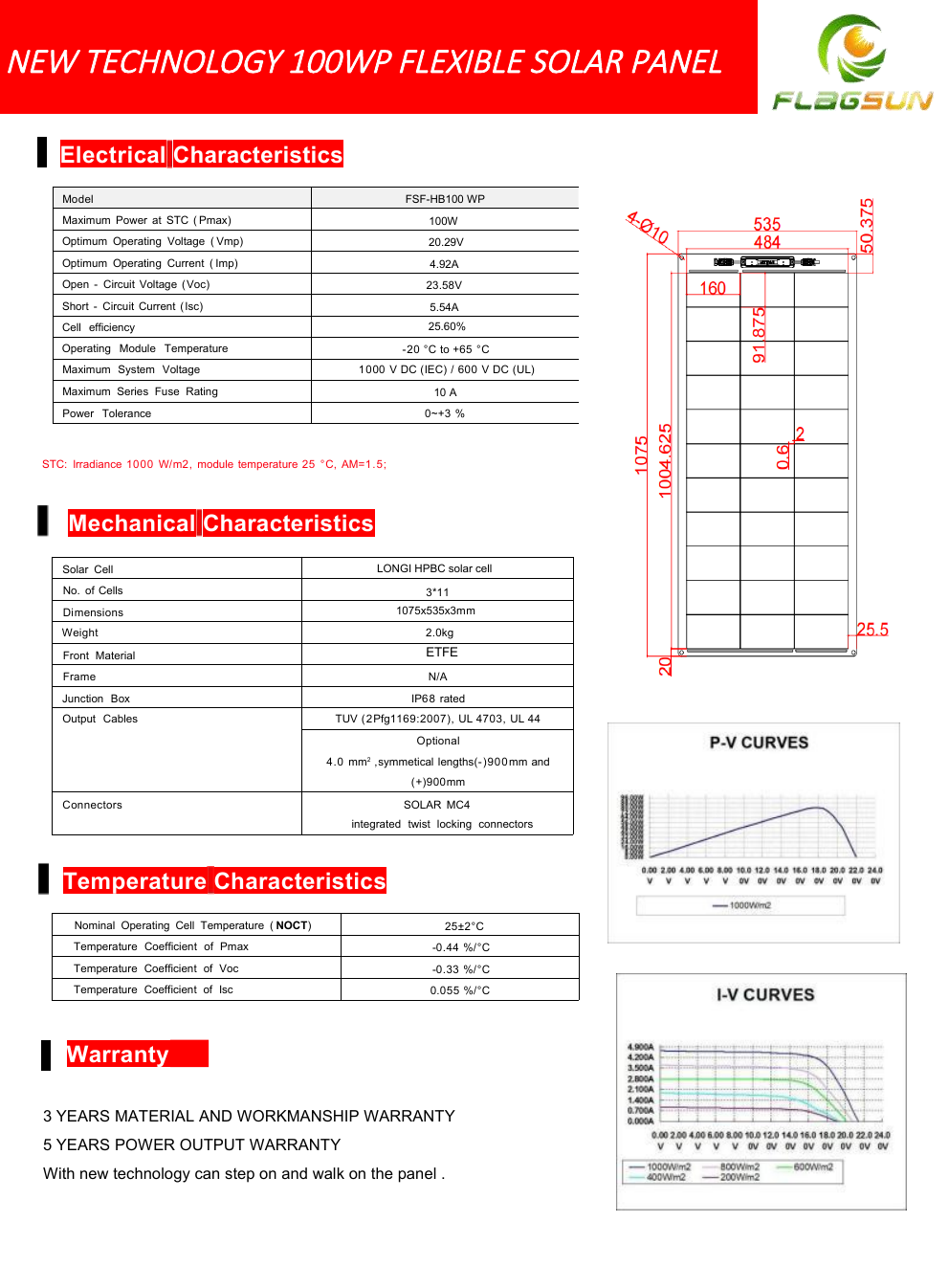

Specifications are based on the manufacturer datasheet. STC: 1000 W/m² irradiance, 25°C module temperature, AM 1.5.
