FLAGSUN

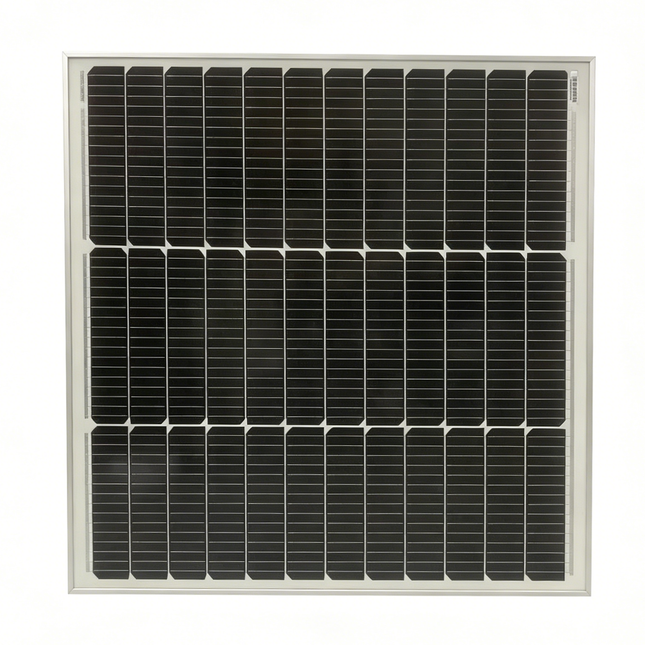

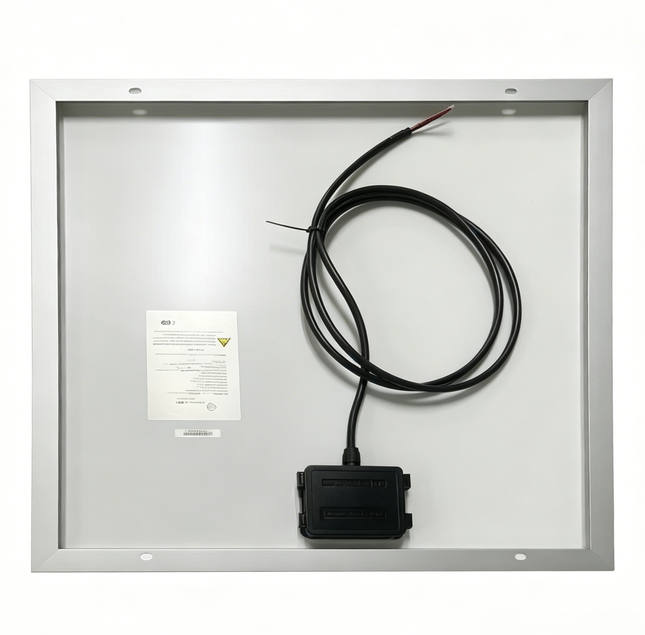

FLAGSUN 60W 575 x 585 x 25mm Monocrvstalline Rigid Solar Panel siver frame + white backsheet with 2000mm 2.5mm² cable and no ConnectorElectrical Data Maximum Power: 60W Power Tolerance: +3% Maximum Power Voltage: 18.15V Maximum Power Current: 3.3A Open Circuit Voltage: 21.45V Short Circuit Current: 3.65A Module Efficiency: 17.84% Maximum System Voltage: 1000V Technical Data Number of Cells: 33PCS Size of module: 575 x 585 x 25mm Weight: 3.4kg Connector / Cross-Section: Junction Box Cables, Length (+/-): Customizable Front Cover Glass: 3.2mm Safety Glass Frame: Anodized Aluminium Warranty: 10 years performance warranty to 90% 25 years performance warranty to 80%5 years warranty against production and material defectsCertified by IEC 61215, IEC 61730 ,TUV, CE, ISO9001:2000

Read more less

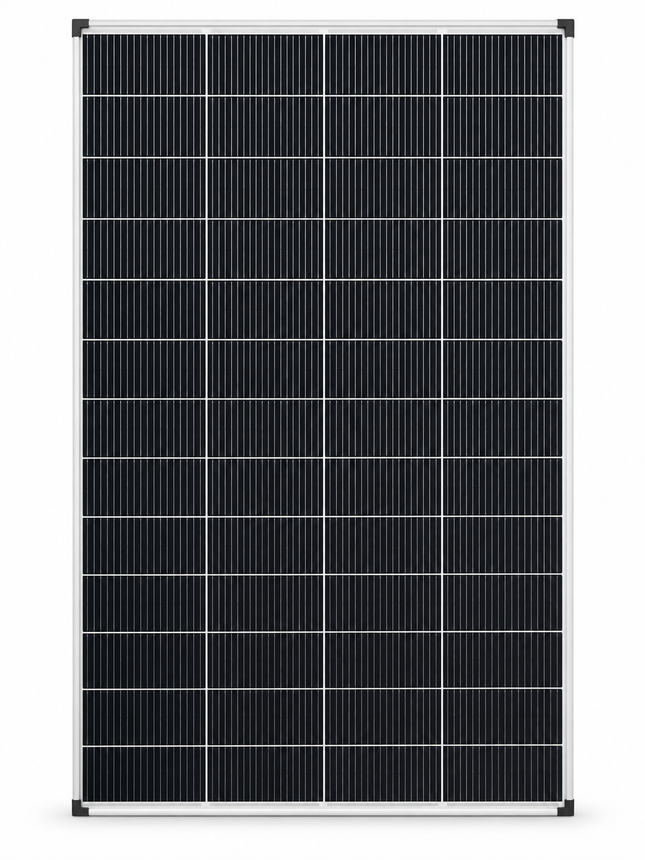

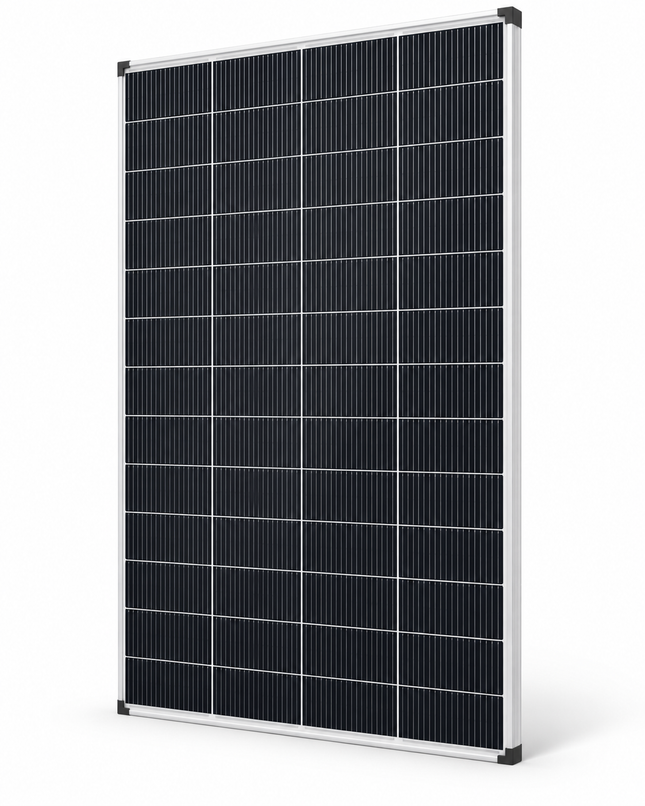

The FLAGSUN FSM56-300WS is a high-efficiency 300W monofacial TOPCon N-Type solar panel, designed for residential, commercial and off-grid solar applications. Featuring 56 N-Type TOPCon solar cells, the panel delivers a high 22.06% module efficiency in a compact 1545 x 880 x 30mm format. The module features a durable 3.2mm safety glass front cover and a strong anodized aluminium frame, providing reliable protection and structural strength for long-term outdoor installation. Its compact dimensions and efficient N-Type cell technology make it suitable for applications where high output and efficient use of installation space are important. Electrical Data Maximum Power: 300W Power Tolerance: +3% Maximum Power Voltage (Vmp): 34.72V Maximum Power Current (Imp): 8.64A Open Circuit Voltage (Voc): 40.32V Short Circuit Current (Isc): 9.72A Module Efficiency: 22.06% Maximum System Voltage: 1000V Open Circuit Voltage (Voc) Temperature Coefficient: −0.35 ± 0.01%/K Short Circuit Current (Isc) Temperature Coefficient: +0.065 ± 0.015%/K Electrical specifications are measured under STC conditions: irradiance of 1000 W/m², AM 1.5 spectrum and cell temperature of 25°C. Technical Data Model: FSM56-300WS Panel Type: Monofacial Solar Panel Solar Cell Type: TOPCon N-Type Number of Cells: 56 pcs Module Size: 1545 x 880 x 30mm Weight: 13.5kg Connector / Cross-Section: Junction Box Cable Length (+/-): Customizable Front Cover: Safety Glass Glass Thickness: 3.2mm Frame: Anodized Aluminium Key Features 300W rated output Advanced TOPCon N-Type cell technology High 22.06% module efficiency Monofacial solar panel design Compact 1545 x 880 x 30mm size Durable 3.2mm safety glass Anodized aluminium frame Maximum system voltage up to 1000V Suitable for residential, commercial and off-grid solar systems Long-term performance warranty Warranty 10-year performance warranty to 90% 25-year performance warranty to 80% 5-year warranty against production and material defects Certifications IEC 61215 IEC 61730 TUV CE ISO9001:2000

Read more less

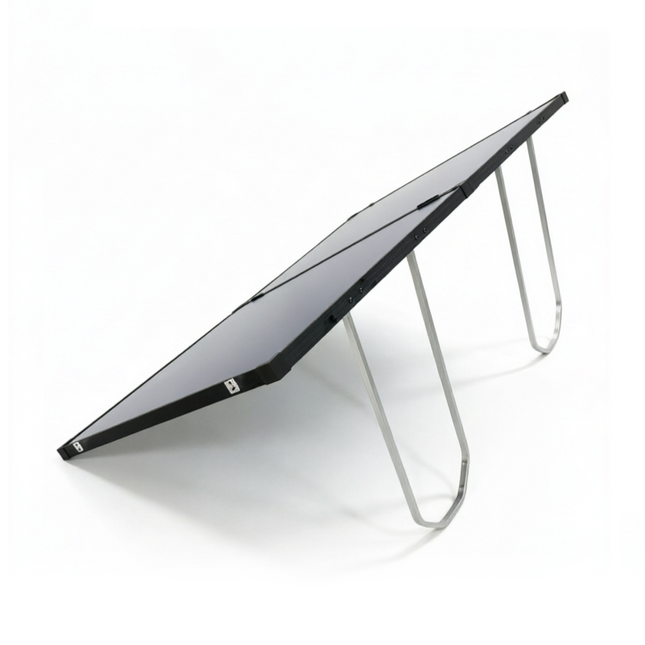

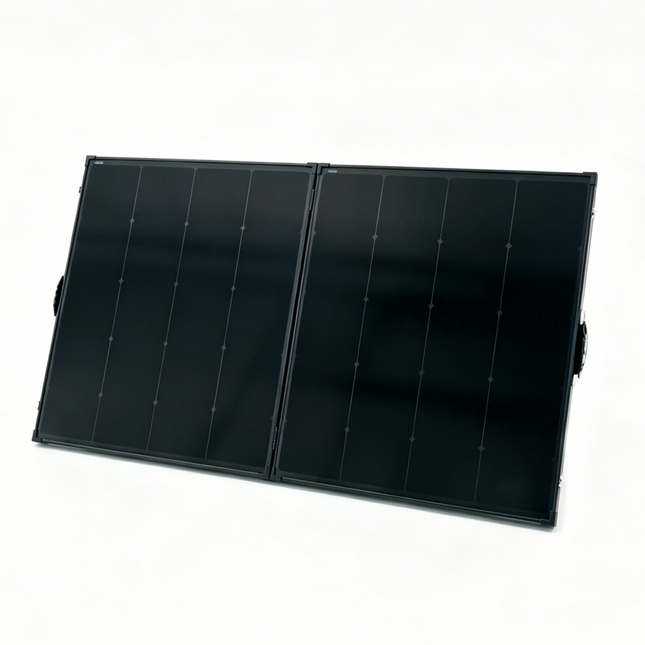

Electrical Data (STC) Specification Value Model 300W Folding Solar Panel Rated Power (Pmax) 300W Open Circuit Voltage (Voc) 26.99V Short Circuit Current (Isc) 14.53A Maximum Power Voltage (Vmpp) 23.18V Maximum Power Current (Impp) 12.94A Power Tolerance 0 ~ +3% STC Conditions: Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM1.5. Mechanical Data Specification Details Solar Cells HPBC Back-Contact Solar Cells Cell Size 182 × 45.9mm Cell Layout 4 × 19 Folded Size 910 × 770 × 65mm Unfolded Size 910 × 1540 × 30mm Weight 14kg Superstrate 3.2mm Tempered Glass Substrate Backsheet Frame Anodized Aluminium Alloy Junction Box IP65 Temperature & Maximum Ratings Specification Value NMOT 45 ± 2°C Temperature Coefficient of Voc -0.29%/°C Temperature Coefficient of Isc +0.05%/°C Temperature Coefficient of Pmax -0.39%/°C Operating Temperature -40°C to +85°C Maximum System Voltage 1000V DC Maximum Series Fuse Rating 15A Limiting Reverse Current 15A Key Features 300W rated output HPBC back-contact solar cell technology Foldable design for easier transport and storage 3.2mm tempered glass Anodized aluminium alloy frame IP65 junction box Wide operating temperature range of -40°C to +85°C Positive power tolerance of 0 ~ +3% Warranty 5-Year Product WarrantyWarranty against production and material defects. 10-Year Performance WarrantyGuaranteed performance of 90%. 25-Year Performance WarrantyGuaranteed performance of 80%.

Read more less

High-efficiency 225W back-contact (BC) monocrystalline solar panel for compact solar installations. Key specifications• Model: FSM56-225WS• Maximum power: 225W• Solar cell type: BC solar cell, 56 cells• Module efficiency: 21.66%• Dimensions: 1354 × 767 × 30 mm• Weight: 10.50 kg• Maximum power voltage (Vmp): 17.24V• Maximum power current (Imp): 13.06A• Open-circuit voltage (Voc): 20.25V• Short-circuit current (Isc): 14.10A• Power tolerance: ±3%• Maximum system voltage: 1000V• Front cover: 3.2 mm safety glass• Frame: Aluminium frame• Backsheet: White/Black• Connector: Junction box• Cable length: Customizable Warranty• 10-year performance warranty to 90%• 25-year performance warranty to 80%• 12-year warranty against production and material defects Certifications: IEC 61215, IEC 61730, TÜV, CE, ISO 9001:2000.

Read more less

FLAGSUN 120W monocrystalline solar panel with a compact 1200 × 540 mm footprint. Designed for off-grid, caravan, marine, shed and auxiliary solar power applications, with an IP67 junction box and MC4-compatible leads.Electrical specifications (STC) Model: FSM120W-36M Rated maximum power: 120W Power tolerance: 0 to +3% Maximum power voltage (Vmp): 19.80V Maximum power current (Imp): 6.06A Open-circuit voltage (Voc): 24.60V Short-circuit current (Isc): 6.85A Maximum system voltage: 1000V DC Maximum series fuse rating: 10A Limiting reverse current: 10A Temperature coefficients and ratings Temperature coefficient of Voc: -0.29%/°C Temperature coefficient of Isc: +0.05%/°C Temperature coefficient of Pmax: -0.39%/°C Nominal module operating temperature (NMOT): 45 ± 2°C Operating temperature range: -40°C to +85°C Mechanical specifications Cell type: monocrystalline Cell configuration: 36 cells (3 × 12) Module dimensions: 1200 × 540 × 30 mm Weight: 8.0 kg Front glass: 3.2 mm high-transmission, low-iron tempered ARC glass Backsheet: white Frame: silver anodized aluminium alloy 6063-T5 Junction box: IP67 Cables: 90 cm, 4 mm² with MC4-compatible connectors STC: irradiance 1000 W/m², cell temperature 25°C and air mass AM1.5.

Read more less
