Description

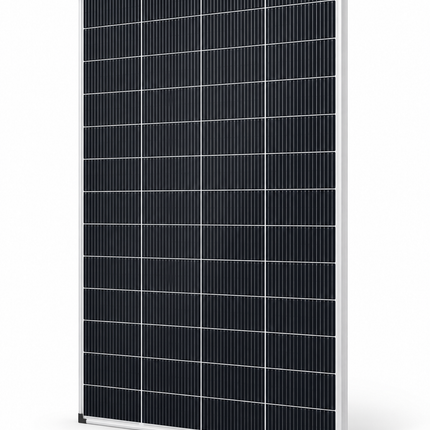

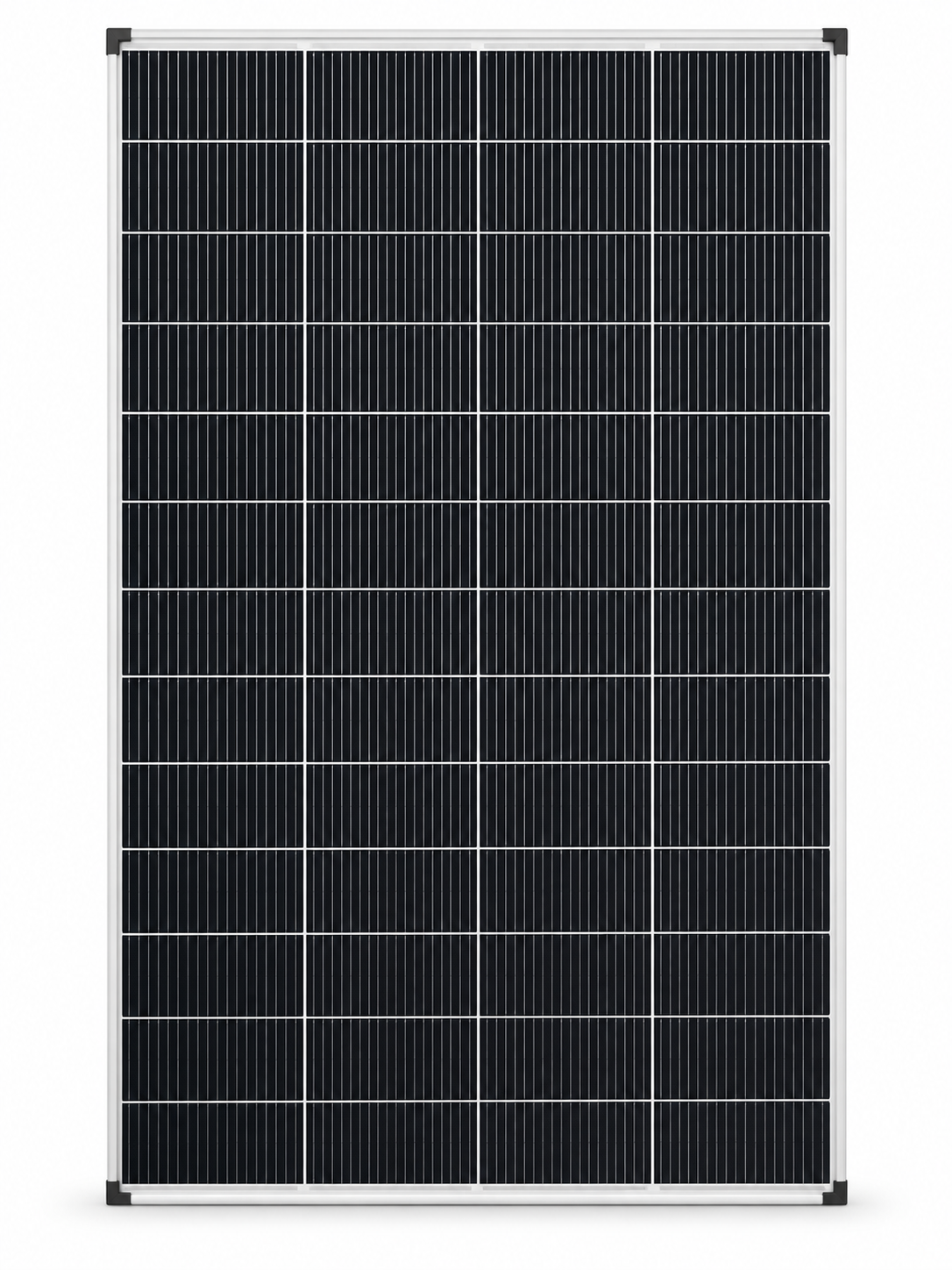

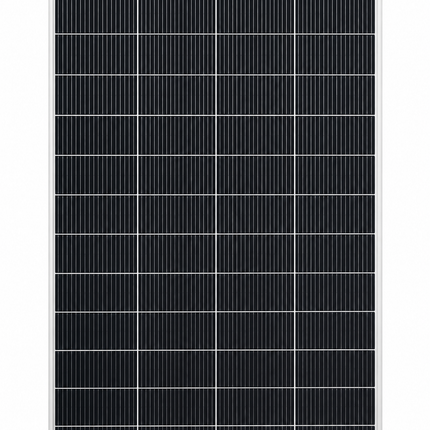

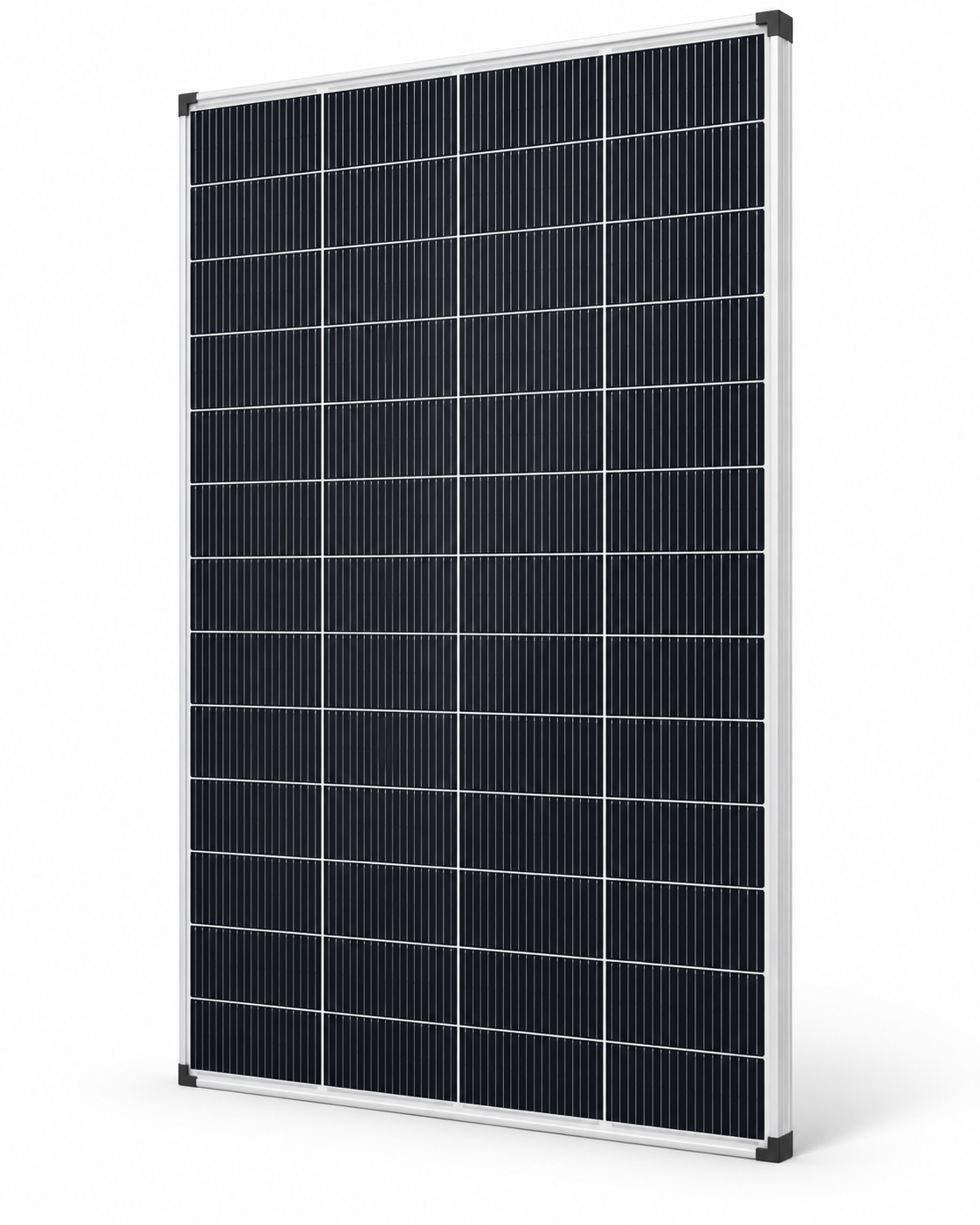

The FLAGSUN FSM56-300WS is a high-efficiency 300W monofacial TOPCon N-Type solar panel, designed for residential, commercial and off-grid solar applications.
Featuring 56 N-Type TOPCon solar cells, the panel delivers a high 22.06% module efficiency in a compact 1545 x 880 x 30mm format.
The module features a durable 3.2mm safety glass front cover and a strong anodized aluminium frame, providing reliable protection and structural strength for long-term outdoor installation.

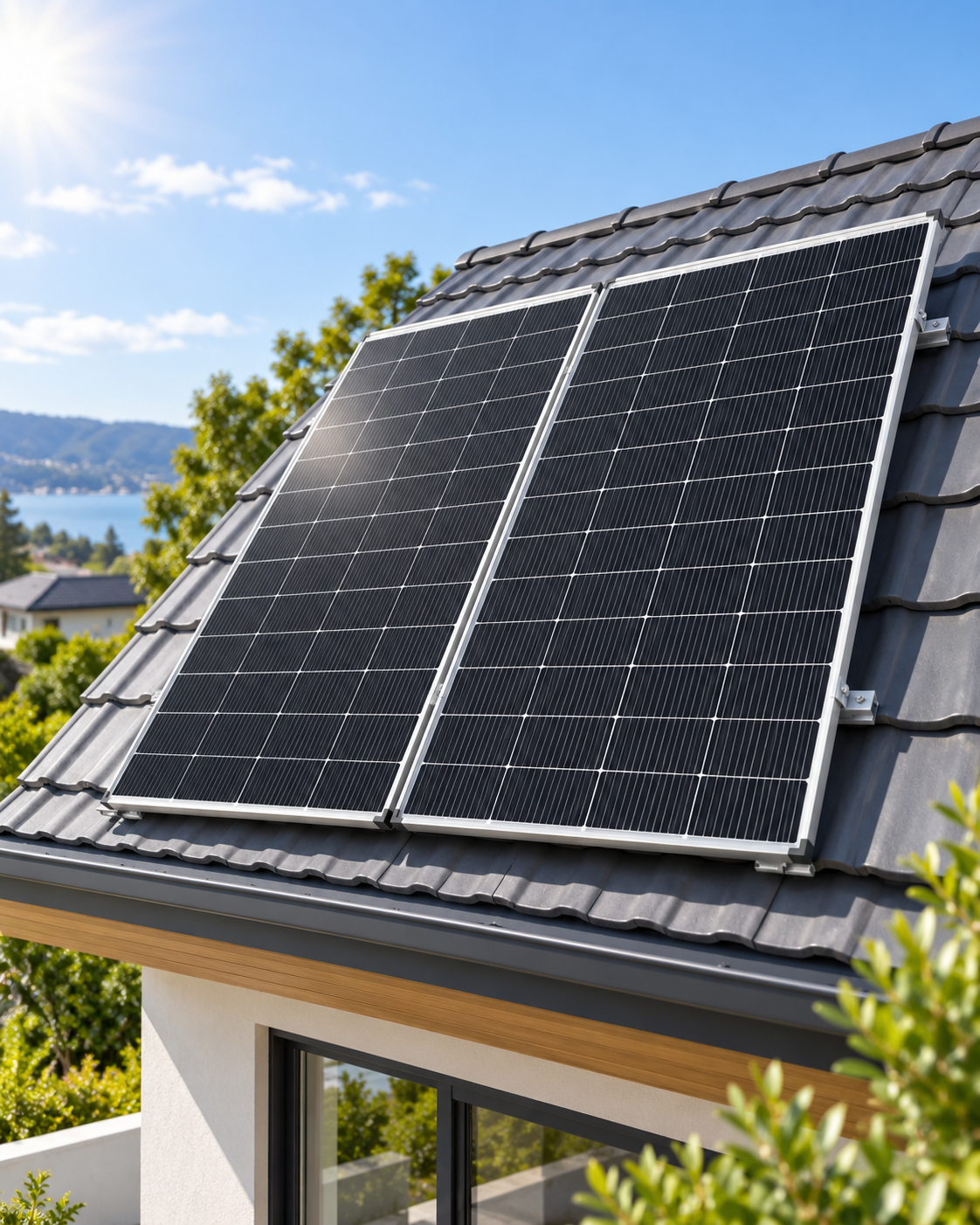

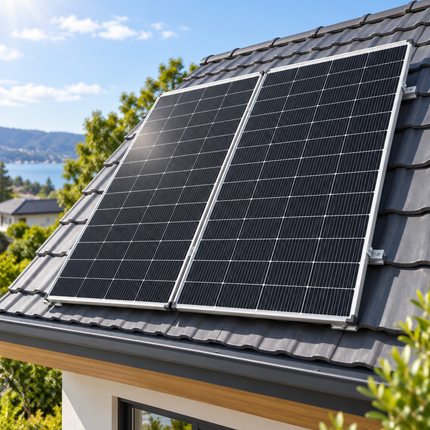

Its compact dimensions and efficient N-Type cell technology make it suitable for applications where high output and efficient use of installation space are important.
Electrical Data
- Maximum Power: 300W
- Power Tolerance: +3%
- Maximum Power Voltage (Vmp): 34.72V
- Maximum Power Current (Imp): 8.64A
- Open Circuit Voltage (Voc): 40.32V
- Short Circuit Current (Isc): 9.72A
- Module Efficiency: 22.06%
- Maximum System Voltage: 1000V
- Open Circuit Voltage (Voc) Temperature Coefficient: −0.35 ± 0.01%/K
- Short Circuit Current (Isc) Temperature Coefficient: +0.065 ± 0.015%/K
Electrical specifications are measured under STC conditions: irradiance of 1000 W/m², AM 1.5 spectrum and cell temperature of 25°C.

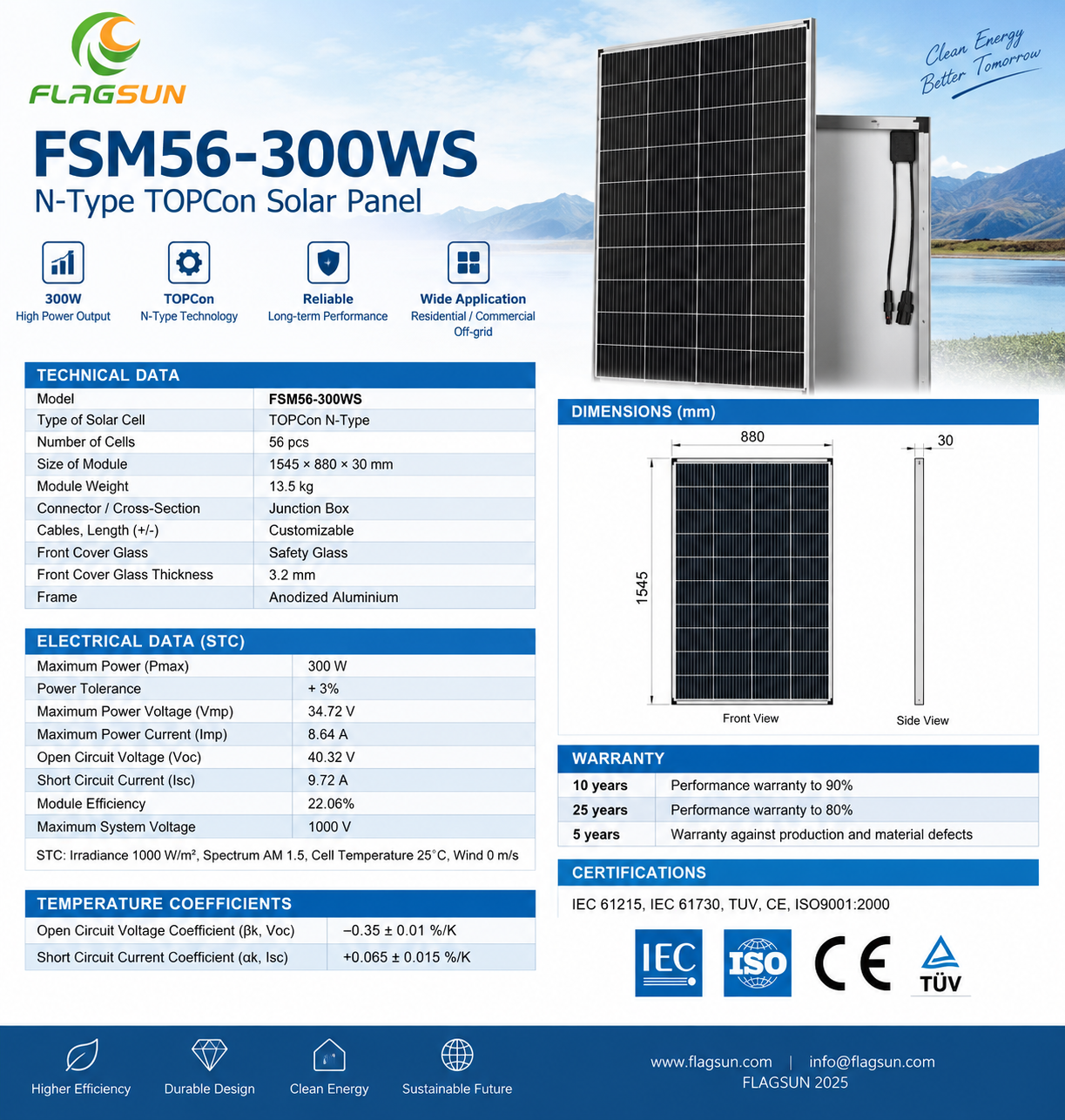

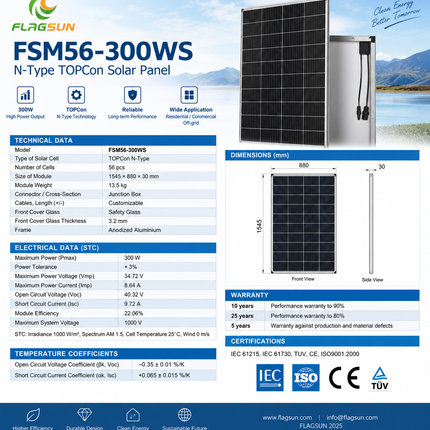

Technical Data
- Model: FSM56-300WS
- Panel Type: Monofacial Solar Panel
- Solar Cell Type: TOPCon N-Type
- Number of Cells: 56 pcs
- Module Size: 1545 x 880 x 30mm
- Weight: 13.5kg
- Connector / Cross-Section: Junction Box
- Cable Length (+/-): Customizable
- Front Cover: Safety Glass
- Glass Thickness: 3.2mm
- Frame: Anodized Aluminium
Key Features
- 300W rated output
- Advanced TOPCon N-Type cell technology
- High 22.06% module efficiency
- Monofacial solar panel design
- Compact 1545 x 880 x 30mm size
- Durable 3.2mm safety glass
- Anodized aluminium frame
- Maximum system voltage up to 1000V
- Suitable for residential, commercial and off-grid solar systems
- Long-term performance warranty
Warranty
- 10-year performance warranty to 90%
- 25-year performance warranty to 80%
- 5-year warranty against production and material defects
Certifications
- IEC 61215
- IEC 61730
- TUV
- CE
- ISO9001:2000
