Description

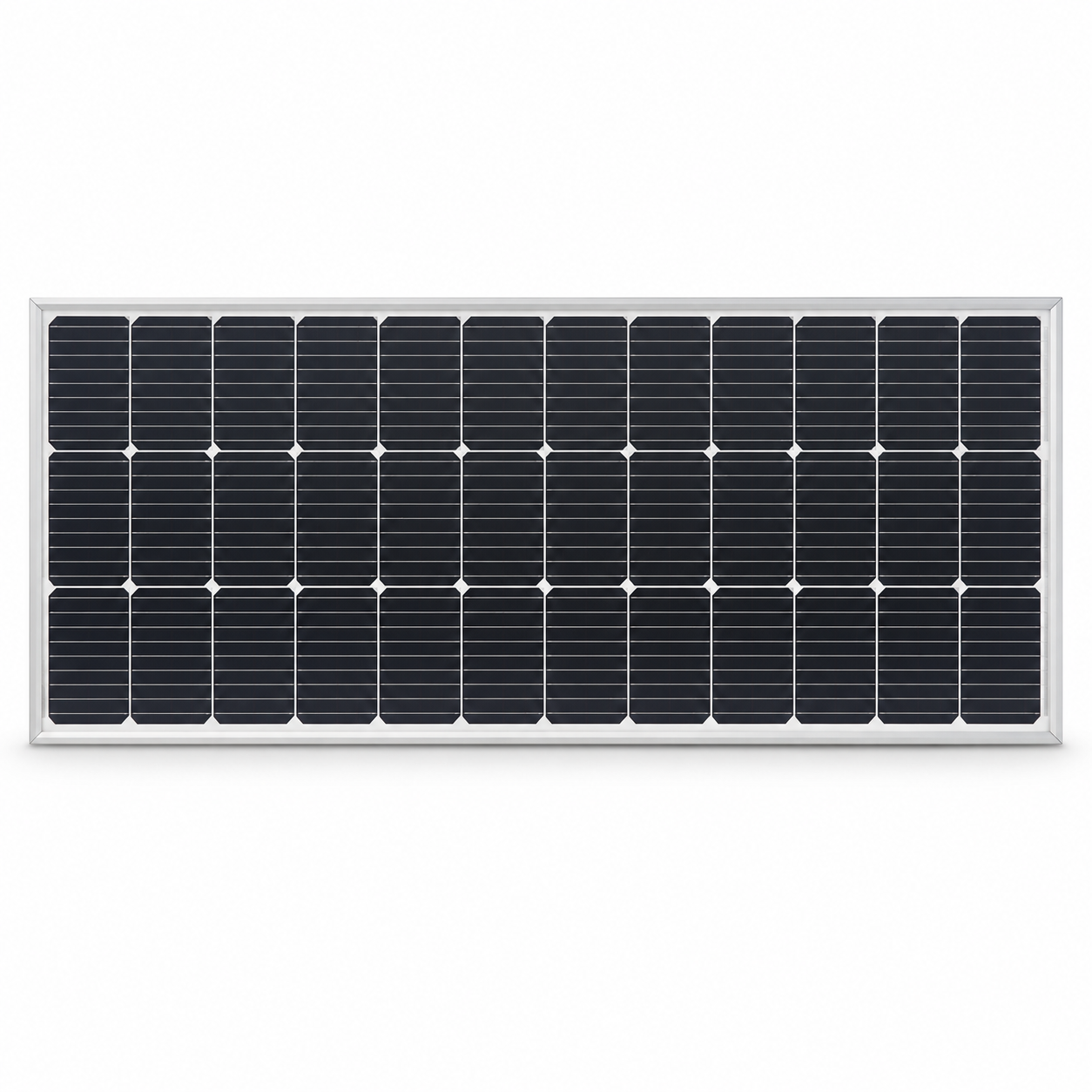

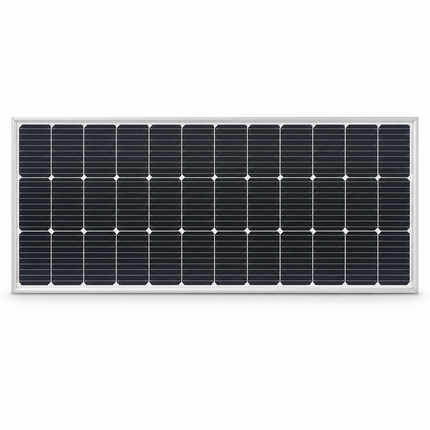

FLAGSUN 120W monocrystalline solar panel with a compact 1200 × 540 mm footprint. Designed for off-grid, caravan, marine, shed and auxiliary solar power applications, with an IP67 junction box and MC4-compatible leads.

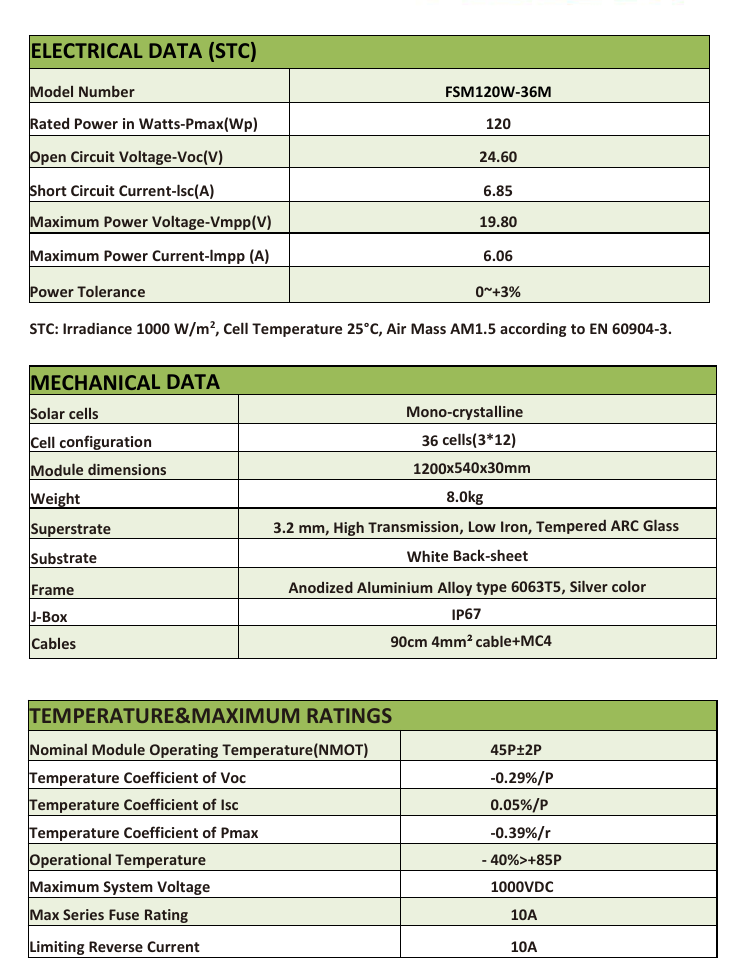

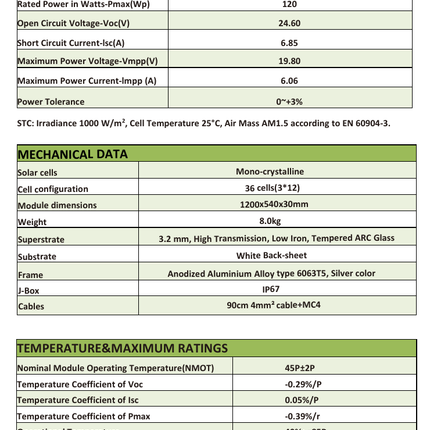

Electrical specifications (STC)
- Model: FSM120W-36M
- Rated maximum power: 120W
- Power tolerance: 0 to +3%
- Maximum power voltage (Vmp): 19.80V
- Maximum power current (Imp): 6.06A
- Open-circuit voltage (Voc): 24.60V
- Short-circuit current (Isc): 6.85A
- Maximum system voltage: 1000V DC
- Maximum series fuse rating: 10A
- Limiting reverse current: 10A
Temperature coefficients and ratings
- Temperature coefficient of Voc: -0.29%/°C
- Temperature coefficient of Isc: +0.05%/°C
- Temperature coefficient of Pmax: -0.39%/°C
- Nominal module operating temperature (NMOT): 45 ± 2°C
- Operating temperature range: -40°C to +85°C
Mechanical specifications
- Cell type: monocrystalline
- Cell configuration: 36 cells (3 × 12)
- Module dimensions: 1200 × 540 × 30 mm
- Weight: 8.0 kg
- Front glass: 3.2 mm high-transmission, low-iron tempered ARC glass
- Backsheet: white
- Frame: silver anodized aluminium alloy 6063-T5
- Junction box: IP67
- Cables: 90 cm, 4 mm² with MC4-compatible connectors
STC: irradiance 1000 W/m², cell temperature 25°C and air mass AM1.5.
