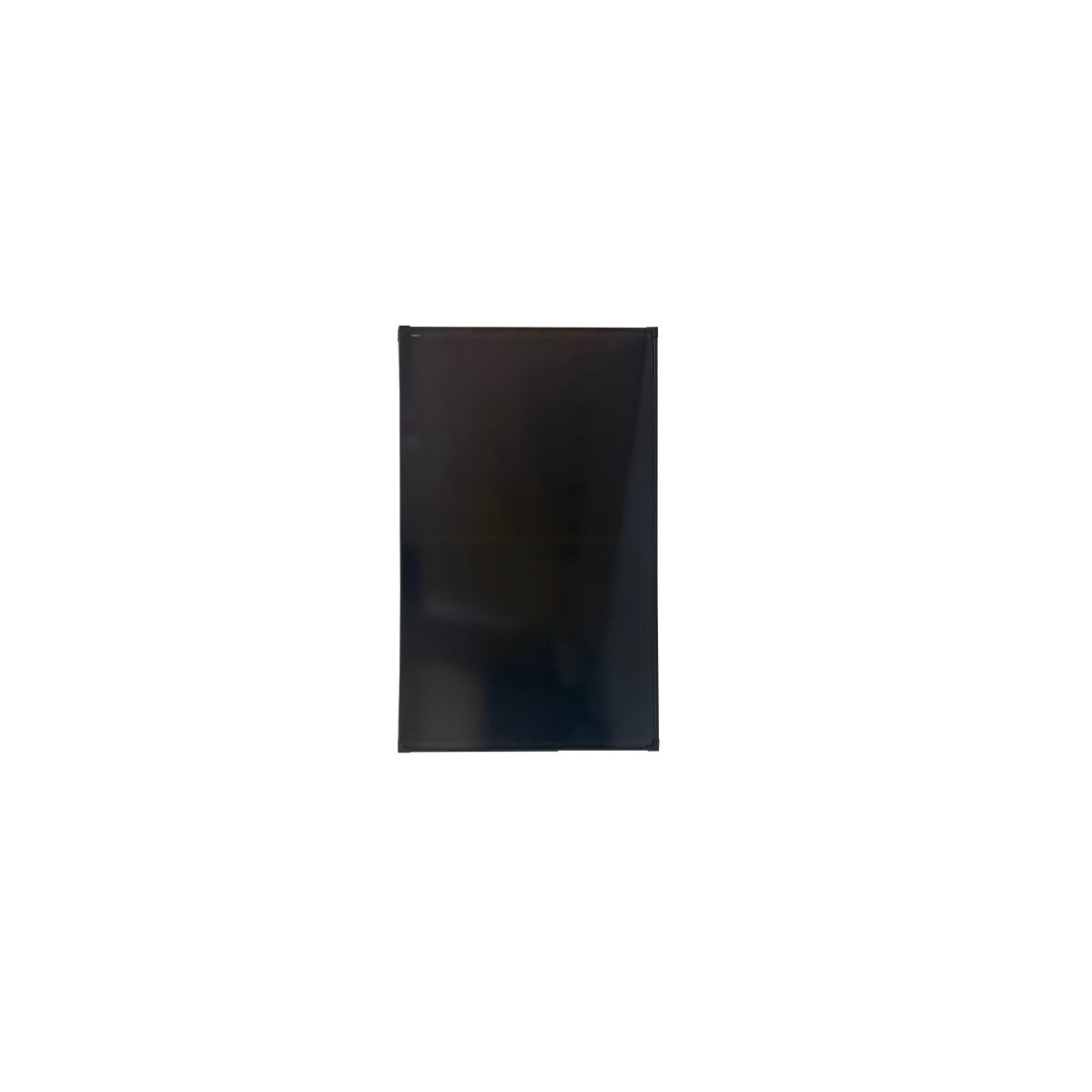

FSM56-225WS 225W BC Solar Panel

Description

High-efficiency 225W back-contact (BC) monocrystalline solar panel for compact solar installations.

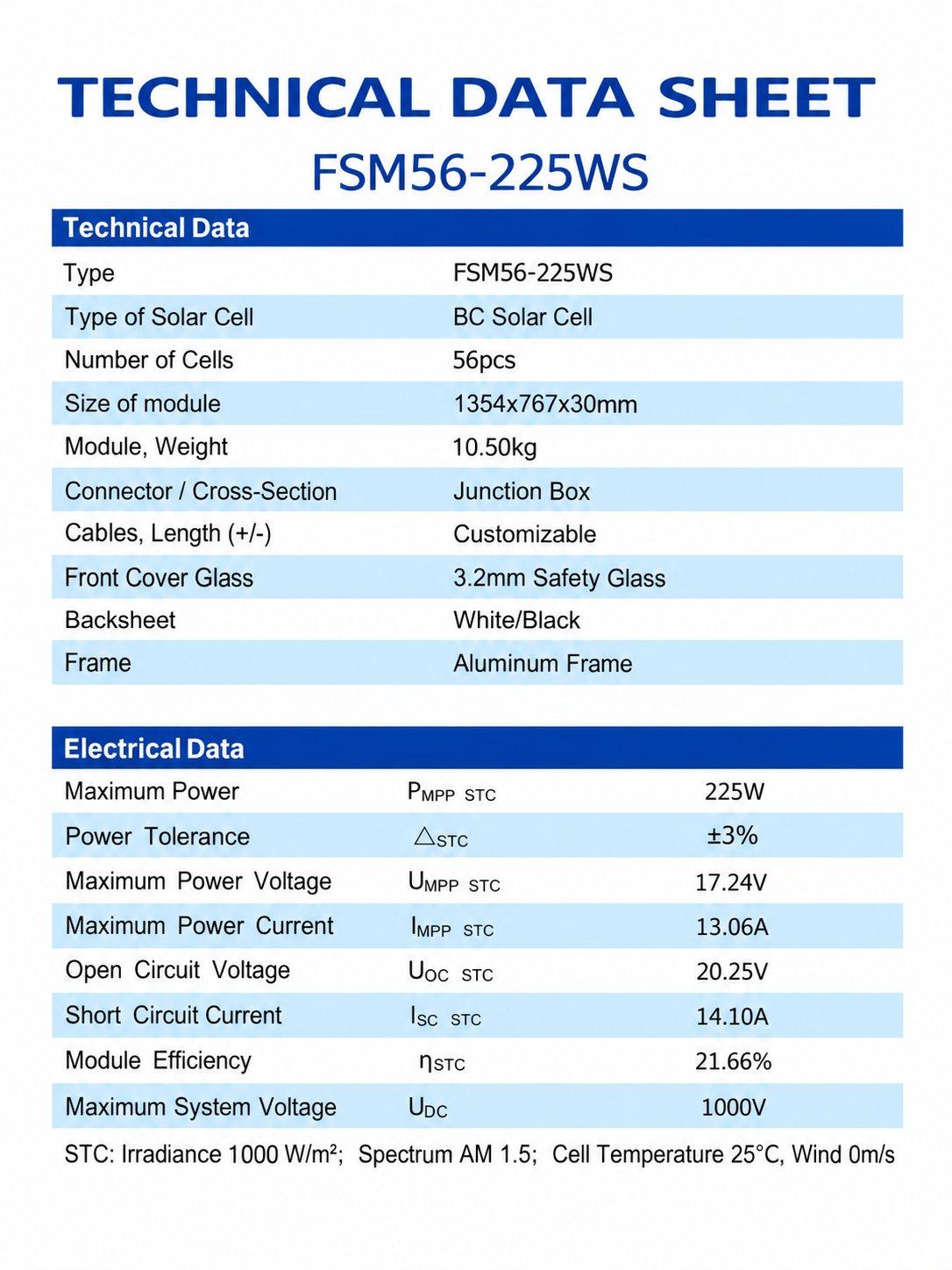

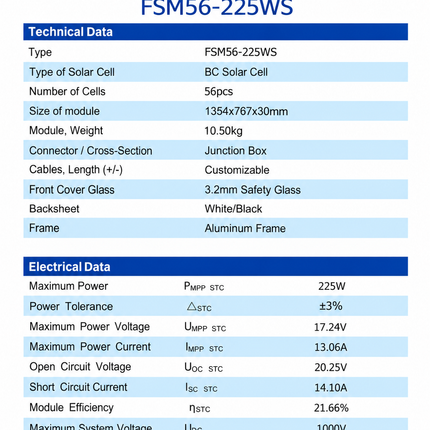

Key specifications
• Model: FSM56-225WS
• Maximum power: 225W
• Solar cell type: BC solar cell, 56 cells
• Module efficiency: 21.66%
• Dimensions: 1354 × 767 × 30 mm
• Weight: 10.50 kg
• Maximum power voltage (Vmp): 17.24V
• Maximum power current (Imp): 13.06A
• Open-circuit voltage (Voc): 20.25V
• Short-circuit current (Isc): 14.10A
• Power tolerance: ±3%
• Maximum system voltage: 1000V
• Front cover: 3.2 mm safety glass
• Frame: Aluminium frame
• Backsheet: White/Black
• Connector: Junction box
• Cable length: Customizable

Warranty
• 10-year performance warranty to 90%
• 25-year performance warranty to 80%
• 12-year warranty against production and material defects

Certifications: IEC 61215, IEC 61730, TÜV, CE, ISO 9001:2000.

FSM56-225WS 225W BC Solar Panel

Product form

SKU: MONO225W

$174.00

Or 4 payments of $43.50 fortnightly with Afterpay

Free pickup in our shop(s)

    • Advanced, Patented Solar Technology
    • No Middlemen - Directly Savings to You
    • Professional Installation & Ongoing Support
    • Price Match Available – Talk to Us

    Description

    High-efficiency 225W back-contact (BC) monocrystalline solar panel for compact solar installations.

    Key specifications
    • Model: FSM56-225WS
    • Maximum power: 225W
    • Solar cell type: BC solar cell, 56 cells
    • Module efficiency: 21.66%
    • Dimensions: 1354 × 767 × 30 mm
    • Weight: 10.50 kg
    • Maximum power voltage (Vmp): 17.24V
    • Maximum power current (Imp): 13.06A
    • Open-circuit voltage (Voc): 20.25V
    • Short-circuit current (Isc): 14.10A
    • Power tolerance: ±3%
    • Maximum system voltage: 1000V
    • Front cover: 3.2 mm safety glass
    • Frame: Aluminium frame
    • Backsheet: White/Black
    • Connector: Junction box
    • Cable length: Customizable

    Warranty
    • 10-year performance warranty to 90%
    • 25-year performance warranty to 80%
    • 12-year warranty against production and material defects

    Certifications: IEC 61215, IEC 61730, TÜV, CE, ISO 9001:2000.
