Description

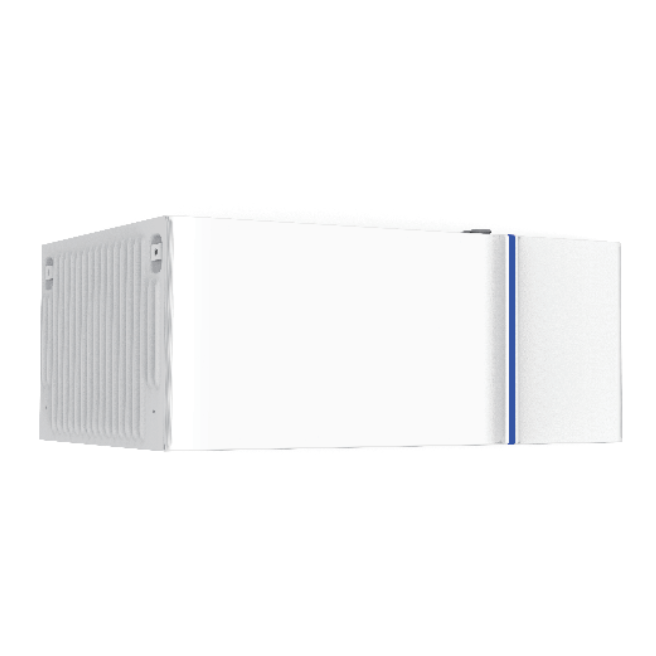

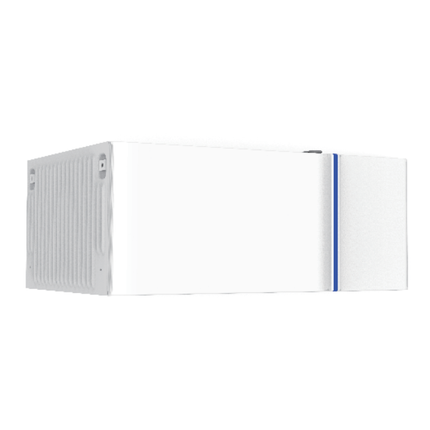

Deye ESS GB-L-Pro-Pack4.1-2 4kWh High Voltage Storage Battery Module
Deye GB-L-Pro high-voltage stack residential energy storage battery, with cable-free stacking for high efficiency & easy installation, all-round safety protection, IP65 durability & corrosion resistance, wide-temperature intelligent management, an ideal choice for household solar energy storage.
Features:

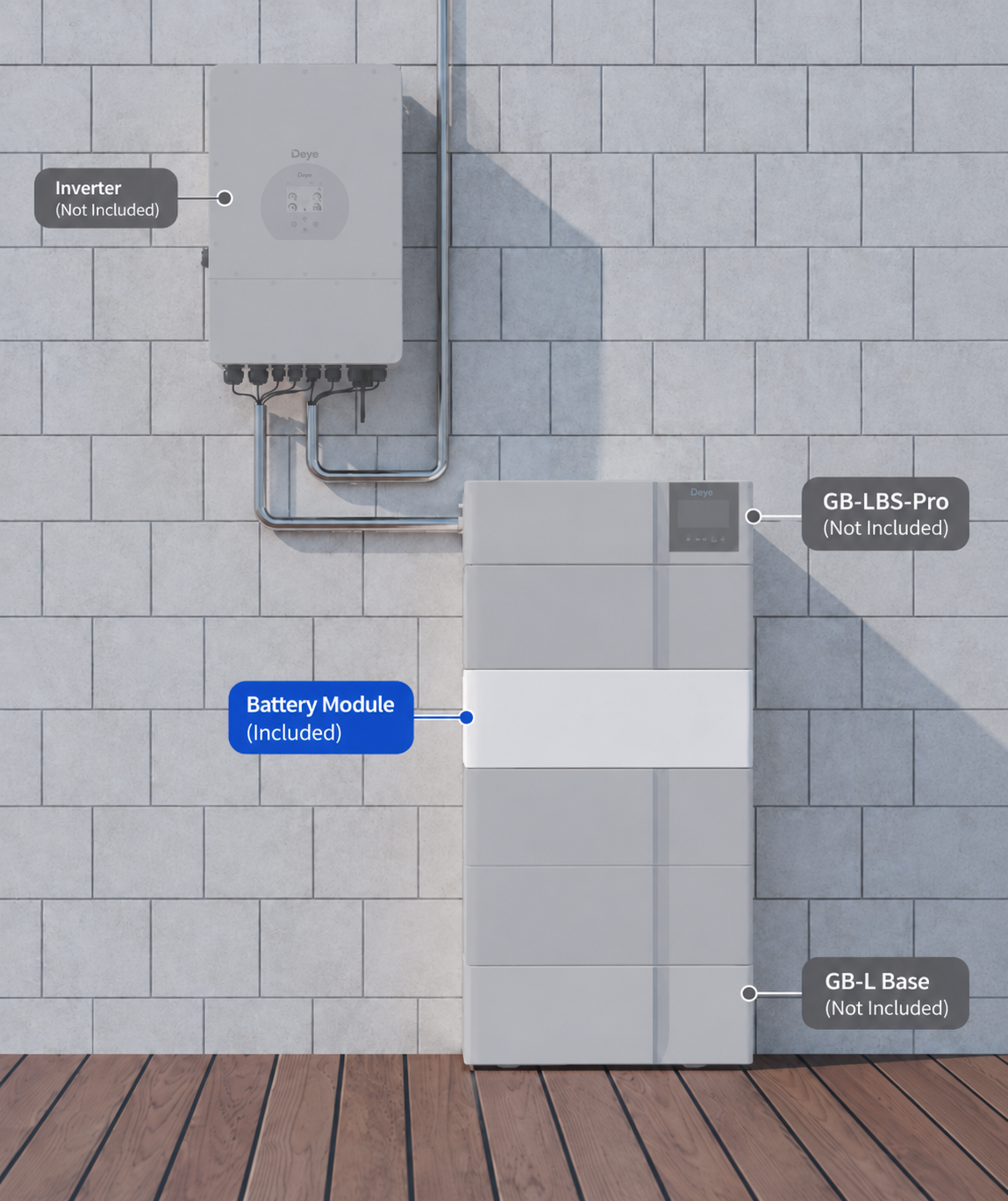

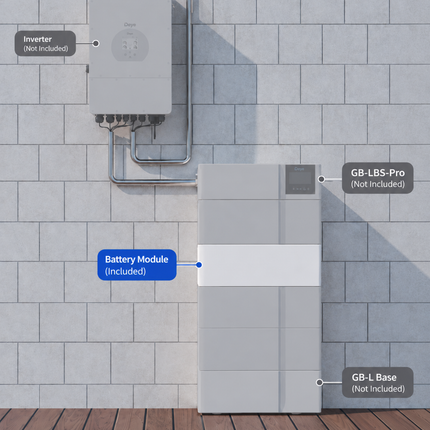

High-voltage Stack Design
All-Round Safety: Built in explosion relief device to dredge gas, and built in fire protection device to cut off the fire source within 3 seconds.
Built for Durability: IP65 protection, ≥C2 anti-corrosion design deliver long-term durability.
Thermal Management: Intelligent temperature sensing across core components ensures stable, reliable performance.
Wide Temperature Operation: Low-temperature battery cell enables reliable performance in environments below –20°C.
Smart & Visible Management: Real-time alerts, remote upgrades, and an intuitive LCD interface keep the system always under control.

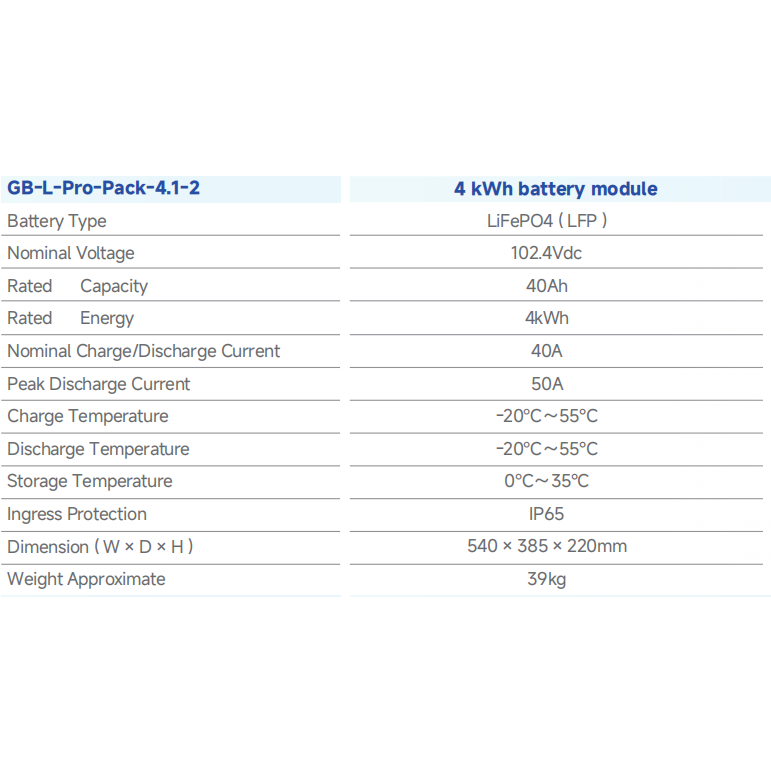

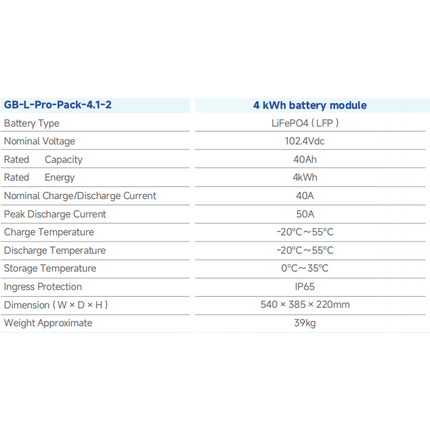

4 kWh battery module Model: GB-L-Pro-Pack4.1-2
Battery Type: LiFePO4
Nominal Voltage: 102.4Vdc
Rated Capacity: 40Ah
Rated Energy: 4kWh
Nominal Charge/Discharge Current: 40A
Peak Discharge Current: 50A
Charge/DisCharge Temperature: -20℃～55°C
Storage Temperature: 0℃～35°C
Ingress Protection: IP65
Dimension (W/D/H, mm): 540 × 385 × 220mm
Weight (kg): 39kg
**10 Years Warranty**
**This listing is for 1 battery module only.**
Downloads
Download Deye GB-L-Pro Series Datasheet (PDF)
