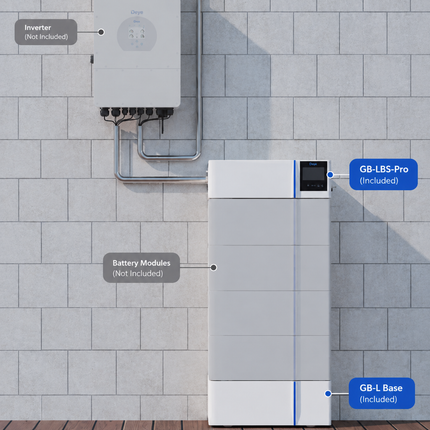

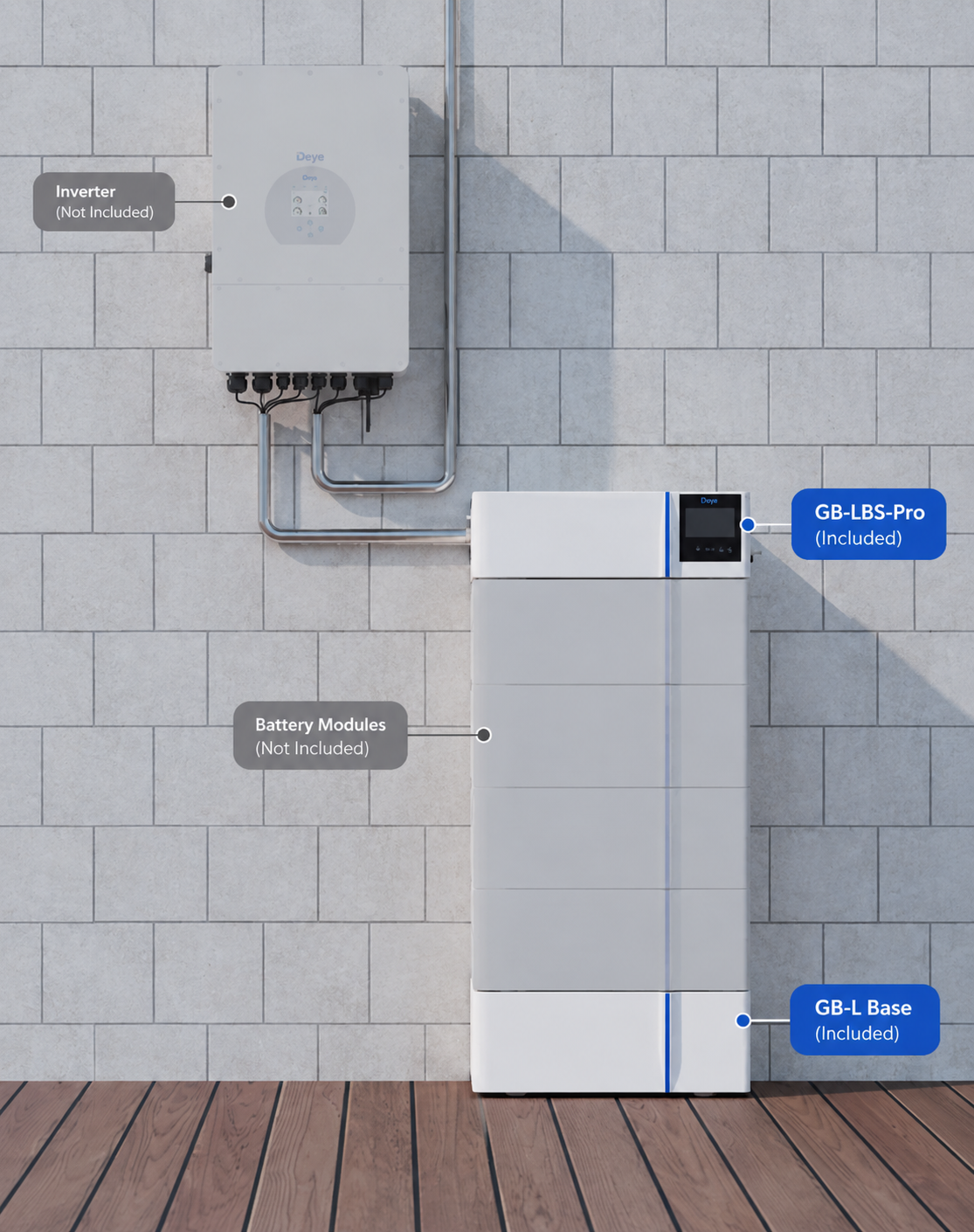

Deye ESS GB-LBS-Pro High voltage battery cluster control box with Base
Deye GB-L-Pro high-voltage stack residential energy storage battery, with cable-free stacking for high efficiency & easy installation, all-round safety protection, IP65 durability & corrosion resistance, wide-temperature intelligent management, an ideal choice for household solar energy storage.
Features:
High-voltage Stack Design
All-Round Safety: Built in explosion relief device to dredge gas, and built in fire protection device to cut off the fire source within 3 seconds.
Built for Durability: IP65 protection, ≥C2 anti-corrosion design deliver long-term durability.
Thermal Management: Intelligent temperature sensing across core components ensures stable, reliable performance.
Wide Temperature Operation: Low-temperature battery cell enables reliable performance in environments below –20°C.
Smart & Visible Management: Real-time alerts, remote upgrades, and an intuitive LCD interface keep the system always under control.

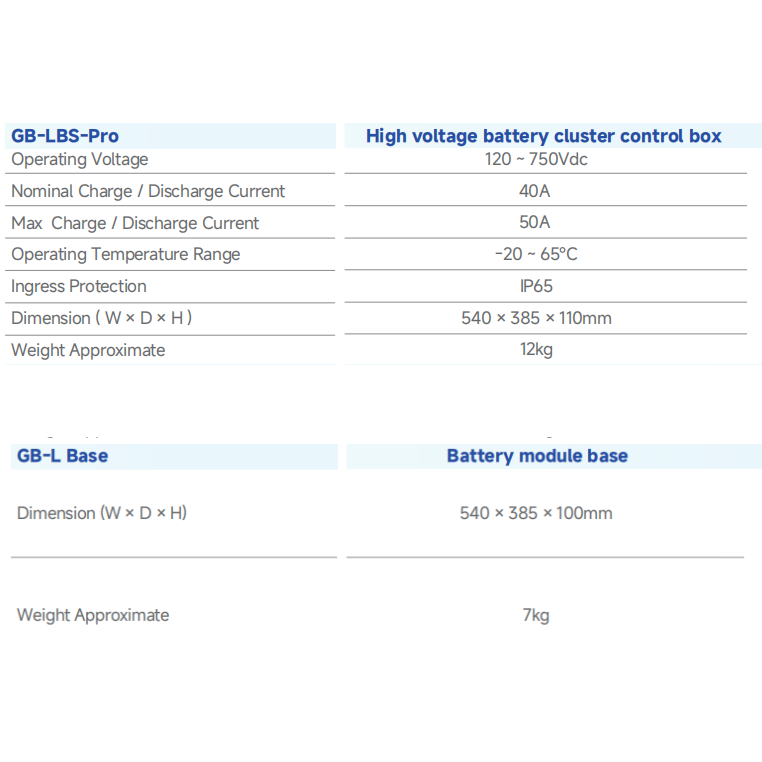

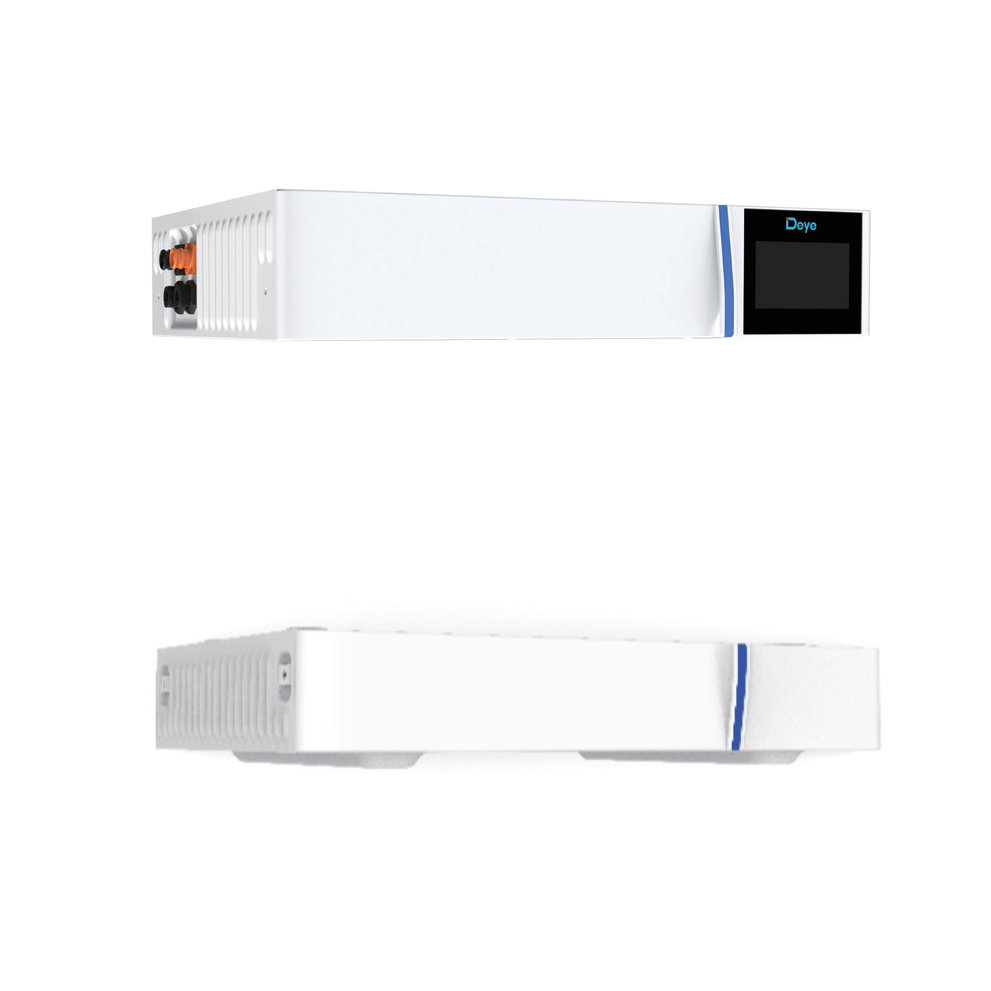

Model: GB-LBS-Pro
Operating Voltage: 120 ~ 750Vdc
Nominal Charge / Discharge Current: 40A
Max Charge / Discharge Current: 50A
Operating Temperature Range: -20 ~ 65°C
Ingress Protection: IP65
Dimension ( W × D × H ): 540 × 385 × 110mm
Weight Approximate:12kg
Model: GB-L Base
Dimension (W × D × H): 540 × 385 × 100mm
Weight Approximate: 7kg
**10 Years Warranty**
**This listing includes only the battery control box and base; the battery is not included.**
Downloads
Download Deye GB-L-Pro Series Datasheet (PDF)
