Description

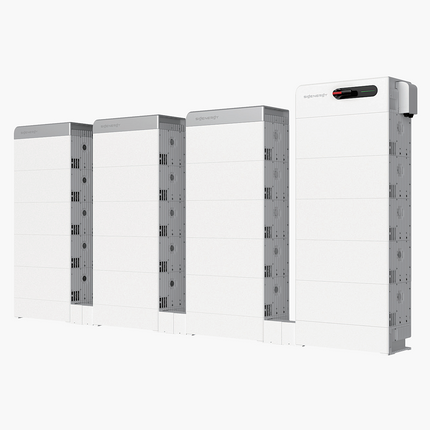

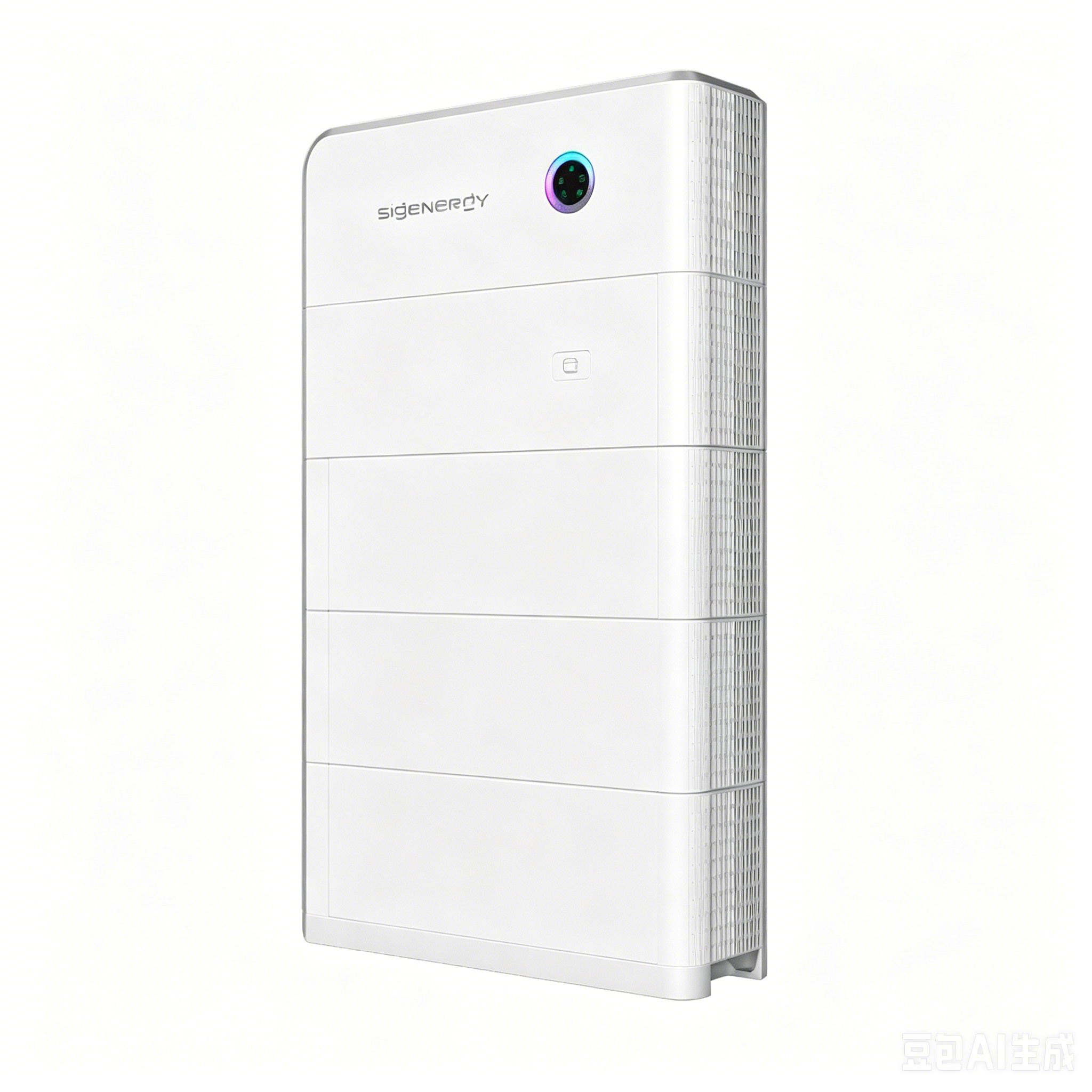

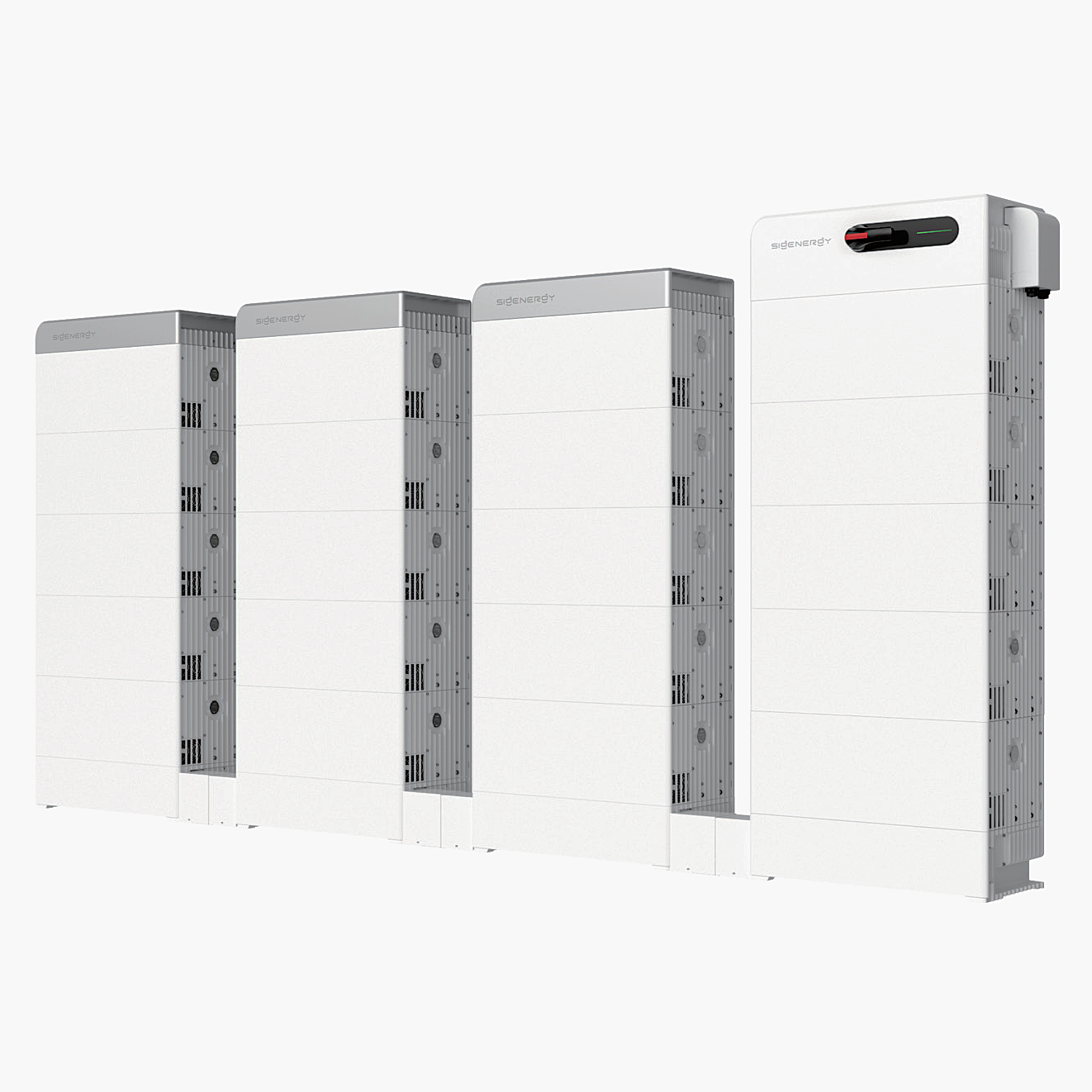

Sigenergy Innovative modular energy storage system 12KWh 314Ah Stackable LiFePO4 Battery Module with LED

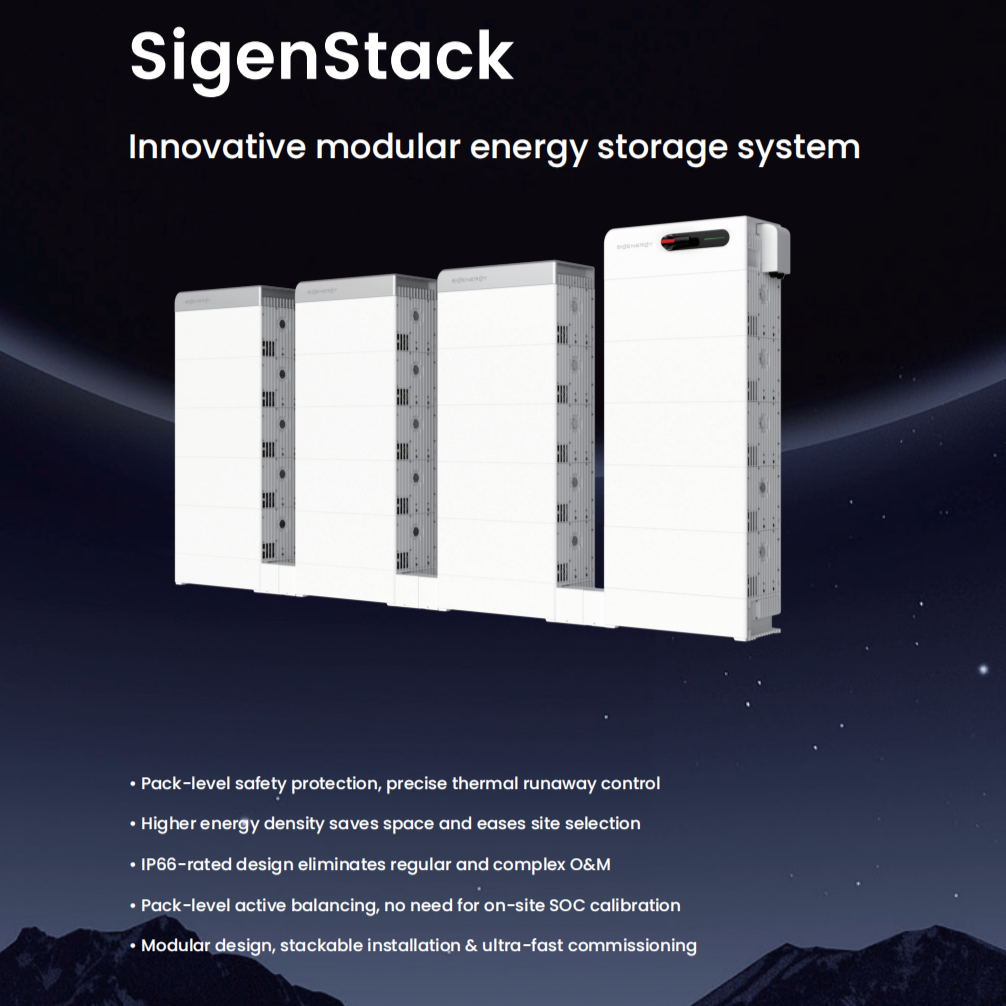

Sigenergy's latest modular BESS solution, SigenStack, offers a flexible, reliable and scalable option for commercial applications. Its innovative modular design simplifies site selection, system placement and installation. With complete pack-level safety management, everything is under control.
Pack-level safety protection, precise thermal runaway control.
Higher energy density saves space and eases site selection.
IP66-rated design eliminates regular and complex O&M.
Pack-level active balancing, no need for on-site SOC calibration.
Modular design, stackable installation & ultra-fast commissioning.

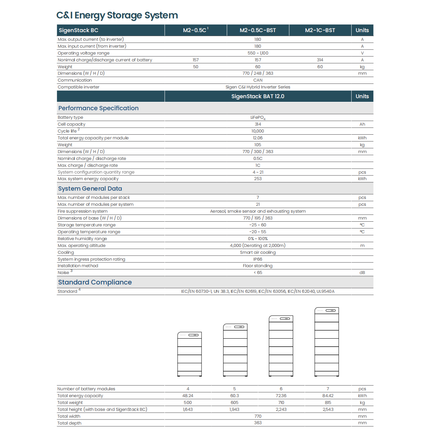

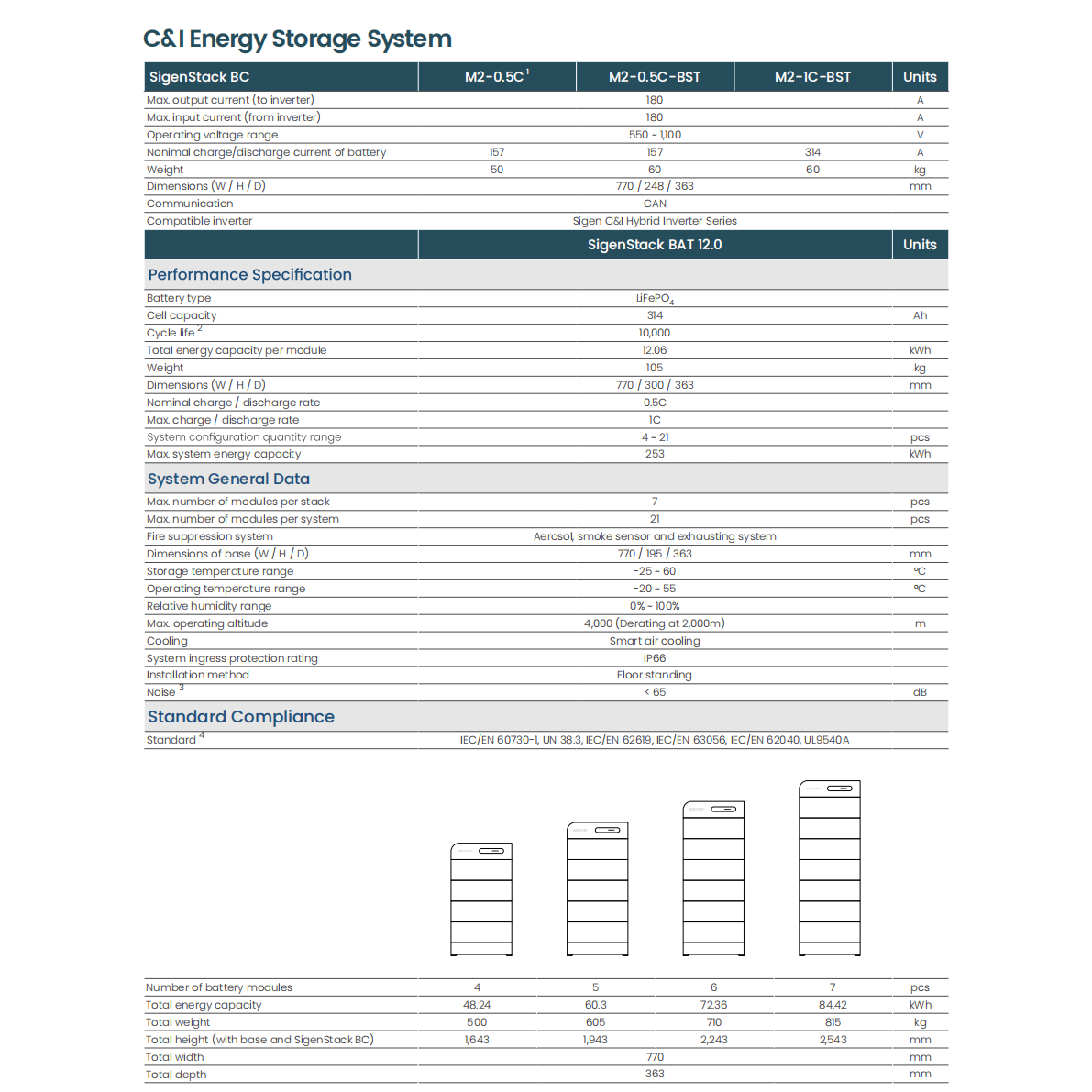

- Performance Specifications:
- Model: SigenStack BAT 12.0
- Battery type: LiFePO4
- Cell capacity: 314Ah
- Cycle life: 10000
- Total energy capacity per module: 12.06KWh
- Weight: 105kg
- Dimensions (W / H / D): 770 / 300 / 363mm
- Nominal charge / discharge rate: 0.5C
Max. charge / discharge rate: 1C
- System Configuration quantity range: 4 - 21pcs
Max. system energy capacity: 253kWh
Max. number of modules per stack: 7pcs
Max. number of modules per system: 21pcs
- Dimensions (W / H / D): 770 / 195 / 363mm
- Storage temperature range: -25 - 60 °C
- Operating temperature range: -20 - 55 °C
- Relative humidity range: 0% - 100%
Max. operating altitude: 4000m(Derating at 2,000m)
- Cooling: Smart air cooling
- System ingress protection rating: IP66
- Installation method: Floor standing
- Noise: < 65dB
Innovative modular BESS features superior safety, high precision and outstanding cost-effectiveness. Its zero-maintenance operation makes it an ideal choice for energy storage investment.
