Description
Sigenergy Battery Module 6KWh 314Ah Energy Storage 5-in-One LiFePO4 Battery Module with LED

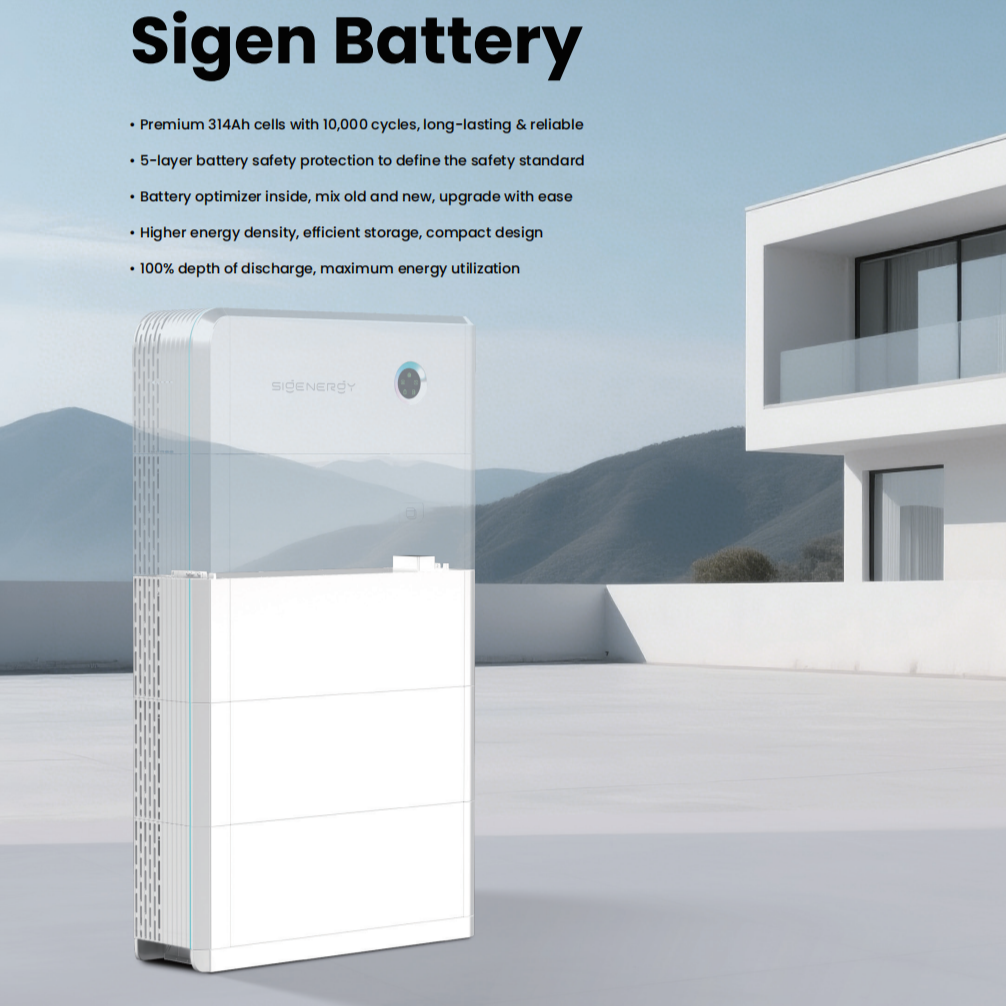

SigenStor is an AI-optimized 5-in-one energy storage system that brings your solar dream to reality, helping you achieve energy independence with maximum efficiency, savings, flexibility and resilience.
Premium 314Ah cells with 10,000 cycles, long-lasting and reliable.
5-layer battery safety protection to define the safety standard.
Battery optimizer inside, mix old and new, upgrade with ease.
Higher energy density, efficient storage, compact design.
100% depth of discharge, maximum energy utilization.

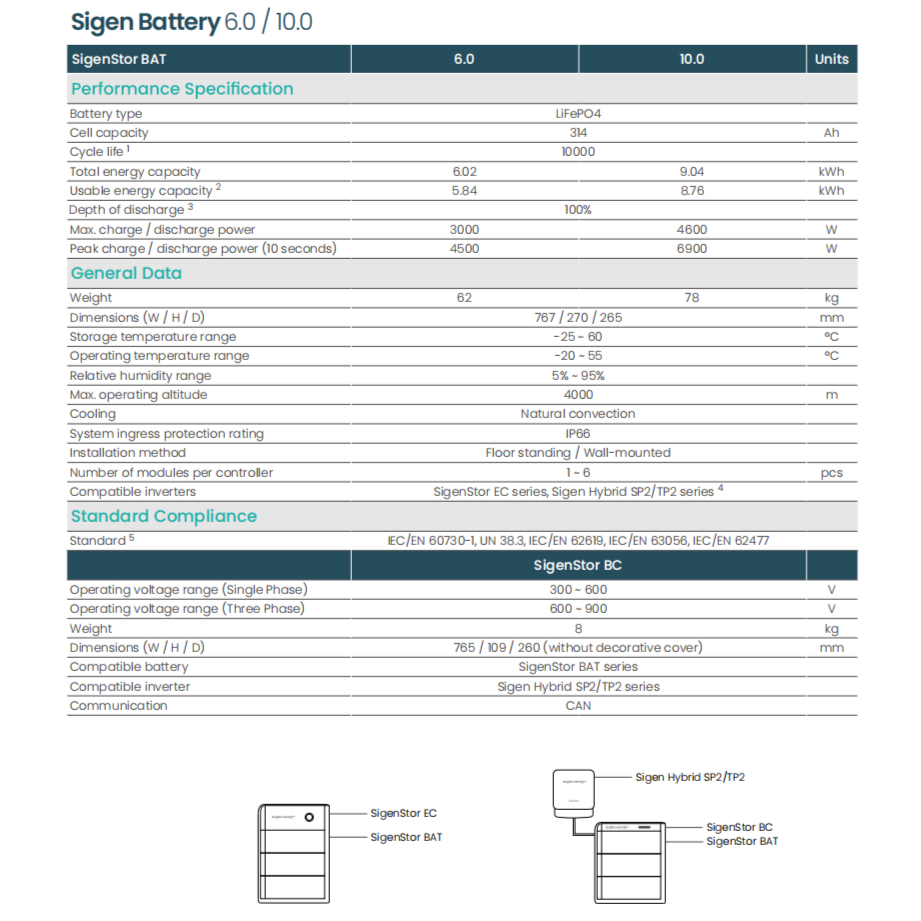

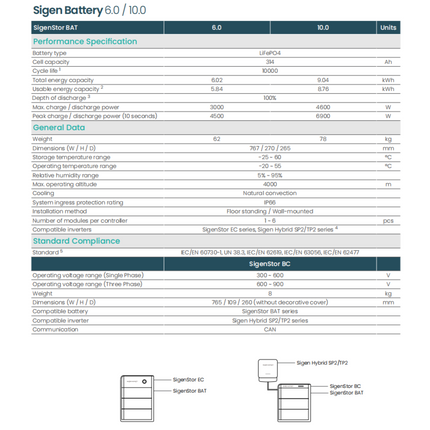

- Performance Specifications:
- Model: SigenStor BAT 6.0
- Battery type: LiFePO4
- Cell capacity: 314Ah
- Cycle life: 10000
- Total energy capacity: 6.02KWh
- Usable energy capacity: 5.84KWh
- Depth of discharge: 100%
Max. charge / discharge power: 3000W
Peak charge / discharge power (10 seconds): 4500W
- General Data:
- Weight: 62kg
- Dimensions (W / H / D): 767 / 270 / 265mm
- Storage temperature range: -25 - 60 °C
- Operating temperature range: -20 - 55 °C
- Relative humidity range: 5% ~ 95%
Max. operating altitude: 4000m
- Cooling: Natural convection
- System ingress protection rating: IP66
- Installation method: Floor standing / Wall-mounted
- Number of modules per controller: 1 ~ 6 pcs
- Compatible inverters: SigenStor EC series, Sigen Hybrid SP2/TP2 series
Integrating Solar Inverter, EV DC Charger, Battery PCS, Battery Pack, and EMS into one powerful energy system - this is our revolutionary 5-in-One Home ESS.Simplified to give you a smart and seamless experience. Versatile in nature, caters to every energy usage scenario. Stylish front eagle eye and side ambient lighting design blend elegantly with any surroundings. SigenStor complements a variety of home styles perfectly.
