Description

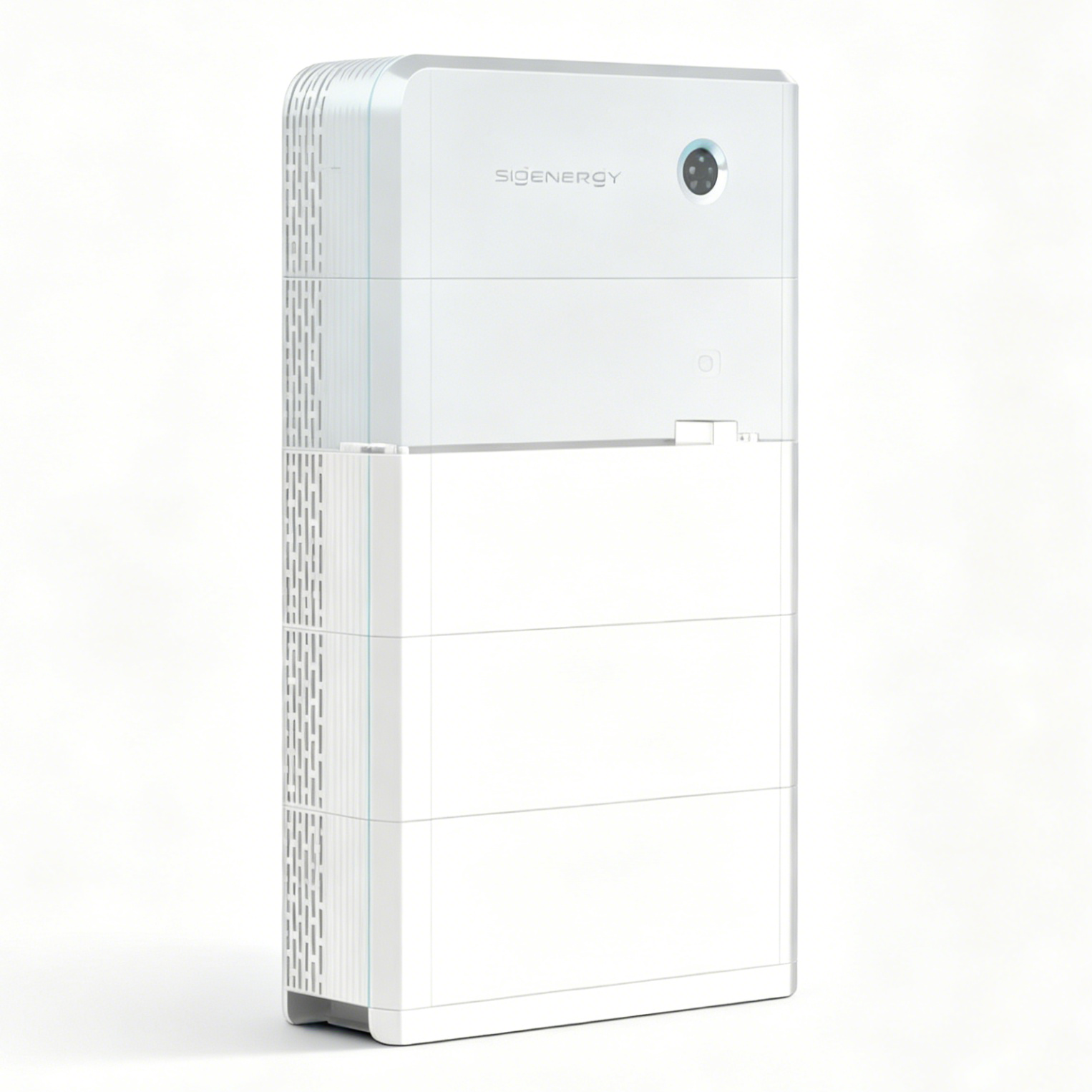

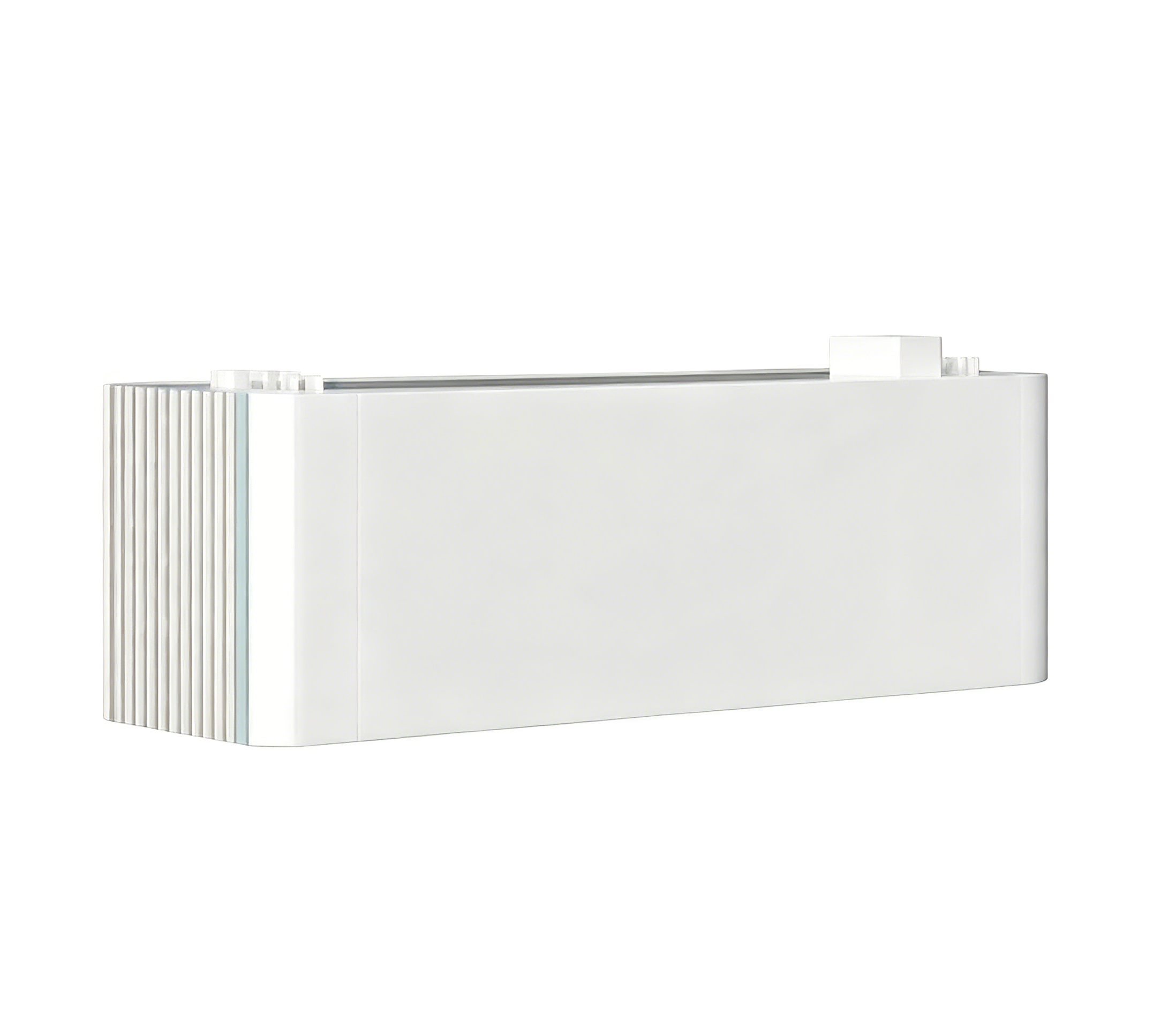

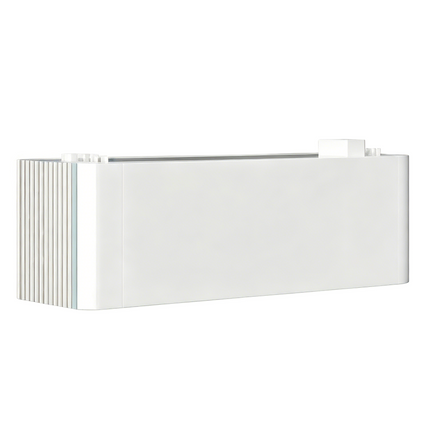

Sigenergy Modular Energy Storage System 8KWh 280Ah LiFePO4 Battery Module with LED
Sigenergy's latest modular BESS solution, SigenStack, offers a flexible, reliable and scalable option for commercial applications. Its innovative modular design simplifies site selection, system placement and installation. With complete pack-level safety management, everything is under control.
Premium 280Ah cells with 10,000 cycles, long-lasting & reliable.
5-layer battery safety protection to define the safety standard.
Battery optimizer inside, mix old and new, upgrade with ease.
Higher energy density, efficient storage, compact design.
100% depth of discharge, maximum energy utilization.

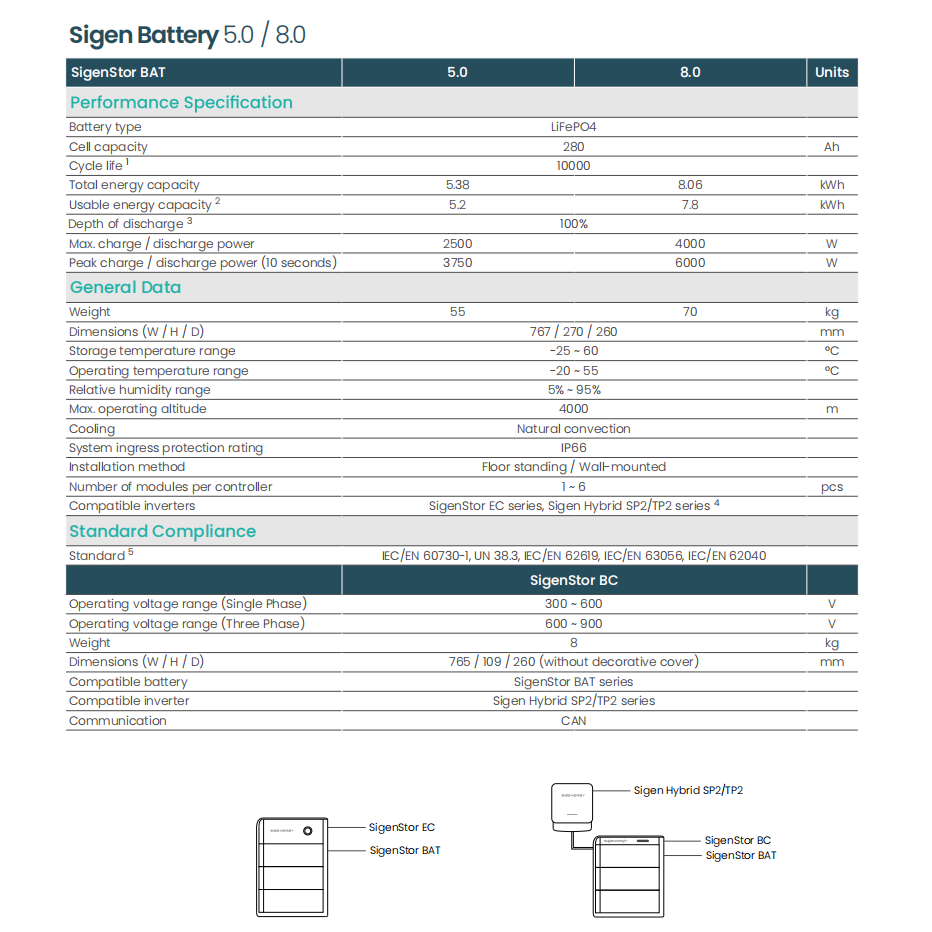

- Performance Specifications:
- Model: SigenStor BAT 8.0
- Battery type: LiFePO4
- Cell capacity: 280Ah
- Cycle life: 10000
- Total energy capacity: 8.06KWh
- Usable energy capacity: 7.8KWh
- Depth of discharge: 100%
Max. charge / discharge power: 4000W
Peak charge / discharge power (10 seconds): 6000W
- General Data:
- Weight: 70kg
- Dimensions (W / H / D): 767 / 270 / 260mm
- Storage temperature range: -25 - 60 °C
- Operating temperature range: -20 - 55 °C
- Relative humidity range: 5% - 95%
Max. operating altitude: 4000m
- Cooling: Natural convection
- System ingress protection rating: IP66
- Installation method: Floor standing / Wall-mounted
- Number of modules per controller: 1 ~ 6 pcs
- Compatible inverters: SigenStor EC series, Sigen Hybrid SP2/TP2 series
Innovative modular BESS features superior safety, high precision and outstanding cost-effectiveness. Its zero-maintenance operation makes it an ideal choice for energy storage investment.
