Description

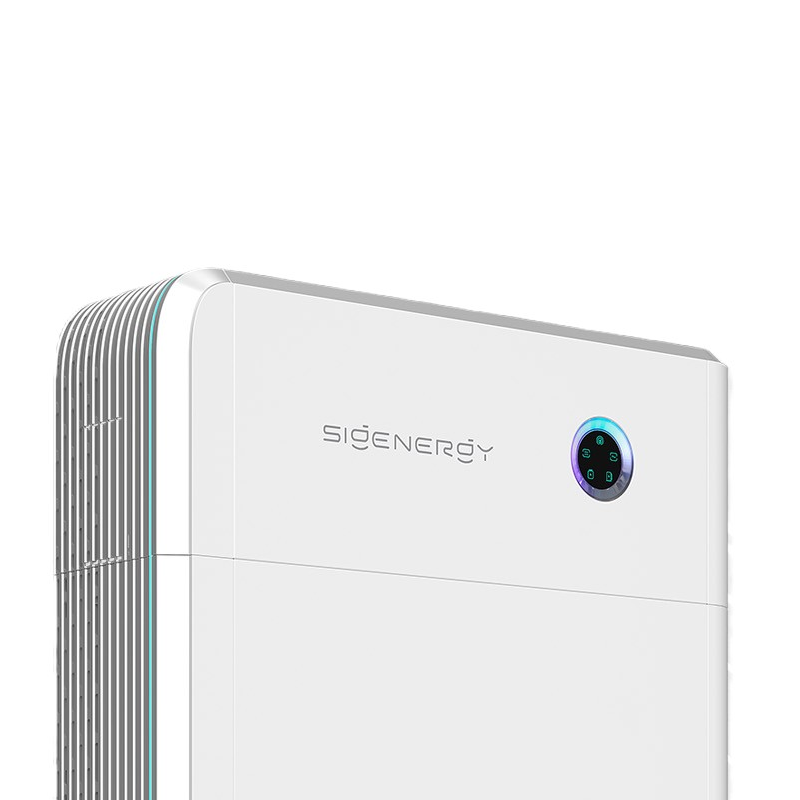

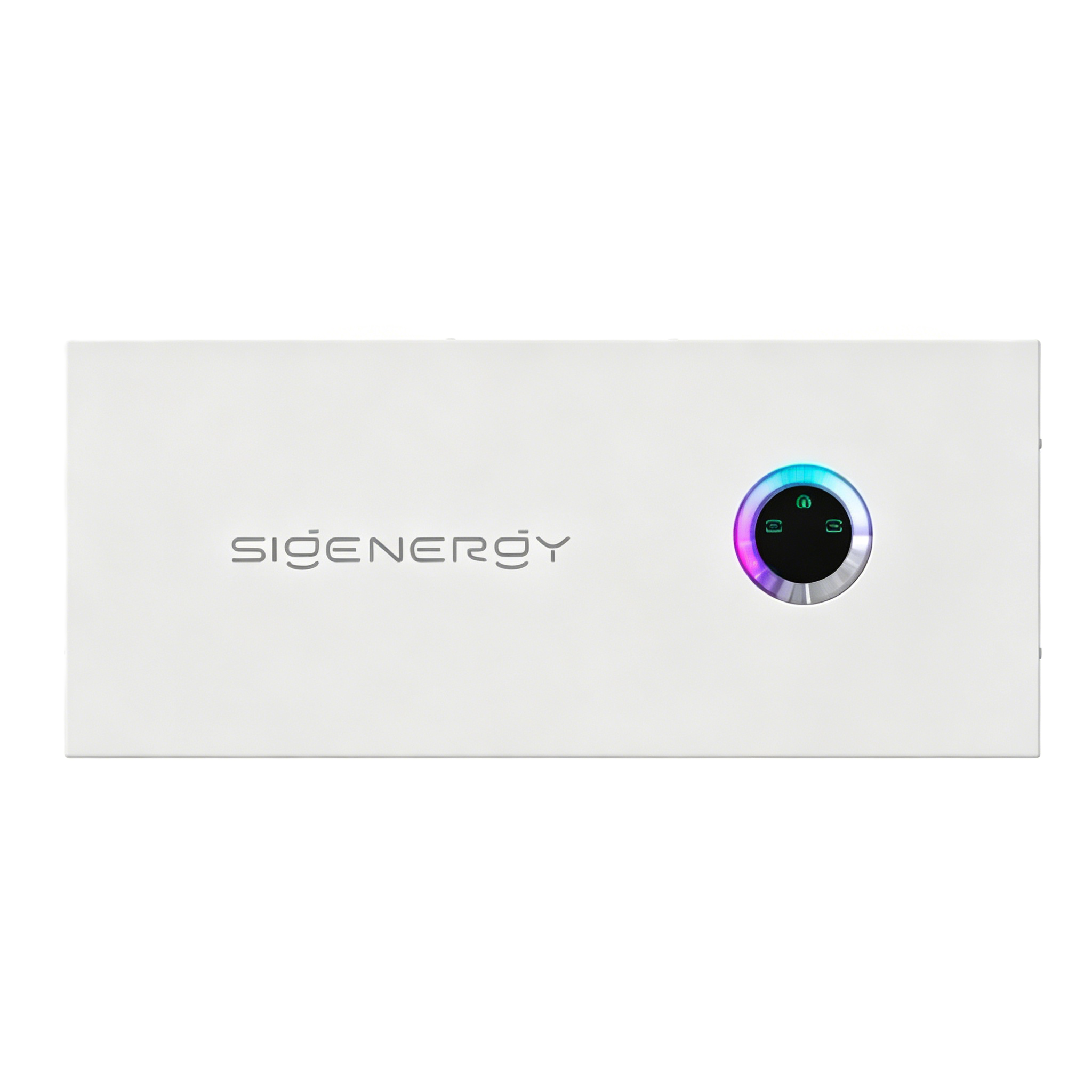

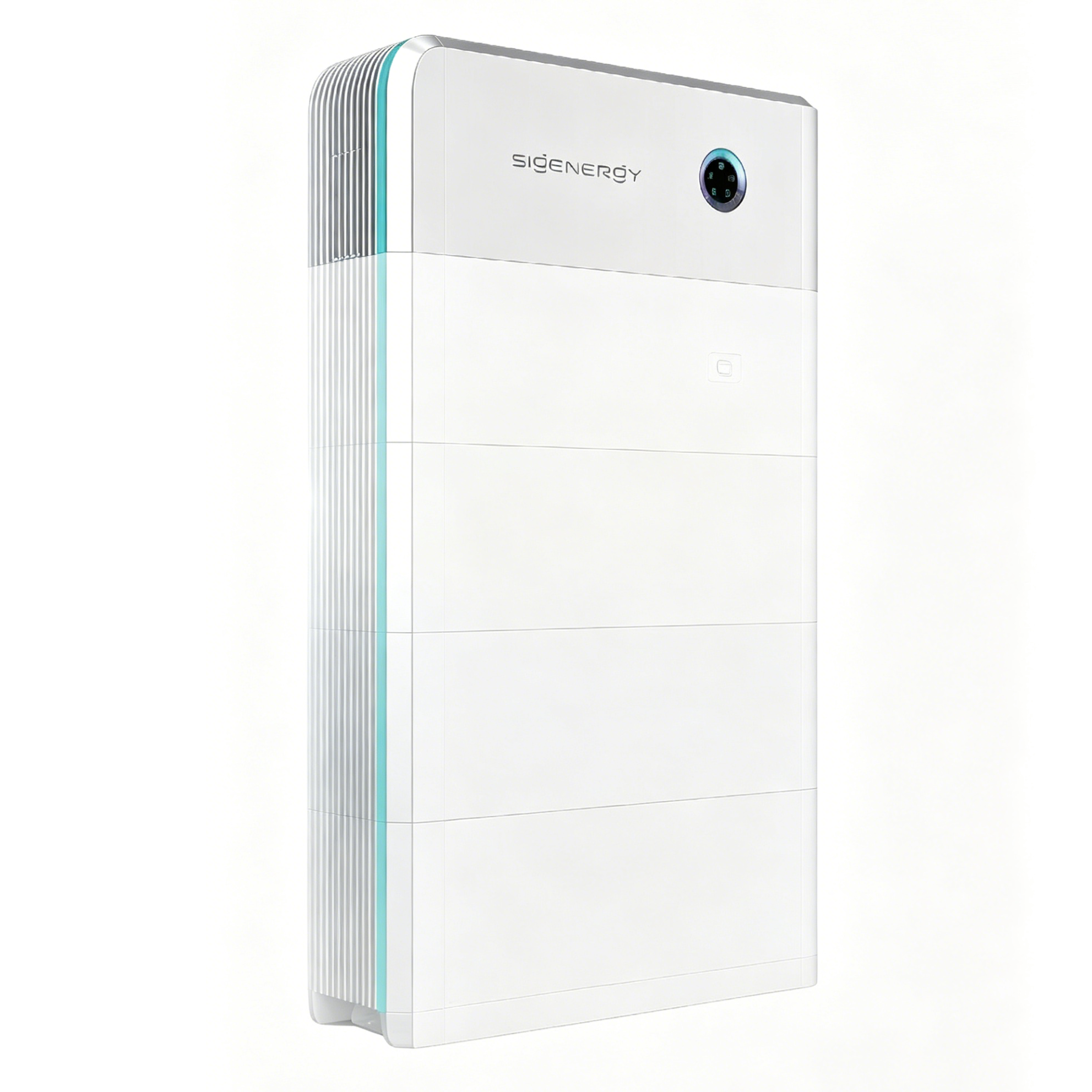

Sigenergy 10KW 14.4A Three Phase Energy Controller Inverter SigenStor EC 10.0TP
SigenStor is an AI-optimized 5-in-one energy storage system that brings your solar dream to reality, helping you achieve energy independence with maximum efficiency, savings, flexibility and resilience.
Features
EMS-integrated intelligent management for precision control.
Unbalanced 3-phase power output, ensuring efficient operation.
200% peak output power in off-grid mode, instant high-power boost.
Up to 4 MPP trackers for maximum solar energy extraction.

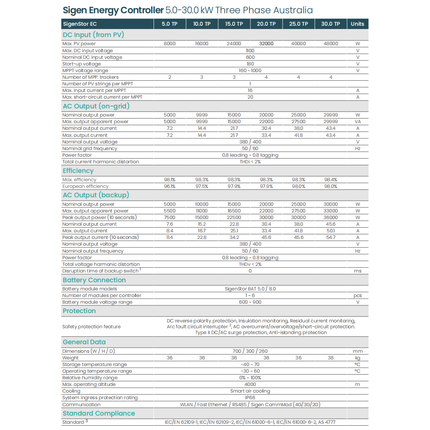

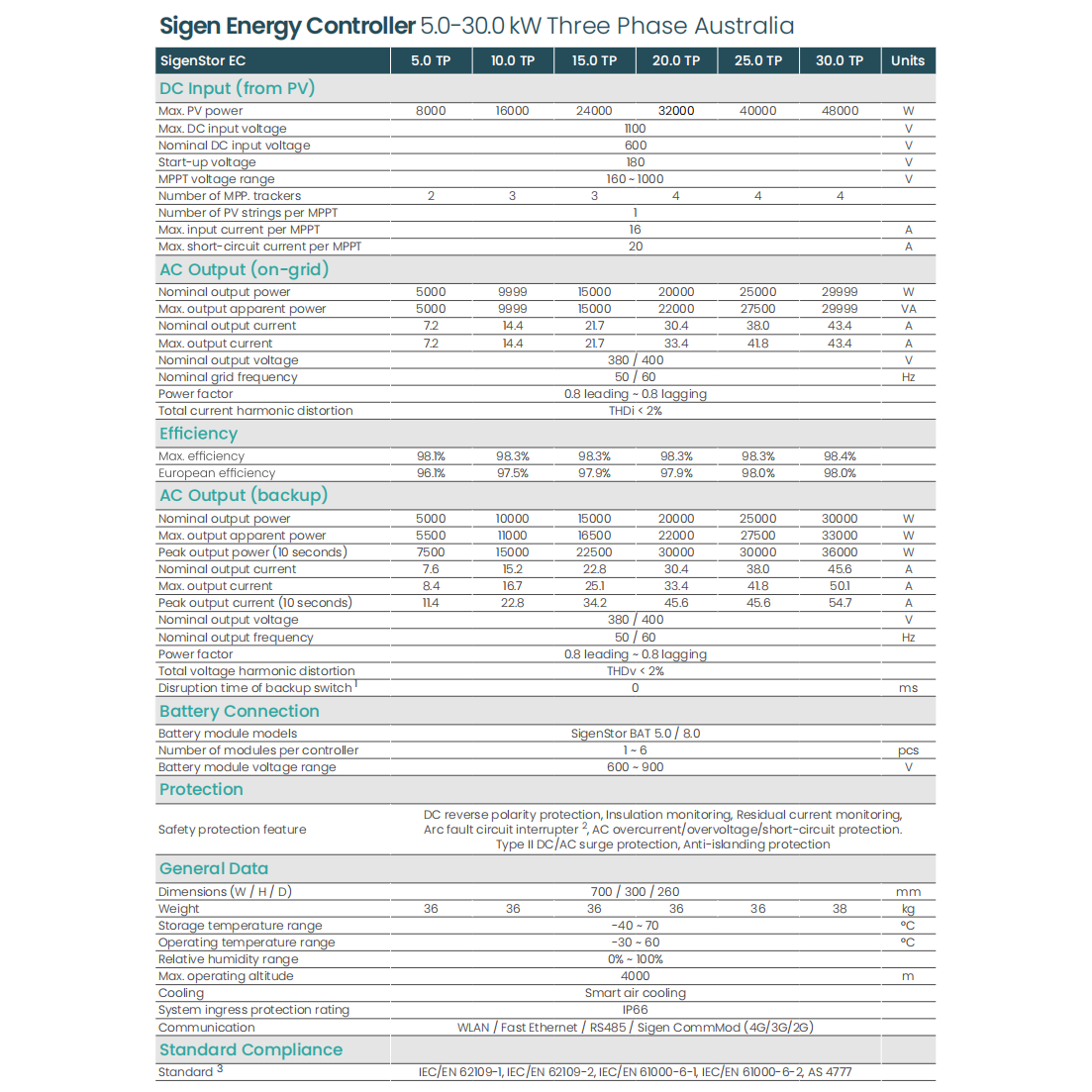

Specifications
Max. PV power: 16000W
Max. DC input voltage: 1100V
- Nominal DC input voltage: 600V
- Start-up voltage: 180V
- MPPT voltage range: 160 - 1000V
Number of MPP. trackers: 3
- Number of PV strings per MPPT: 1
Max. input current per MPPT: 16 A
Max. short-circuit current per MPPT: 20A
- AC Output (on - grid):
- Nominal output power: 9999W
Max. output apparent power: 9999VA
- Nominal output current: 14.4A
Max. output current: 14.4A
- Nominal output voltage: 380 / 400V
- Nominal grid frequency: 50 / 60Hz
- Power factor: 0.8 leading - 0.8 lagging
- Total current harmonic distortion: THDi < 2%
- General Data:
- Dimensions (W / H / D): 700 / 300 / 260mm
- Weight: 36kg
- Storage temperature range: -40 - 70°C
- Operating temperature range: -30 - 60°C
- Relative humidity range: 0% - 100%
Max. operating altitude: 4000m
- Cooling: Smart air cooling
- System ingress protection rating: IP66
- Communication: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)
- Warranty: 5 years
