Description

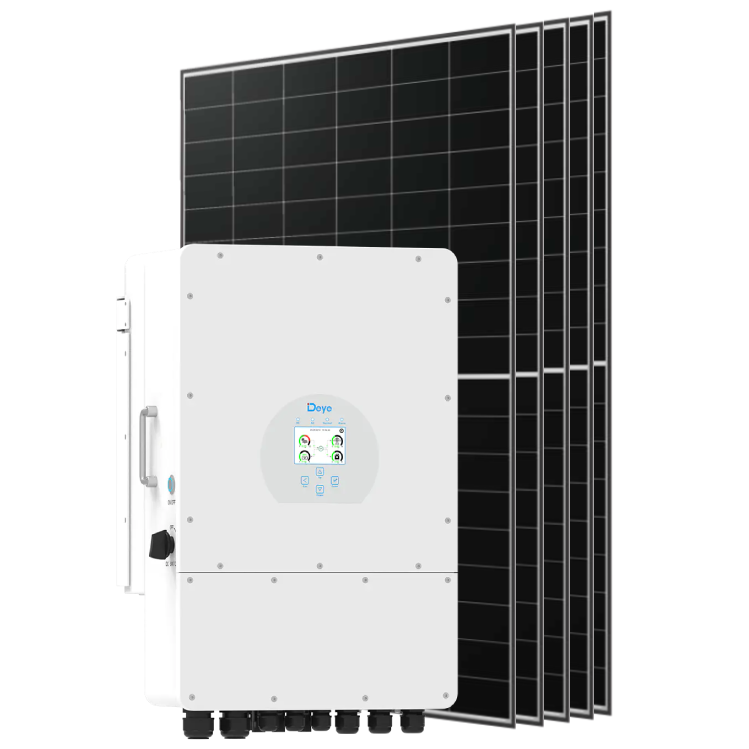

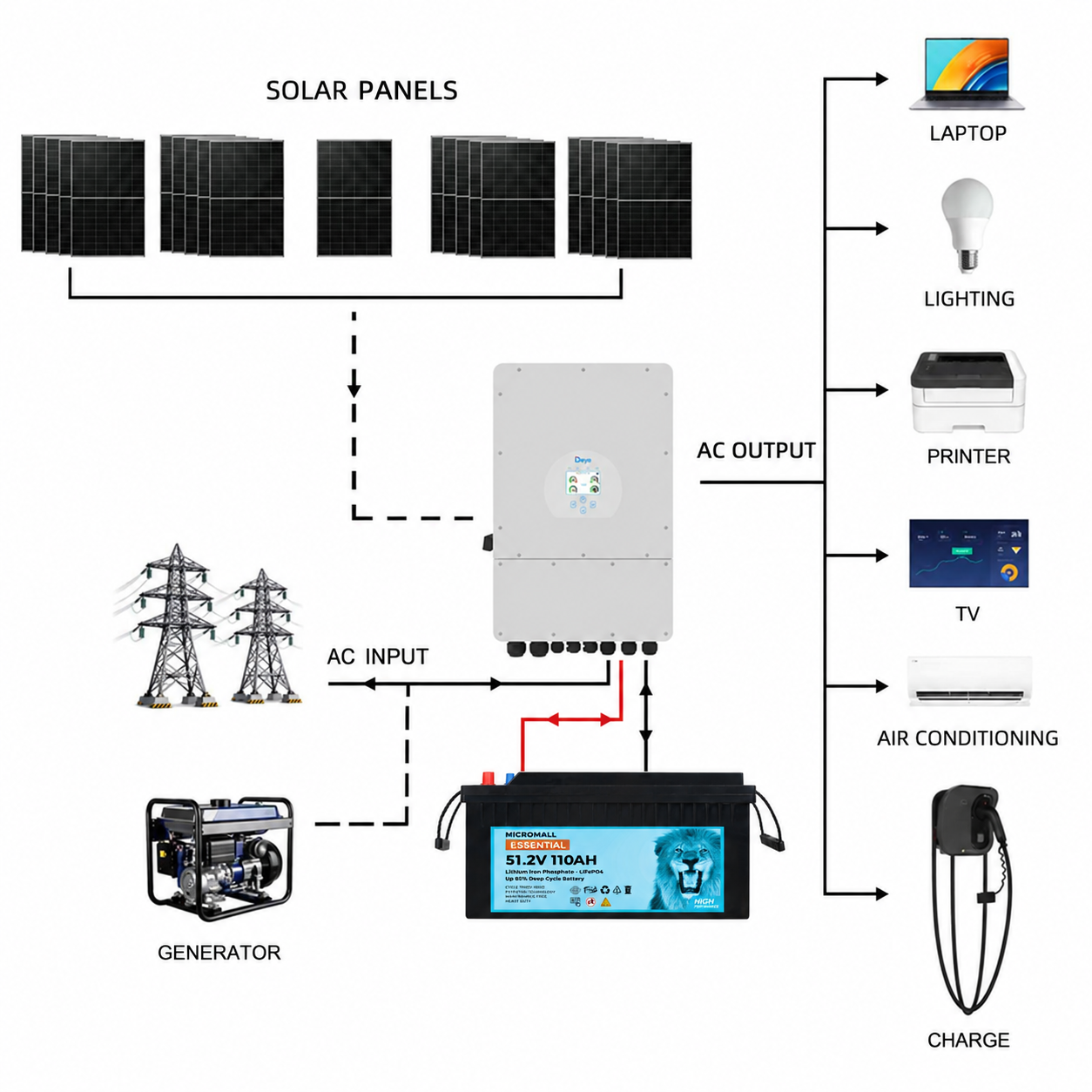

Deye SUN-10K-SG04LP3-AU 10kW Three-Phase IP65 Hybrid Solar System with 22 Gokin 480W panels and a Micromall 5kWh LiFePO4 battery.

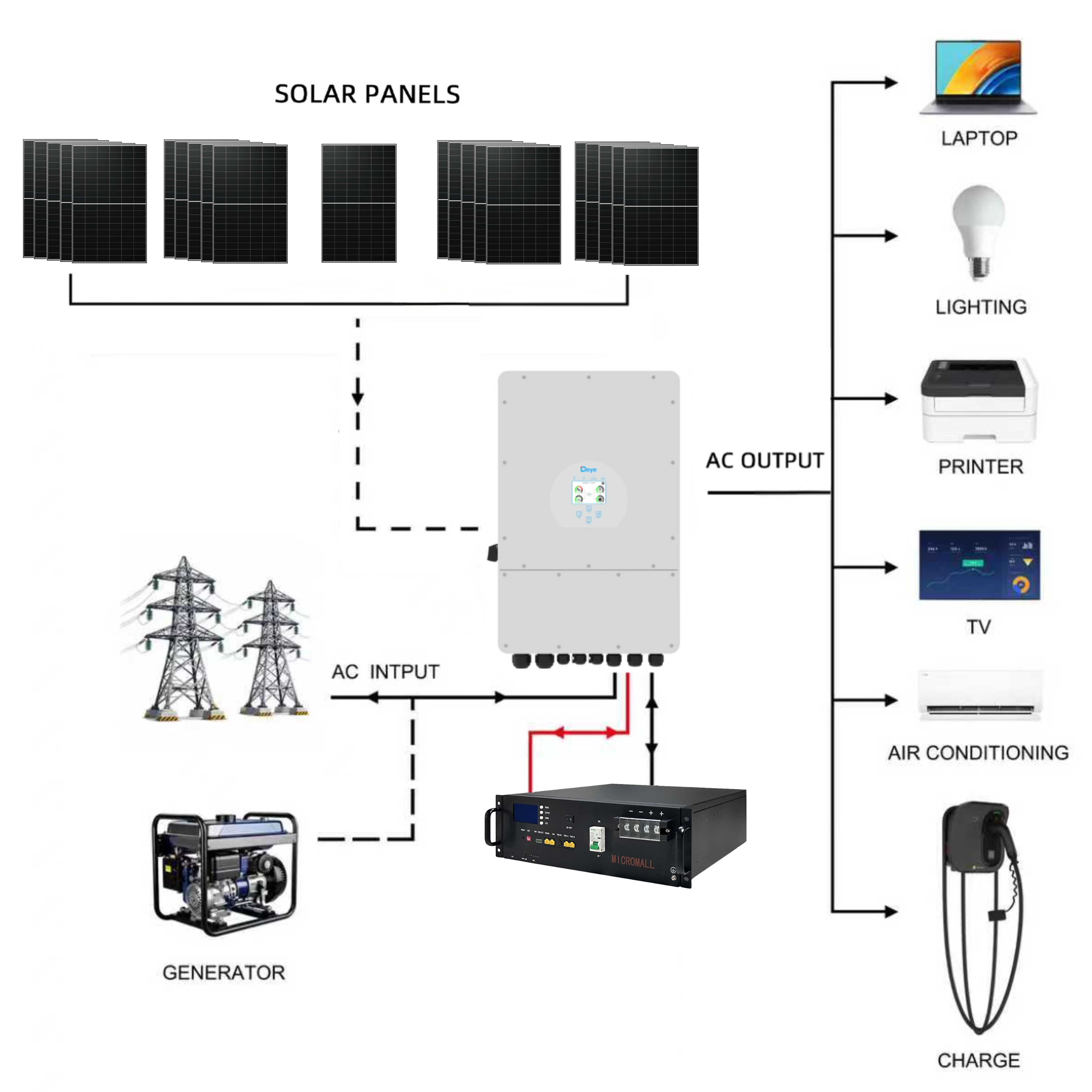

This package combines a hybrid inverter, solar charging and battery charging in one system. The LCD interface provides accessible controls for configuring battery charging, AC/solar charging and input-voltage settings to suit different applications.
Features
- 100% unbalanced output; each phase can deliver up to 50% of the inverter's rated output.
- Supports AC coupling to retrofit an existing solar system.
- Supports up to 16 units in parallel for on-grid and off-grid operation.
- Supports multiple batteries connected in parallel.
- Maximum charging and discharging current: 240A.
- 48V low-voltage battery design with transformer isolation.
- Six programmable time periods for battery charging and discharging.
- Supports battery charging from a diesel generator.

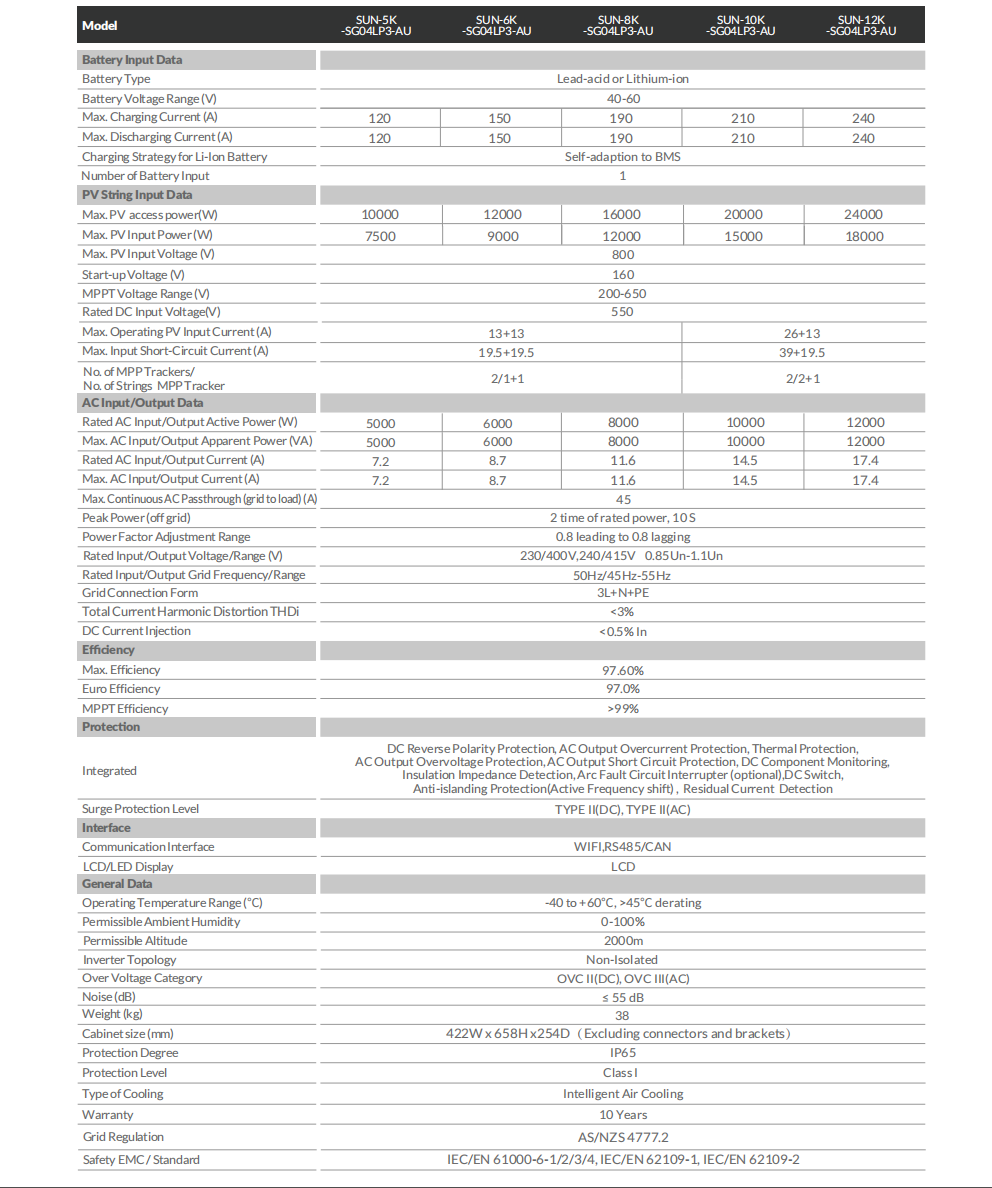

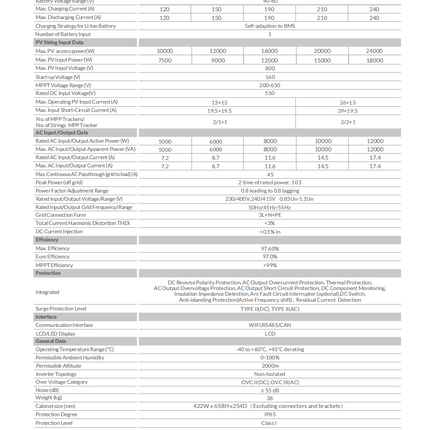

Specifications
- Operating temperature range: -40°C to +60°C, with derating above 45°C.
- Permissible ambient humidity: 0–100%.
- Permissible altitude: up to 2,000m.
- Noise level: ≤55dB.
- Net weight: 38kg.

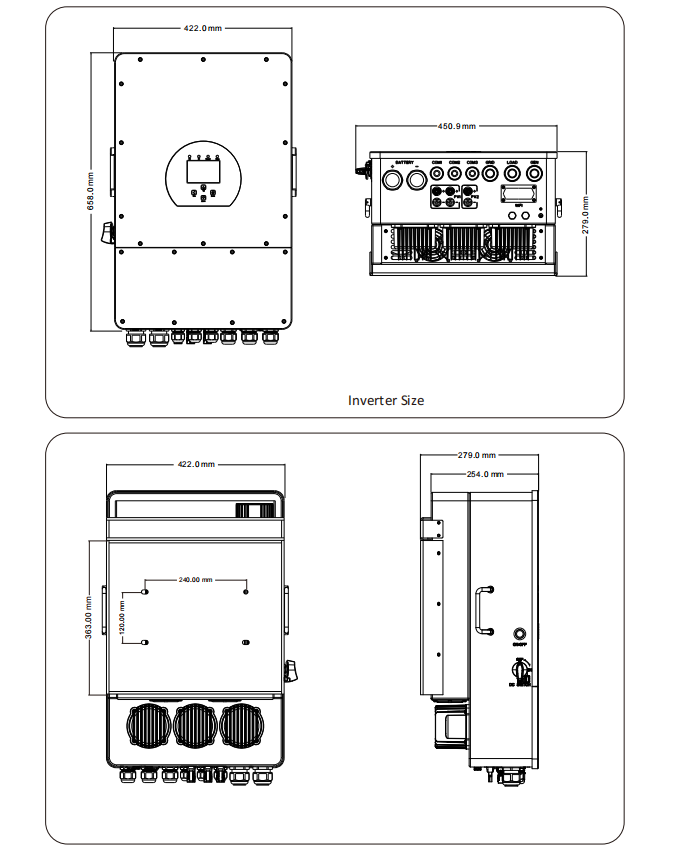

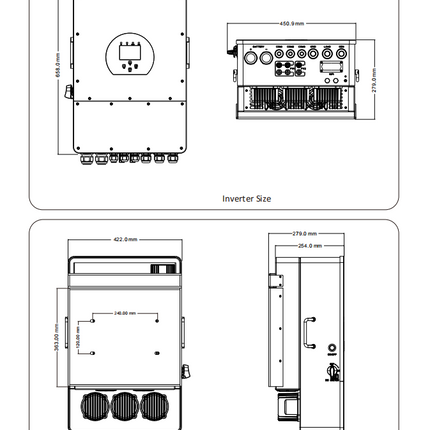

- Inverter dimensions (W × H × D): 422 × 658 × 254mm, excluding connectors and brackets.
- Protection rating: IP65.
- Protection class: Class I.
- Cooling: Intelligent air cooling.
- Display: LCD.
Applications
- Residential hybrid solar and battery storage systems.
- Off-grid installations and emergency backup power.
- Commercial and industrial energy management and critical-load support.
Inverter warranty: 10 years.
Package Includes

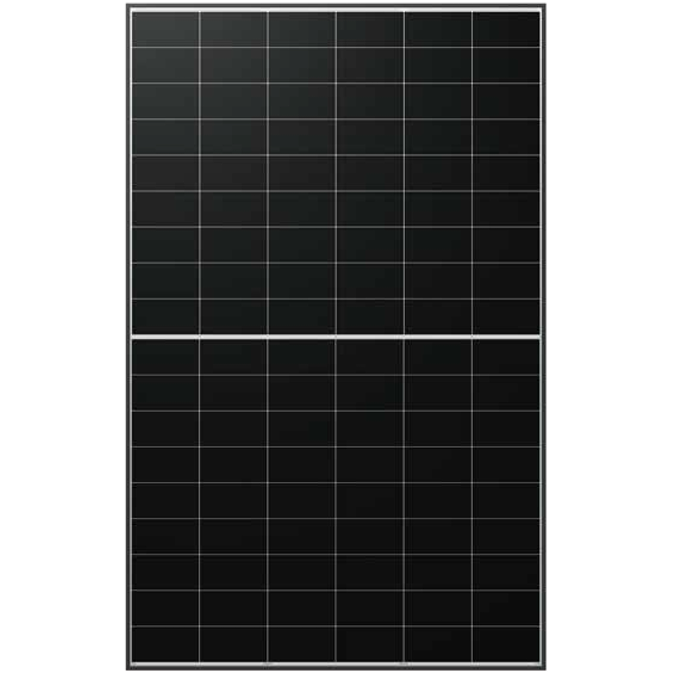

- 22 × Gokin 480W Full-Black Bifacial Dual-Glass GBC Solar Panels (GK-3-54HGDb-480W).

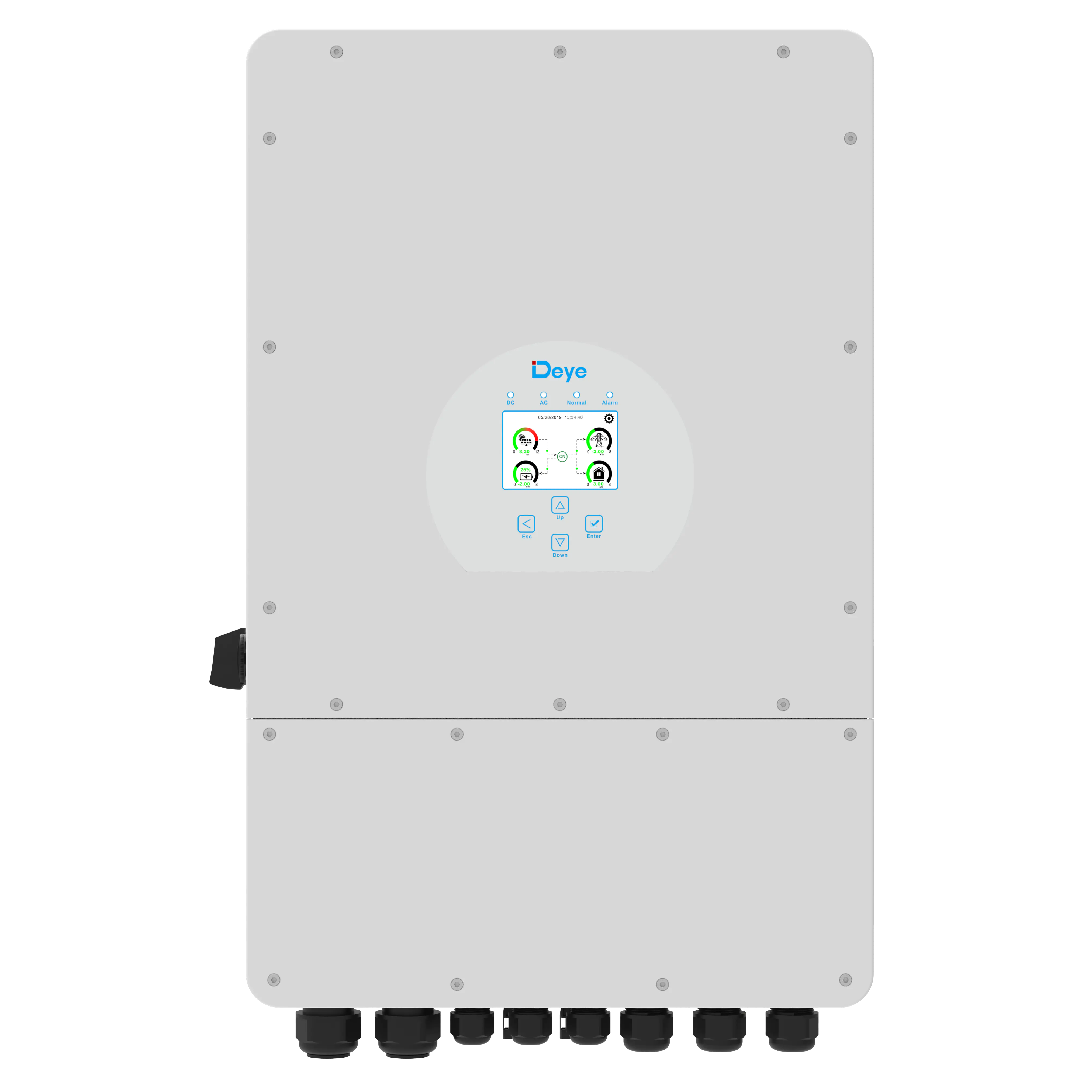

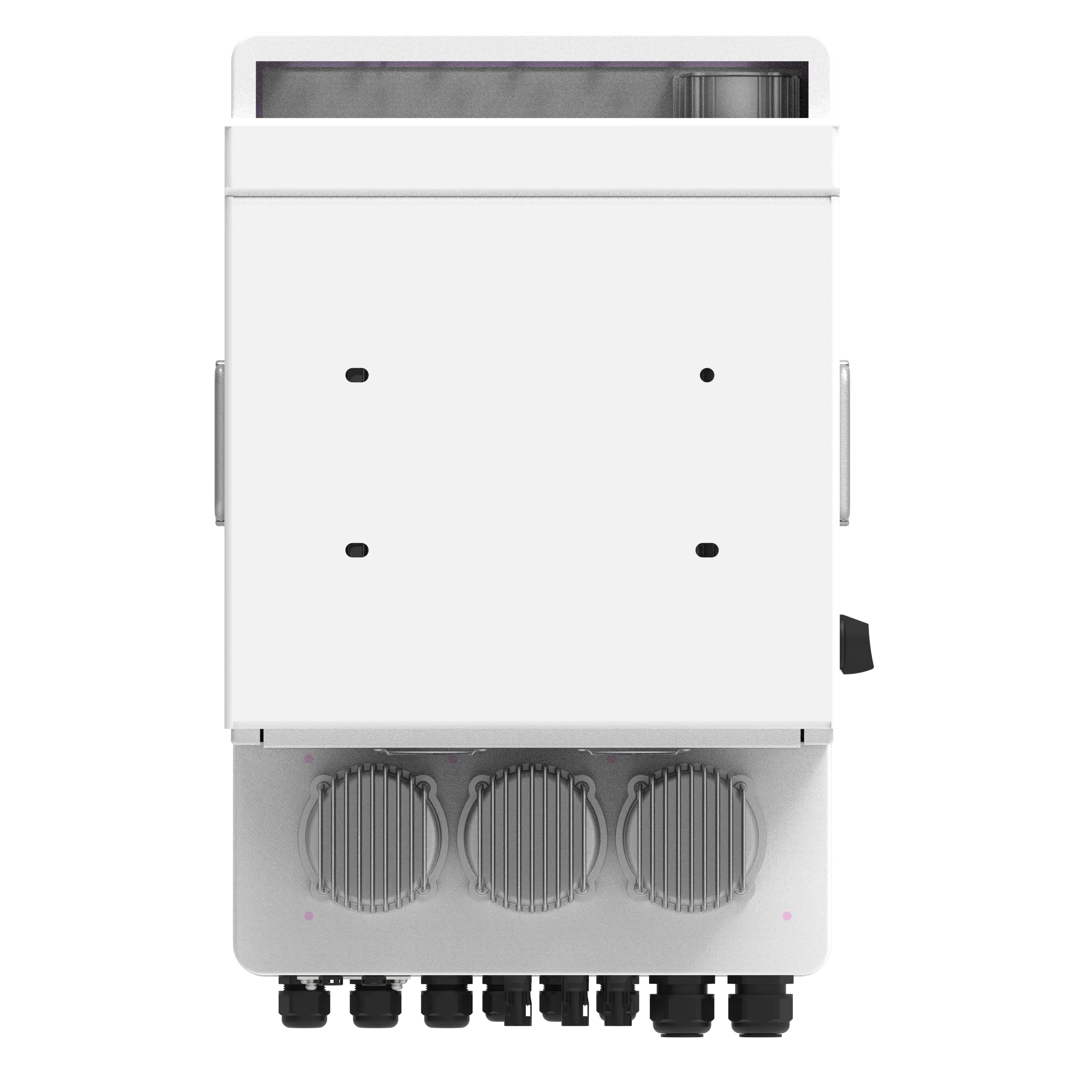

- 1 × Deye 10kW Three-Phase Hybrid Inverter (SUN-10K-SG04LP3-AU).

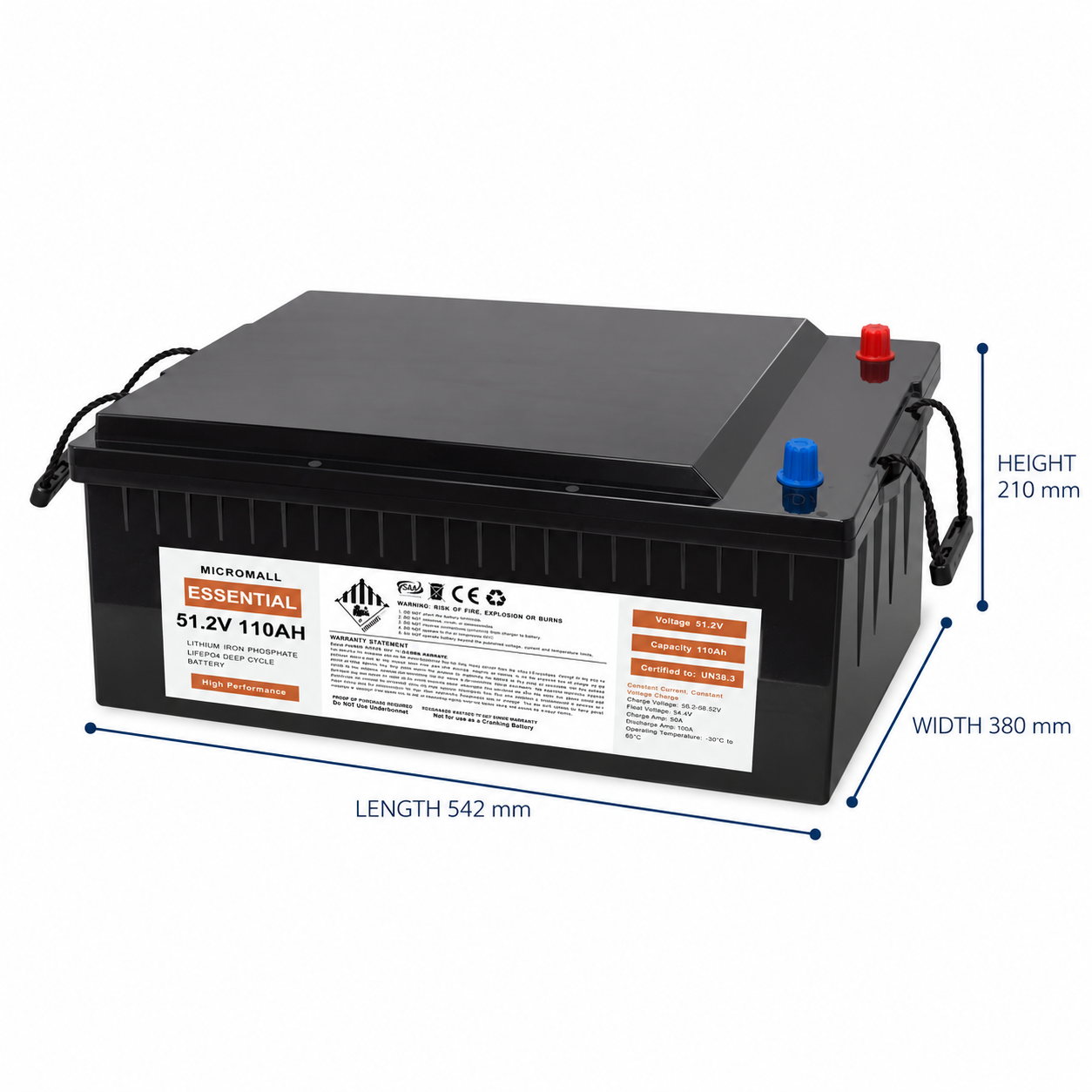

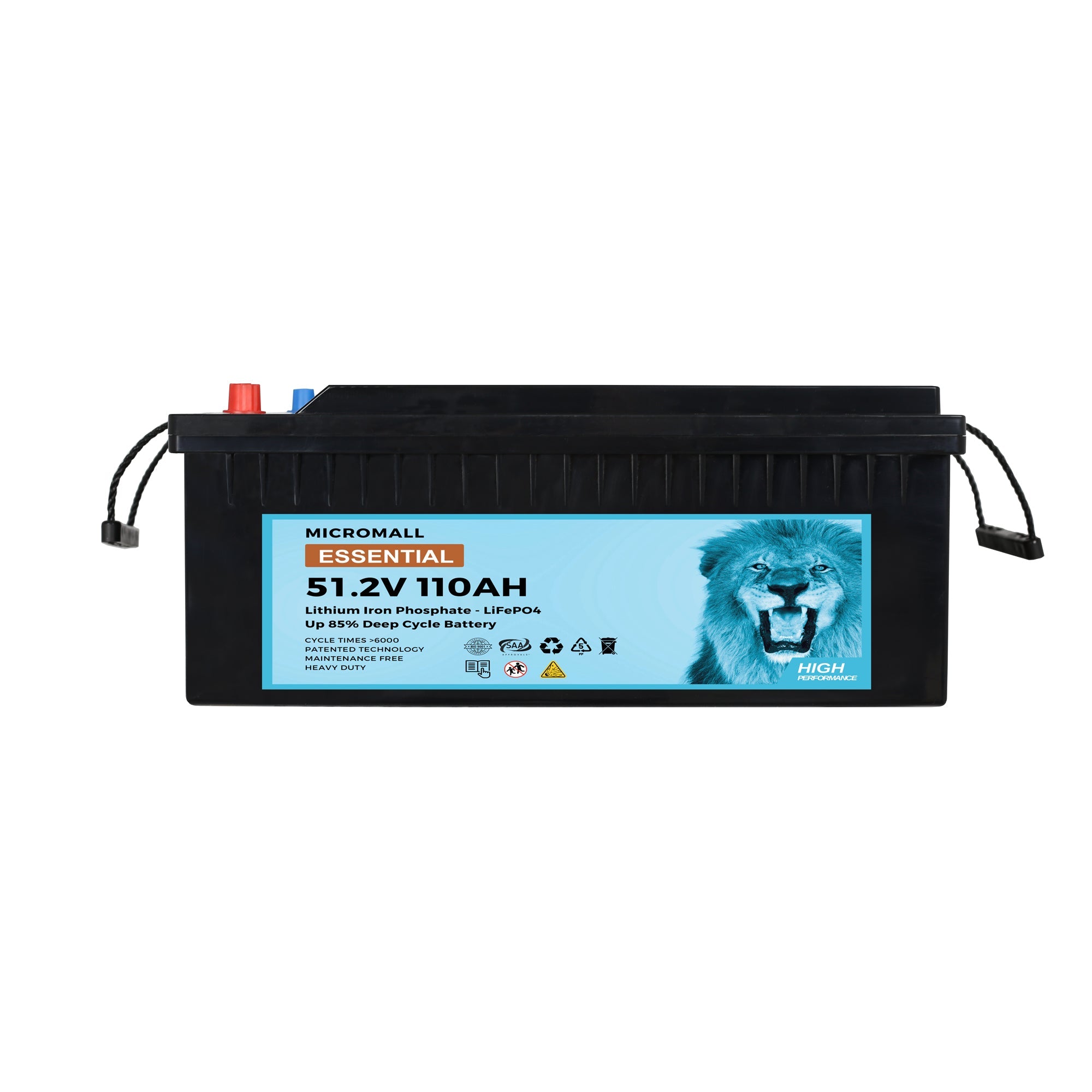

- 1 × Micromall 5kWh LiFePO4 Deep-Cycle Battery.
- 2 × 20m Twin 4mm² PV Extension Cables with MC4 Connectors.
- 1 × PV Safety System.
- 22 × Solar Panel Mounting Rail Systems.
- 1 × Solar PV and Battery Label Kit.
