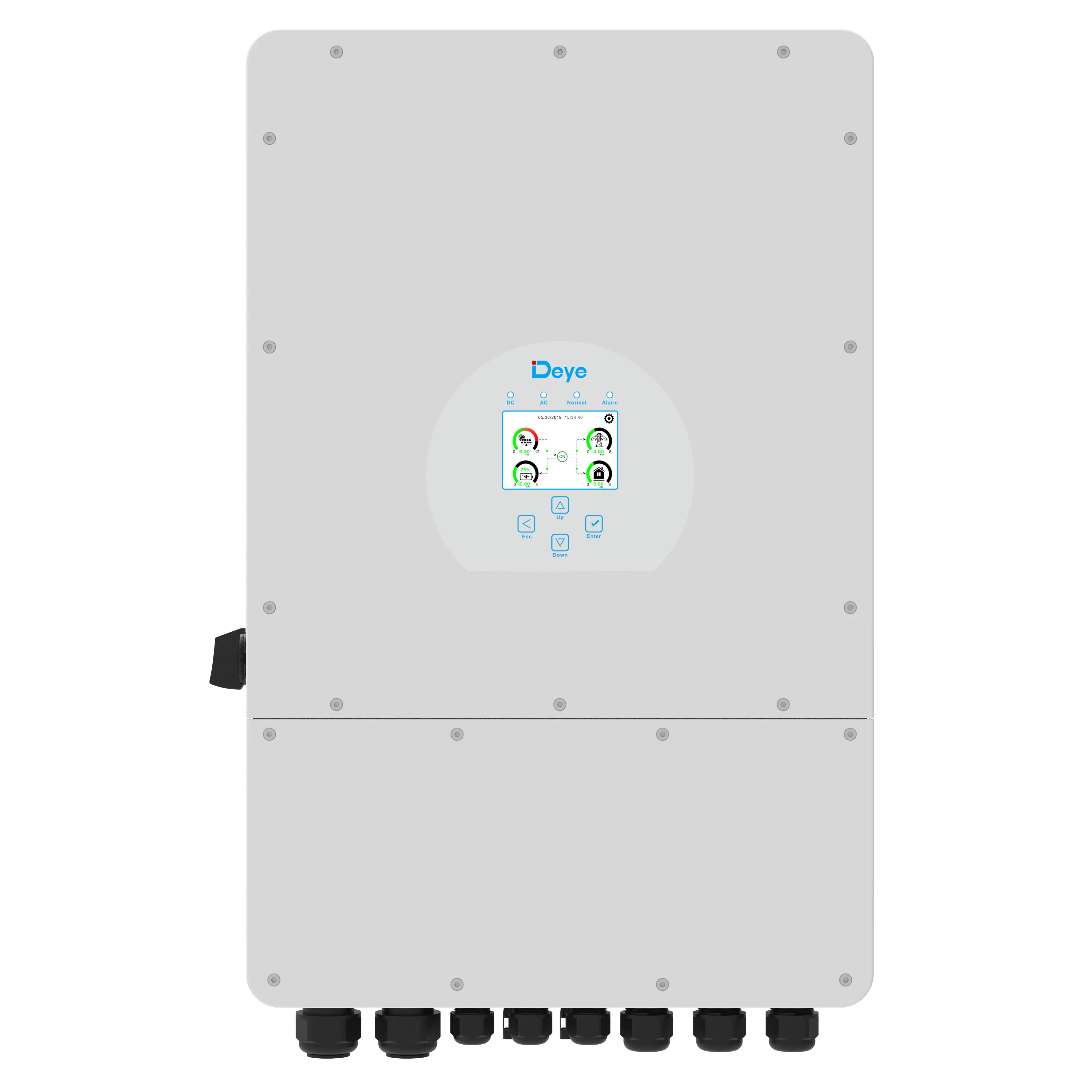

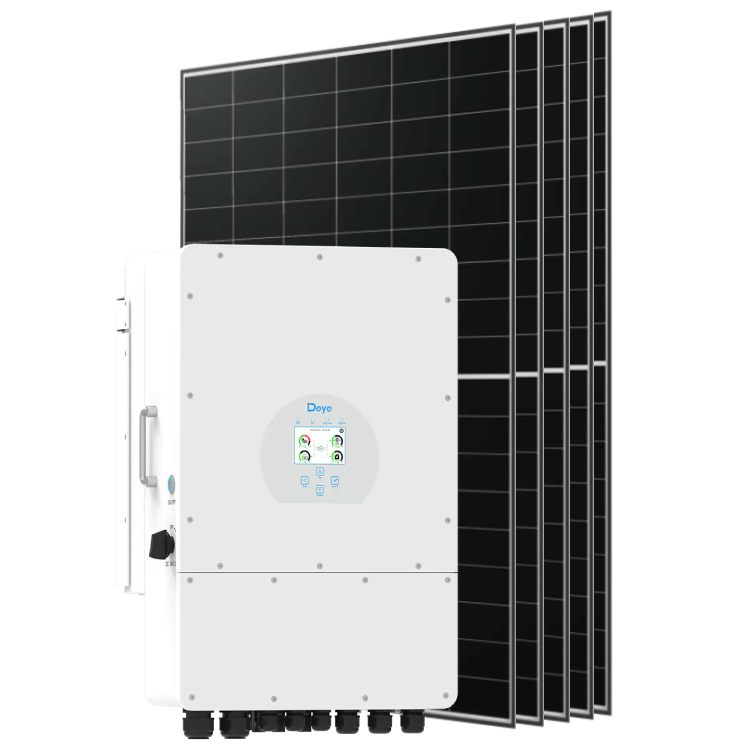

Deye 12KW Three Phase Hybrid Inverter SUN-12K-SG04LP3-AU IP65 Solar Inverter with 25 Panels（Powered by Micromall Battery）
This is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
Features
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofit existing solar system
Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator

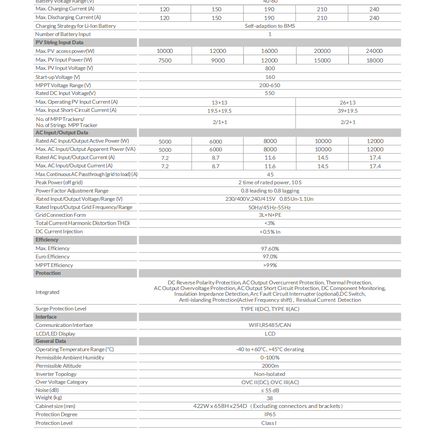

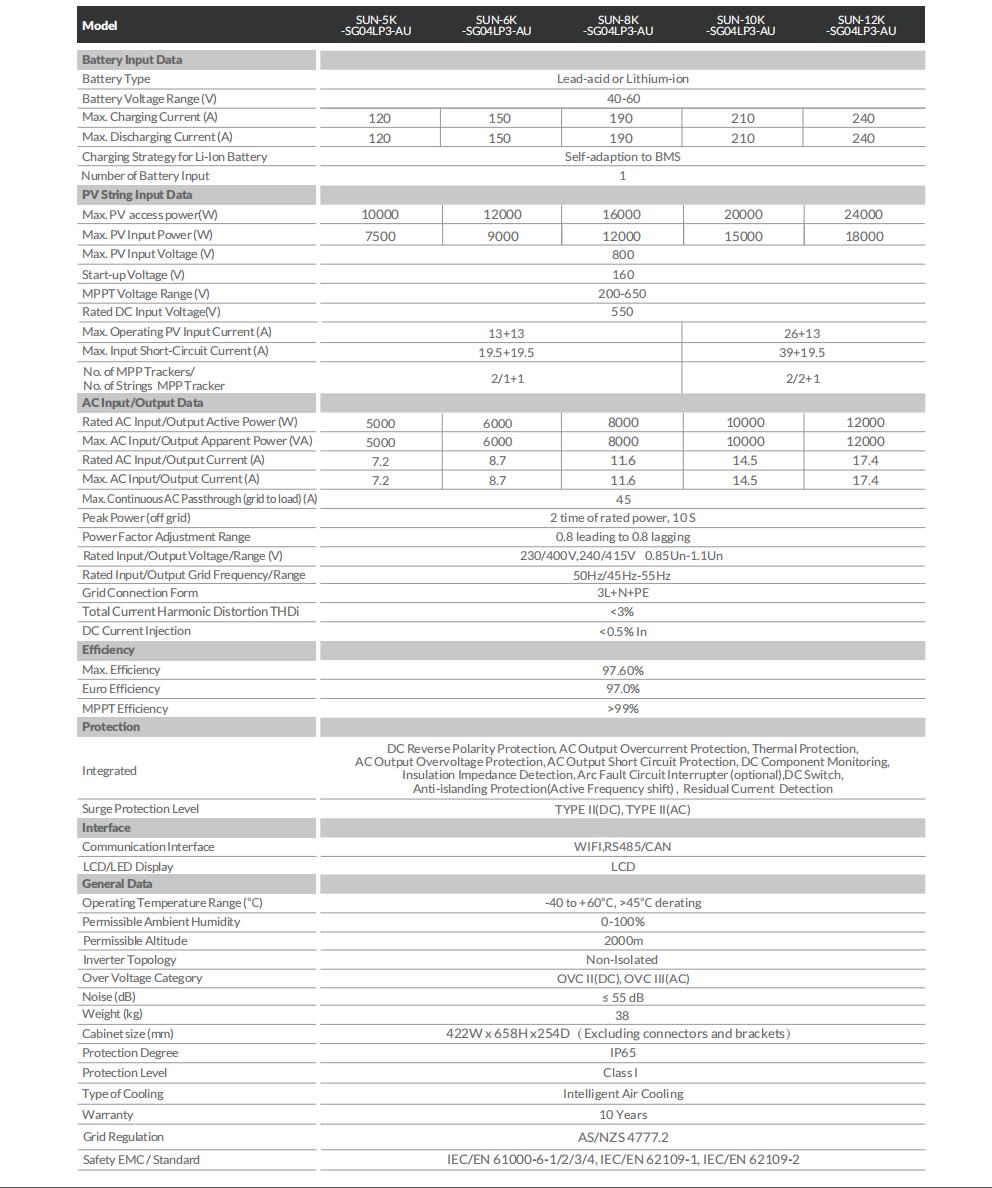

Specifications
Operating Temperature Range(℃): -40 to +60℃, >45℃ derating
- Permissible Ambient Humidity: 0-100%
- Permissible Altitude: 2000m
- Noise(dB): ≤55dB
- Weight(kg): 38

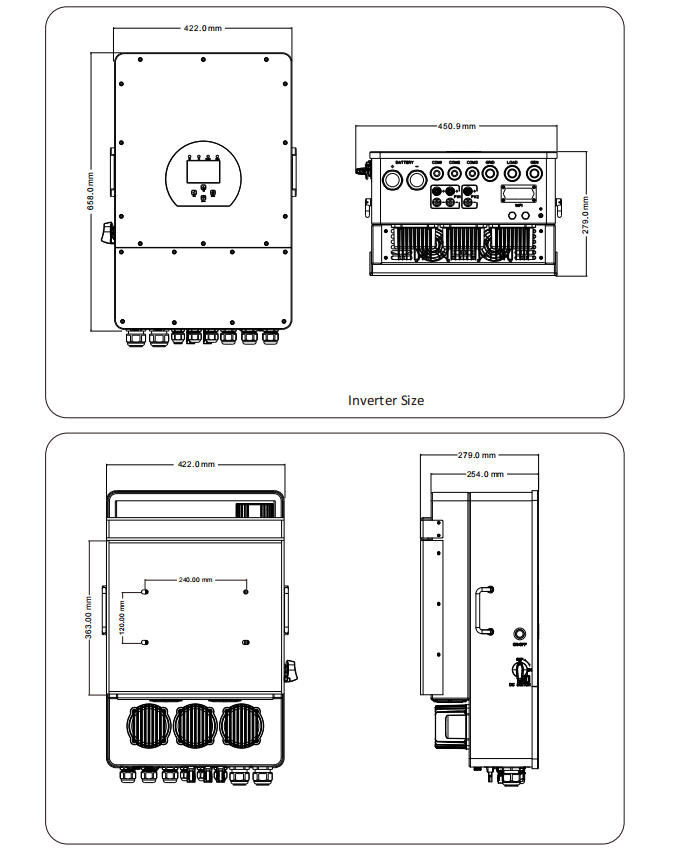

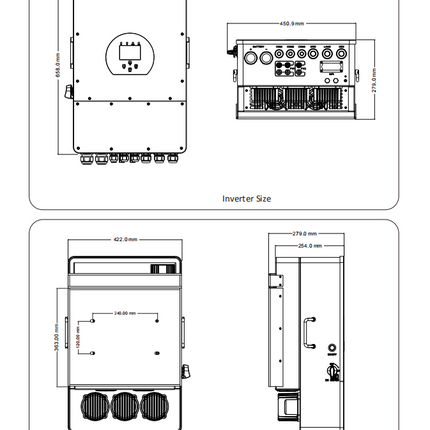

- Cabinet size(mm):422W x 658H x 254D（Excluding connectors and brackets）
- Protection Degree: IP65
- Protection Level: Class I
- Type of Cooling: Intelligent Air Cooling
- LCD/LED Display: LCD
Applications

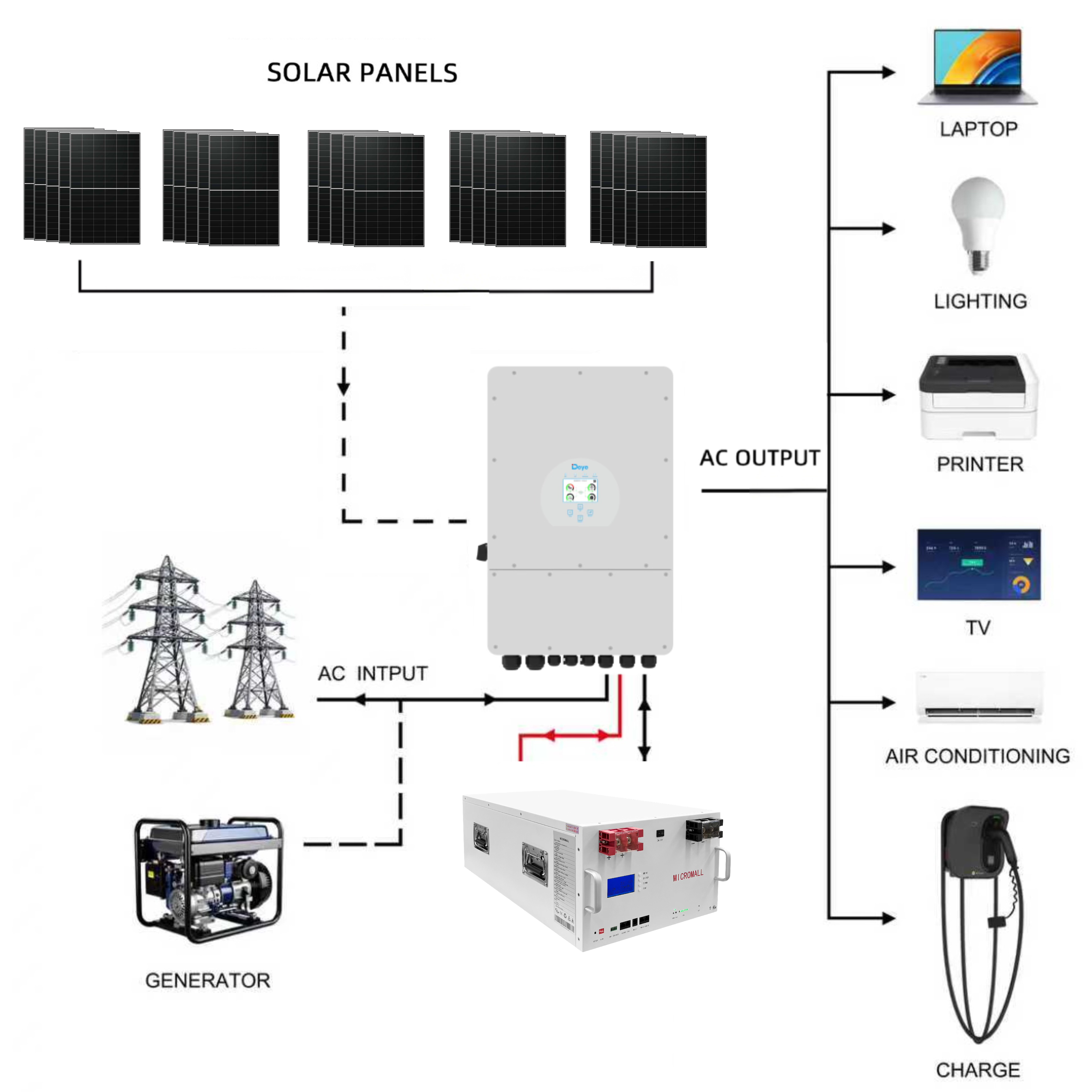

Residential All-in-One Energy System
Off-Grid Solutions for Remote Areas and Extreme Emergency Backup
Industrial areas to reduce electricity costs and ensure critical equipment operation
Warranty：10 years
Package Includes

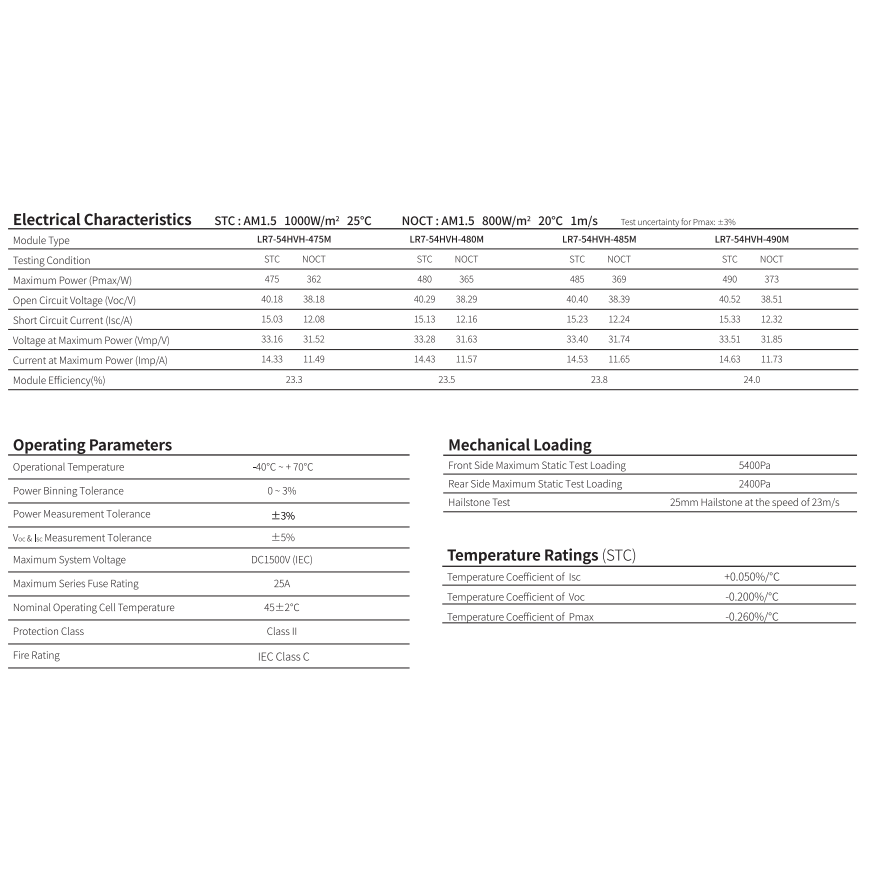

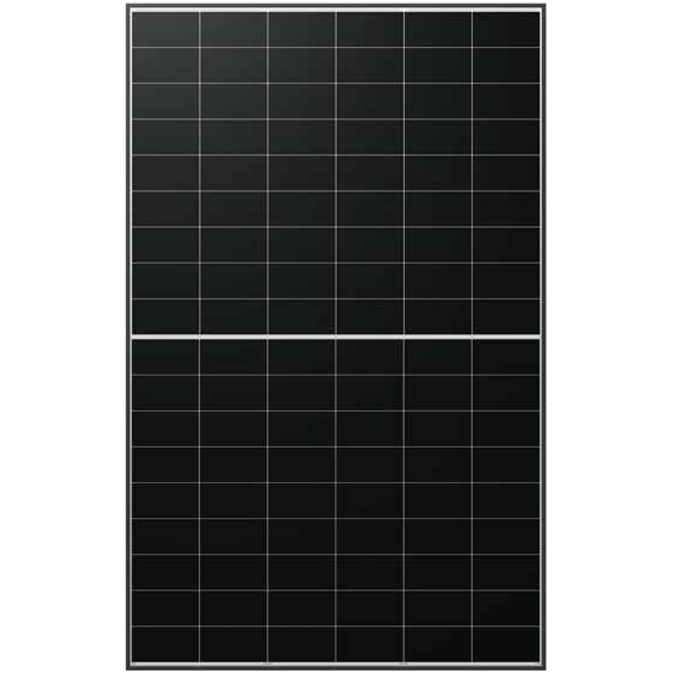

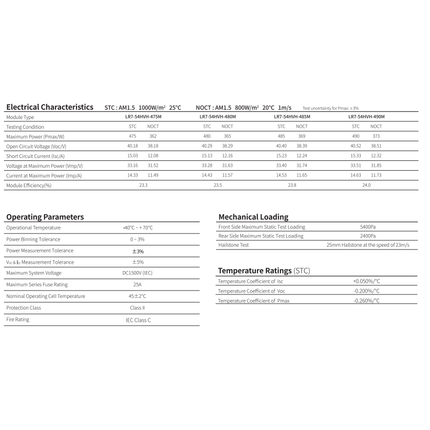

25× LONGI Hi-MO X10 Explorer LR7-54HVH-475M
1× Micromall 48V 51.2V 290Ah 300Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery
1× SUN-12K-SG04LP3-AU
