Description
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

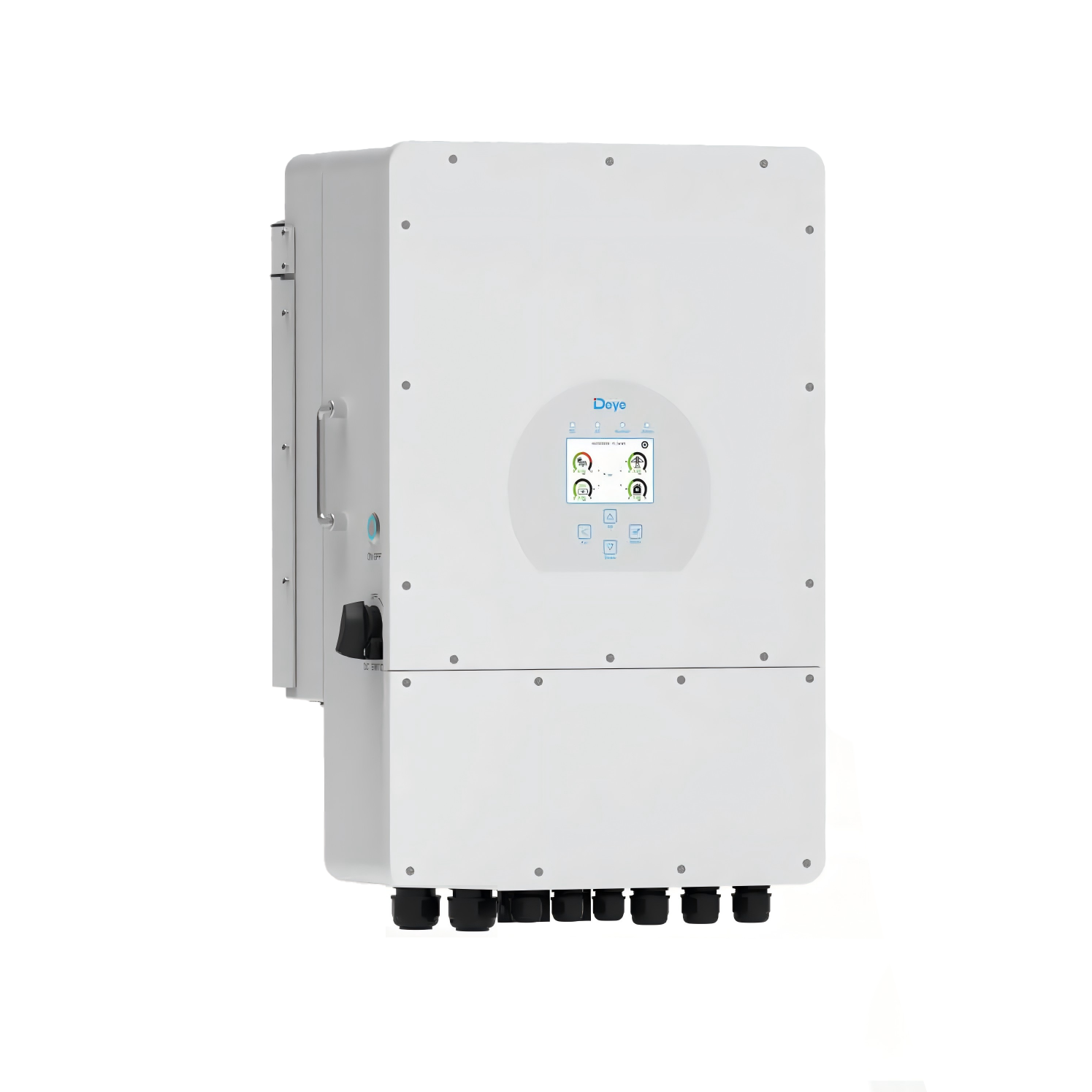

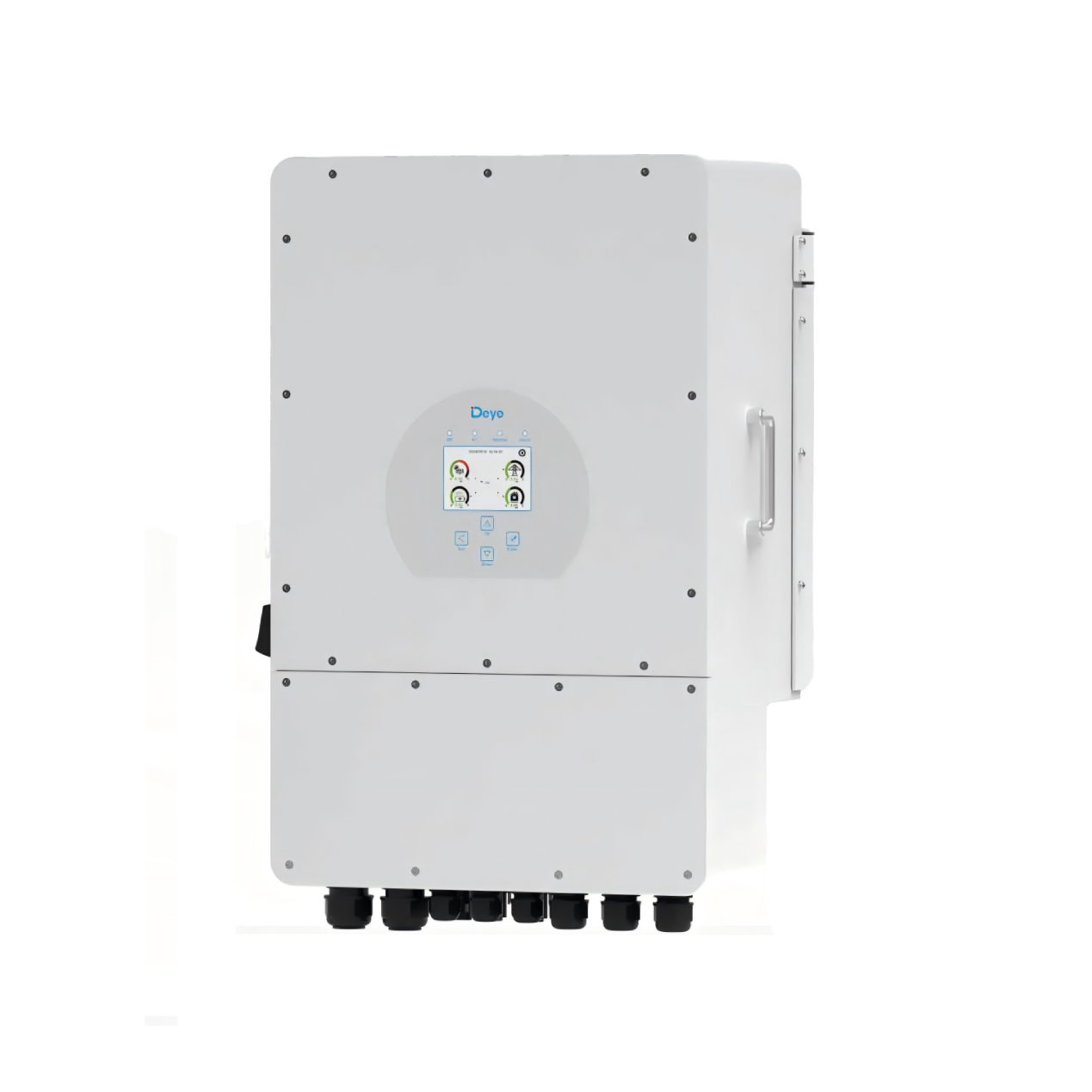

SUN-12K-SG05LP3-AU-SM2 | 12kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported

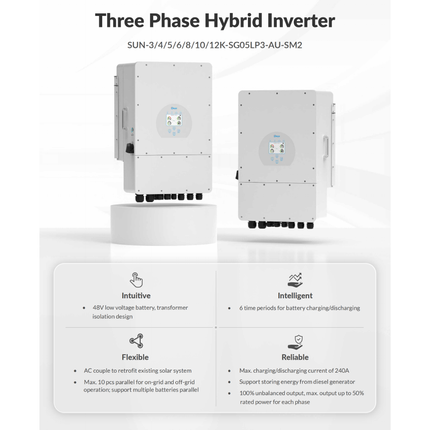

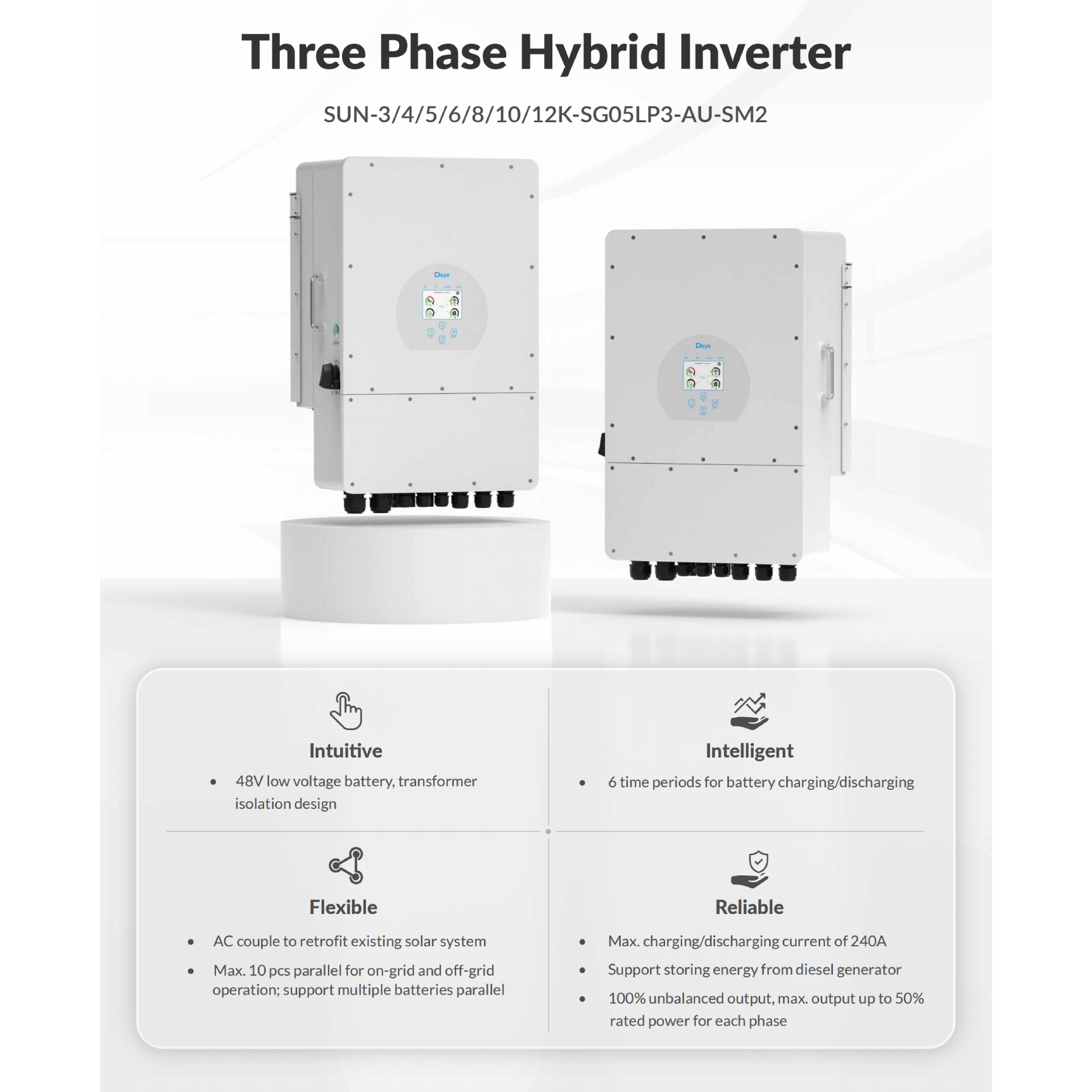

Higher yields / Safe & Reliable / Smart / User-friendly
Intuitive: 48V low voltage battery, transformer isolation design.
Intelligent: 6 time periods for battery charging/discharging.
Flexible: AC couple to retrofit existing solar system.
Max. 10 pcs parallel for on-grid and off-grid operation; support multiple batteries paralle.
Reliable: Max. charging/discharging current of 240A.
Support storing energy from diesel generator.
100% unbalanced output, max. output up to 50% rated power for each phase.

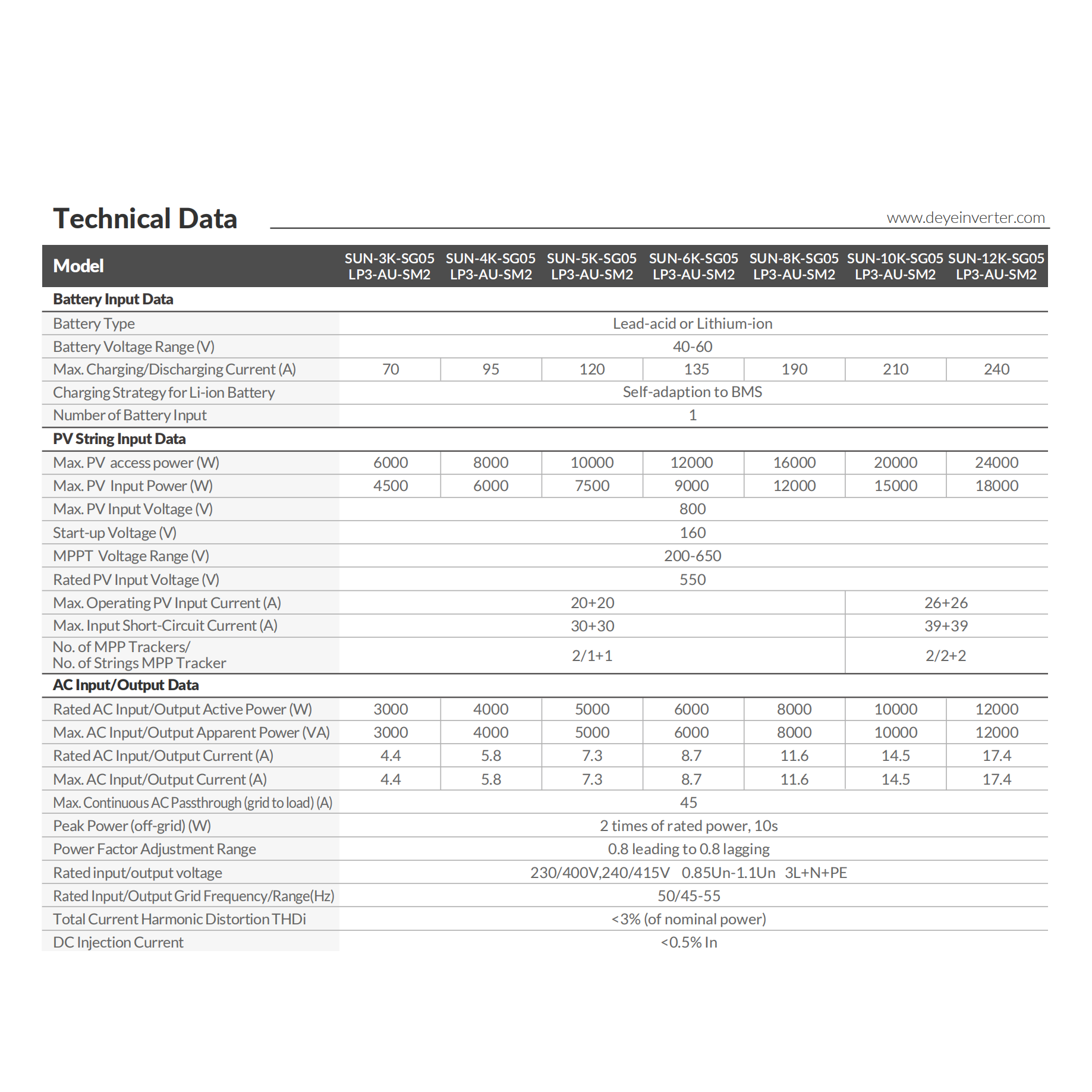

Model: SUN-12K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging/Discharging Current (A): 240
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV access power(W): 24000
Max. PV Input Power (W): 18000
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated PV Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W): 12000
Max AC Input/Output Apparent Power (VA): 12000
Rated AC Input/Output Current (A): 17.4
Max. AC Input/Output Current (A): 17.4
Max. Continuous AC Passthrough (grid to load) (A): 45

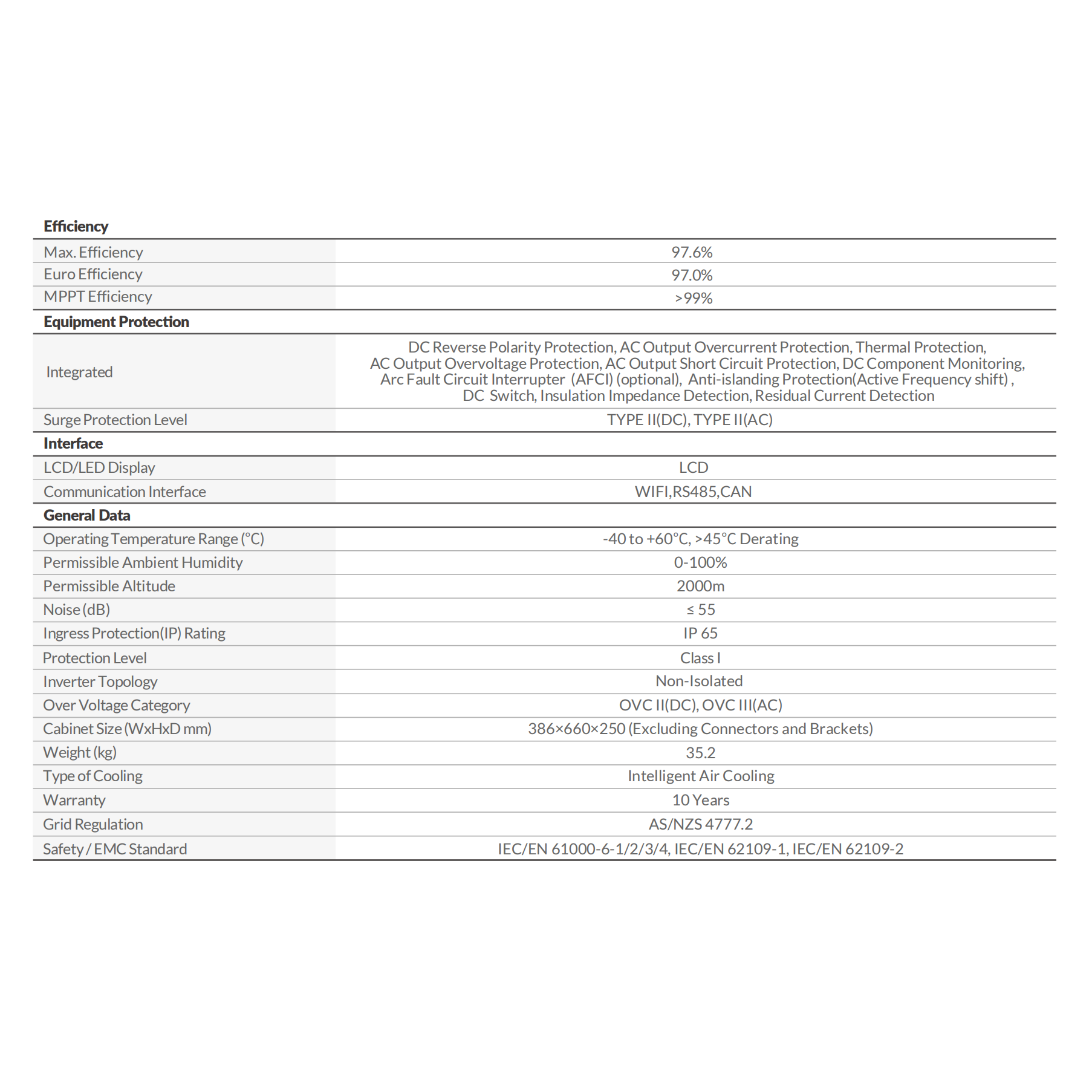

Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: > 99.0%
General Data
Weight (kg): 35.2
Cabinet size (mm): 386×660×250 (Excluding Connectors and Brackets)
Protection Degree: IP65
