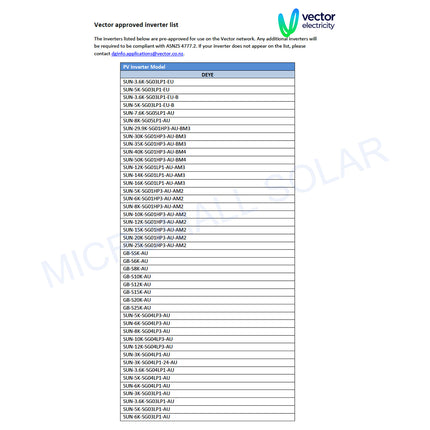

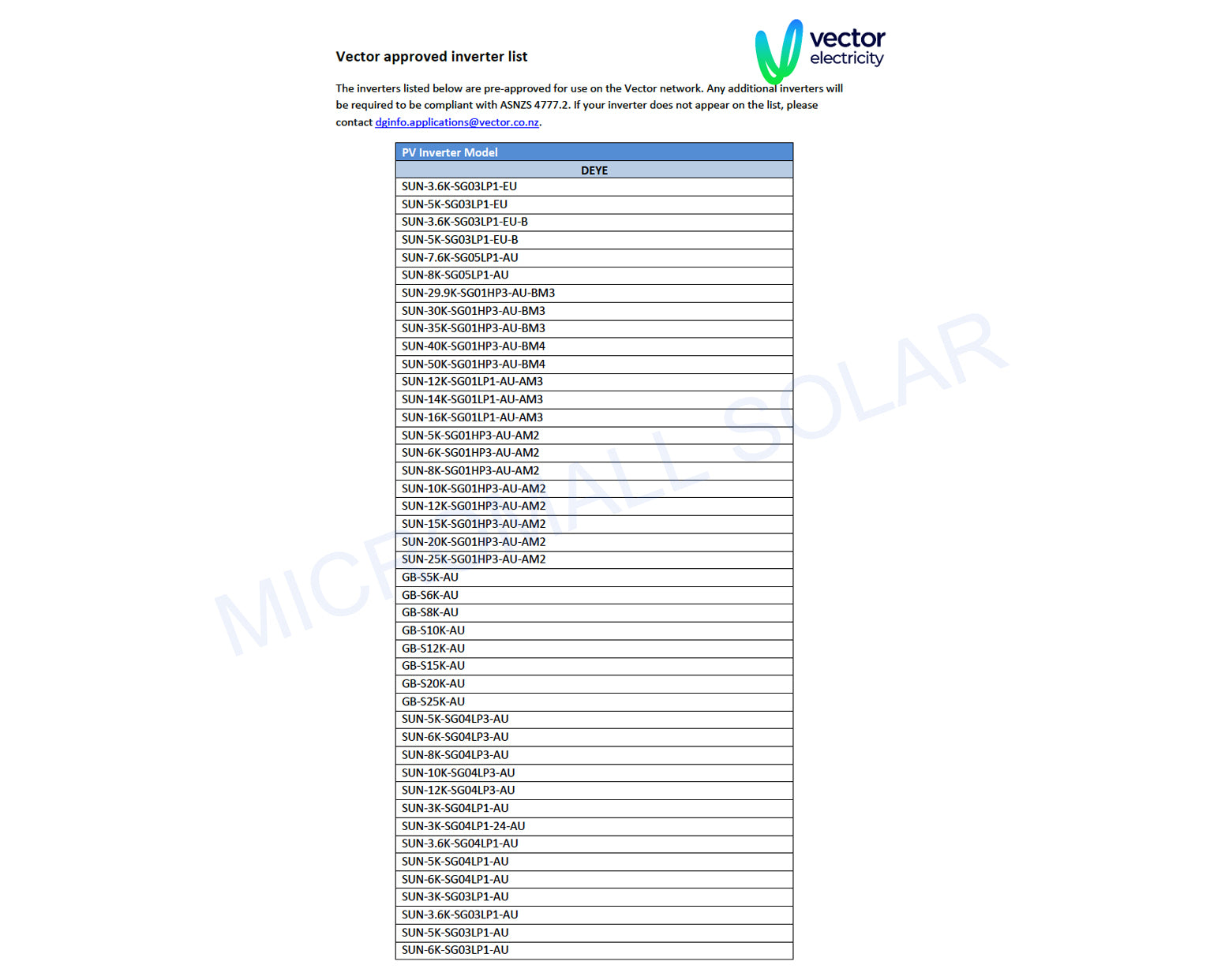

Vector Approved Inverter
DEYE New Zealand Distributor – Micromall Solar
10 Years Warranty

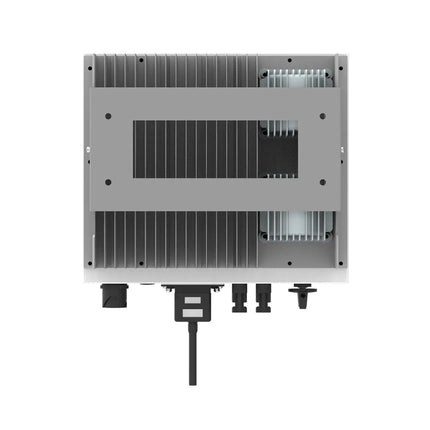

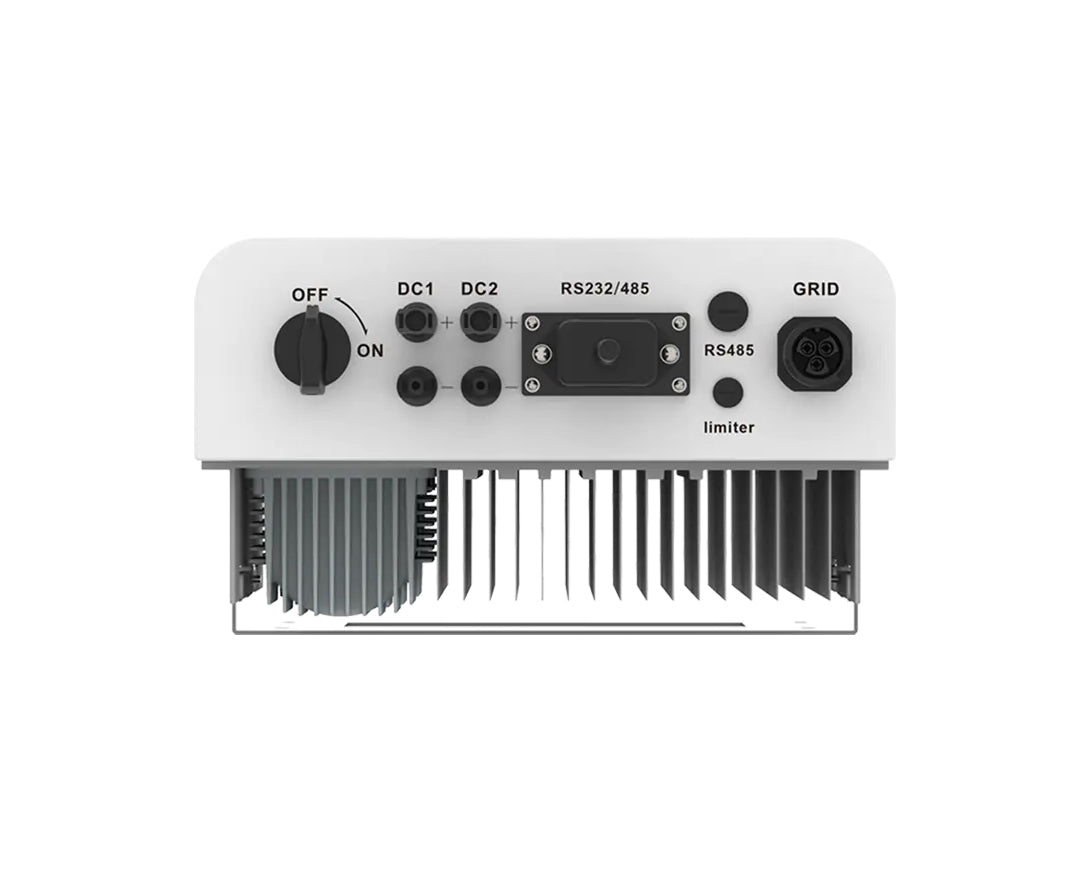

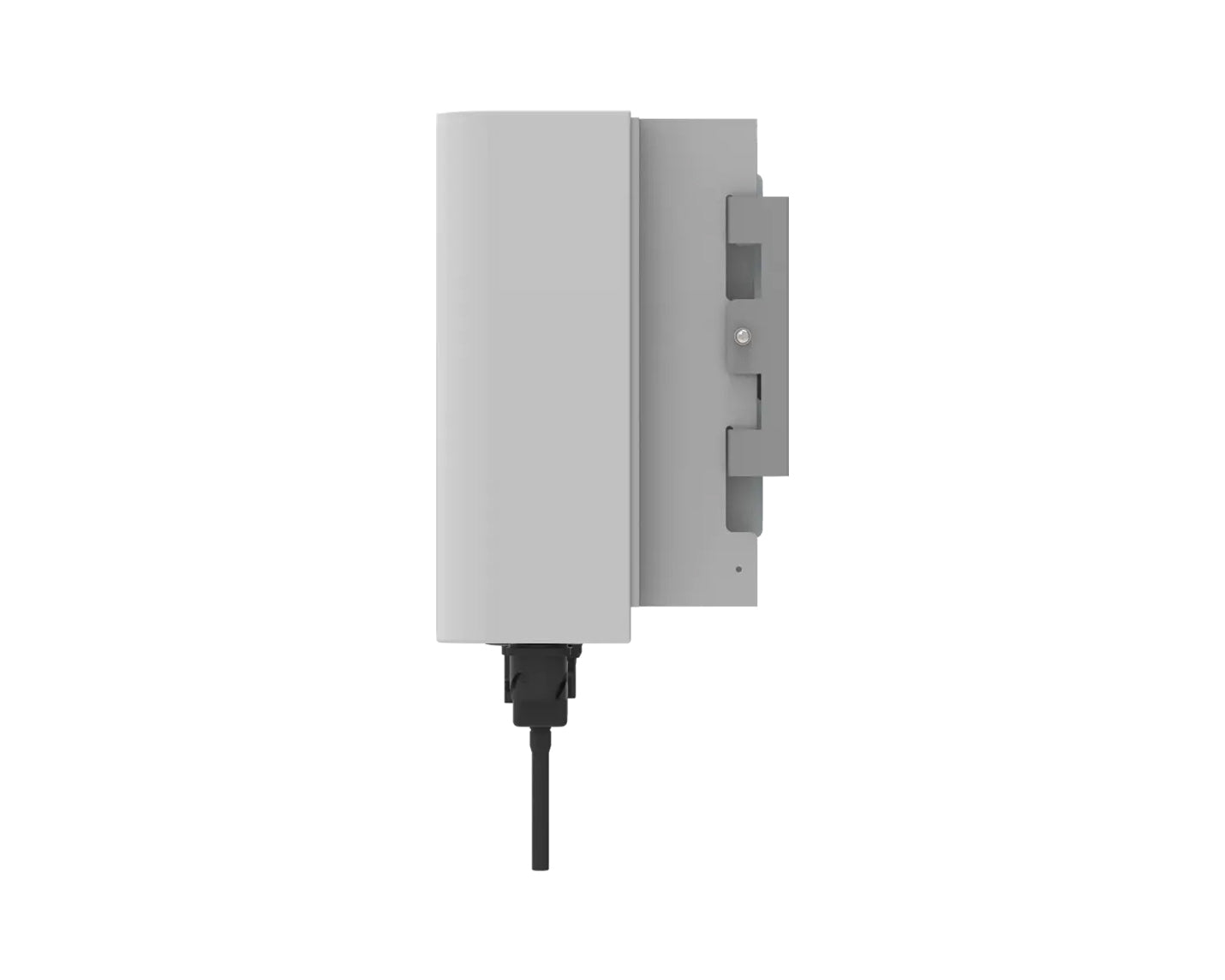

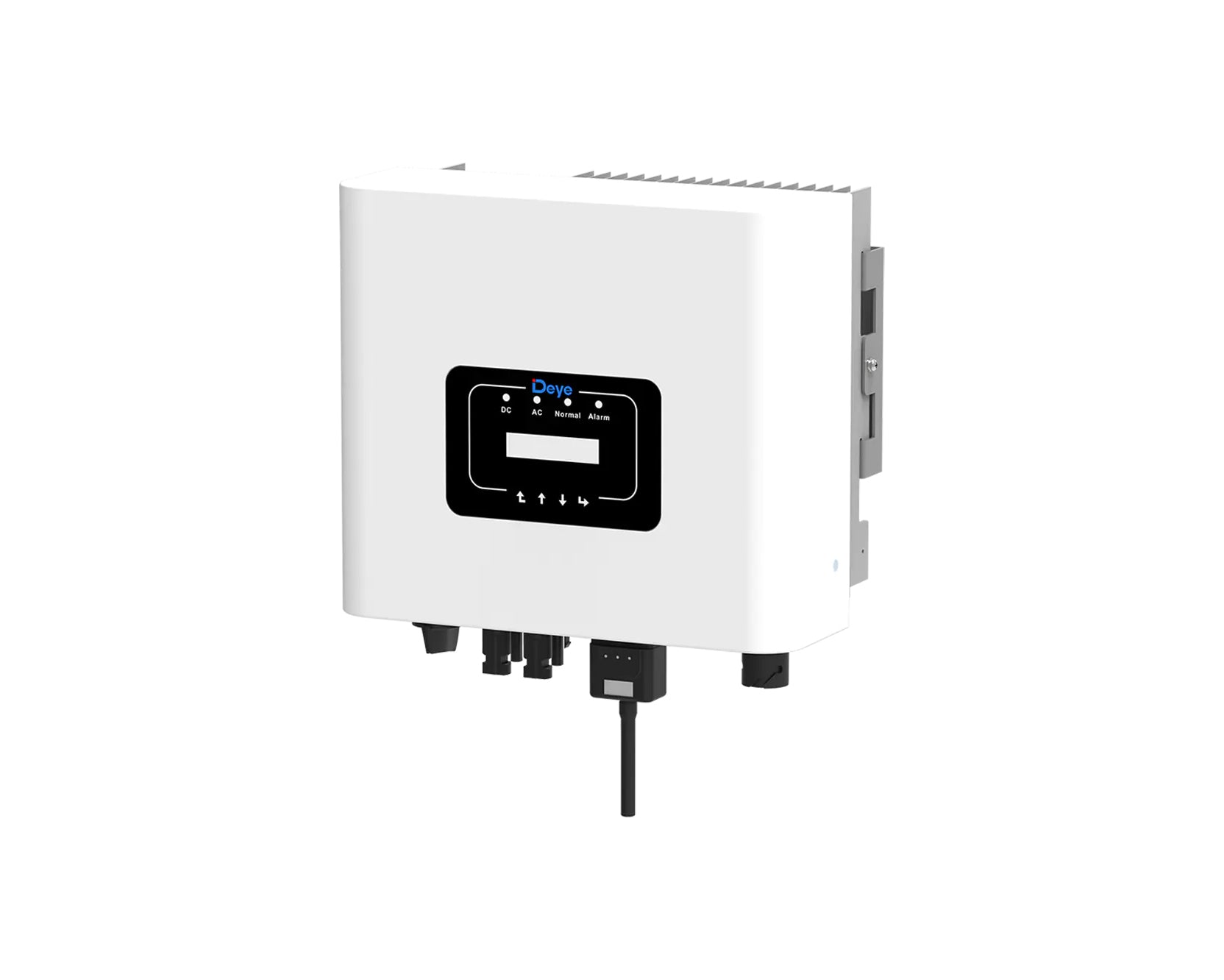

SUN-5K-G04-AU | 5kW | Single Phase | 2 MPPT

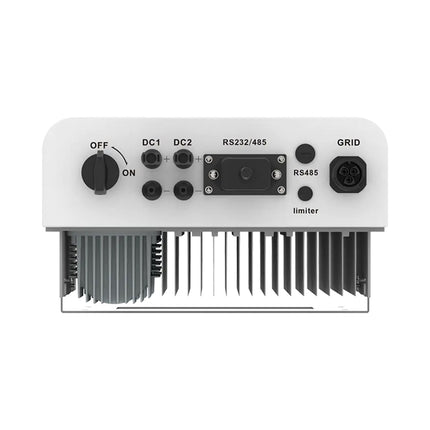

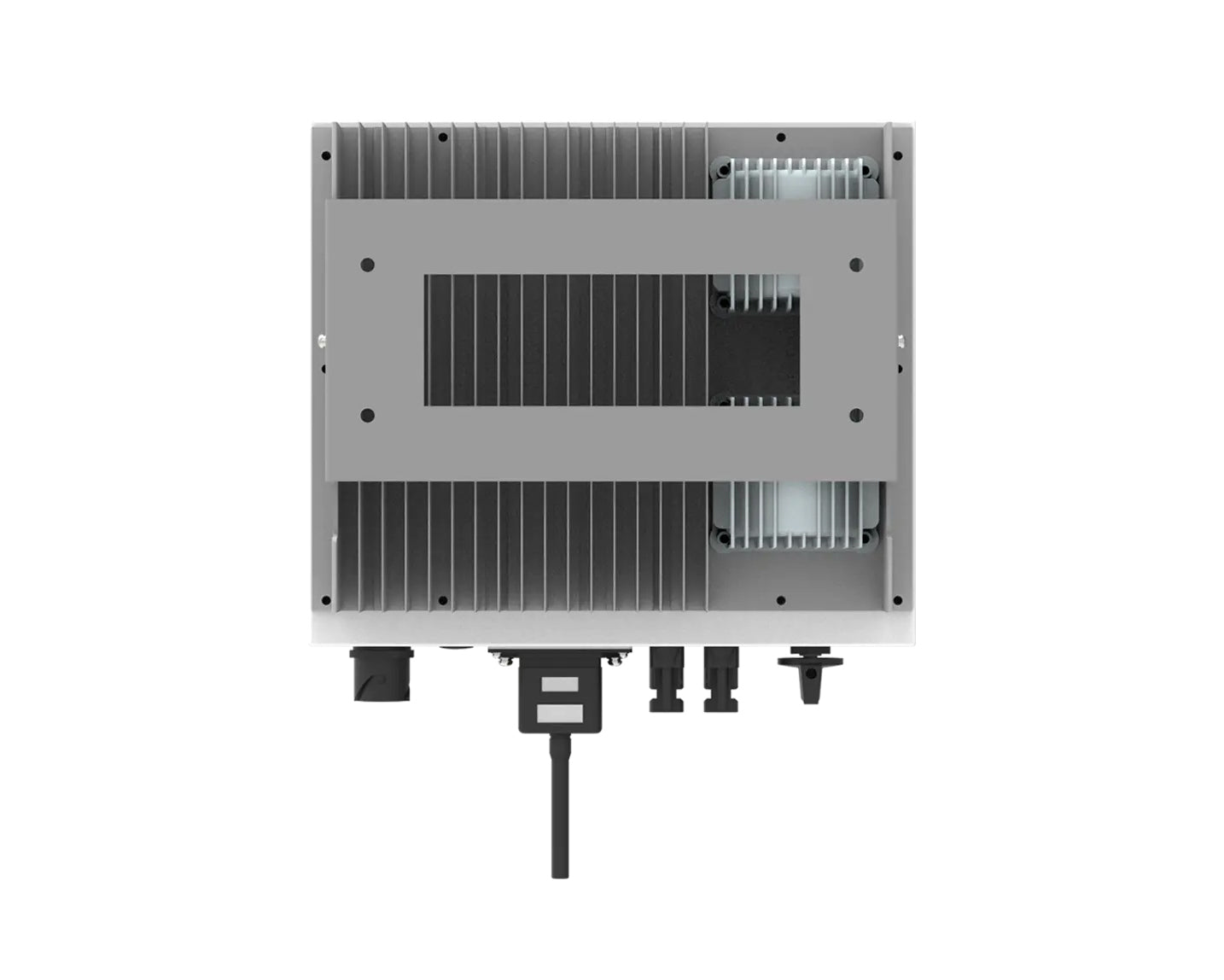

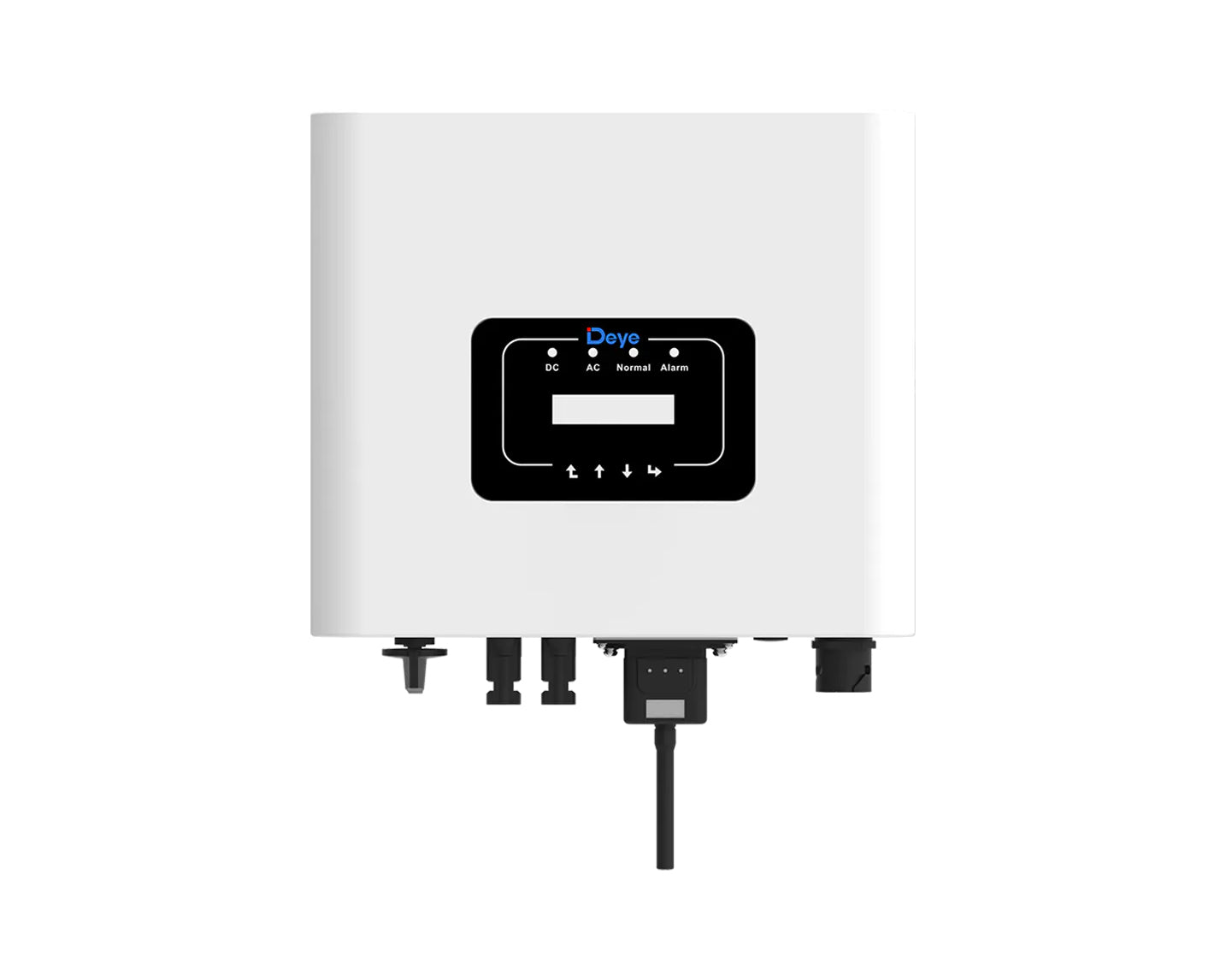

The DEYE SUN-5K-G04-AU is a 5kW single-phase inverter designed for residential solar PV systems. It offers high efficiency, safe and reliable operation, smart functions, and a user-friendly design. With a maximum efficiency of 97.5%, Euro efficiency of 97.0%, and MPPT efficiency of >99%, it helps improve solar energy yields.
Key functions include zero export application, VSG application, optional string intelligent monitoring, wide output voltage range, optional Anti-PID function, and a low start-up voltage of 80V.

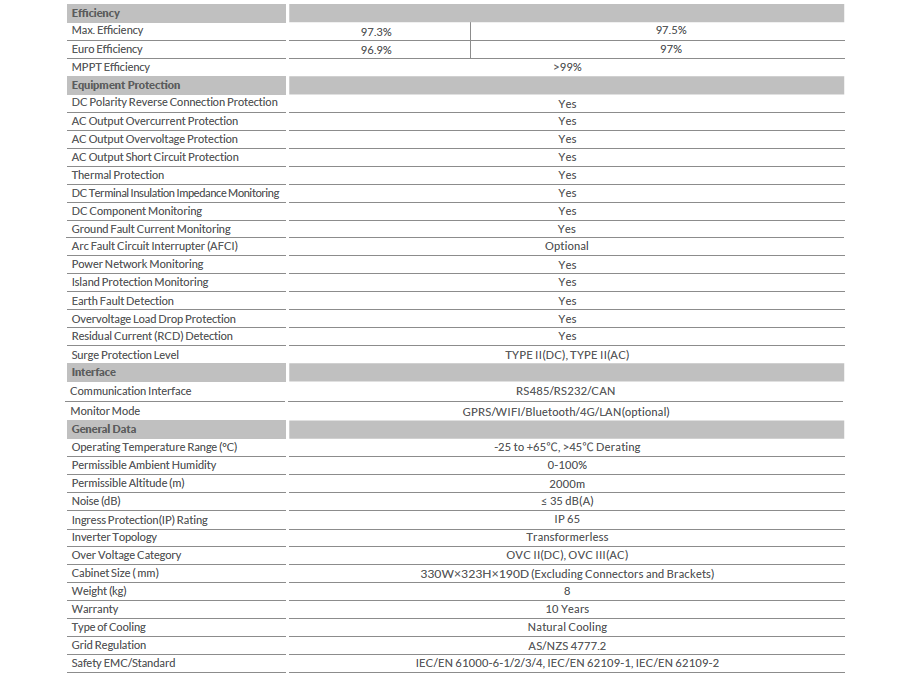

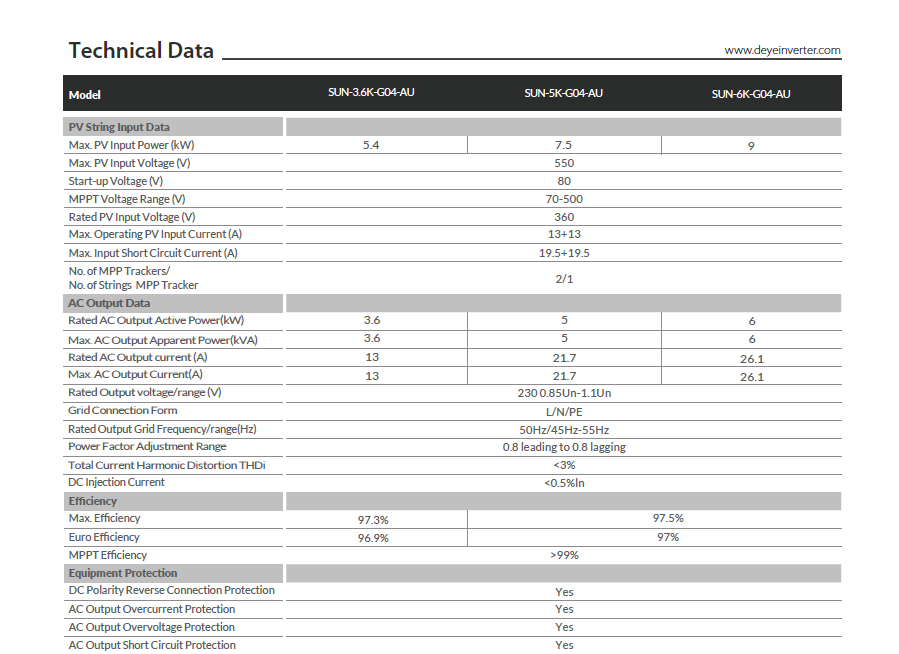

Technical Specifications
PV String Input Data
Max. PV Input Power: 7.5kW
Max. PV Input Voltage: 550V
- Start-up Voltage: 80V
- MPPT Voltage Range: 70–500V
- Rated PV Input Voltage: 360V
Max. Operating PV Input Current: 13A + 13A
Max. Input Short Circuit Current: 19.5A + 19.5A
No. of MPP Trackers / No. of Strings per MPP Tracker: 2 / 1
AC Output Data
- Rated AC Output Active Power: 5kW
Max. AC Output Apparent Power: 5kVA
- Rated AC Output Current: 21.7A
Max. AC Output Current: 21.7A
General Data
- Dimensions: 330 × 323 × 190mm
- Weight: 8kg
Eastron SDM120CTM-40mA DIN Rail Energy Meter
The SDM120CTM-40mA is a compact 1-module, 18mm single-phase multifunction DIN rail energy meter. It measures active energy, reactive energy, voltage, current, power, power factor, frequency, demand, and other key parameters.
It supports bi-directional import/export monitoring, making it suitable for residential, solar PV, industrial, and utility applications. The meter operates with 40mA CTs, supports external current transformers, and includes 2 pulse outputs plus RS485 Modbus RTU communication. Wiring configuration: 1P2W, Single Phase 2 Wire.
This inverter and meter combination provides an efficient, reliable, and smart solution for residential solar power systems.
