Description

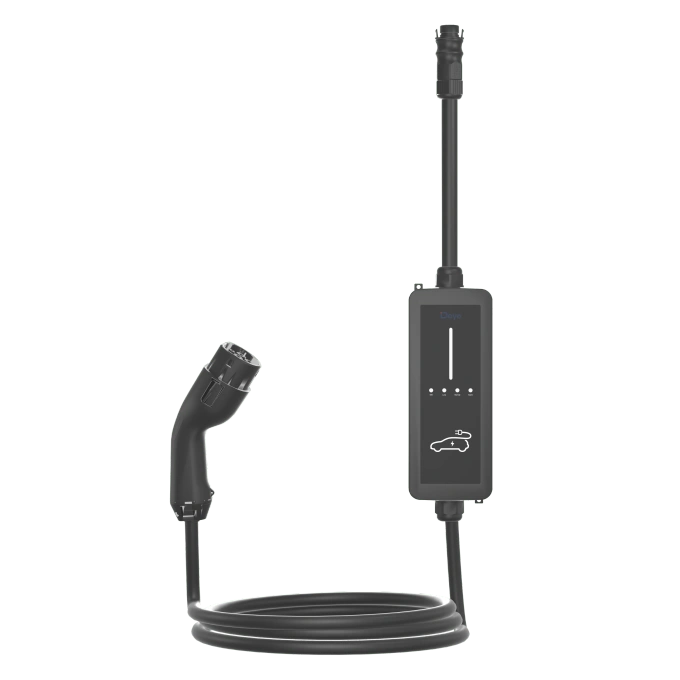

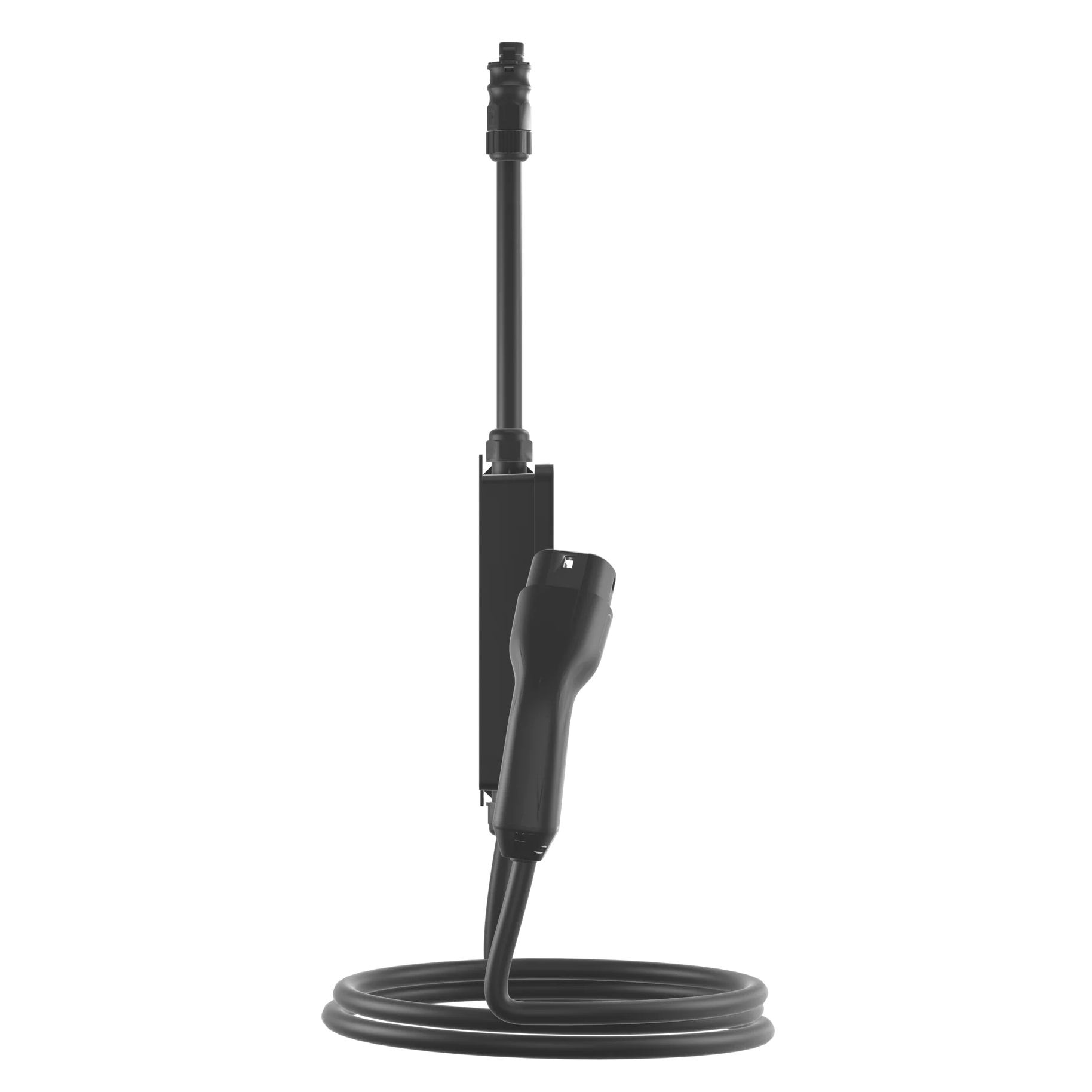

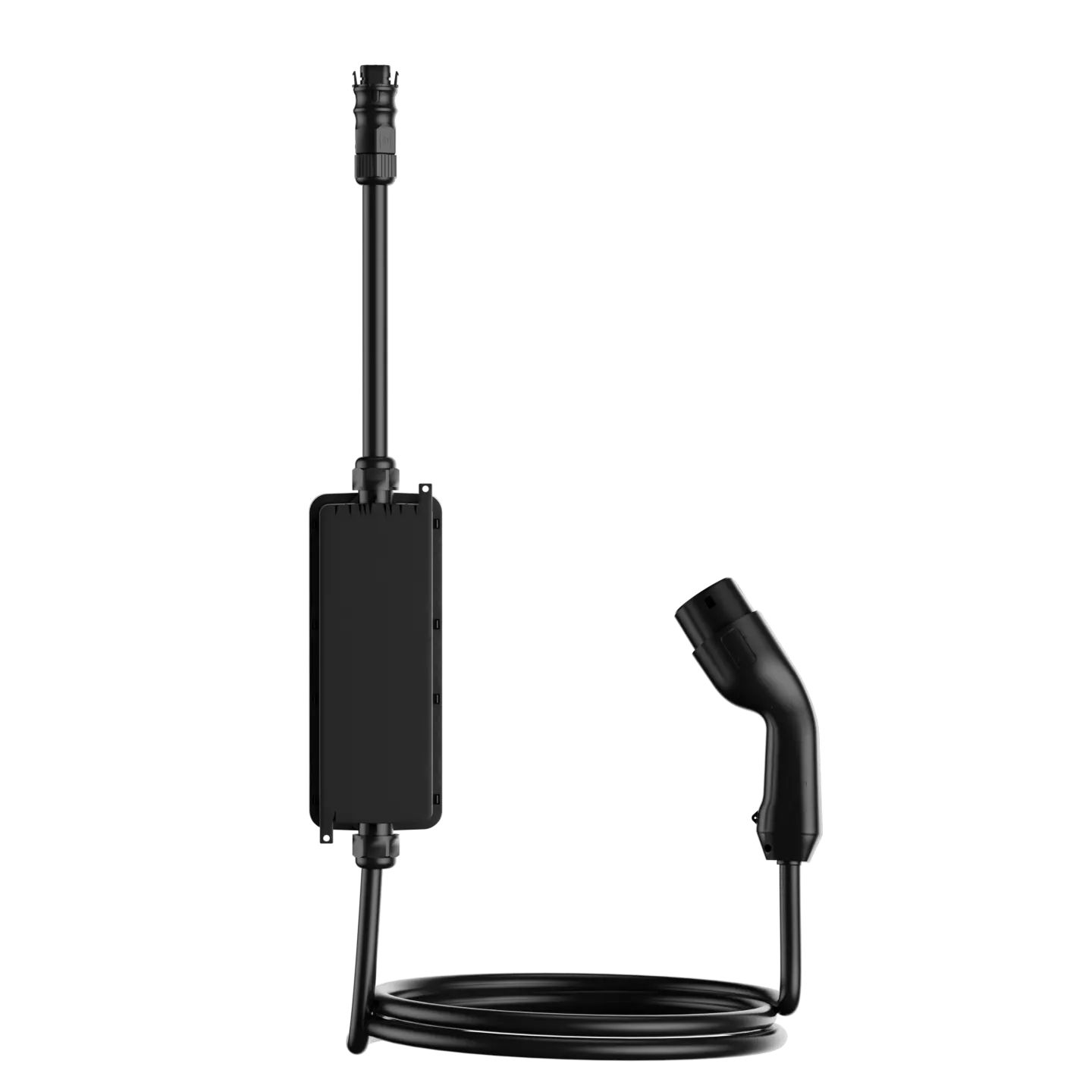

Deye EV AC Charger SUN-EVSE22K01-EU-AC 7kW Single Phase/22kW 3 Phase IP66

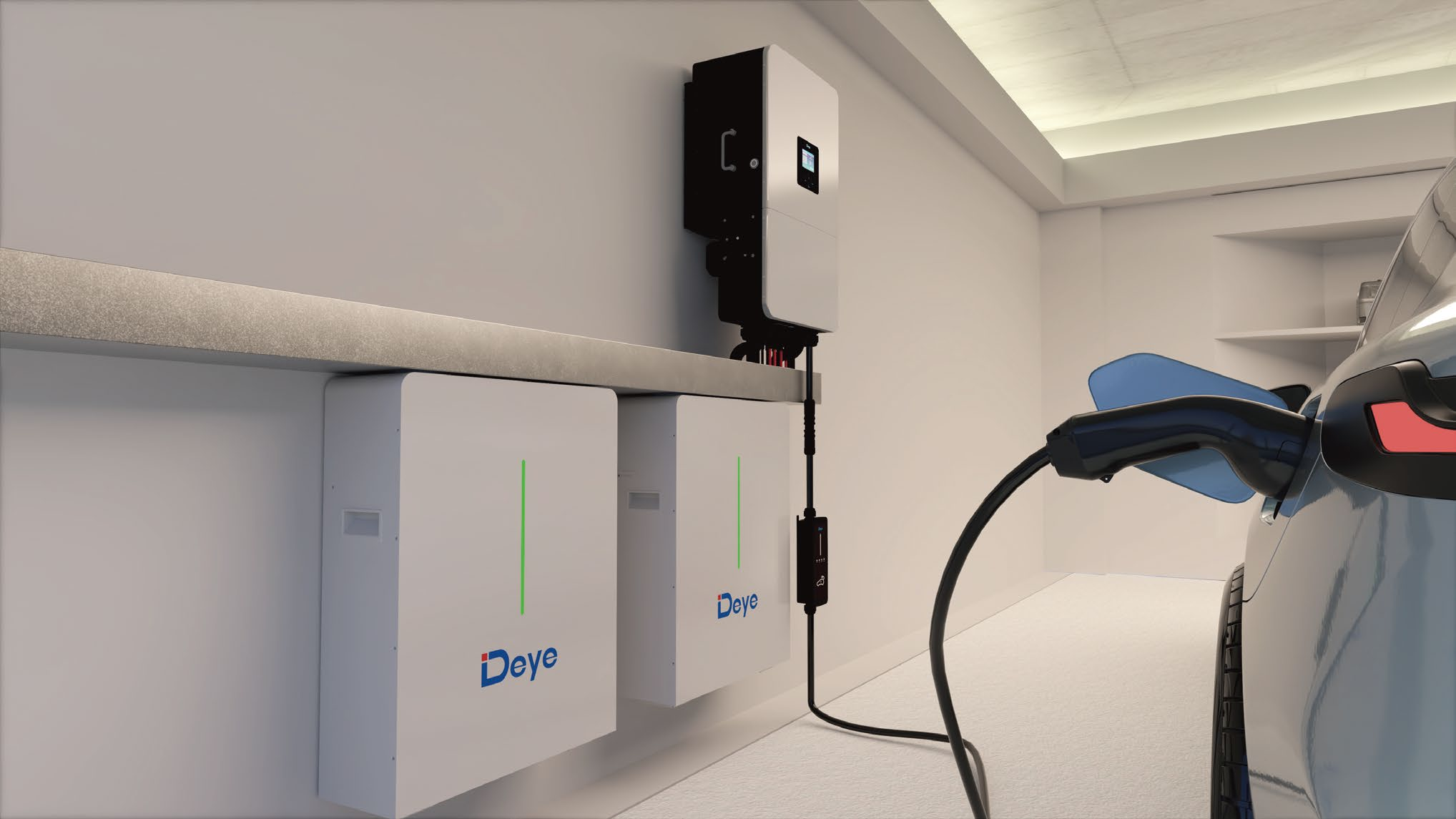

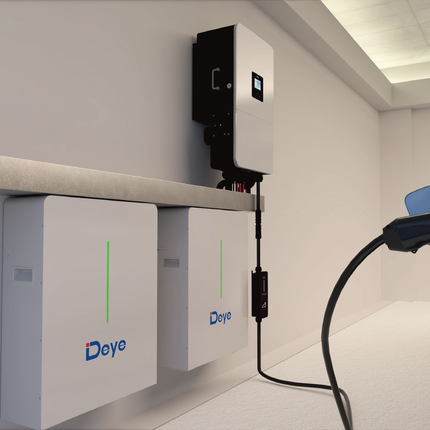

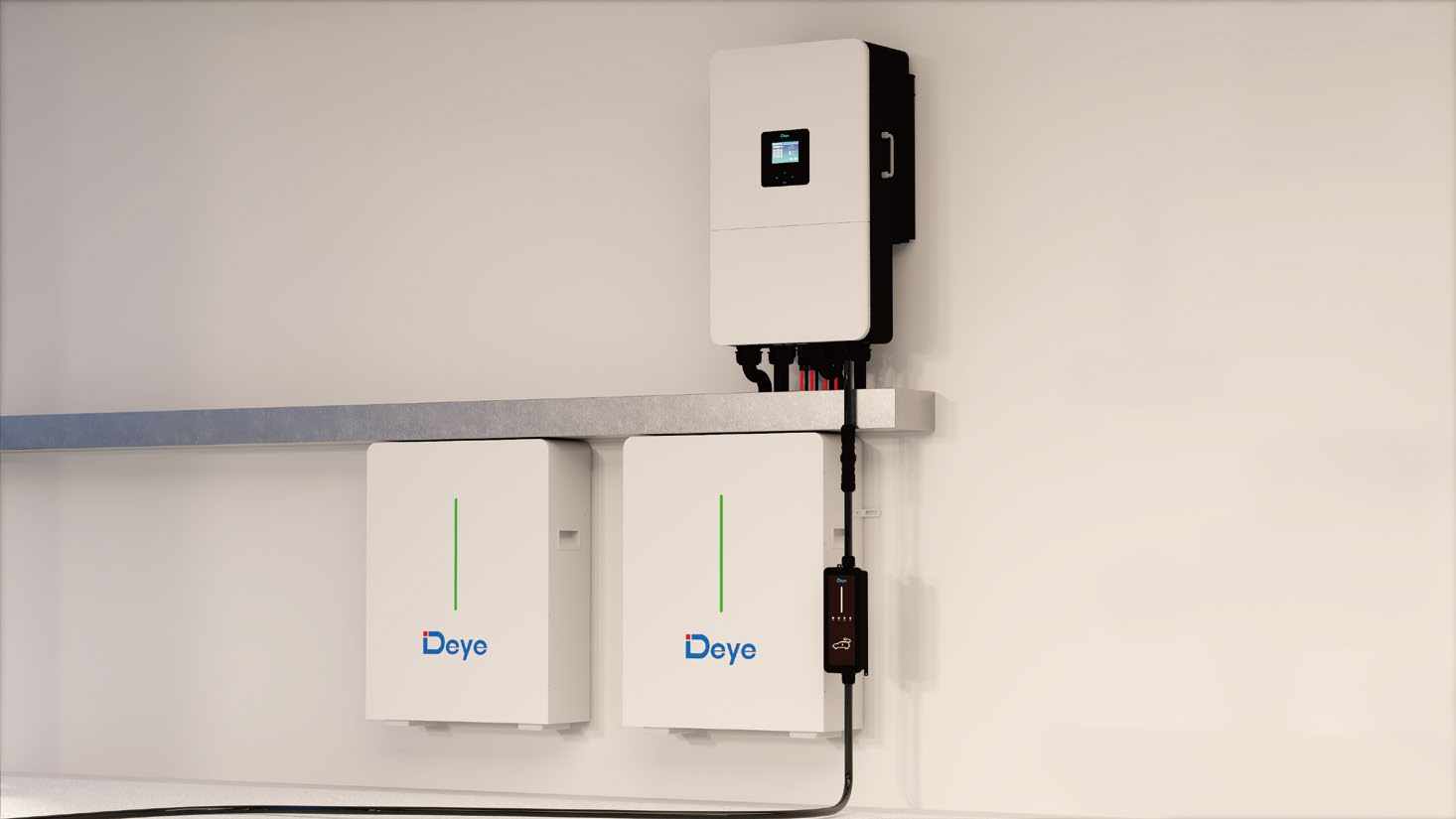

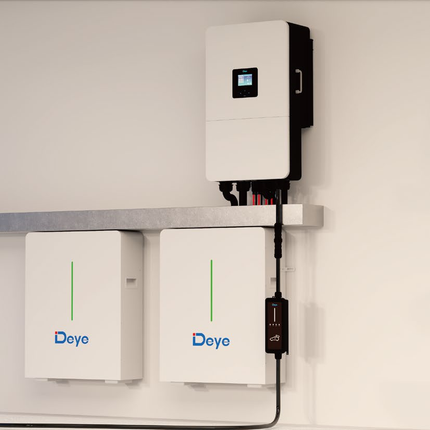

Deye Smart EV Charger can be directly connected to any AC port of the inverter and is controlled by the inverter via LoRa communication. It offers flexible options to take advantage of low-cost electricity, with modes such as Plug and Play, Time of Charge, or Solar Energy Only.
Features:
Low latency.
LoRa communication.
Supports all Deye hybrid inverters.
Maximize the use of solar power.
Minimize the electricity bill as much as possible.

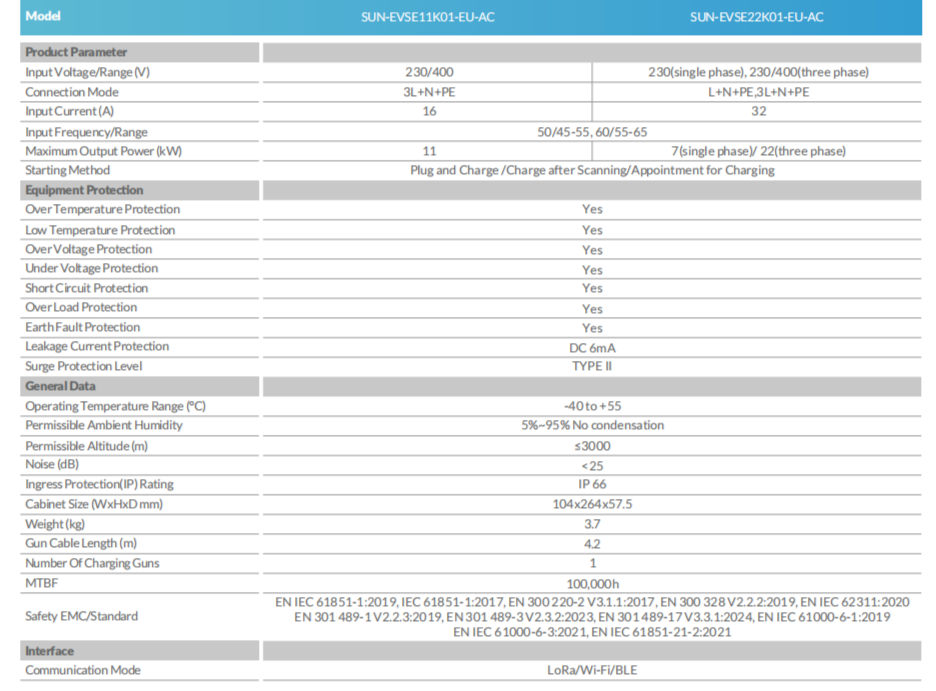

Specifications:
Input Voltage/Range(V): 230(single phase), 230/400(three phase)
Maximum Output Power(kW): 7(single phase)/ 22(three phase)
Input Current(A):32A
Input Frequency/Range: 50/45-55, 60/55-65
Starting Method: Plug and Charge /Charge after Scanning/Appointment for Charging
Permissible Altitude (m): ≤33000
Cabinet Size(WxHxD mm): 104x264x57.5
Weight(kg): 3.7
Gun Cable Length(m): 4.2
Number Of Charging Guns: 1
Ingress Protection(IP) Rating: IP66
Warranty: 5 years
