Description
Optimize and monitor your energy system with the SUN-SMART-CTO1 combined with the SUN-SMART-TXO1. Designed for precision, efficiency, and reliable communication, this smart energy monitoring kit is perfect for residential, commercial, and industrial applications.
Key Features

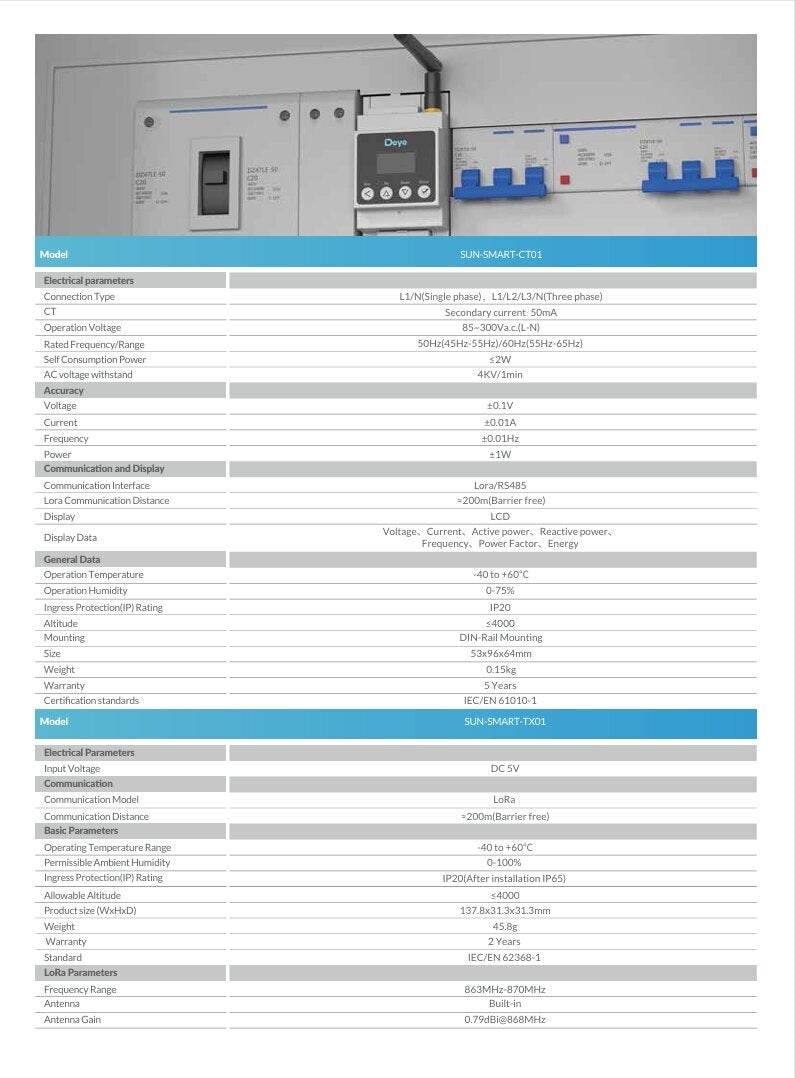

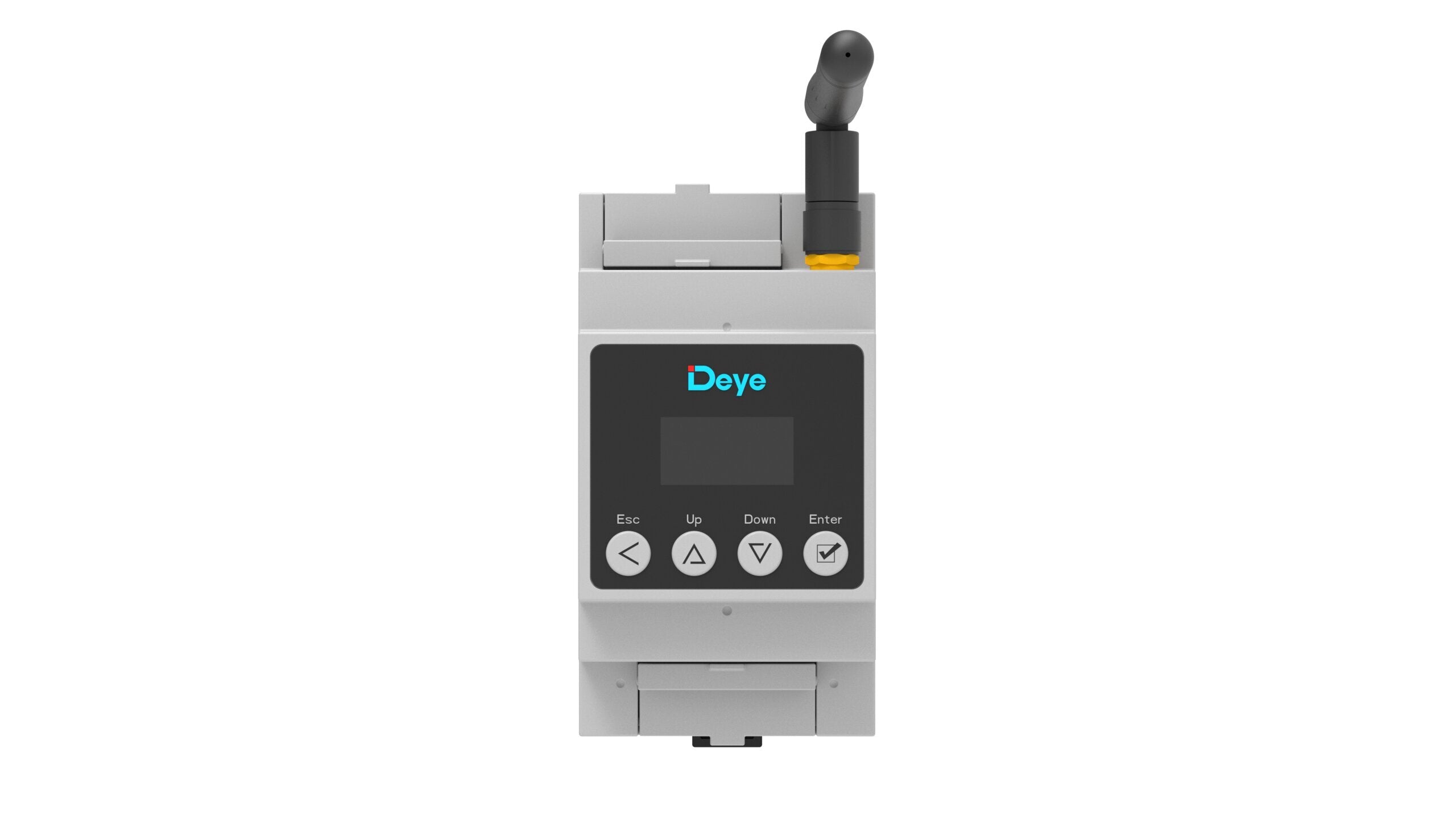

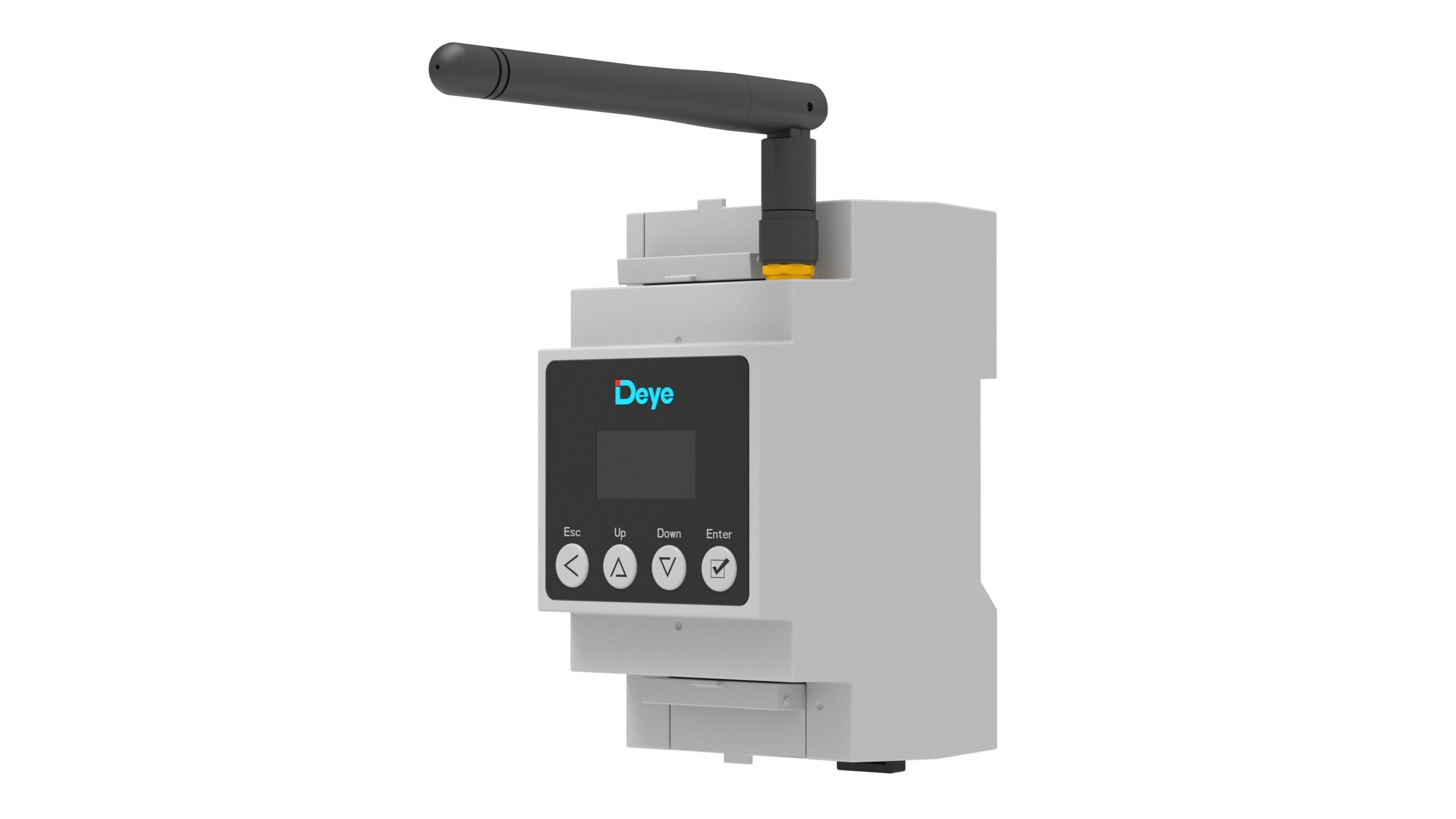

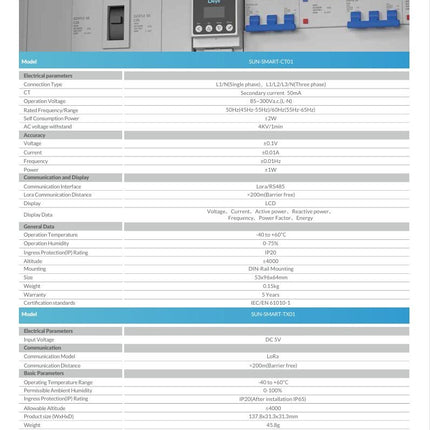

SUN-SMART-CTO1 – Smart Energy Meter (CT)
- Model: L1/N (Single Phase) or L1/L2/L3/N (Three Phase)
- Operating Voltage: 85–300 V AC (L-N)
- Frequency: 50Hz (45–55Hz) / 60Hz (55–65Hz)
- Secondary Current: 50mA
- Self Consumption: ≤2 W
- AC Voltage Withstand: 4 kV / 1 min
- Accuracy: ±0.1 V, ±0.01 A, ±0.01 Hz, ±1 W
- Communication: LoRa / RS485, up to 200m barrier-free
- Display: LCD shows Voltage, Current, Active Power, Reactive Power, Frequency, Power Factor, and Energy
- Installation: DIN-Rail Mounting
- Dimensions: 53 x 96 x 64 mm | Weight: 0.15 kg
- Operating Temp: 0–60°C | Humidity: 0–75% | IP Rating: IP20
- Warranty: 5 Years | Standards: IEC/EN61010-1

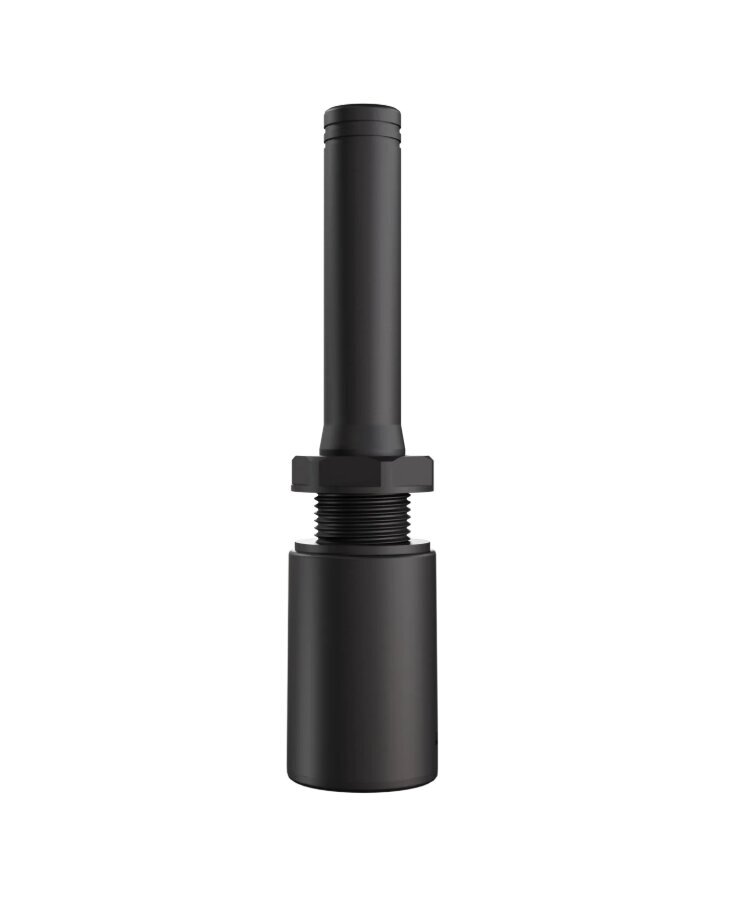

SUN-SMART-TXO1 – LoRa Transmission Module
- Input Voltage: DC 5V
- Communication: LoRa, up to 200m barrier-free
- Frequency Range: 863–870 MHz | Built-in Antenna Gain: 0.79 dBi @ 868 MHz
- Display: N/A (Transmitter only)
- Operating Temp: 0–60°C | Humidity: 0–100% | IP Rating: P20 (IP65 after installation)
- Dimensions: 137.8 x 31.3 x 31.3 mm | Weight: 45.8 g
- Warranty: 2 Years | Standards: IEC/EN 62368-1
Why Choose the SUN-SMART Kit?
- Complete Monitoring Solution: Works seamlessly as a set for accurate measurement and remote transmission of energy data.
- Easy Installation: DIN-rail mounting for the meter and compact design for the transmitter.
- Reliable Communication: LoRa provides long-distance wireless transmission without barriers.
- Wide Compatibility: Supports single and three-phase systems with high accuracy.
- Durable & Safe: Built to international standards with excellent protection and operational reliability.
