LONGi

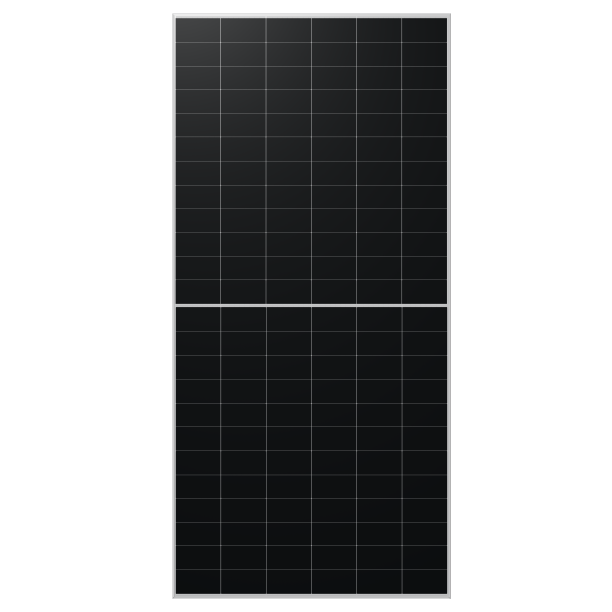

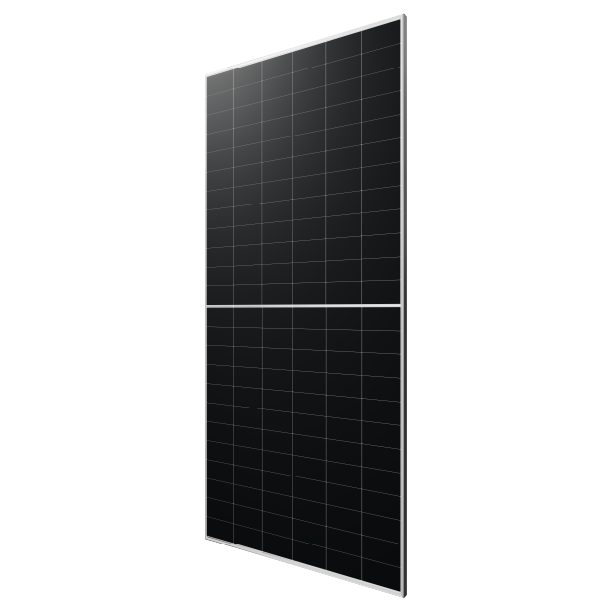

LONGi Hi-MO X10 Guardian HPBC2.0 Bifacial Dual Glass 645W Solar Panel LR8-66HVDF-645M15-year Warranty for Materials and Processing30-year Warranty for Extra Linear Power OutputFeatures Advanced: N-Type TaiRay Wafer + HPBC2.0 + 0BB. Aesthetic: No Frontal Gridlines, Scenario Integration. Safe: Less Micro-Crack, Prevent Localized Overheating, Anti-Shading. Anti-Dust Design: Patented Frame, Reduce Dust Accumulation. Electrical Characteristics: Type: LR8-66HVDF-645M Testing Condition: STC Maximum Power (Pmax/W): 645W Open Circuit Voltage (Voc/V): 49.62V Short Circuit Current (Isc/A): 16.46A Voltage at Maximum Power (Vmp/V): 40.88V Current at Maximum Power (Imp/A): 15.78A Module Efficiency(%): 23.88% Mechanical Parameters: Junction Box: IP68, three diodes Output Cable: 4mm2, +400, -200mm/±1400mm length can be customized Glass: Dual glass, 2.0+2.0mm semi-tempered glass Frame: Anodized aluminum alloy frame Weight: 32.5kg Dimension: 2382×1134×30mm Mechanical Loading: Front Side Maximum Static Loading: 5400Pa Rear Side Maximum Static Loading: 2400Pa Hailstone Test: 25mm Hailstone at the speed of 23m/s Temperature Ratings (STC): Temperature Coefficient of Isc: +0.050%/℃ Temperature Coefficient of Voc: -0.200%/℃ Temperature Coefficient of Pmax: -0.260%/℃ Ideal for utility-scale, commercial, and high-efficiency residential projects seeking maximum performance, product longevity, and bankable solar solutions backed by LONGi’s global reputation and innovation.

Read more less

Low Light Performance 12 Years Material Workmanship Warranty 25 Years Linear Power Output Warranty Features Half-cut Technology New circuit design with lower internal current and reduced internal resistance loss. Significantly avoiding heat spot The unique circuit design significantly reduces the temperature of hotspots, thereby lowering power loss and increasing module output. Lower cost Increasing power generation helps reduce the cost per kilowatt-hour. Excellent performance of PID resistance The PID (Potential-Induced Degradation) resistance performance meets the TÜV Nord standard, ensuring stable module output. Excellent light blocking performance The module delivers higher power output under low-light conditions, such as haze and cloudy days. High efficiency output power High conversion efficiency. Specifications ELECTRICAL DATA (STC) MODEL: LR5-28HTH-225W  Maximum Power(Pmax/w): 250 Open Circuit Voltage (Voc/V): 22.66 Short Circuit Current (lsc/A): 13.95 Voltage at maximum Power (Vmp/V): 19.03 Current at maximum Power (Vmp/V): 13.14 Module Efficiency (%): 18.9 STC(Standard Testing Conditions):irradiance 1000W/m ,Cell Temperature25℃, Spectra at AM1.5 ELECTRICAL DATA (NOCT) Maximum Power(Pmax/w): 186 Open Circuit Voltage (Voc/V): 16.16 Short Circuit Current (lsc/A): 11.51 Voltage at maximum Power (Vmp/V): 13.75 Current at Maximum Power (lmp/A): 10.86 NOCT(Normal Operating Cell Temperature):lrradiance800W/m%, Ambient Temperature20℃, Wind speed 1m/s TEMPERATURE & MAXIMUM RATING Maximum System Voltage(V): 1000V Maximum Series Fuse Rating(A): 15A Power Tolerance: 0 - +3W NOCT Nominal Operating Cell Temperature(c): 45 +- 2℃ Operating and Storage Temperature(C): -40 - +85℃ MECHANICAL CHARACTERISRTICS Cell Type: 182x91mm Dimensions: 1354x767x30mm Weight: 12.4kg Note: This product is designed to provide free electricity permanently and is built to withstand high wind pressure and snow load.

Read more less

LONGi Hi-MO X10 HPBC2.0 650W Solar Panel LR7-72HVH-650M15-year Warranty for Materials and Processing30-year Warranty for Extra Linear Power OutputKey FeaturesSuitable for glare-sensitive scenarios such as airports, highways, and residential householdsUse high-transparency and low-reflection glass to enhance the anti-glare effectPeak efficiency with top power generation performanceTaiRay wafer & BC technology enhances high product reliabilityMechanical Parameters Cell Orientation: 144 (6×24) Junction Box: IP68, three diodes Output Cable: 4mm2, +400, -200mm/+-1400mm Glass: Single glass, 3.2mm anti-glare coated tempered glass Frame: Anodized aluminum alloy frame Weight: 28.5kg Dimension: 2382x1134x30mm Packaging: 36pcs per pallet Electrical Characteristics Module Type: LR7-72HVH-650M Testing Condition: STC Maximum Power (Pmax/W) : 650 Open Circuit Voltage (Voc/V): 53.90 Short Circuit Current (Isc/A) : 15.29 Voltage at Maximum Power (Vmp/V) : 44.56 Current at Maximum Power (Imp/A) : 14.59 Module Efficiency(%) : 24.1 Operating Parameters Operational Temperature: -40°C - +85°C Power Output Tolerance : 0 - 3% Maximum System Voltage: DC1500V (IEC) Maximum Series Fuse Rating: 25A Protection Class: Class II Nominal Operating Cell Temperature: 45+-2°C Fire Rating: IEC Class C Ideal for utility-scale, commercial, and high-efficiency residential projects seeking maximum performance, product longevity, and bankable solar solutions backed by LONGi’s global reputation and innovation.

Read more less

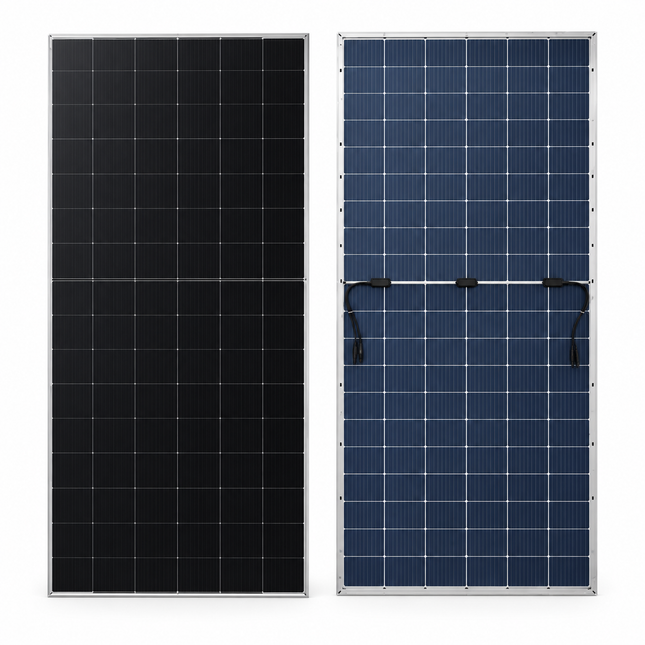

12-year Warranty for Materials and Workmanship 30-year Warranty for Extra Linear Power Output Key Features Advanced BC Technology: High-efficiency cell technology with lower temperature coefficient High Efficiency: 650W output with 24.1% module efficiency Bifacial Design: Bifaciality of 75±5% for additional rear-side power generation Corrosion Resistant: Designed for coastal, high-humidity and high-corrosion environments Enhanced Durability: Salt-mist-resistant junction box, connectors, coated glass and anodized aluminium frame Low Degradation: Less than 1% first-year degradation and only 0.35% annual degradation from Year 2–30 Extended Warranty 12-year warranty for materials and workmanship 30-year warranty for extra linear power output performance Mechanical Parameters Cell Orientation: 132 (6 × 22) Junction Box: Salt-mist-resistant split junction box Output Cable: 4mm², +400mm / -200mm or ±1400mm Glass: Semi-tempered glass Frame: Weather-resistant anodized aluminium frame Weight: 32.7kg Dimensions: 2382 × 1134 × 30mm Packaging: 36 pcs per pallet Electrical Characteristics Module Type: LR8-66HYD-650M Testing Condition: STC Maximum Power (Pmax): 650W Open Circuit Voltage (Voc): 49.72V Short Circuit Current (Isc): 16.54A Voltage at Maximum Power (Vmp): 40.98V Current at Maximum Power (Imp): 15.86A Module Efficiency: 24.1% Operating Parameters Operational Temperature: -40°C ~ +85°C Power Output Tolerance: 0 ~ +3% Maximum System Voltage: DC1500V (IEC/UL) Maximum Series Fuse Rating: 35A Protection Class: Class II Nominal Operating Cell Temperature: 45±2°C Bifaciality: 75±5% Fire Rating: UL Type 29 / IEC Class C Temperature Coefficients Isc Temperature Coefficient: +0.050%/°C Voc Temperature Coefficient: -0.200%/°C Pmax Temperature Coefficient: -0.260%/°C

Read more less

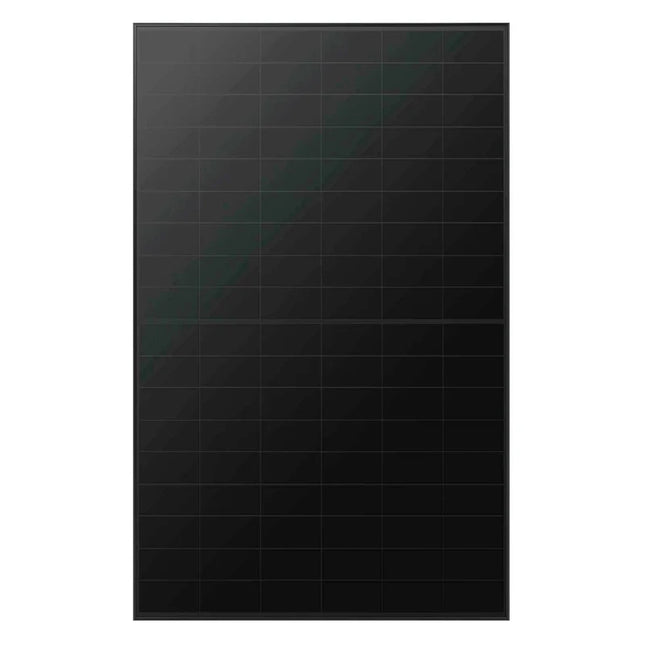

The LONGi EcoLife X10 LR7-54HVB-480M is a premium 480W full-black, single-glass solar panel designed for high-efficiency residential and light-commercial installations. Key features• 480W maximum power output• 23.5% module efficiency• HPBC 2.0 BC-cell technology for strong performance in partial shade• 0–3% positive power tolerance• 30-year power warranty with 88.85% warranted output at year 30• Black anodised aluminium frame and 3.2mm coated tempered glass• IP68 junction box and HW4 hail resistance Electrical specifications (STC)• Open-circuit voltage (Voc): 40.29V• Short-circuit current (Isc): 15.13A• Voltage at maximum power (Vmp): 33.28V• Current at maximum power (Imp): 14.43A• Maximum system voltage: 1500V DC Dimensions1800 × 1134 × 30mm; weight 21.6kg. Warranty• 30-year power warranty• Guaranteed power output at year 30: 88.85%Note: This is a power-output performance warranty. Specifications are based on the manufacturer datasheet and may change without notice.

Read more less
