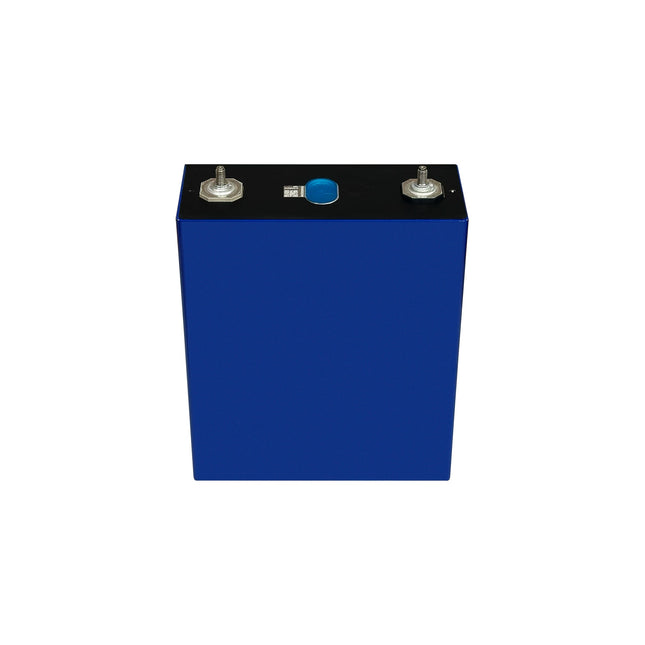

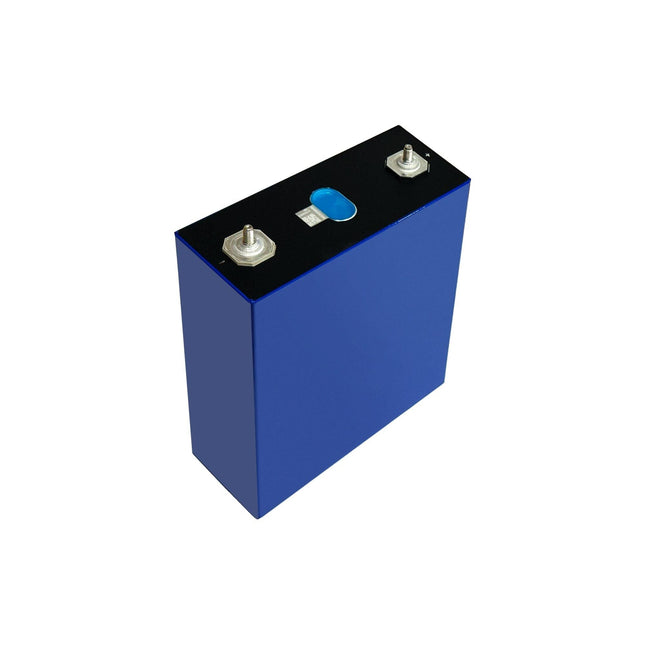

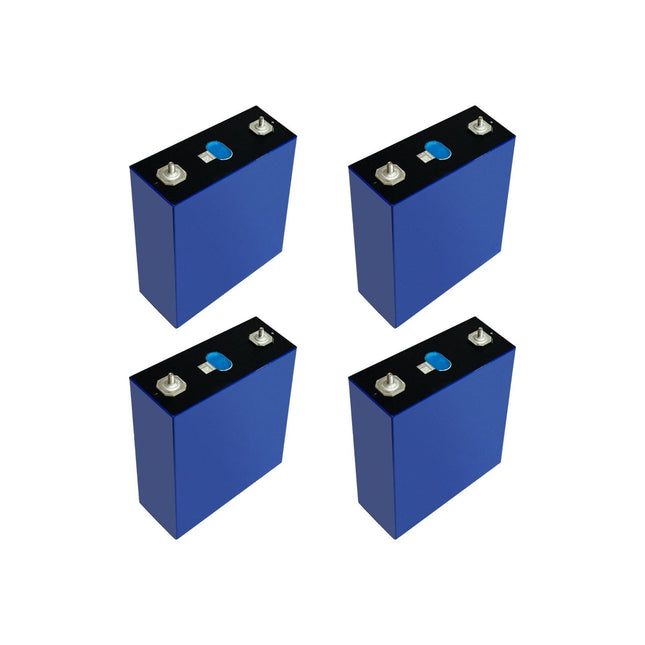

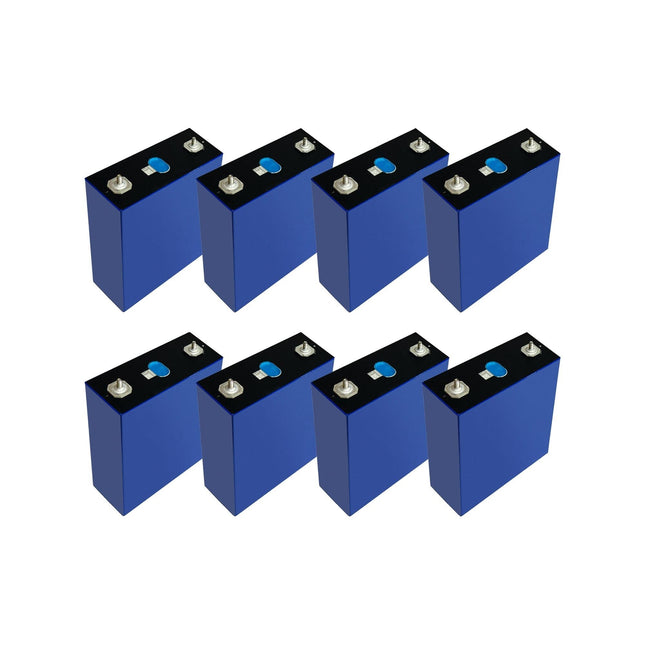

3.2V 306Ah Lithium Battery LiFePO4 Battery Lithium Iron Phosphate Battery
*** New Arrival ***
*** Latest Technology ***
*** Grade A Guaranteed ***
*** Brand New ***
**Save more when you buy more! Get 4 batteries for only $1091, or 8 batteries for just $2182!**
Introducing our Grade A lithium-ion LiFePO4 prismatic cells, optimized for both vehicles and energy storage applications. With a nominal voltage of 3.2V and a capacity of 306Ah, these cells deliver reliable performance across the board. Key features include:
Nominal Voltage: 3.2V
Nominal Capacity: 306 Ah
Nominal Energy: 979.2 Wh
End-of-charge Voltage (Umax): 3.65 V
End-of-discharge Voltage (Umin):
2.5 V（T >0°c）
2.0 V（T ≤0°c）
Standard Charging Power: 0.5P
Max. Continuous Charging Power: 0.5P
Standard Discharging Power: 0.5P
Max. Continuous Discharging Power: 0.5P
Initial Internal Resistance: 0.18 mΩ ± 0.05 mΩ
Weight: 5.6kg
Dimensions:
Height with terminal: 207.2 mm
Height without terminal: 204.6mm
Length: 173.7 mm
Thickness: 71.7 mm
Charging Temperature: 0°c - 60°c
Discharging Temperature: -30°c - 60°c
Ideal for a wide array of applications including RVs, EVs, solar systems, e-bikes, UPSs, energy storage systems, telecommunication base stations, e-scooters, e-tools, golf carts, forklifts, cleaning cars, electric wheelchairs, and other deep cycle uses. Experience dependable energy storage and advanced design with our premium cells.
2 Years Warranty

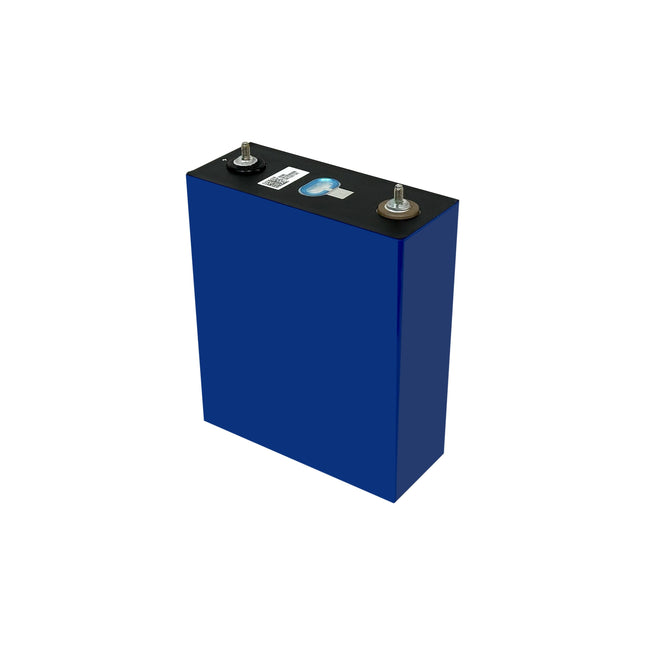

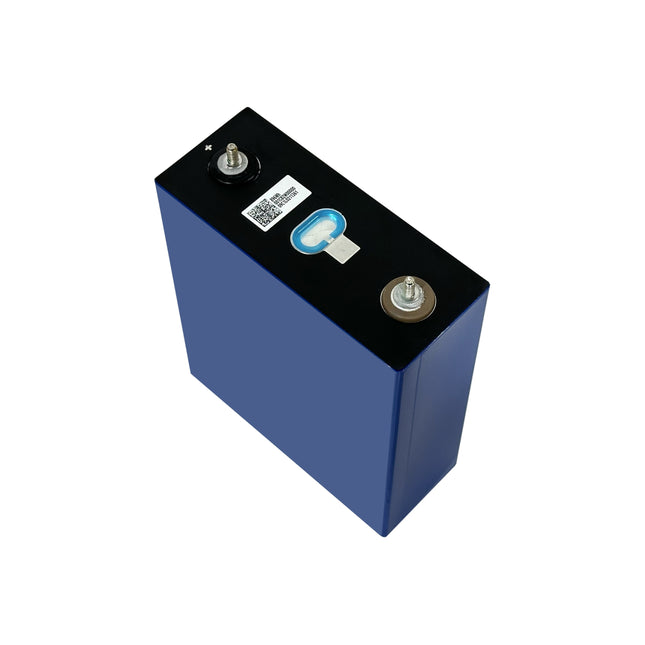

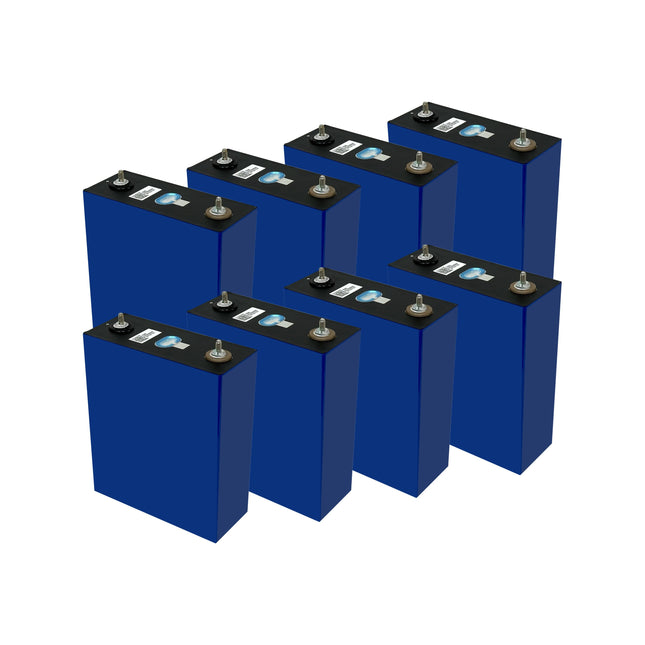

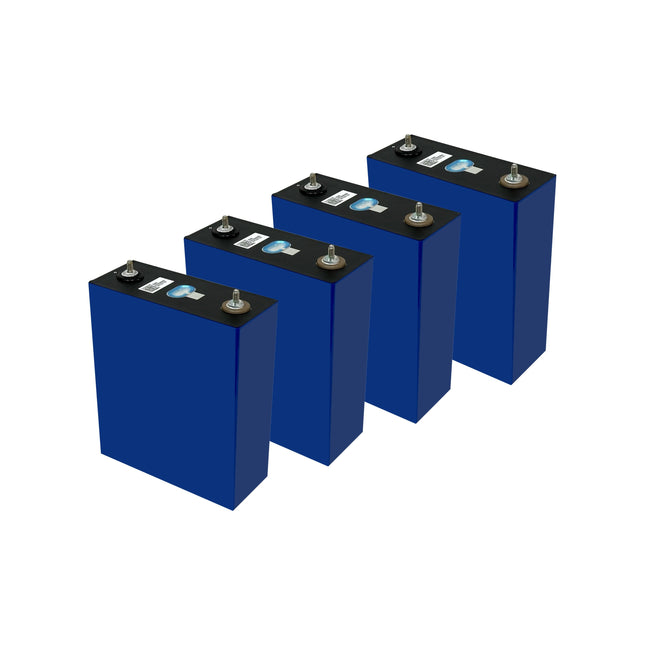

4X CATL 3.2V 280Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery
*** New Arrival ***
*** Latest Technology ***
*** Grade A Guaranteed ***
*** Brand New ***
**Save more when you buy more! Get 4 batteries for only $956, or 8 batteries for just $1832!**
Introducing our Grade A lithium-ion LiFePO4 prismatic cells, optimized for both vehicles and energy storage applications. With a nominal voltage of 3.2V and a capacity of 280Ah, these cells deliver reliable performance across the board.
Specification:
Cell Capacity: 280Ah
Discharge Energy: 896Wh
Operating Voltage Range: 2.5-3.65V
Internal Resistance (1KHz): 0.17±0.05mΩ
Operating Temperature (Charging): 0 – 60°c
Operating Temperature (Discharge): -20 – 60°c
Cycle Life: 6000 Cycles
Storage Life: 15 Years
Battery Weight: 5.34±0.30Kg
Dimensions: 173.9mm W x 207.2mm H x 71.7mm Thickness
Resting SOC: >=5%
Ideal for a wide array of applications including RVs, EVs, solar systems, e-bikes, UPSs, energy storage systems, telecommunication base stations, e-scooters, e-tools, golf carts, forklifts, cleaning cars, electric wheelchairs, and other deep cycle uses. Experience dependable energy storage and advanced design with our premium cells.
2 Years Warranty
Package included:
4X CATL 3.2V 280Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery

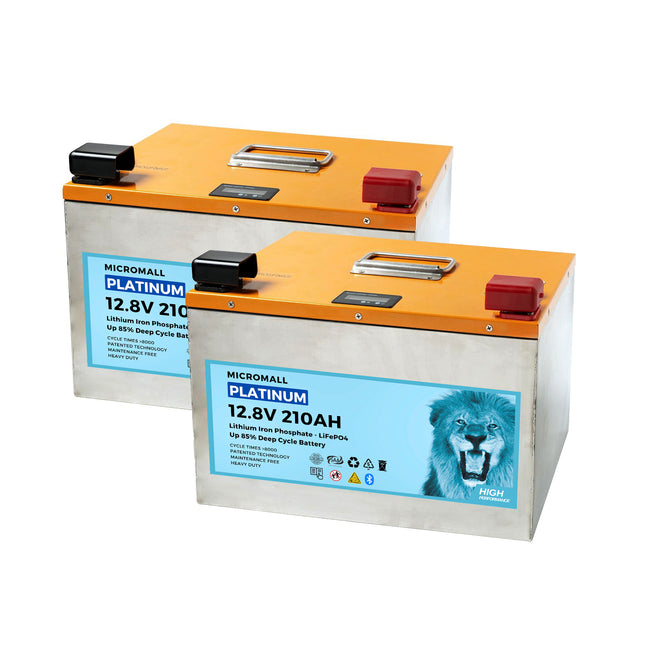

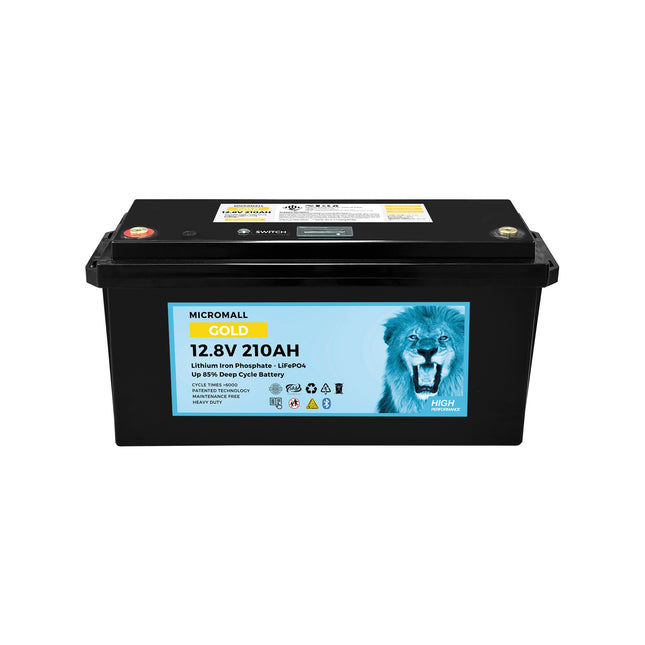

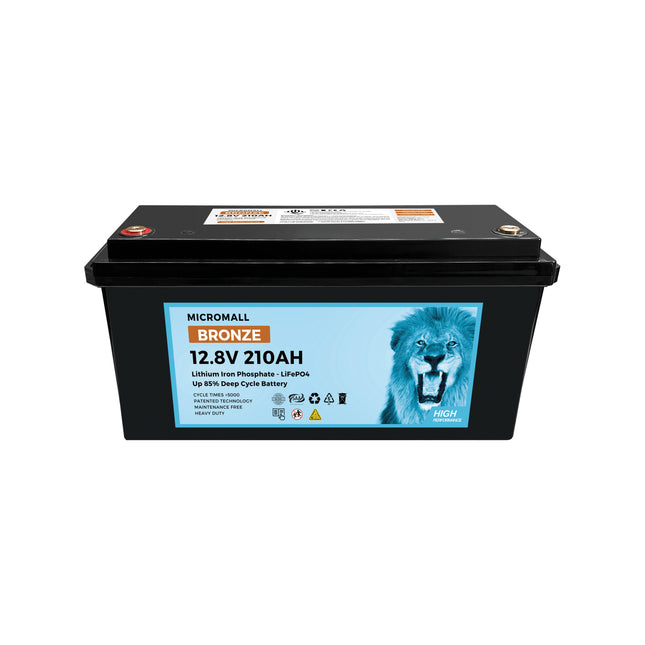

Introducing our newest 12V 200Ah (210Ah max) LiFePO4 lithium iron phosphate battery, featuring the latest CATL cell technology, renowned as the world's safest.
Enjoy a robust 10-year full warranty plus an additional 5-year repair warranty. These batteries boast an impressive 8000 cycle lifespan, lasting up to 20 years. Uniquely designed to be compatible with standard car lead acid chargers and alternators.
Our deep cycle LiFePO4 battery, sized at 12V 200Ah, offers a modern solution for energy storage, matching conventional battery sizes but with superior energy density and significant weight reduction. Ideal for RVs, solar systems, cars, and water pumps, these batteries can directly replace traditional batteries without any circuit modifications.
Our LiFePO4 batteries feature a high cycle life, higher maximum discharge rates, and faster recharge times compared to lead-acid batteries. Each comes with an integrated Battery Management System (BMS) for protection against over-discharge, overcharge, and short circuits, enhancing safety and prolonging battery life.
Key Features:
80% efficiency after 6000 deep cycles
BMS protection system with built-in voltmeter
Automatic overload and short circuit protection
Continuous discharge current of max 230 amps
Over-discharge and overcharge protection
Specifications:
Battery Chemistry: LiFePO4
Capacity(Ah): Max 210Ah
Nominal Voltage (V): 12.8V
Operating Voltage(V): 10.8 - 14.4V
Energy(kWh): 2.6kWh
Usable Energy(kWh): 2.4kWh
Charge/Discharge Current
Recommend: 80A
Max: 180A
Peak: 300A (500ms, 25°C)
Short-circuit 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Weight: 27kg each battery
Size: 355mm L x 230mm W x 235mm H
This package includes two batteries.

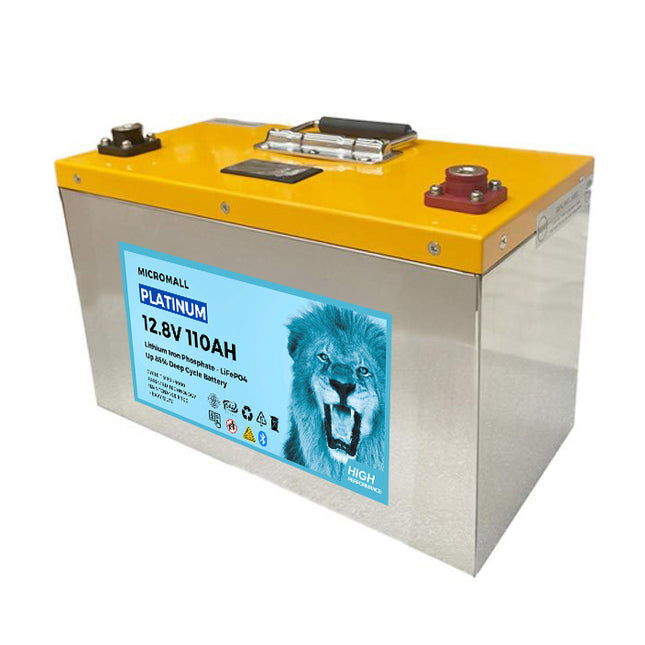

Introducing our latest 12V 110Ah LiFePO4 battery, featuring cutting-edge CATL cells, renowned for safety. It boasts a high cycle life, enduring 8000 cycles at 80% DOD, ensuring over 20 years of reliable service.
This battery incorporates a unique 3 BMS system, patented by our company, which meticulously displays and balances each cell voltage with an impressive precision of 0.004mV.
We offer an exceptional warranty package: 10 years full warranty, plus an additional 5 years of repair warranty. Designed for compatibility with standard caravan charging systems, lead acid chargers, and lithium chargers, it delivers up to 1.2kW output.
Our next-generation deep cycle lithium battery fits conventional sizes, offering higher energy density and significant weight reduction compared to lead acid batteries. Ideal for RVs, solar energy storage, yachts, automobiles, and water pumps, it seamlessly replaces traditional batteries without any circuit modifications.
Our LiFePO4 batteries surpass standard models in cycle life, maximum discharge rate, and charging speed. They come equipped with built-in 3 BMS for protection against over-discharge, overcharge, and short circuits, significantly enhancing safety and longevity.
Key safety features include a 3 BMS protection system, built-in voltmeter, automatic overload protection, independent 3A equalizer, short circuit protection, continuous 100 amp discharge current, and thermal runaway prevention.
Specifications:
Voltage: 12V
Capacity: 110Ah
Charge Voltage: 13.8-14.4V
Float Voltage: 14V
Output Amp: 100amp
Self-Discharge: < 3%
Cut-Off Voltage: 10.8V
Operating Temperature: -30°C to 65°C
Dimensions: 330mm L x 170mm W x 225mm H
Weight: 15kg
The Deye BOS-G series is an advanced LiFePO4 battery system designed for reliable and efficient energy storage in homes and businesses. It offers various configurations and capacities to meet different energy needs.
Key Features:
High-quality LiFePO4 cells for safety and durability
Modular design with capacities from 15.36 kWh to 61.44 kWh
Flexible system voltage from 153.6V to 614.4V
Intelligent Battery Management System (BMS) for optimal performance
Compact and easy to install
10-year warranty for peace of mind
The BOS-G series uses LiFePO4 technology known for its safety, thermal stability, and long cycle life. Each battery module has 100Ah capacity and 5.12 kWh energy, allowing scalable storage solutions.
It offers a recommended depth of discharge (DOD) of 90% and a cycle life of over 6000 cycles at 25°C. With a wide operating temperature range of -20°C to 55°C, the system is suitable for diverse environments.
The system includes a high-voltage box (HVB750V/100A) that supports a voltage range of 120-750 Vdc and a maximum current of 125A, ensuring efficient integration with existing power systems and compatibility with various inverters and chargers.
Safety is prioritized with features like over-voltage, under-voltage, over-current, short-circuit, and temperature protection. The system’s IP20-rated enclosure ensures protection from dust, and built-in status indicators provide clear updates on system performance.
Model: BOS-GM5.1
5.12 kWh battery module
Battery Type: LiFePO4(LFP)
Nominal Voltage: 51.2Vdc
Rated Capacity: 100Ah
Rated Energy: 5.12kWh
Nominal Charge/Discharge Current: 100A
Peak.Discharge Current: 125A
Charge Temperature: 0 - 55°C
Discharge Temperature: -20°C - 55°C
Storage Temperature: 0°C - 35°C
Ingress Protection: IP20
Dimension (W/D/H): 440x570x133mm
Weight: 44kg
**This listing is for 1 battery model only.**
With a 10-year warranty, the Deye BOS-G series offers a reliable, long-lasting energy storage solution for any user.
The Deye AI-W5.1-B Lithium Iron Phosphate Battery is a reliable, safe, and flexible energy storage solution that caters to your specific needs. With its modular design, quick installation, and remote monitoring capabilities, this battery system is the ideal choice for optimizing your energy consumption and reducing your carbon footprint.
Key Features:
Safe & Durable – Cobalt-free Lithium Iron Phosphate (LFP) chemistry with an intelligent Battery Management System (BMS) for maximum protection and long lifespan.
Reliable Performance – Supports high discharge power, operates in -20°C to 55°C, and features an IP65 rating with natural cooling.
Scalable & Flexible – Expandable up to 184 kWh with 36 units in parallel, suitable for various energy needs.
Easy Installation – Flat, stackable design with wall-mounted or floor-mounted options; no wiring required.
Smart Monitoring – Auto-networking for seamless maintenance, plus remote monitoring and firmware upgrades.
Eco-Friendly – Made from non-toxic, pollution-free materials.
Model: AI-W5.1-B
Battery Chemistry: LiFePO4
Built-in Circuit Breaker: 125A 2P, 60Vdc
Battery Module Energy (kWh): 5.12
Battery Module Voltage (V): 51.2
Battery Module Capacity (Ah): 100
Nominal Voltage (V): 51.2
Operating Voltage(V): 43.2 - 57.6
IP Rating of Enclosure: IP65 (after stacking)
Dimension (W/D/H, mm): 720 x 255 x 569
Weight (kg): 74.5
**10 Years Warranty**
**This listing is for 1 battery module only.**

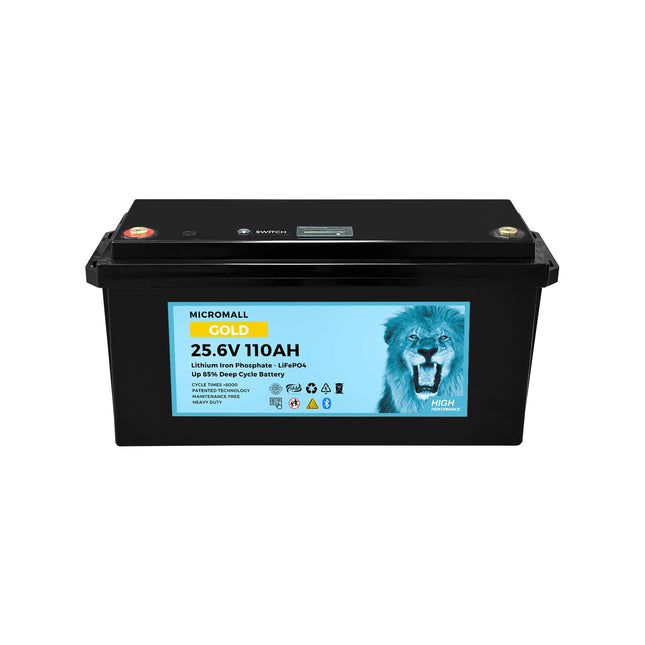

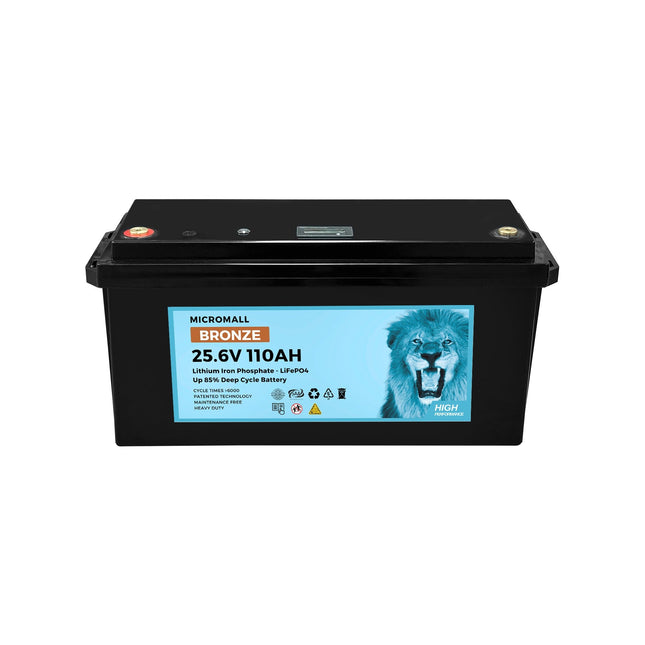

Introducing the Micromall 25.6V 110Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery Solar Battery, a high-performance household energy storage solution.Key Features
Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: NZ-24110
Battery Chemistry: LiFePO4
Capacity(Ah): Max 110Ah
Nominal Voltage (V): 25.6V
Operating Voltage(V): 21.6 - 28.8V
Energy(kWh): 2.8kWh
Usable Energy(kWh): 2.5kWh
Charge/Discharge Current (A) Recommend, Max: 50, 100
Charge/Discharge Current (A) Peak, Short-circuit: 200 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimension (H/W/D, mm): 501 x 242 x 185mm, 355 x 232 x 230mm
Weight Approximate (kg): 23±2kg
Master Indicator: LCD
IP Rating of Enclosure: IP54 / IP20
Operating Temperature: Charge:0-55°C (Optional heating) / Discharge: -20°C-55°C
Insulation resistance factory test: >100MΩ
Initial battery internal resistance: 0.18+-0.05mΩ
Storage Temperature: 0°C - 35°C
Humidity: 5% - 95%
Altitude: <=2000m
Cycle Life: >=6000(25°C±2°C 0.5C / 0.5C, 90%DOD, 70%EOL)
Installation: Floor-Mounted
Communication Port: BUUETOOTH
Energy Throughput: 8KWh@70%EOL
Certification: SAA, IEC62619, UN38.3
15 Years New Zealand Local Warranty

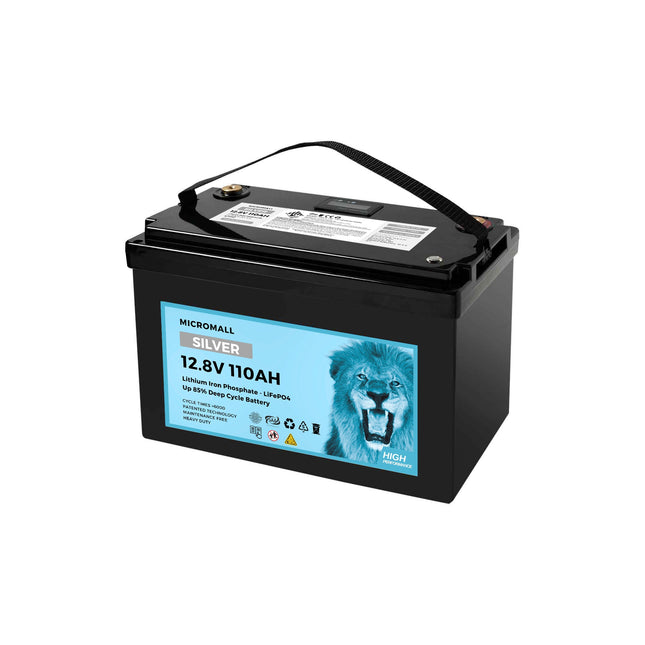

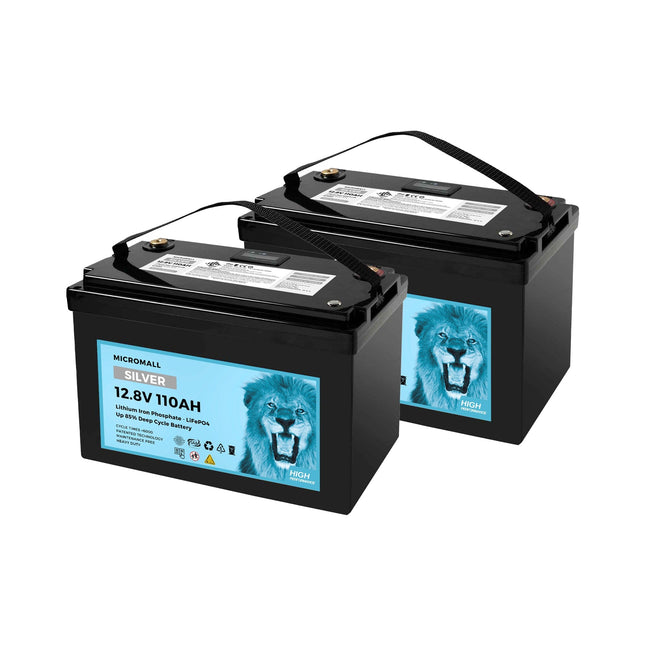

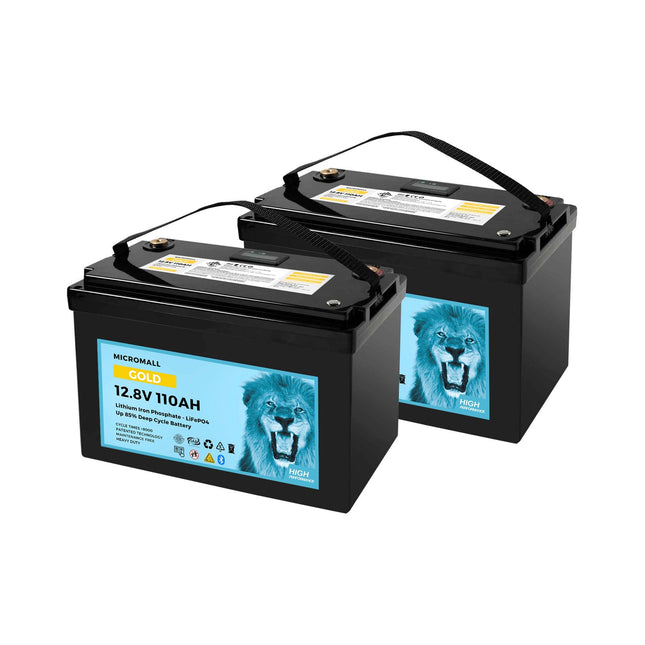

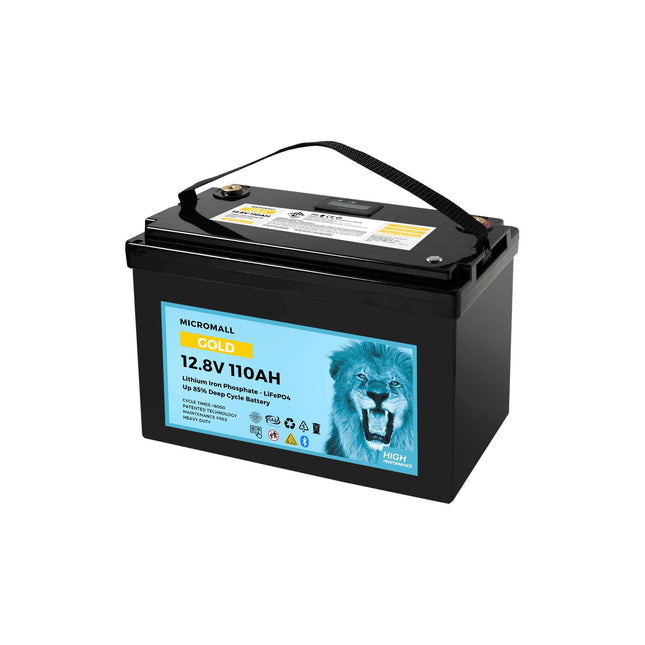

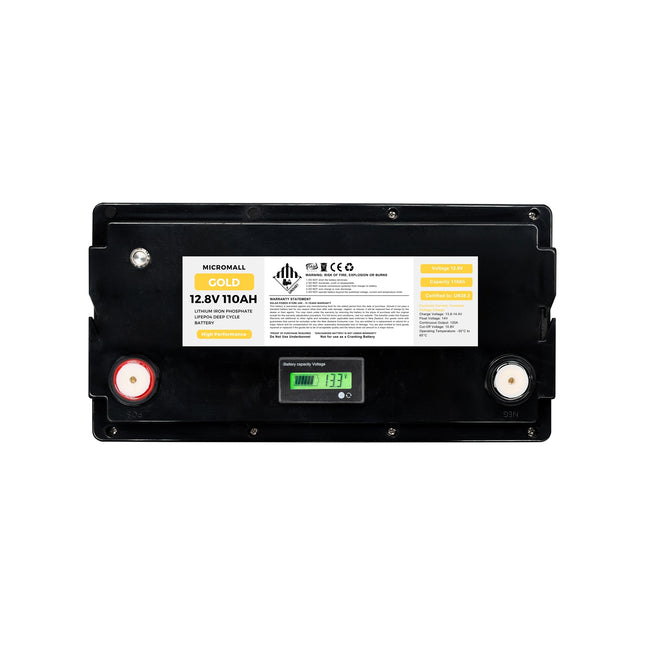

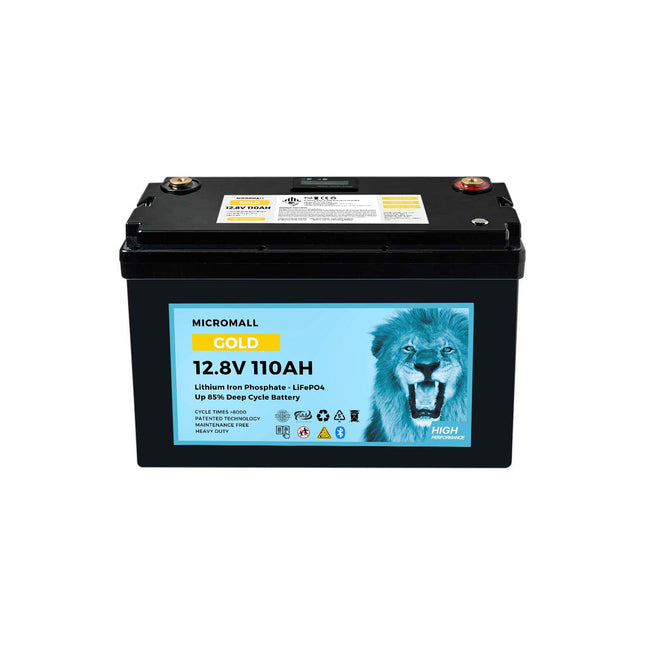

Introducing the Micromall 12.8V 110Ah Lithium Battery Essential LiFePO4 Battery Deep Cycle Battery Solar Battery, a high-performance household energy storage solution.
Key Features
Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: NZ-12110
Battery Chemistry: LiFePO4
Capacity(Ah): Max 110Ah
Nominal Voltage (V): 12.8V
Operating Voltage(V): 10.8 - 14.4V
Energy(kWh): 1.4kWh
Usable Energy(kWh): 1.2kWh
Charge/Discharge Current (A) Recommend, Max: 50, 100
Charge/Discharge Current (A) Peak, Short-circuit: 200 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimension (H/W/D, mm): 330 x 215 x 172mm, 300 x 220 x 170mm
Weight Approximate (kg): 11+-2kg
Master Indicator: LCD
IP Rating of Enclosure: IP54 / IP20
Operating Temperature: Charge:0 - 55°C (Optional heating) / Discharge: -20°C - 55°C
Insulation resistance factory test: >100MΩ
Initial battery internal resistance: 0.5+-0.05mΩ
Storage Temperature: 0°C - 35°C
Humidity: 5% - 95%
Altitude: <=2000m
Cycle Life: >=6000(25°C+-2°C 0.5C / 0.5C, 90%DOD, 70%EOL)
Installation: Floor-Mounted
Communication Port: BUUETOOTH
Energy Throughput: 4MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
15 Years New Zealand Local Warranty
Key FeaturesHigh-Capacity LiFePO4 Energy StorageDeye RW-F16 uses safe Lithium Iron Phosphate (LiFePO4) chemistry with a nominal energy of 16kWh and 14.4kWh usable energy at 90% DOD.Safe and Reliable Battery DesignBuilt-in 125A 2P 60Vdc circuit breaker and intelligent battery system design. Low-voltage 51.2V battery platform for residential energy storage applications.Flexible ExpansionSupports up to 32 battery packs in parallel, providing a maximum system capacity of up to 512kWh.High Charge and Discharge PerformanceSupports 160A continuous charge/discharge current and 300A peak charge/discharge current for 10 seconds.Easy Installation and MonitoringWall-mounted or floor-mounted installation. LED indicator shows SOC and working status. Communication ports include CAN2.0 and RS485 for compatible inverter systems.Specifications
Model: RW-F16
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Voltage: 51.2V
Operating Voltage: 44.8V ~ 57.6V
Capacity: 314Ah
Nominal Energy: 16kWh
Usable Energy: 14.4kWh @ 90% DOD
Scalability: Up to 32 packs in parallel, max. 512kWh
Charge/Discharge Current: 160A continuous; 300A peak for 10 sec
Recommended Depth of Discharge: 90%
Dimensions: 480mm (W) x 830mm (H) x 235mm (D), without hanging board and base
Weight: Approx. 122kg
IP Rating: IP20
Operating Temperature: Charge 0°C ~ 55°C; Discharge -20°C ~ 55°C
Recommended Operating Temperature: 15°C ~ 35°C
Storage Temperature: 0°C ~ 35°C
Relative Humidity: 95%
Altitude: ≤2000m
Cycle Life: ≥6000 cycles at 25°C±2°C, 0.5C/0.5C, 90% DOD, 70% EOL
Installation: Wall-mounted or floor-mounted
Communication Port: CAN2.0, RS485
Warranty Period: 5 / 10 years
Energy Throughput: 26.25 / 52.5MWh
Certification: UN38.3, MSDS

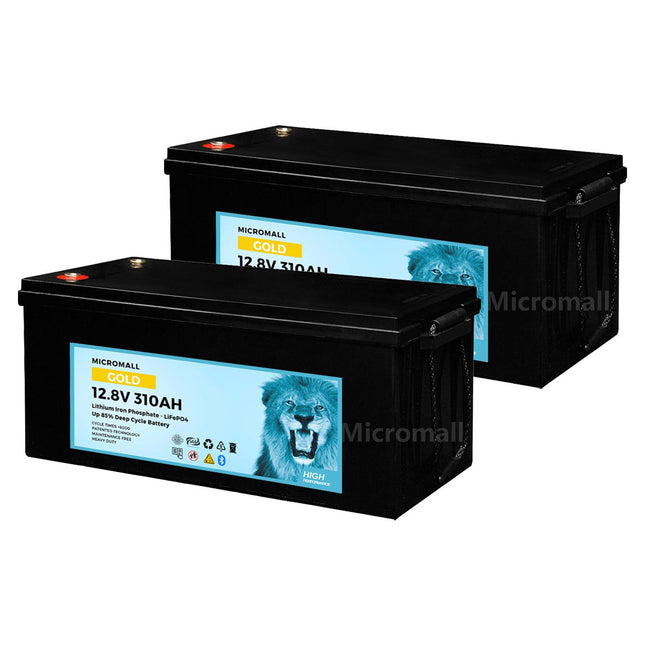

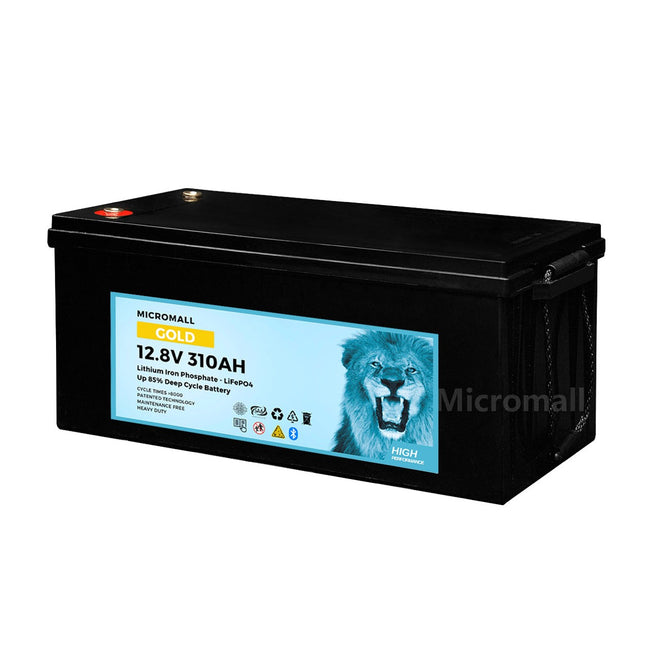

Introducing the latest generation of 12V 310Ah GOLD LiFePO4 (lithium iron phosphate) battery with CATL A-grade cells, offering enhanced safety and reliability.
Features
EVE real grade A cells ensure superior performance and safety.
10-year full warranty and 5-year repair warranty for long-lasting peace of mind.
Compatible with lead-acid chargers and alternators (isolator installed).
Equipped with two temperature sensors for optimized performance.
High energy density and weight savings compared to lead-acid batteries.
Direct replacement without circuit modifications in various applications.
Ideal for RVs, solar energy storage, yachts, automobiles, and water pumps.
High Safety: Constructed with safety in mind, reducing risks associated with traditional batteries.
Water-resistant
Benefits
Exceptional longevity with a service life of over 20 years.
Higher energy density and weight savings for improved efficiency.
High cycle life, faster recharge, and higher maximum discharge rate compared to lead-acid batteries.
Built-in Battery Management System (BMS) for comprehensive protection.
80% capacity retention after 6000 deep cycles.
Automatic overload, short circuit, over-discharge, and overcharge protection.
Maximum continuous discharge current of 150 amps.
Technical Specifications:
Voltage: 12V
Capacity: 310Ah
Charge voltage: 13.8-14.0V
Float voltage: 13.8V
Cut-Off Voltage: 10.8V
Maximum Amp: 150A
Current Amp: 125A
Chemistry: LiFePO4 (LFP)
Discharge operating Temp: -20 to 80°C
Weight: 29kg
Dimensions: 520mm L x 267mm W x 220mm H(228mm include bolt)
Discover our 12V 210Ah LiFePO4 Deep Cycle Solar and Start Battery, an advanced energy storage solution.This listing includes two 12V 210Ah LiFePO4 deep-cycle solar batteries.Key Features
Innovative Design: Features the latest CATL Grade A cells for enhanced safety.
Long-Lasting: Retains 80% capacity after 6000 cycles, with a lifespan of 20 years.
Smart Monitoring: Equipped with an extension monitor and AI-driven BMS for cell balancing.
Warranty: Comes with a 10-year warranty and an additional 5-year repair guarantee.
Performance & Use:
High Energy Density: Lightweight yet power-packed.
Multi-Purpose: Perfect for RVs, solar setups, yachts, vehicles, and water pumps.
Advanced BMS: Offers protection from over-discharge, overcharge, short circuits, and thermal incidents.
Specifications

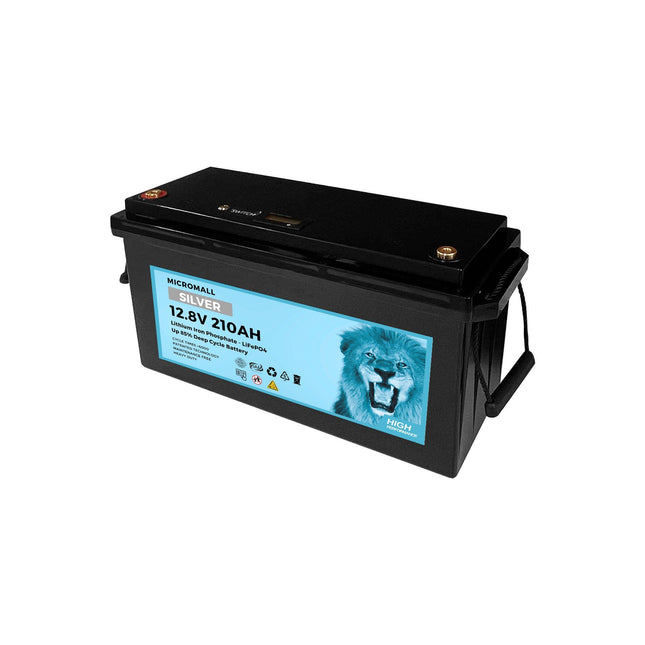

Battery Chemistry: LiFePO4
Capacity(Ah): Max 210Ah
Nominal Voltage (V): 12.8V
Operating Voltage(V): 10.8 - 14.4V
Energy(kWh): 2.6kWh
Usable Energy(kWh): 2.4kWh
Charge/Discharge Current
Recommend: 80A
Max: 180A
Peak: 300A (500ms, 25°C)
Short-circuit 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimensions: 501 x 185 x 235mm high
Weight: 22kg
Protection & Additional Features:BMS System with Bluetooth connectivityOverload and Short Circuit Protection3A Equalizer for effective current balancingOver-discharge and Overcharge Protection

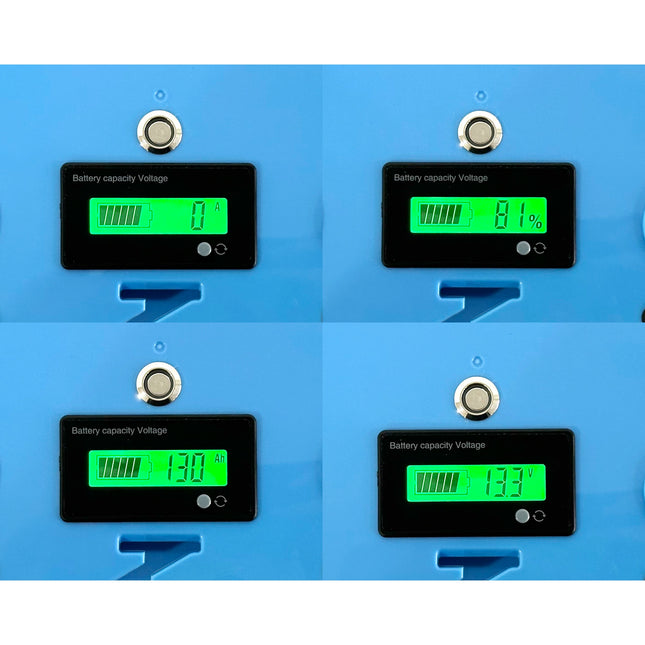

The TR24 Waterproof Coulomb Meter is a reliable and accurate battery capacity tester designed for monitoring lithium battery systems. With support for up to 100A current and a clear LCD display, it provides real-time data to help you manage and protect your battery efficiently.Built with a waterproof design, the TR24 is suitable for both indoor and outdoor use, making it ideal for solar systems, RVs, marine applications, and off-grid setups.Key FeaturesSupports up to 100A current measurementReal-time monitoring of voltage, current, power, and battery capacityCoulomb counting technology for accurate charge/discharge trackingLCD display for clear and easy readingWaterproof design – suitable for outdoor environmentsDesigned for lithium battery systemsHelps prevent over-discharge and extend battery lifeApplicationsSolar power systemsLithium battery packsRV and campervan setupsMarine and boat applicationsOff-grid and backup power systemsSpecifications
Model: TR24
Type: Battery Capacity Tester / Coulomb Meter
Max Current: 100A
Display: LCD
Function: Voltage, current, power, capacity monitoring
Installation: Easy to install and operate
Key Features
Safer
Cobalt-free Lithium Iron Phosphate (LFP) battery ensures safety and long lifespan with high energy density.
Low-voltage safety connection for added protection.
High Performance
Supports maximum 1C charge and 1.2C discharge rates.
Offers up to 6,000 cycles at 90% Depth of Discharge (DOD).
Backed by a standard 10-year warranty.
Reliable
Built-in intelligent Battery Management System (BMS) provides comprehensive protection.
Features natural cooling and an IP65 rating, operating reliably across a wide temperature range (-20°C to 55°C).
Flexible
Modular design allows easy expansion, supporting up to 32 units in parallel with a maximum capacity of 326 kWh.
Ideal for both residential and commercial applications, enhancing self-consumption ratios.
Convenient
Auto-networking battery module eliminates the need for DIP switch coding, simplifying setup and maintenance.
Compatible with Deye inverters to create an all-in-one stack system.
Supports remote monitoring and firmware upgrades via Deye’s platform.
Eco-Friendly
Manufactured with non-toxic and pollution-free materials, ensuring environmental sustainability.
Versatile Installation Options
Flat design supports wall-mounted installation with a wall bracket or floor-standing setup using a removable base, optimizing space.
Specifications
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Nominal Energy: 10.2 kWh
Usable Energy: 9.2 kWh (90% DOD)
Scalability: Supports up to 32 units in parallel (326 kWh max.)
Rated DC Power: 6 kW
Maximum DC Power: 12 kW
Operating Voltage: 43.2V ~ 57.6V
Charge/Discharge Current: Recommended: 100A; Maximum: 198A (charge), 240A (discharge)
Peak Discharge: 300A for 2 minutes (at 25°C)
Cycle Life: ≥6,000 cycles at 90% DOD (70% End of Life capacity at 25°C)
Enclosure Rating: IP65
Operating Temperature: Charge: 1°C ~ 55°C; Discharge: -20°C ~ 55°C
Weight: Approx. 104 kg
Dimensions: 600 mm (W) x 760 mm (H) x 200 mm (D)
KG110F DC 0-120V 400A Battery Capacity Tester Voltage Current Meter Battery Monitor Indicator 12V 24V 36V 48V 60V Coulomb Meter
We are a technically oriented solar service company that provides quality products, extensive service and support to our customers.
With years of accumulated expertise and rich experience, we will create professional and efficient system design solutions for you according to your different needs.
Specification：
Model： KG140F
Shunt voltage measurement range (externally powered) 0-120V
Voltage measurement range (self-powered) 10-120V
Voltage fraction 0.01V
Current measurement range 0-400A
Current fraction 0.01A
Temperature measurement range -20-120° C
Capacity display range 0%-100%
Power measurement range 0-72KW
Power fraction 0.01W
Ampere-time measurement range 0-9999.99AH
Capacity fraction 0.001AH
Watt-hour measurement range 0-9999.99kWH
Watt-hour fraction 0.001WH
Time measurement range 0~999:59:59S
Time division rate 1 second
Bluetooth communication distance Accessible up to 10m
Voltage Accuracy ±2%+3 words
Current accuracy 5%+10 words
Sampling rate 1 time/second
Power consumption of measurement board approx. 0.4W
Power consumption of display head approx. 0.5W
Over power protection 0-99999.99W
Negative overcurrent protection 0-400A
Positive overcurrent protection 0-400A
External over-temperature protection 0-120° C
Protection recovery time 0-99s
Enter standby time 0-60
Delay time setting 0-99S
Local warehouse, feel free to visit us, we can also ship orders all over the country.
The Deye BOS-G series is an advanced LiFePO4 battery system designed for reliable and efficient energy storage in homes and businesses. It offers various configurations and capacities to meet different energy needs.
Key Features:
High-quality LiFePO4 cells for safety and durability
Modular design with capacities from 15.36 kWh to 61.44 kWh
Flexible system voltage from 153.6V to 614.4V
Intelligent Battery Management System (BMS) for optimal performance
Compact and easy to install
10-year warranty for peace of mind
The BOS-G series uses LiFePO4 technology known for its safety, thermal stability, and long cycle life. Each battery module has 100Ah capacity and 5.12 kWh energy, allowing scalable storage solutions.
It offers a recommended depth of discharge (DOD) of 90% and a cycle life of over 6000 cycles at 25°C. With a wide operating temperature range of -20°C to 55°C, the system is suitable for diverse environments.
The system includes a high-voltage box (HVB750V/100A) that supports a voltage range of 120-750 Vdc and a maximum current of 125A, ensuring efficient integration with existing power systems and compatibility with various inverters and chargers.
Safety is prioritized with features like over-voltage, under-voltage, over-current, short-circuit, and temperature protection. The system’s IP20-rated enclosure ensures protection from dust, and built-in status indicators provide clear updates on system performance.
Model: HVB750V/100A-EU
High Voltage Battery cluster control box conforming to European or British Standards
Operating Voltage: 120 - 750Vdc
Nominal Charge/Discharge Current: 100A
Max.Charge/Discharge Current: 125A
DC Input Rating: 12 +- 2%V/4.15A
Operating Temperature Range: -20 - 65°C
Ingress Protection: IP20
Dimension (W/D/H): 440x570x150mm
Weight: 15.5kg
**This listing includes only the battery control box; the battery is not included.**
With a 10-year warranty, the Deye BOS-G series offers a reliable, long-lasting energy storage solution for any user.
The HBP1800 OS series is specifically designed for office use, providing a reliable and efficient power source. However, it is also versatile enough to power various household appliances, including PCs, laptops, stereos, and desktop computers. Equipped with a built-in 4-series LiFePO4 battery, the HBP1800 OS has a capacity of either 960Wh or 3072Wh, making it an ideal portable power station for a range of needs.
SPECIFICATIONS
Model: HBP18-3024 OS
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated power: 3000W
Output voltage waveform: Pure Sine Wave
Output voltage regulation: 230V ±5%
Output frequency: 50Hz / 60Hz (±0.2Hz)
Peak efficiency: 90%
Nominal DC input voltage: 24V (±0.3)
PV Input
Max solar power input: 1800W
PV max charging current: 60A (±3A)
Combined charging current: 80A (±4A)
Max efficiency: 98.0% max
PV array open circuit voltage: 145VDC
PV Array MPPT Voltage Range: 30~120VDC
AC Input
AC input voltage: 230Vac ±5%
Acceptable input voltage range: 90-280VAC
Nominal input frequency: 50Hz / 60Hz (Auto detection)
AC Charge
Charging current @ Nominal input voltage: 20A/30A (±4A)
Lithium Battery
Energy: 3072Wh
Nominal voltage: 25.6V
Battery capacity: 120Ah
Protection board: 140A
MECHANICAL SPECIFICATIONS
Dimensions (W*H*D) (mm): 288x348x490
The GE-F60 Energy Storage System (ESS) is a revolutionary solution designed for high-rate cyclic charging and discharging scenarios. This innovative system harnesses the power of Lithium Iron Phosphate (LiFePO4) technology, offering superior performance, exceptional safety, and unmatched flexibility.
Key Features:
High Performance: 5.12 kWh per module, expandable to 61.44 kWh, suitable for residential and commercial use.
Flexible Configuration: Supports up to 360 kWh (series) or 600 kWh (off-grid), meeting diverse energy needs.
Wide Temperature Range: Operates from -20°C to 55°C, ensuring reliability in extreme conditions.
Advanced Safety: Features gas detection, smoke/temperature alarms, and fire suppression for maximum protection.
Smart Management: BMS enables real-time monitoring, redundancy, black start, and off-grid functionality.
Durable & Efficient: IP55-rated, 6000+ cycles, and designed for easy floor-mounted installation.
Technical Specifications:
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Battery Module Specifications:
Energy Capacity: 5.12 kWh
Nominal Voltage: 51.2 V
Capacity: 100 Ah
System Voltage: 480-700 V
Weight: Approximately 1070 kg
Operating Humidity Range: 5% to 85% RH
Warranty: 10 years
Certifications: UN38.3, CB, CE, CEC, IEC62040
The GE-F60 Energy Storage System is the ideal choice for those seeking a reliable, efficient, and safe solution for their energy storage needs. Whether you’re looking to enhance your residential energy setup, optimize commercial operations, or establish an effective off-grid system, the GE-F60 delivers unparalleled performance and versatility.
Introducing the EITAI ELESHELL 10.75K Power Wall Lithium LiFePO4 48V 210Ah Solar Battery:
built for seamless communication with Victron, and Deye off/grid tie, goodwe, Growatt, BlueSun, MustPower,sofar
Advantages of Power-Wall Battery:
Wall-mounted / ground mounted.
Parallel up to 15pcs.
ip rated: 54
Capacity: 10.75kWh
Excellent Safety with cobalt-free LiFePO4 battery.
Easy installation with modular and stacked design.
Exceptional lifespan: 30 years of runtime with a 15-year warranty.
Technical Parameters:
Model: ELESHELL 10.75K
Battery Type: LiFePO4
Nominal Capacity: 210Ah
Nominal Voltage: 48V/51.2v (real 16 cells)
Total Energy: 10,750Wh
Depth of Discharge (90% DOD): 9,216Wh
Maximum Charging Voltage: 57.9V
End of Voltage: 46.4V
Nominal Charging Current: 100A
Maximum Charging Current: 100A
Maximum Charging Power: 5,120W
Working Humidity: =95%rh
Store Humidity: =95%rh
Working Altitude: =2000m
Maximum number of Parallel: 15 PCS
Protection Level: IP54
Net Weight: 89.50KG
Dimensions: 519 x 876 x 133mm
Product Certificate: CE, ROHS, UN38.3, MSDS
Cycle Life: =6500 Times at 25°C/0.5C, 60% End of Life (EOL)
Communication Port: CAN, RS485, RS232
Operating temperature: 0°C ~ 60°C
Storage temperature: =25°C for 12 months; =35°C for 6 months; =45°C for 3 months
Note: Operating current derating according to the cell voltage and temperature.
Introducing the EITAI ELECUBE 10.75K Power Wall Lithium LiFePO4 48V 210Ah Solar Battery:
built for seamless communication with Victron, and Deye off/grid tie, goodwe, Growatt, BlueSun, MustPower,sofar
Advantages of Power-Wall Battery:
Wall-mounted / ground mounted.
Parallel up to 15pcs.
ip rated: 54
Capacity: 10.75kWh
Excellent Safety with cobalt-free LiFePO4 battery.
Easy installation with modular and stacked design.
Exceptional lifespan: 30 years of runtime with a 15-year warranty.
Technical Parameters:
Model: ELECUBE 10.75K
Battery Type: LiFePO4
Nominal Capacity: 210Ah
Nominal Voltage: 48V/51.2v (real 16 cells)
Total Energy: 10,750Wh
Depth of Discharge (90% DOD): 9,216Wh
Maximum Charging Voltage: 57.9V
End of Voltage: 46.4V
Nominal Charging Current: 100A
Maximum Charging Current: 100A
Maximum Charging Power: 5,120W
Working Humidity: =95%rh
Store Humidity: =95%rh
Working Altitude: =2000m
Maximum number of Parallel: 15 PCS
Protection Level: IP54
Net Weight: 89.50KG
Dimensions: 674 x 420 x 346mm
Product Certificate: CE, ROHS, UN38.3, MSDS
Cycle Life: =6500 Times at 25°C/0.5C, 60% End of Life (EOL)
Communication Port: CAN, RS485, RS232
Operating temperature: 0°C ~ 60°C
Storage temperature: =25°C for 12 months; =35°C for 6 months; =45°C for 3 months
Note: Operating current derating according to the cell voltage and temperature.
48V 55Ah Max CALB LiFePO4 Battery: Premium Power Solution for Diverse Applications
Key Highlights:
Premium Quality Cells: Featuring 16 Grade A CALB cells, designed originally for Ryobi Lawn Mower.
High Current Capability: With a true charge and discharge capacity of 100A, it stands as a top contender in the NZ market.
Long-Lasting and Durable: Engineered for 6000 cycles 0.5C at 90% depth of discharge, promising 20+ years of reliable service.
Intelligent Monitoring: Comes with a 2-smart BMS system and a Bluetooth app display for efficient battery management.
Safety Assured: Incorporates advanced safety features for risk reduction.
Exceptional Warranty: Provided with a 10-year full warranty and an additional 5-year repair warranty.
Technical Specifications:
Model: BTL-48V55M
Main Parameter
Battery Chemistry: LiFePO4
Capacity(Ah): Max 55Ah
Nominal Voltage (V): 51.2V
Operating Voltage(V): 43.2 - 57.6V
Energy(kWh): 2.6kWh
Usable Energy(kWh): 2.4kWh
Charge/Discharge Current (A)
Recommend: 25
Max: 52
Peak: 150 (500ms, 25°C)
Short-circuit: 1.444KA (1.12ms, 25°C)
Other Parameter
Recommend Depth of Discharge: 90%
Dimension (D/W/H, mm): 355x232x230mm
Weight Approximate (kg): 25kg
Master Indicator: LCD
IP Rating of Enclosure: IP20
Operating Temperature: Charge: 0 - 55°C (Optional heating) / Discharge: -20°C - 55°C
Humidity: 5% - 95%
Cycle Life: 6000 0.5C
Communication Port: BLUETOOTH
Energy Throughput: 8MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
Introducing the Micromall 48V 51.2V 310Ah Lithium Battery LiFePO4 Battery Deep Cycle Solar Battery, a high-performance household energy storage solution.
Key Features:
Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: MLFP-48310
Battery Chemistry: LiFePO4
Capacity(Ah): Max 310Ah
Nominal Voltage (V): 51.2V
Operating Voltage(V): 43.2-57.6V
Energy(kWh): 17.4kWh
Usable Energy(kWh): 15.6kWh
Charge/Discharge Current (A) Recommend, Max: 150, 200
Charge/Discharge Current (A) Peak, Short-circuit: 250 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimension (H/W/D, mm): 960(880)x430x280mm
Weight Approximate (kg): 110±5kg
Master LED Indicator: 5LED(SOC:20%-SOC100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure: IP20
Operating Temperature: Charge:0-55°C (Optional heating) / Discharge: -20°C-55°C
Insulation resistance factory test: >100MΩ
Initial battery internal resistance: 0.18+-0.05mΩ
Storage Temperature: 0°C-35°C
Humidity: 5%-95%
Altitude: =10000 (25°C±2°C, 0.5C/0.5C, 90%DOD, 70%EOL)
Installation: Floor-Mounted, Mobile - Mounted
Communication Port: CAN2.0, RS485
Energy Throughput: 78MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
Terminal: M8 bolted fence terminal
15 Years New Zealand Local Warranty
Introducing the 48V 51.2V 210Ah IP65 LiFePO4 Deep Cycle Lithium Battery for Solar Energy Storage, a high-performance household energy storage solution.
15 Years New Zealand Local Warranty
Key Features:Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: MLFP-48210S
Main ParametersBattery Chemistry: LiFePO4Capacity: Nominal/Max 210 AhRated 306AhNominal Voltage: 51.2 VOperating Voltage: 43.2 – 57.6 VEnergy / Nominal Battery Capacity(kWh): 10.44kWh
Usable / Rated Capacity (kWh): 9.4kWhCharge/Discharge Current:Recommended: 100 AMax: 200 APeak: 250 A (500 ms, 25°C)Short-circuit: 1.444 kA (1.12 ms, 25°C)
Other ParametersRecommended Depth of Discharge: 90%Dimensions (H × W × D): 930 × 550 × 230 (215) mmWeight: 100 ± 5 kgMaster LED Indicator: 5 LEDs (SOC 20%–100%), 3 LEDs (Working, Alarming, Protecting)IP Rating: IP65Operating Temperature:Charge: 0–55°C (Optional Heating)Discharge: -20–55°CInsulation Resistance (Factory Test): >100 MΩInitial Internal Resistance: 0.25 ± 0.05 mΩStorage Temperature: 0–35°CHumidity: 5%–95%Altitude: ≤2000 mCycle Life: ≥6000 cycles (25°C ±2°C, 0.5C/0.5C, 90% DOD, 70% EOL)Installation: Floor-Mounted, Mobile-MountedCommunication Port: CAN 2.0, RS485Warranty Period: 15 yearsEnergy Throughput: 32 MWh @ 70% EOLCertification: SAA, IEC 62619, UN38.3
15 Years New Zealand Local Warranty
Introducing the Micromall 48V 51.2V 200Ah 210Ah Lithium Battery LiFePO4 Battery Deep Cycle Solar Battery, a high-performance household energy storage solution.
Key Features:Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
SpecificationsModel: MLFP-48210Battery Chemistry: LiFePO4Capacity(Ah): Max/Nominal 210AhRated 204AhNominal Voltage (V): 51.2VOperating Voltage(V): 43.2-57.6VEnergy / Nominal Battery Capacity(kWh): 10.44kWh
Usable / Rated Capacity (kWh): 9.4kWhCharge/Discharge Current (A) Recommend, Max: 100, 100Charge/Discharge Current (A) Peak, Short-circuit: 150 (500ms, 25°C), 1.444KA (1.12ms, 25°C)Recommend Depth of Discharge: 90%Dimension (H/W/D, mm): 950x430x280mmWeight Approximate (kg): 100±5kgMaster LED Indicator: 5LED(SOC:20%-SOC100%), 3LED (working, alarming, protecting)IP Rating of Enclosure: IP20Operating Temperature: Charge:0-55°C (Optional heating) / Discharge: -20°C-55°CInsulation resistance factory test: >100MΩInitial battery internal resistance: 0.25+-0.05mΩStorage Temperature: 0°C-35°CHumidity: 5%-95%Altitude: =6000Installation: Floor-Mounted, Mobile - MountedCommunication Port: CAN2.0, RS485Energy Throughput: 32MWh@70%EOLCertification: SAA, IEC62619, UN38.3
Terminal: M8 bolted fence terminal
15 Years New Zealand Local Warranty
Warranty: 10 years full warranty + 5 additional years repair warranty.
Life Expectancy: Over 20 years. Guaranteed 6,000 cycle times.
This commercial-grade LiFePO4 battery boasts 48V with a maximum capacity of 100Ah/110Ah and an energy rating of 5.0kWh. It is crafted using the latest long-cycle cell technology. With a daily discharge depth of 80%, this battery can be cycled 6,000 times, ensuring a lifespan of up to 20 years.

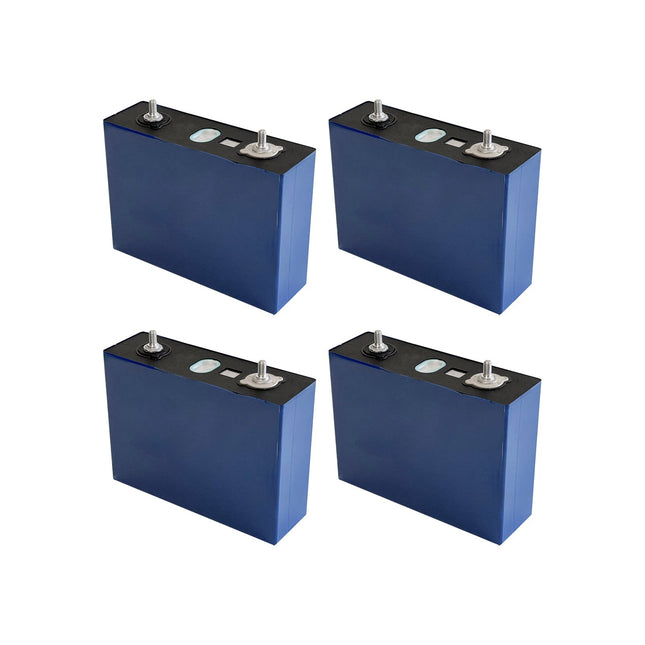

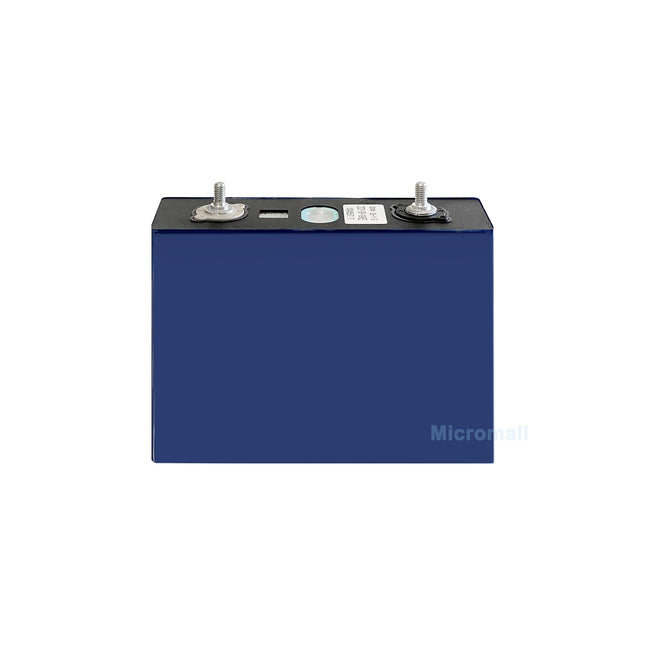

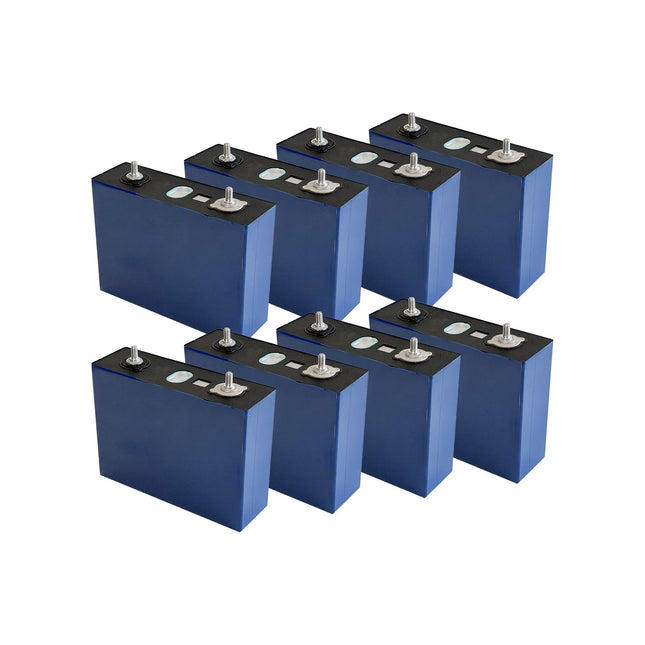

Real Cell Count: Features 16 genuine CATL brand new, Grade A cells that support 57.6V.
Performance: This battery can continuously charge and discharge at 100A. It stands out as one of the highest capacities in the NZ market, even suitable for electric vehicles.
Compatibility: This Grade A LiFePO4 battery is compatible with 48V lead acid batteries solar systems. It also supports most 48V MPPT controllers, 48V off-grid solar systems, and generators. Furthermore, it is built for seamless communication with Growatt, BlueSun, MustPower, Victron, and Deye off/on-grid systems.
Expansion: The battery allows for parallel connections to boost capacity. It also includes a 485 port, enabling computer monitoring using the provided software.
Technical Details:
Type of Battery: Lithium Iron Phosphate (LFP)
Rated Capacity: Max 110Ah
Rated Energy: 5.0kWh
Composition Method: 1P16S
Operating Voltage Range: 44.8V - 57.6V DC
Standard Charging Current: 100A DC
Max Charging Continuous Current: 110A DC
Standard Discharge Current: 100A DC
Max Discharge Continuous Current: 110A DC
Parallel Connections: 16
Max Discharge Pulse Current: 100A DC (30s, 25°C ± 2°C, SOC≥40%)
Operational Temperature Range: 0-55°C (charging), -20-55°C (discharging)
Output Short-Circuit Current: 1.444KA (1.12ms)
Altitude: Below 2000m
Cell Self-Discharge Rate: ≤5% (25°C, 50%SOC)
Insulation Resistance Factory Test: >100MΩ
Group Pressure Difference: ≤20mV
Battery Internal Resistance: 0.34±0.05mΩ (new battery state, 30-40% SOC, 1kHz, single cell)
Weight: 53kg
Dimensions: 460x500x200mm
Installation: Indoor
