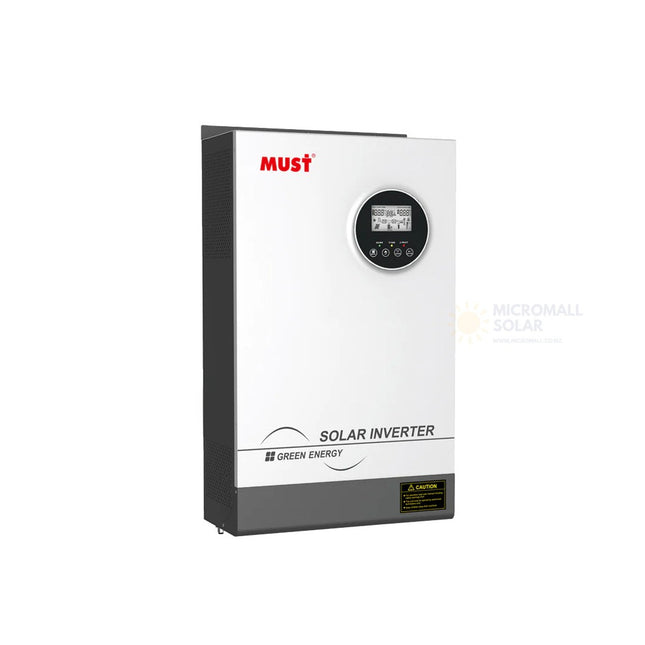

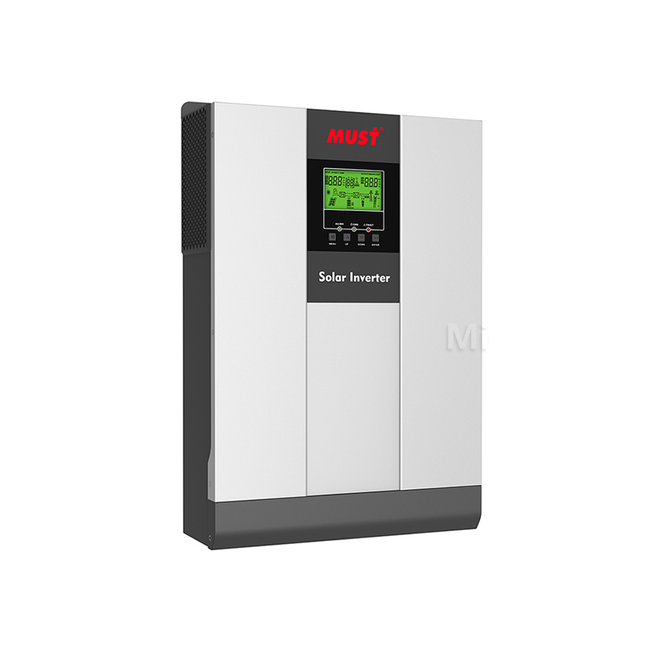

The MUSTPOWER High Frequency 3000W Off Grid Solar Inverter PV18-3024 VHM PLUS is a versatile and compact solution for uninterrupted power supply. This inverter combines the functions of an inverter, solar charger, and battery charger to provide reliable power in a portable package. With a user-friendly LCD display and intuitive button controls, it offers customization options such as battery charging current, AC/solar charger priority, and acceptable input voltage for various applications.
Key Features:
Pure sine wave solar inverter
Output power factor 1 for efficient performance
High PV input voltage range
Built-in 80A MPPT solar charger for maximum efficiency
Battery equalization function to optimize battery performance and lifespan
Integrated anti-dusk kit for use in harsh environments
Generator support for battery charging
Specifications:
Model: PV18-3024 VHM PLUS
Nominal Battery System Voltage: 24VDC
Inverter Output:
Rated Power: 3000W
Surge Power: 6000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): ±5% (220VAC - 240VAC)
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184 - 253VAC (VDE4105)
Frequency Range: 50Hz/60Hz (Auto sensing)
Battery:
Normal Voltage: 24VDC
Floating Charge Voltage: 27VDC
Overcharge Protection: 31VDC
Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array MPPT Voltage: 30~130VDC
PV Input Power: 1920W
Maximum Solar Charge Current: 80A
Maximum Efficiency: 98%
Maximum Charge Current: 80A
Dimensions (WHD)(mm): 272355100
Net Weight(kg): 11
Warranty: 2 YEARS WARRANTY
SAA NZ Certificated Inverter
This MUSTPOWER inverter is a reliable and efficient choice for off-grid solar power systems, offering a range of features and a 2-year warranty for added peace of mind.

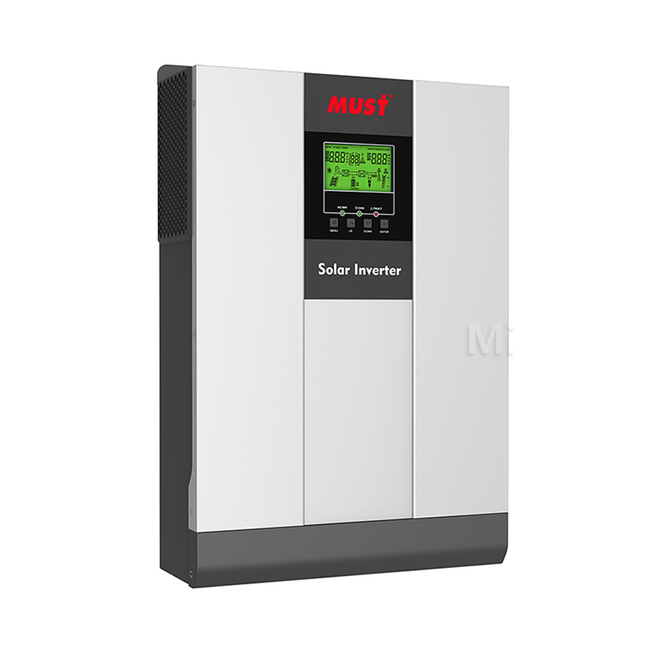

Introducing the MUSTPOWER High Frequency 5000W Off-Grid Solar Inverter PV18-5048 VHM with a 2-year warranty.
Key Features:
Pure sine wave solar inverter
Output power factor 1
High PV input voltage range
Built-in 80A MPPT solar charger
Battery equalization function to optimize battery performance and extend lifecycle
Built-in anti-dusk kit for harsh environments
Model: PV18-5048 VHM
Nominal Battery System Voltage: 48VDC
Inverter Output:
Rated Power: 5000W
Surge Power: 10000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): ±5% (220VAC ~ 240VAC)
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184~253VAC (VDE4105)
Frequency Range: 50Hz/60Hz (Auto-sensing)
Battery:
Normal Voltage: 48VDC
Floating Charge Voltage: 54VDC
Overcharge Protection: 60VDC
Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array MPPT Voltage: 64~130VDC
PV Input Power: 2880W/3840W
Maximum Solar Charge Current: 60/80A
Maximum Efficiency: 98%
Maximum AC Charge Current: 60A
Maximum Charge Current: 120/140A
Physical Specifications:
Dimensions (WHD)(mm): 297.5x468x125
Net Weight(kg): 13.3
The MUSTPOWER PV18-5048 VHM is a versatile and reliable solution for off-grid power needs, combining inverter, solar charger, and battery charger functions in a portable package. With its comprehensive LCD display and user-configurable settings, it ensures uninterrupted power support for various applications.
Introducing the Mustpower PH10-5048A High Frequency Hybrid Solar Inverter
Series: PH1000, 5KW
Key Features:
Wide MPPT voltage range: 120-550V
Multiple modes: Grid-tie, off-grid, grid-tie with backup
LCD display & Smart LCD settings
Export Power Manager
Multiple communication options: USB, RS485, GPRS, WiFi
Remote monitoring via computer or mobile phone
Full protection: Over-voltage, over-frequency, over-current, over-temperature, AC short-circuit
Intelligent BMS battery management
Fanless, low-noise design
IP65 Dust-proof and waterproof
Specifications:
Model: PH10-5048A
Rated Power: 5000W
Nominal Battery System Voltage: 48V
PV Input (DC):
Max recommended DC power: 5750W
Nominal DC operating voltage: 360V
Max DC voltage: 580V
MPPT voltage range: 120~550V
Max input current: 11/11A
Max short circuit current: 15/15A
2 MPP trackers, 1 string per tracker
Inverter Output (AC):
Nominal AC output power: 5000W
Nominal output voltage; range: 220/230/240V; 180-280V
Nominal output current: 21.8A
Max output current: 22.8A
Battery & Charger:
Compatible with Lead-acid and Lithium batteries
Battery voltage: 48V
Battery voltage range: 40~60V
Max charging/discharging power: 2500/2500W
Max charging/discharging current: 50/50A
Dimensions & Weight:
480 x 420 x 215 mm
Net weight: 27 kg

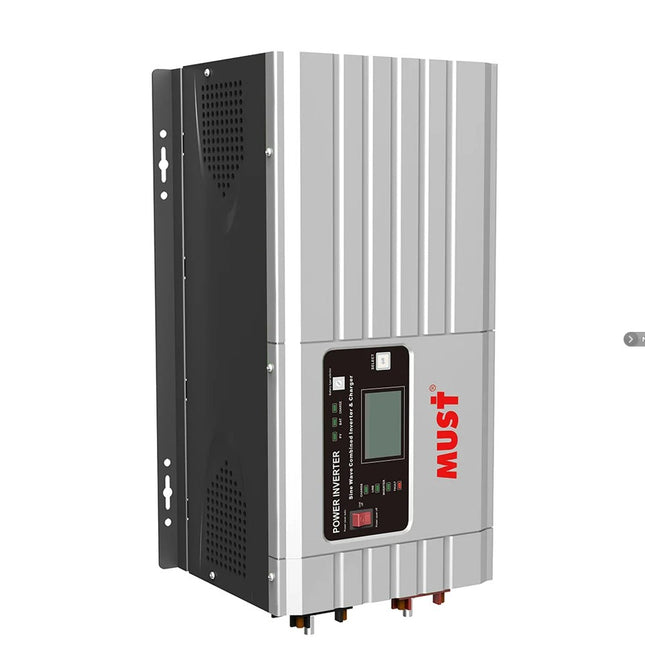

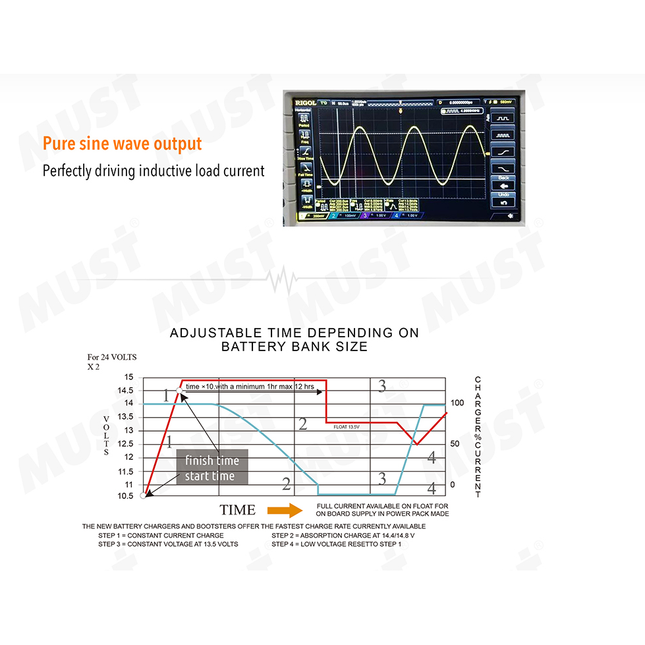

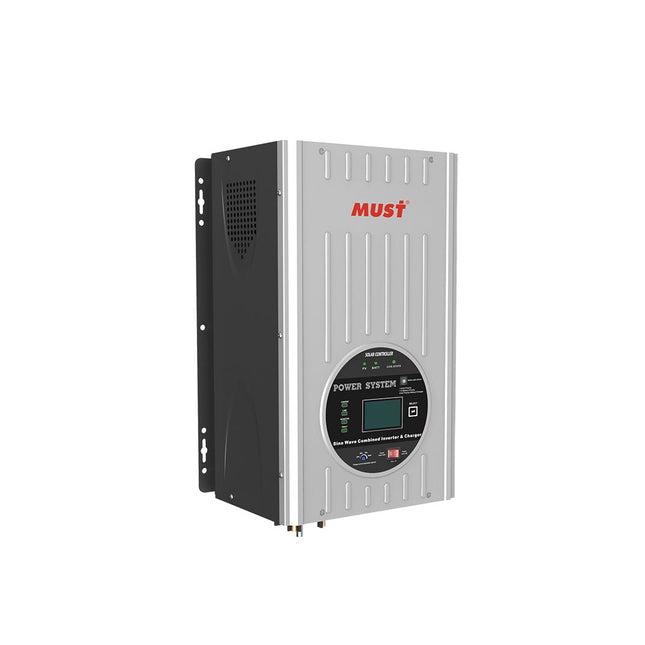

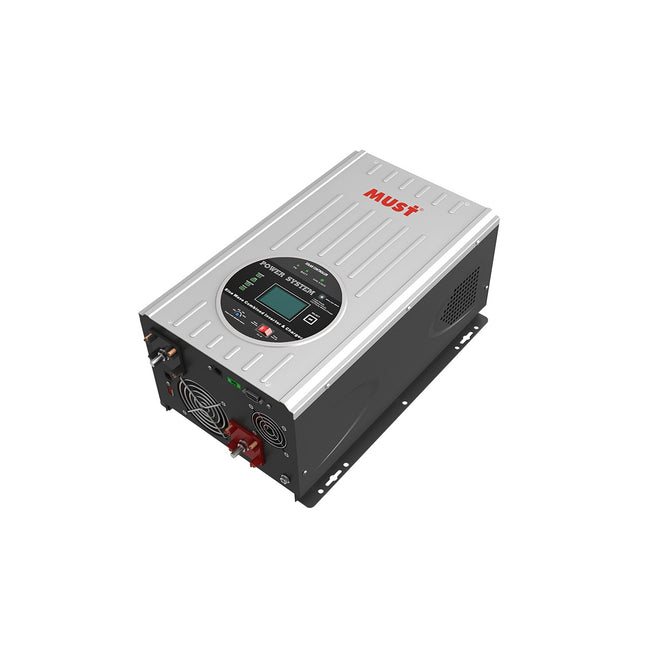

Mustpower EP3000 Pro Series Low Frequency Power Inverter/Charger
Features
LCD display
Pure Sine Wave Output
Support Remote Control Box(optional)
Compatible to generator
5-levels DIP switch, offering customized performance
9-levels battery selector, Enable to charge Gel, lead-acid battery
DC(Solar)/AC priority optional
4 levels charge current adjustable
With RS232 communication port
With BTS & AGS, optimazing battery performance & start generator automatically
Power saver Switch, Enable to minimize standby consumption
MODEL: EP30-3KW PRO
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated Power: 3KW
Surge Rating(20ms): 9.0KW
Capable Of Starting Electric Motor: 2HP
Waveform: Pure sine wave / same as input (bypass mode)
Nominal Output Voltage RMS: 110V/120V / 220V / 230V / 240V (±10% RMS)
Output Frequency: 50Hz / 60Hz ±0.3Hz
AC INPUT
Voltage: 230VAC
Selectable Voltage Range: 96~132VAC 155~280VAC(For personal computers)
Frequency Range: 50Hz / 60Hz(Auto sensing) 40~80Hz
MECHANICAL SPECIFICATIONS
Dimensions (W*H*D): 426 x 206 x 178mm
Net Weight (Solar CHG)(kg): 24.5

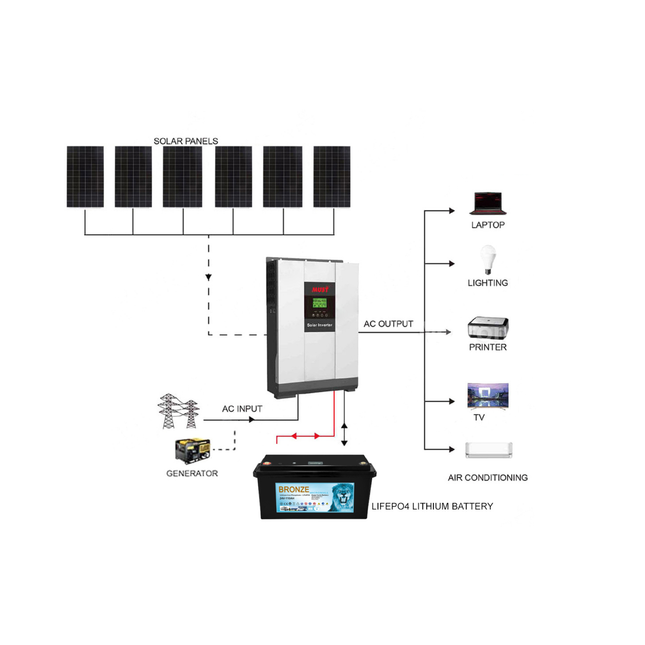

Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:

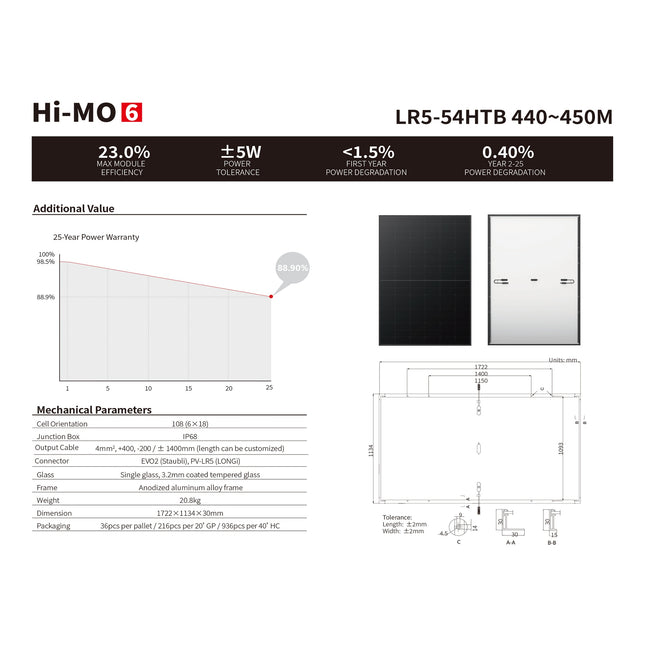

6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

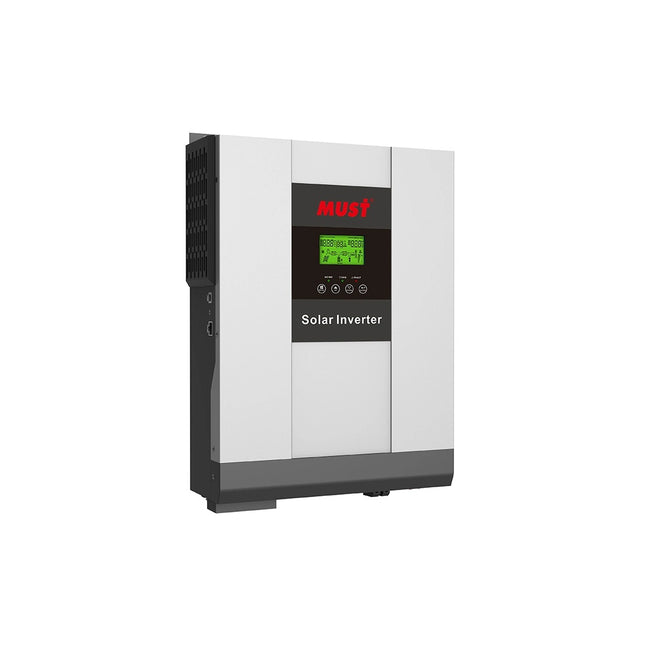

1 x 3000W MUSTPOWER Hybrid Off-Grid Inverter PV18-3024 VHM Plus (2 years warranty)
4 x 12V 140Ah GEL Deep Cycle Battery (2 years warranty)
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge
1 x 24V Battery Equalizer
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
Specifications for the PV18-3024 VHM Plus Inverter:
Battery System Voltage: 24VDC
Supports generator charging
Inverter Output:
Rated Power: 3000W
Surge Power: 6000W
Waveform: Pure sine wave
Inverter Efficiency (Peak): 93%
Voltage: 230VAC ±5%
Maximum PV Array MPPT Voltage: 30~130VDC
Standby Power Consumption: 2W
PV Input Power: 1400W
Maximum Solar MPPT Charge Current: 80A
Maximum Efficiency: 98%
Machine Dimensions (W*H*D): 272*355*100mm
Net Weight: 11kg
SAA NZ Certificated Inverter
Daily Output 15KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.

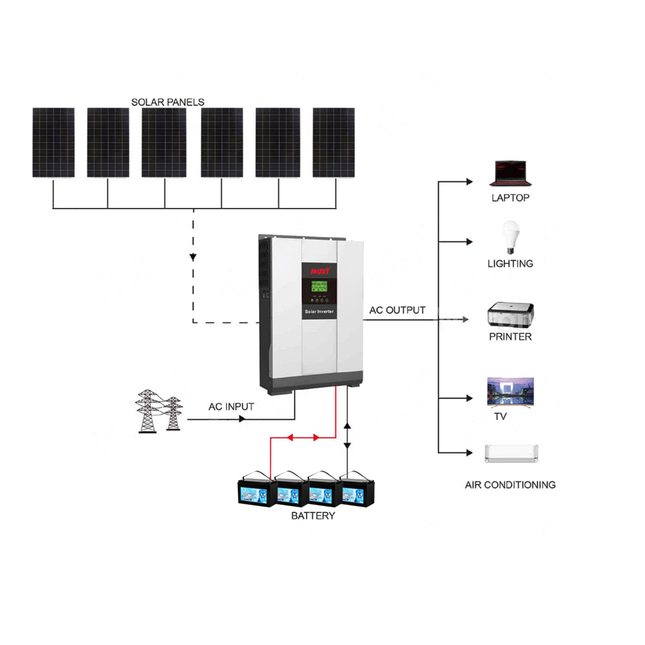

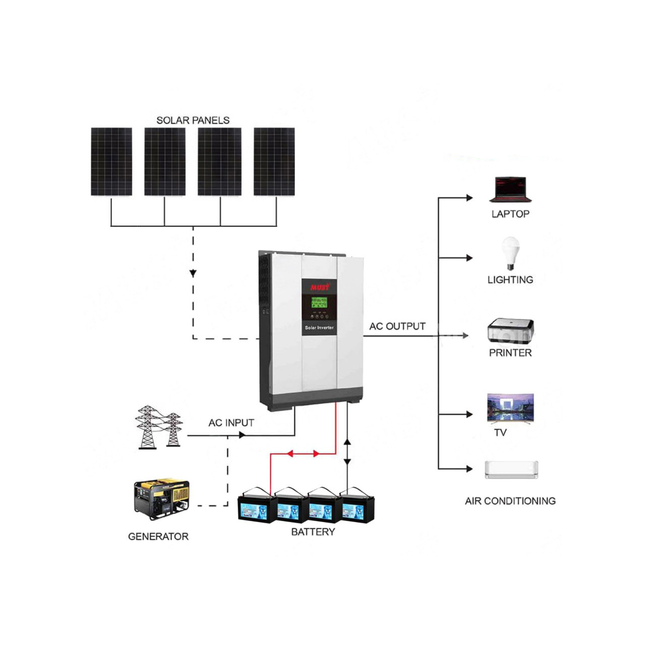

Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:

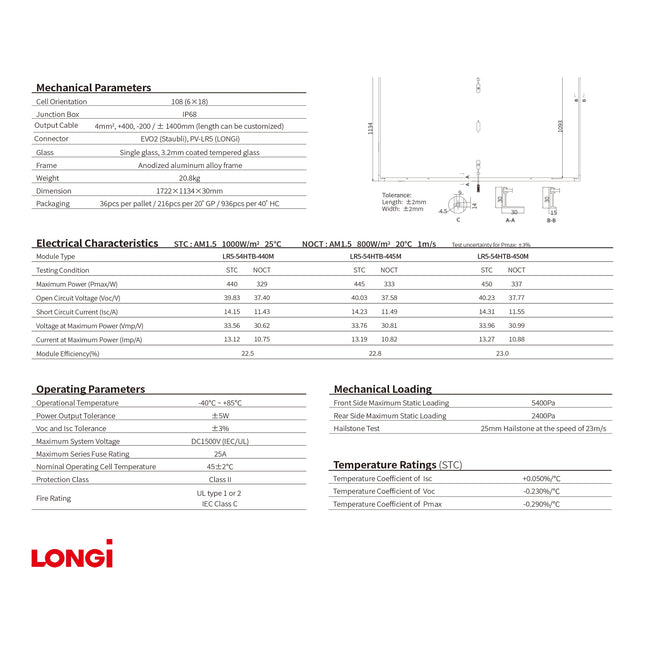

6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

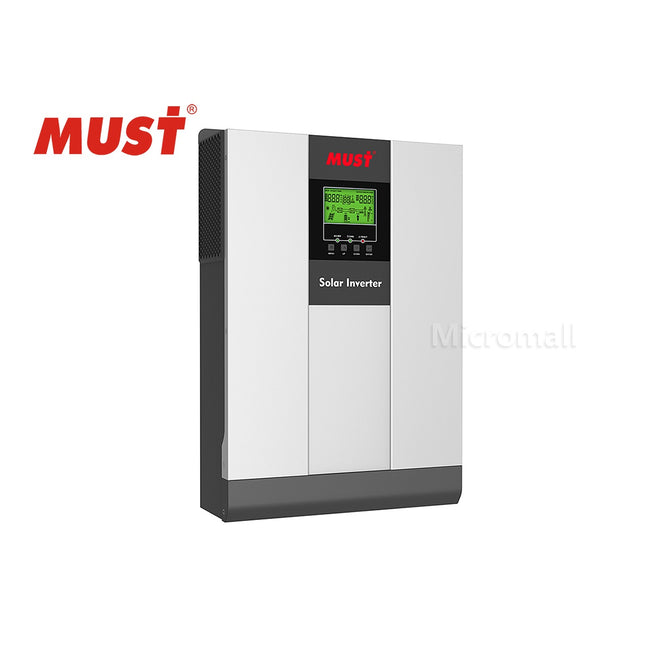

1 x 5000W MUSTPOWER Hybrid Off-Grid Inverter PV18-5048 VHM (2 years warranty)
4 x 12V 140Ah GEL Deep Cycle Battery (2 years warranty)
2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x 16a PV Fuse
1 x 500v 25a PV Circuit Breaker
1 x Surge
1 x 48V Battery Equalizer
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
Specifications for the PV18-5048 VHM Inverter:
Nominal Battery System Voltage: 48VDC
Inverter Output:
Rated Power: 5000W
Surge Power: 10000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): ±5% (220VAC - 240VAC)
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184 - 253VAC (VDE4105)
Frequency Range: 50Hz/60Hz (Auto-sensing)
Battery:
Normal Voltage: 48VDC
Floating Charge Voltage: 54VDC
Overcharge Protection: 60VDC
Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array MPPT Voltage: 64~130VDC
PV Input Power: 2880W/3840W
Maximum Solar Charge Current: 60/80A
Maximum Efficiency: 98%
Maximum AC Charge Current: 60A
Maximum Charge Current: 120/140A
Physical Specifications:
Dimensions (WHD)(mm): 297.5x468x125
Net Weight(kg): 13.3
SAA NZ Certificated Inverter
Daily Output 15KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.

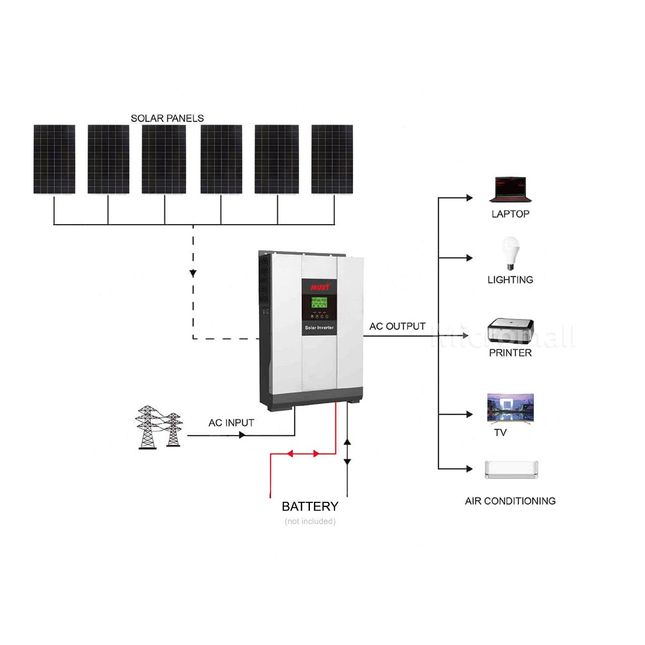

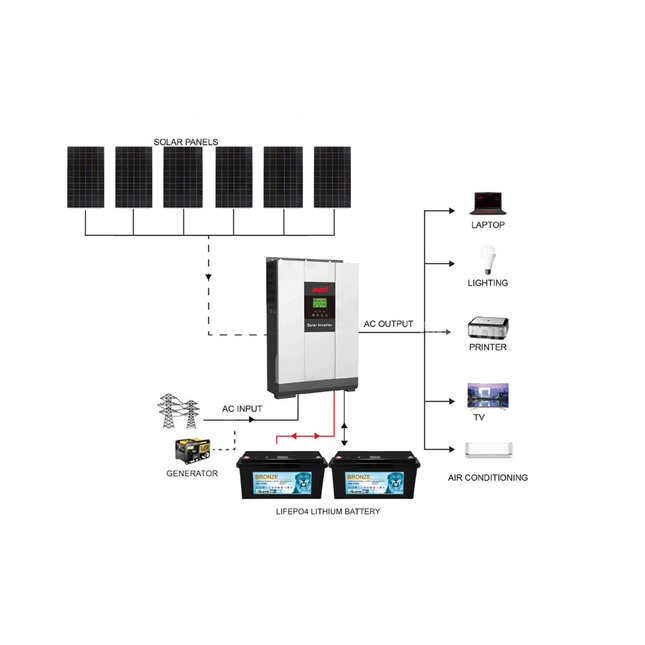

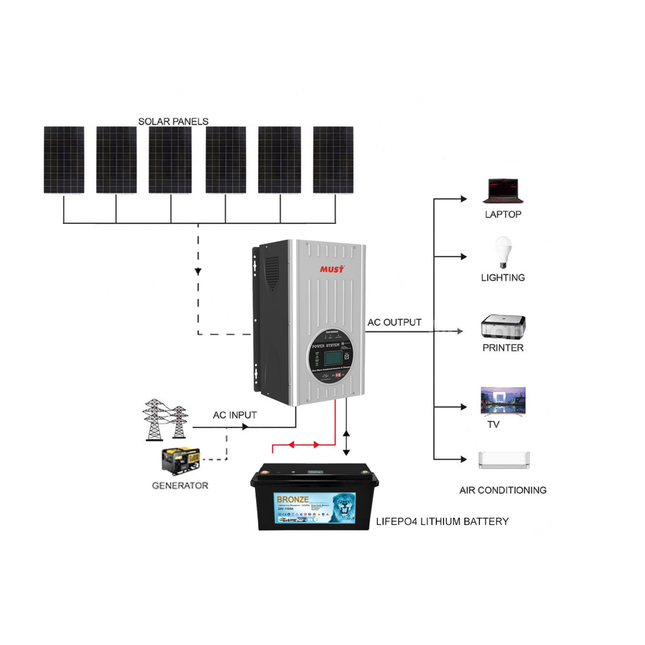

Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:
6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x 3000W MUSTPOWER Hybrid Off-Grid Inverter PV18-3024 VHM Plus (2 years warranty)
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge Protector
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
Specifications for the PV18-3024 VHM Plus Inverter:
Battery System Voltage: 24VDC
Supports generator charging
Inverter Output:
Rated Power: 3000W
Surge Power: 6000W
Waveform: Pure sine wave
Inverter Efficiency (Peak): 93%
Voltage: 230VAC ±5%
Maximum PV Array MPPT Voltage: 30~130VDC
Standby Power Consumption: 2W
PV Input Power: 1400W
Maximum Solar MPPT Charge Current: 80A
Maximum Efficiency: 98%
Machine Dimensions: 272x355x100mm
Net Weight: 11kg
SAA NZ Certificated Inverter

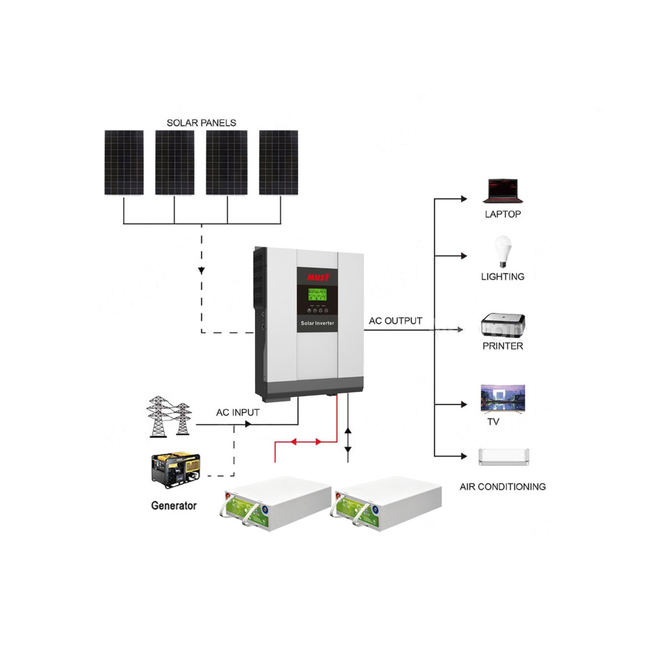

Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:
6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x 3000W MUSTPOWER Hybrid Off-Grid Inverter PV18-3024 VHM Plus (2 years warranty)
2 x 12V 130Ah Ultra Carbon Deep Cycle Battery (2 years warranty)
2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge
2 x 24V Battery Equalizer
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
Specifications for the PV18-3024 VHM Plus Inverter:
Battery System Voltage: 24VDC
Supports generator charging
Inverter Output:
Rated Power: 3000W
Surge Power: 6000W
Waveform: Pure sine wave
Inverter Efficiency (Peak): 93%
Voltage: 230VAC ±5%
Maximum PV Array MPPT Voltage: 30~130VDC
Standby Power Consumption: 2W
PV Input Power: 1400W
Maximum Solar MPPT Charge Current: 80A
Maximum Efficiency: 98%
Machine Dimensions (W*H*D): 272*355*100mm
Net Weight: 11kg
SAA NZ Certificated Inverter
Daily Output 15KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.

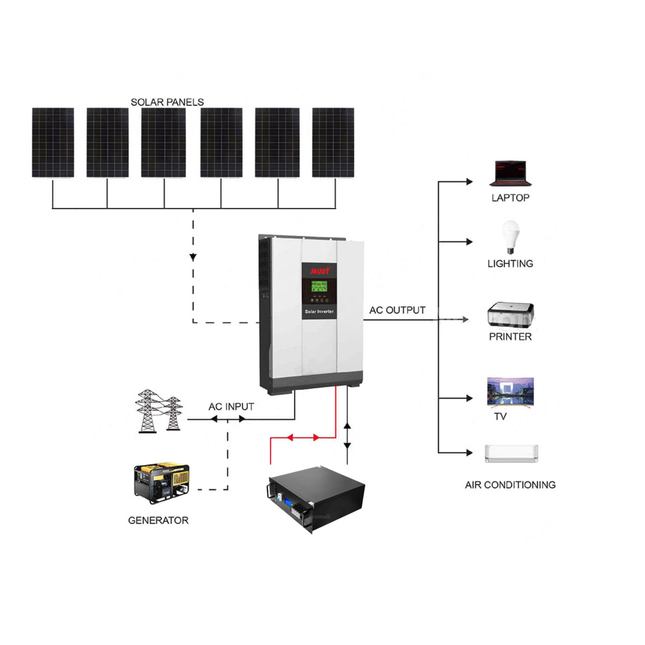

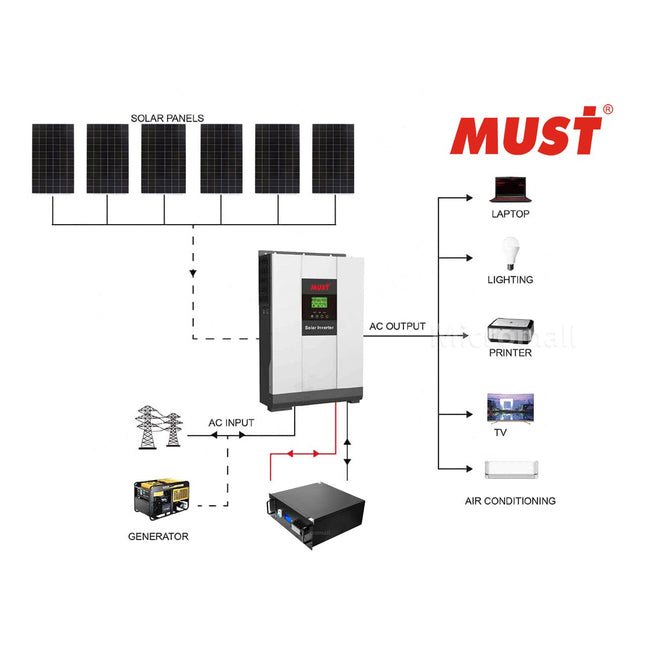

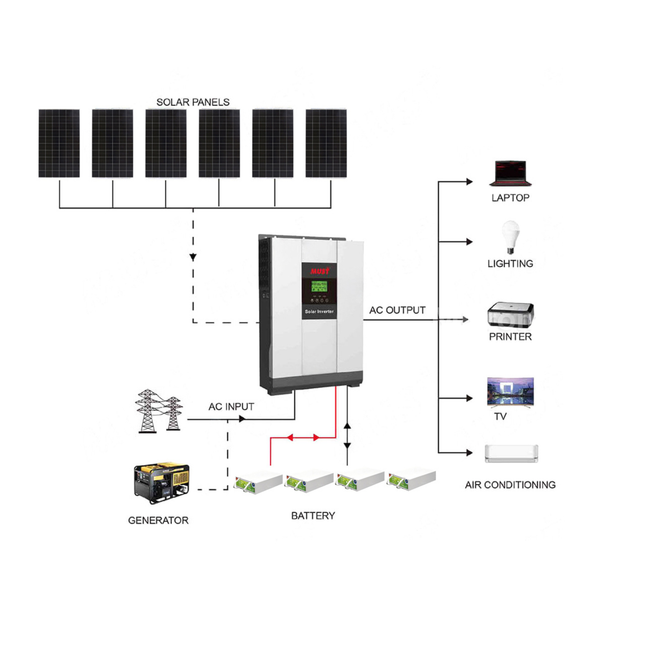

Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:
6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x 5000W MUSTPOWER Hybrid Off-Grid Inverter PV18-5048 VHM (2 years warranty)
4 x 12V 130Ah Ultra Lead Carbon Batteries (2 Years Warranty)
2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge
1 x Isolator
1 x 48V Battery Equalizer
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
Specifications for the PV18-5048 VHM Inverter:
Nominal Battery System Voltage: 48VDC
Inverter Output:
Rated Power: 5000W
Surge Power: 10000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): ±5% (220VAC ~ 240VAC)
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184 - 253VAC (VDE4105)
Frequency Range: 50Hz/60Hz (Auto-sensing)
Battery:
Normal Voltage: 48VDC
Floating Charge Voltage: 54VDC
Overcharge Protection: 60VDC
Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array MPPT Voltage: 64~130VDC
PV Input Power: 2880W/3840W
Maximum Solar Charge Current: 60/80A
Maximum Efficiency: 98%
Maximum AC Charge Current: 60A
Maximum Charge Current: 120/140A
Physical Specifications:
Dimensions (WHD)(mm): 297.5x468x125
Net Weight(kg): 13.3
SAA NZ Certificated Inverter
Daily Output 15KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.

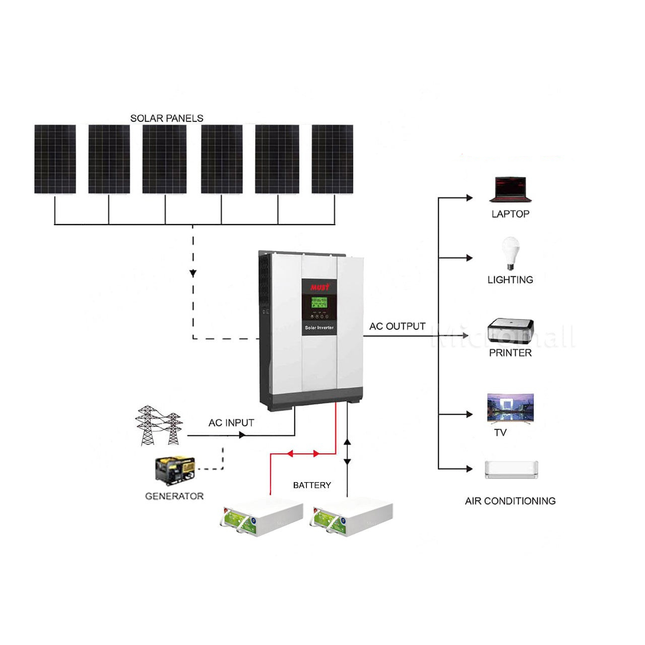

Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:
4 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x 3000W Mustpower Hybrid Off-Grid Inverter PV18-3024 VHM Plus (2 Years Warranty)
2 x 12V 130Ah Ultra Lead Carbon Battery (2 Years Warranty)
1 x 10m Twin 4mm PV extension cable with MC4 connectors
1 x 2-in-1 MC4 connectors
1 x PV fuse
1 x PV circuit breaker
1 x Surge
4 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $120. If you wish to upgrade, please contact us.**
Specifications for the PV18-3024 VHM Plus Inverter:
Battery System Voltage: 24VDC
Supports generator charging
Inverter Output:
Rated Power: 3000W
Surge Power: 6000W
Waveform: Pure sine wave
Inverter Efficiency (Peak): 93%
Voltage: 230VAC ±5%
Maximum PV Array MPPT Voltage: 30~130VDC
Standby Power Consumption: 2W
PV Input Power: 1400W
Maximum Solar MPPT Charge Current: 80A
Maximum Efficiency: 98%
Machine Dimensions (W*H*D): 272*355*100mm
Net Weight: 11kg
SAA NZ Certificated Inverter
Daily Output 10KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.

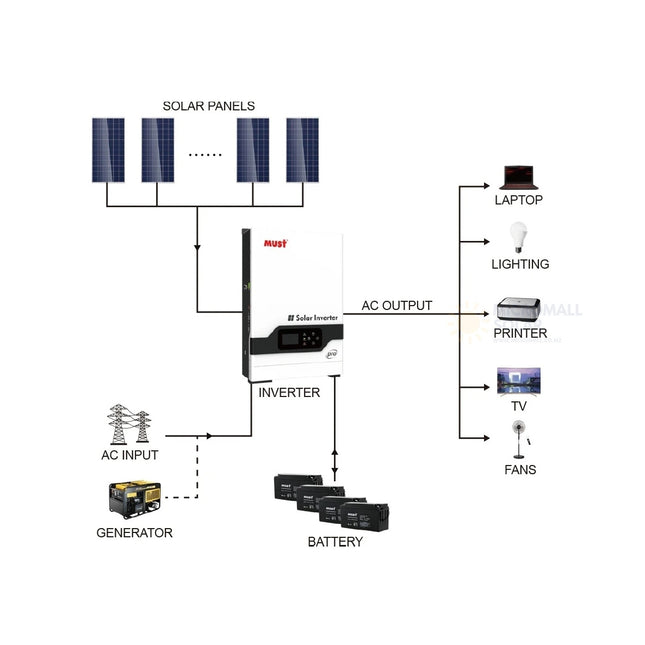

PV1800 PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which Can help customers make full use of solar energy.
Features:
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
MAX PV Array Open Circuit Voltage: 450V
Can provide the power to the load without battery
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
Parallel operation with up to 3 units
WIFI remote monitoring (optional)

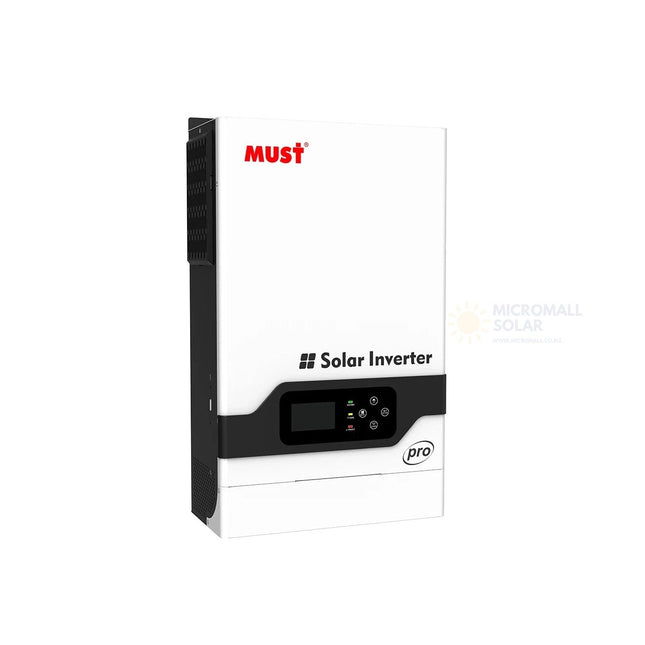

MODEL: PV18-5248 PRO
Nominal Battery System Voltage: 48VDC
INVERTER OUTPUT
Rated Power: 5200VA / 5200W
Surge Power: 10400W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): 230VAC±5%(Setting)
Inverter Efficiency(Peak): 90%
Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage: 230VAC±5%
Selectable Voltage Range: 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range: 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage: 48VDC
Floating Charge Voltage: 54.8VDC
Overcharge Protection: 60VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage: 450VDC
Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power: 5000W/6000W
PV Array MPPT Voltage Range: 150~430 VDC
Maximum Solar Charge Current: 80A/100A
Maximum AC Charge Current: 60A/80A
Maximum Charge Current: 80A/100A
MECHANICAL SPECIFICATIONS
Machine Dimensions: 309 x 505 x 147mm
Package Dimensions: 375 x 655 x 269mm
Net Weight: 14kg
Gross Weight: 16.4kg
2 Years Warranty

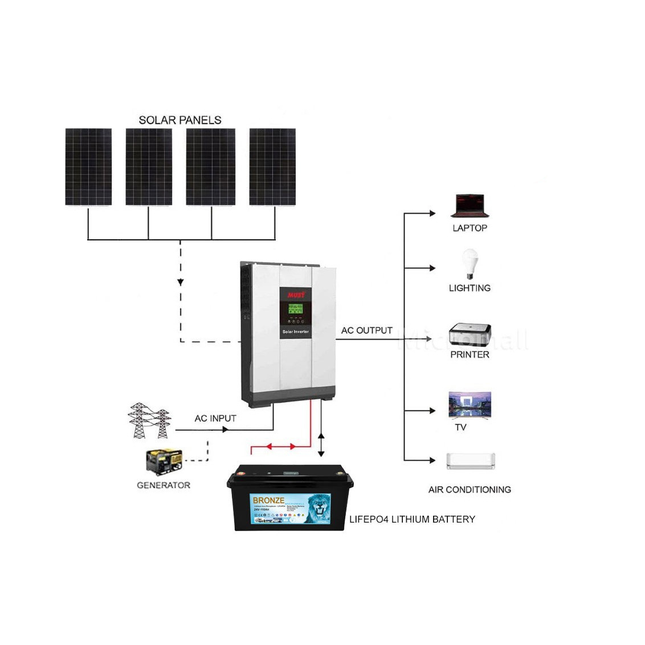

Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:
6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x 3000W Mustpower Hybrid Off-Grid Inverter PV18-3024 VHM Plus (2 Years Warranty)
1 x Micromall Bronze 24V 110Ah LiFePO4 Lithium Battery (6 years warranty + 4 years repair warranty)
2 x 10m Twin 4mm PV extension cable with MC4 connectors
1 x 2-in-1 MC4 connectors
2 x PV fuse 30a
1 x PV circuit breaker 160v 32a
1 x Surge 600v
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
Specifications for the PV18-3024 VHM Plus Inverter:
Battery System Voltage: 24VDC
Supports generator charging
Inverter Output:
Rated Power: 3000W
Surge Power: 6000W
Waveform: Pure sine wave
Inverter Efficiency (Peak): 93%
Voltage: 230VAC ±5%
Maximum PV Array MPPT Voltage: 30~130VDC
Standby Power Consumption: 2W
PV Input Power: 1400W
Maximum Solar MPPT Charge Current: 80A
Maximum Efficiency: 98%
Machine Dimensions (W*H*D): 272*355*100mm
Net Weight: 11kg
SAA NZ Certificated Inverter
Daily Output 15KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:
4 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x 5000W MUSTPOWER Hybrid Off-Grid Inverter PV18-5048 VHM (2 Years Warranty)
4 x 12V 140Ah Gel Deep Cycle Battery (2 Years Warranty, Battery Equalizer included)
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge
1 x Isolator
4 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $120. If you wish to upgrade, please contact us.**
Specifications for the PV18-5048 VHM Inverter:
Nominal Battery System Voltage: 48VDC
Inverter Output:
Rated Power: 5000W
Surge Power: 10000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): ±5% (220VAC ~ 240VAC)
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184~253VAC (VDE4105)
Frequency Range: 50Hz/60Hz (Auto-sensing)
Battery:
Normal Voltage: 48VDC
Floating Charge Voltage: 54VDC
Overcharge Protection: 60VDC
Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array MPPT Voltage: 64~130VDC
PV Input Power: 2880W/3840W
Maximum Solar Charge Current: 60/80A
Maximum Efficiency: 98%
Maximum AC Charge Current: 60A
Maximum Charge Current: 120/140A
Physical Specifications:
Dimensions (WHD)(mm): 297.5x468x125
Net Weight(kg): 13.3
SAA NZ Certificated Inverter
Daily Output 10KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:
6 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell
1 x 3000W Mustpower Hybrid Off-Grid Inverter PV18-3024 VHM Plus (2 Years Warranty)
2 x Micromall Bronze 24V 110Ah LiFePO4 Lithium Battery (6 years warranty + 4 years repair warranty)
1 x 10m Twin 6mm PV Extension Cables with MC4 Connectors
1 x 2-in-1 MC4 connectors
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge Protector
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
Specifications for the PV18-3024 VHM Plus Inverter:
Battery System Voltage: 24VDC
Supports generator charging
Inverter Output:
Rated Power: 3000W
Surge Power: 6000W
Waveform: Pure sine wave
Inverter Efficiency (Peak): 93%
Voltage: 230VAC ±5%
Maximum PV Array MPPT Voltage: 30~130VDC
Standby Power Consumption: 2W
PV Input Power: 1400W
Maximum Solar MPPT Charge Current: 80A
Maximum Efficiency: 98%
Machine Dimensions (W*H*D): 272*355*100mm
Net Weight: 11kg
SAA NZ Certificated Inverter
Daily Output 15KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:
9 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
2 x 5000W MUSTPOWER Hybrid Off-Grid Inverter PV18-5048 VHM (2 years warranty)
2 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV Safety System with Fuse Box
9 x Commercial Mounting Kits with Adjustable Angle Version
Specifications for the PV18-5048 VHM Inverter:
Nominal Battery System Voltage: 48VDC
Inverter Output:
Rated Power: 5000W
Surge Power: 10000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): ±5% (220VAC - 240VAC)
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184 - 253VAC (VDE4105)
Frequency Range: 50Hz/60Hz (Auto-sensing)
Battery:
Normal Voltage: 48VDC
Floating Charge Voltage: 54VDC
Overcharge Protection: 60VDC
Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array MPPT Voltage: 64~130VDC
PV Input Power: 2880W/3840W
Maximum Solar Charge Current: 60/80A
Maximum Efficiency: 98%
Maximum AC Charge Current: 60A
Maximum Charge Current: 120/140A
Physical Specifications:
Dimensions (WHD)(mm): 297.5x468x125
Net Weight(kg): 13.3
SAA NZ Certificated Inverter
Daily Output 23KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:
9 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
2 x 5000W MUSTPOWER Hybrid Off-Grid Inverter PV18-5048 VHM (2 years warranty)
8 x Narada 6REXC-300 6V 300Ah Ultra Lead Carbon Deep Cycle Solar Battery (5-year warranty)
2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV Safety System with Fuse Box
9 x Commercial Mounting Kits with Adjustable Angle Version
Specifications for the PV18-5048 VHM Inverter:
Nominal Battery System Voltage: 48VDC
Inverter Output:
Rated Power: 5000W
Surge Power: 10000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): ±5% (220VAC - 240VAC)
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184 - 253VAC (VDE4105)
Frequency Range: 50Hz/60Hz (Auto-sensing)
Battery:
6V VRLA AGM sealed Lead Carbon
Max charge current: 140A
Constant charge current: 100A
250Ah: C10 (10-hour discharge)
300Ah: C100 (100-hour discharge)
Dimensions: 338mm L x 224mm W x 294mm H
Weight: 61kg
Cycle life: 5000 at 50% depth of discharge or 2400 at 80% depth of discharge.
SAA NZ Certificated Inverter
Daily Output 23220WH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
Introducing the Mustpower INVERTER PV30-3024PRO!
The Mustpower PV30-3024 PRO is an off-grid hybrid inverter designed for versatile usage. It features an 80A MPPT controller, a 3000W low-frequency inverter (with a peak power of 9000W), and is compatible with off-grid systems and generators.
Key Features:
Pure sine-wave output, suitable for various domestic appliances such as TVs, refrigerators, fans, air conditioners, induction cookers, and microwave ovens.
Superior performance thanks to CPU control technology.
Wide input voltage range with accurate output and AVR (Automatic Voltage Regulation) function.
Equipped with internal protection against overloads, short circuits, over-voltage, low-voltage, and over-heating.
Easy monitoring of inverter status with LED indication (upgradeable to LCD display).
Compatible with generators and allows for external battery connection.
Intelligent battery management system with protection against overcharging and over-discharging, among others.
Generator compatible.
Specifications:
Model Name: PV3000
Model Designation: PV30-3024PRO
Operating Temperature: 0°C to 40°C
Protection Degree: IP 20
Rated Power: 3000W
DC Input: 24VDC
AC Output: 230VAC 50/60Hz
AC Input: 230VAC 50/60Hz
Rated Current: 80A
System Voltage: 24VDC
MPPT Voltage Range: 30-130VDC
Maximum Solar Voltage (VOC): 145VDC
Maximum Charge Current: 80A
Dimensions (W*H*D): 423*247*197mm
Storage Temperature: -15°C to 60°C
Audible Noise: 60dB MAX
Display: LED+LCD
Standard Warranty: 1 year
This inverter fully complies with AS/NZS4777 and the new AS/NZS5033+ IEC 62109-1 & IEC 62109-2 + AS/NZS 5033:2014 Compliance, meeting the latest NZ 2015 specification requirements.
Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.

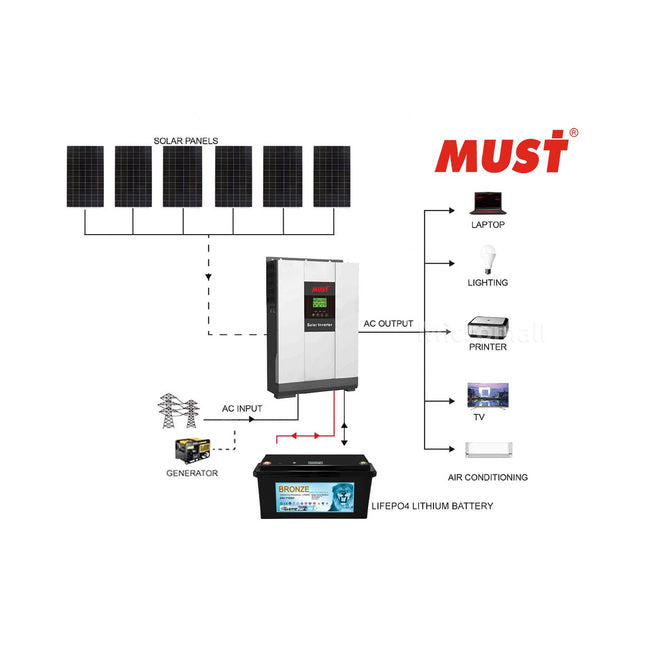

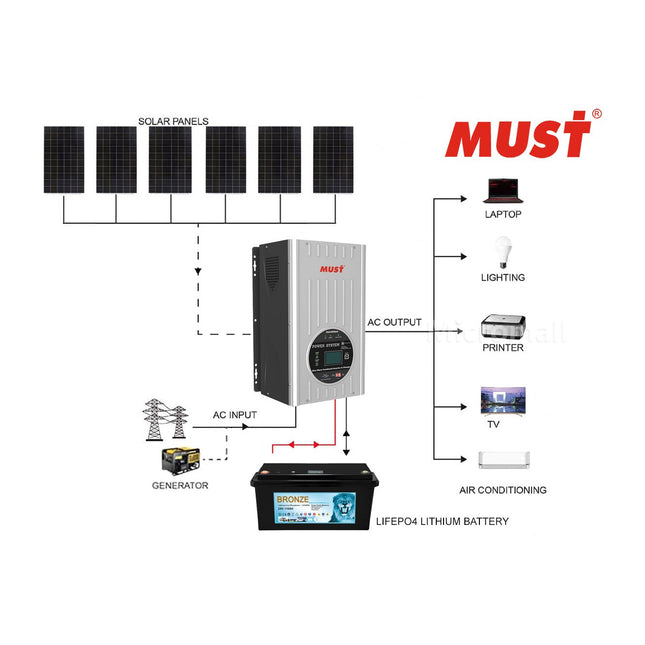

this system solar panels can make 15kwh per day(average summer and winter), the inverter is 3kw, the battery is 24v 110ah 10 years warranty
Package includes:
6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x 3000W MustPower Hybrid Off-Grid Inverter PV30-3024 VHM (2 Years Warranty)
1 x Micromall Bronze 24V 110Ah LiFePO4 Lithium Battery (10 years warranty)
1 x 10m Twin 4mm PV Extension Cables
1 x 2-in-1 MC4 Connectors
1 x Bluetooth App (for monitoring and control)
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge Protector
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
The MustPower Hybrid Off-Grid Inverter is a remarkable device with an 80A MPPT controller, 3000W low-frequency inverter, and peak output of 9000W. It operates as an off-grid hybrid inverter and supports generator connectivity.
SOLAR INVERTER Model Name: PV30-3024 VHM
Operating Temperature: 0°C--40°C
Protection Class: Class
Protection Degree: IP 20
Rated Power: 3000W
DC Input: 24VDC
AC Output: 230VAC 50/60Hz
AC Input: 230VAC 50/60Hz
Rated Current: 80A
System Voltage: 24VDC
MPPT Voltage Range: 30-130VDC
Max Solar Voltage (VOC): 145VDC
Max Charge Current: 80A
Dimensions (WHD): 423247197mm
Storage Temperature: -15°C to 60°C
Audible Noise: 60dB MAX
Display: LED+LCD
SAA NZ Certificated Inverter
Daily Output 15KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.
this system solar panels can make 10kwh per day(average summer and winter), the inverter is 3kw, the battery is 24v 110ah 10 years warranty
Package includes:
4 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x 3000W Mustpower Hybrid Off-Grid Inverter PV18-3024 VHM Plus (2 years warranty)
1 x Micromall Bronze 24V 110Ah LiFePO4 Lithium Battery (10 years warranty)
1 x 10m Twin 4mm PV Extension Cables with MC4 Connectors
1 x 2-in-1 MC4 connectors
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge Protector
4 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $120. If you wish to upgrade, please contact us.**
Specifications for the PV18-3024 VHM Plus Inverter:
Battery System Voltage: 24VDC
Supports generator charging
Inverter Output:
Rated Power: 3000W
Surge Power: 6000W
Waveform: Pure sine wave
Inverter Efficiency (Peak): 93%
Voltage: 230VAC ±5%
Maximum PV Array MPPT Voltage: 30~130VDC
Standby Power Consumption: 2W
PV Input Power: 1400W
Maximum Solar MPPT Charge Current: 80A
Maximum Efficiency: 98%
Machine Dimensions (W*H*D): 272*355*100mm
Net Weight: 11kg
SAA NZ Certificated Inverter
Daily Output 10KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:
6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x 5000W MUSTPOWER Hybrid Off-Grid Inverter PV18-5048 VHM Pro (2 years warranty)
1 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x PV Safety System with Fuse Box(16a fuse*1,500v 25a breaker,surge,9 way box)
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
Specifications for the PV18-5048 VHM Inverter:
Nominal Battery System Voltage: 48VDC
Inverter Output:
Rated Power: 5000W
Surge Power: 10000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): ±5% (220VAC - 240VAC)
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184 - 253VAC (VDE4105)
Frequency Range: 50Hz/60Hz (Auto-sensing)
Battery:
Normal Voltage: 48VDC
Floating Charge Voltage: 54VDC
Overcharge Protection: 60VDC
Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array MPPT Voltage: 64~130VDC
PV Input Power: 2880W/3840W
Maximum Solar Charge Current: 60/80A
Maximum Efficiency: 98%
Maximum AC Charge Current: 60A
Maximum Charge Current: 120/140A
Physical Specifications:
Dimensions (WHD)(mm): 297.5x468x125
Net Weight(kg): 13.3
SAA NZ Certificated Inverter
Daily Output 15KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
Introducing our exceptional off-grid solar system: the Premium Grade A Solar Panel combined with a high-quality Hybrid Solar Inverter System.
Package Includes:
4 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x Mustpower 24V 4KW High Frequency Solar Inverter 4000W (2 Years Warranty)
2 x 12V 195Ah Gel Deep Cycle Batteries (2 Years Warranty)
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge Protector
4 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $120. If you wish to upgrade, please contact us.**
MODEL: PV19-4024 EXP
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated Power: 4000VA / 4000W
Surge Power: 8000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): 230VAC +-5%(Setting)
Inverter Efficiency(Peak): 92%
Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage: 230VAC
Selectable Voltage Range: 170 - 280VAC(UPS) / 90 - 280VAC(APL) / 184 - 253VAC(VED4105)
Frequency Range: 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage: 24VDC
Floating Charge Voltage: 27.4VDC
Overcharge Protection: 30VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage: 500VDC (450V for parallel)
Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power: 5000W
Maximum Solar Charge Current: 100A
Maximum AC Charge Current: 80A
Maximum Charge Current: 100A
Dimensions (WxHxD): 322x486x134mm
SAA NZ Certificated Inverter
Daily Output 10KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
PV1800 PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which Can help customers make full use of solar energy.
Features:
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
MAX PV Array Open Circuit Voltage: 450V
Can provide the power to the load without battery
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
Parallel operation with up to 3 units
WIFI remote monitoring (optional)
MODEL: PV18-3024 PRO
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated Power: 3000VA / 3000W
Surge Power: 6000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): 230VAC±5%(Setting)
Inverter Efficiency(Peak): 90%
Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage: 230VAC±5%
Selectable Voltage Range: 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range: 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage: 24VDC
Floating Charge Voltage: 27.4VDC
Overcharge Protection: 30VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage: 450VDC
Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power: 4000W
PV Array MPPT Voltage Range: 150~430 VDC
Maximum Solar Charge Current: 80A/100A
Maximum AC Charge Current: 60A/80A
Maximum Charge Current: 80A/100A
MECHANICAL SPECIFICATIONS
Machine Dimensions: 322 x 486 x 134mm
Package Dimensions: 426 x 560 x 260.5mm
Net Weight: 8kg
Gross Weight: 9.5kg
2 Years Warranty
The HBP1800 OS series is specifically designed for office use, providing a reliable and efficient power source. However, it is also versatile enough to power various household appliances, including PCs, laptops, stereos, and desktop computers. Equipped with a built-in 4-series LiFePO4 battery, the HBP1800 OS has a capacity of either 960Wh or 3072Wh, making it an ideal portable power station for a range of needs.
SPECIFICATIONS
Model: HBP18-3024 OS
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated power: 3000W
Output voltage waveform: Pure Sine Wave
Output voltage regulation: 230V ±5%
Output frequency: 50Hz / 60Hz (±0.2Hz)
Peak efficiency: 90%
Nominal DC input voltage: 24V (±0.3)
PV Input
Max solar power input: 1800W
PV max charging current: 60A (±3A)
Combined charging current: 80A (±4A)
Max efficiency: 98.0% max
PV array open circuit voltage: 145VDC
PV Array MPPT Voltage Range: 30~120VDC
AC Input
AC input voltage: 230Vac ±5%
Acceptable input voltage range: 90-280VAC
Nominal input frequency: 50Hz / 60Hz (Auto detection)
AC Charge
Charging current @ Nominal input voltage: 20A/30A (±4A)
Lithium Battery
Energy: 3072Wh
Nominal voltage: 25.6V
Battery capacity: 120Ah
Protection board: 140A
MECHANICAL SPECIFICATIONS
Dimensions (W*H*D) (mm): 288x348x490
Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:
6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x 5000W MUSTPOWER Hybrid Off-Grid Inverter PV18-5048 VHM (2 years warranty)
4 x 12V 130Ah Ultra Lead Carbon Batteries with Battery Equalizers (2 Years Warranty)
2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors

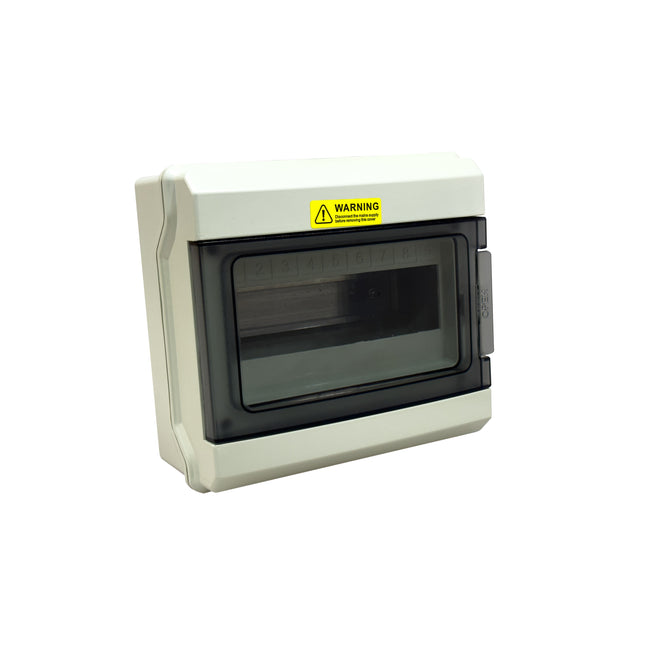

1 x PV Safety System with Fuse Box
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $145. If you wish to upgrade, please contact us.**
Specifications for the PV18-5048 VHM Inverter:
Nominal Battery System Voltage: 48VDC
Inverter Output:
Rated Power: 5000W
Surge Power: 10000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): ±5% (220VAC ~ 240VAC)
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184~253VAC (VDE4105)
Frequency Range: 50Hz/60Hz (Auto-sensing)
Battery:
Normal Voltage: 48VDC
Floating Charge Voltage: 54VDC
Overcharge Protection: 60VDC
Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array MPPT Voltage: 64~130VDC
PV Input Power: 2880W/3840W
Maximum Solar Charge Current: 60/80A
Maximum Efficiency: 98%
Maximum AC Charge Current: 60A
Maximum Charge Current: 120/140A
Physical Specifications:
Dimensions (WHD)(mm): 297.5x468x125
Net Weight(kg): 13.3
SAA NZ Certificated Inverter
