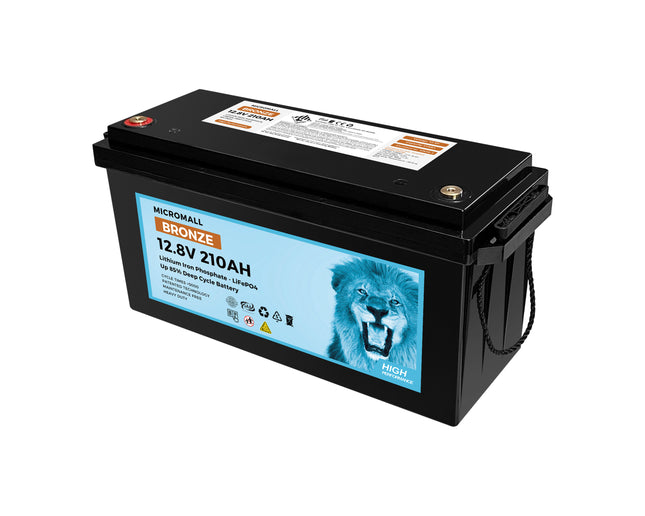

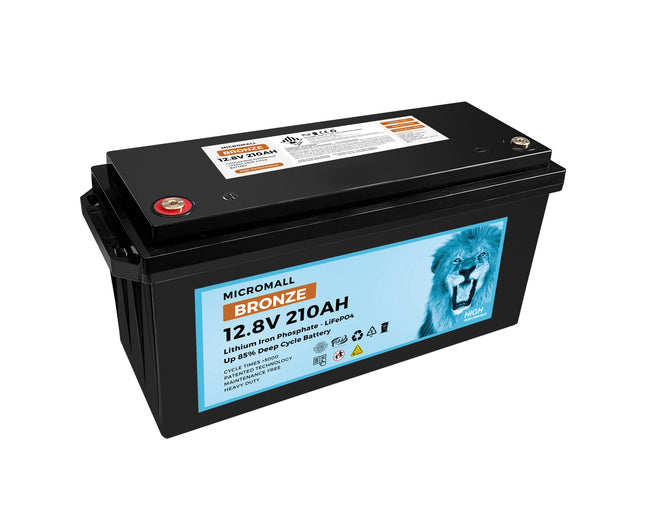

This battery is developed by our local New Zealand company micromallnz ltd. utilizing laser welding and cell internal resistance equalizer technology. It incorporates four patented technologies to ensure that the battery's capacity remains at or above 80% over 10 years and 70% over 20 years. It has a lifespan of 5000 cycles, lasting up to 30 years
A grade brand new cells
6 years warranty + 4 years repair warranty
State-of-the-Art Design: Features the latest Grade A cells, making it one of the safest LiFePO4 batteries globally.
Longevity: 80% capacity retention after 5000 deep cycles, promising a 20-year lifespan.
Integrated Monitoring: Comes with a professional extension monitor for precise cell detail visualization and an AI BMS system for optimal cell equalization.
Performance & Application:
High Energy Density: This next-gen lithium battery outperforms lead-acid batteries in energy density, offering significant weight savings.
Versatile Use: Ideal for RVs, solar energy storage, yachts, vehicles, and water pumps. It's a direct replacement for original batteries without the need for circuit modifications.
Advanced BMS: The built-in Battery Management System offers protection from over-discharge, over-charge, short circuits, and thermal runaway.
Water-resistant
Technical Specifications:
Battery Chemistry: LiFePO4
Capacity(Ah): Max 210Ah
Nominal Voltage (V): 12.8V
Operating Voltage(V): 10.8 - 14.4V
Energy(kWh): 2.6kWh
Usable Energy(kWh): 2.4kWh
Charge/Discharge Current
Recommend: 80A
Max: 180A
Peak: 300A (500ms, 25°C)
Short-circuit 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimensions: 501mm (L) x 185mm (W) x 235mm (H)
Weight: 22kg
Protection & Features:
BMS System
Overload & Short Circuit Protection
3A Equalizer for High Current Equalization
Over-discharge & Overcharge Protection
Introducing the Micromall 12.8V 110Ah Lithium Battery Essential LiFePO4 Battery Deep Cycle Battery Solar Battery, a high-performance household energy storage solution.
Key Features
Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: NZ-12110
Battery Chemistry: LiFePO4
Capacity(Ah): Max 110Ah
Nominal Voltage (V): 12.8V
Operating Voltage(V): 10.8 - 14.4V
Energy(kWh): 1.4kWh
Usable Energy(kWh): 1.2kWh
Charge/Discharge Current (A) Recommend, Max: 50, 100
Charge/Discharge Current (A) Peak, Short-circuit: 200 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimension (H/W/D, mm): 330 x 215 x 172mm, 300 x 220 x 170mm
Weight Approximate (kg): 11+-2kg
Master Indicator: LCD
IP Rating of Enclosure: IP54 / IP20
Operating Temperature: Charge:0 - 55°C (Optional heating) / Discharge: -20°C - 55°C
Insulation resistance factory test: >100MΩ
Initial battery internal resistance: 0.5+-0.05mΩ
Storage Temperature: 0°C - 35°C
Humidity: 5% - 95%
Altitude: <=2000m
Cycle Life: >=6000(25°C+-2°C 0.5C / 0.5C, 90%DOD, 70%EOL)
Installation: Floor-Mounted
Communication Port: BUUETOOTH
Energy Throughput: 4MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
15 Years New Zealand Local Warranty

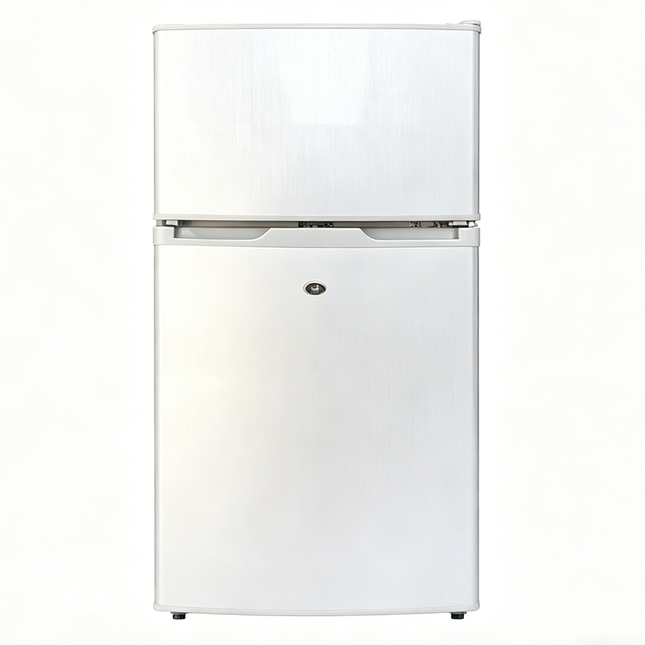

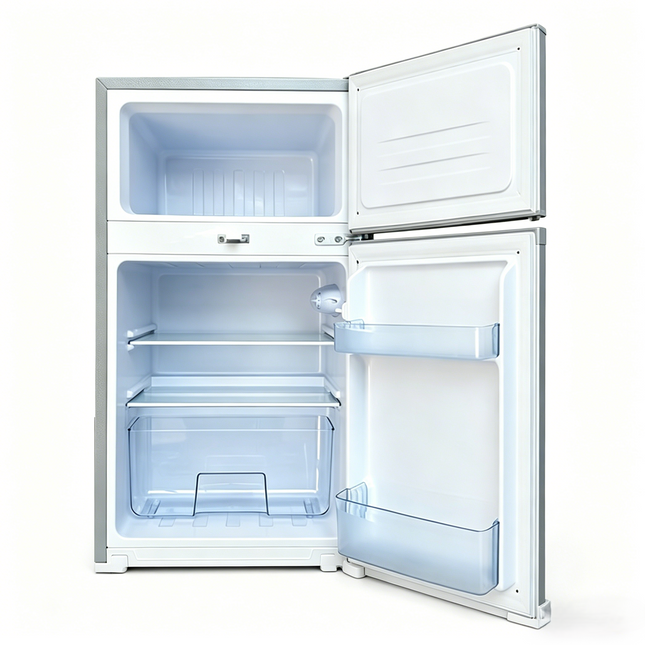

Introducing our latest 98L 12-24V DC Upright Dual-Door Solar-Powered Fridge Freezer with DC Compressor, a perfect addition for your caravan, motor home, or boat. This brand-new, high-efficiency fridge specializes in providing exceptional cooling on the go.The entire machine is warranted for one year, and the compressor is warranted for three years.Key Features
Capacity: A generous 98L, divided into a 28L freezing chamber and a 70L refrigerating chamber.
Temperature Range: The freezing chamber operates between 0 degrees celsius and -18 degrees celsius, while the refrigerating chamber maintains a cool 0 degrees celsius to 10 degrees celsius.
Efficient Compressor: Utilizes a 35DC outer rotor compressor.
Eco-Friendly Refrigerant: Uses R134a / R600A refrigerant, known for its low environmental impact.
Dual Voltage Input: Compatible with DC12V and 24V inputs.
Power Efficiency: Only 70W input power with an energy consumption of 0.7 kW.h over 24 hours.
Insulation: Features Cyclopentane foaming for excellent thermal insulation.
Available Capacity:98L
Freezing chamber volume：28LRefrigerating chamber volume：70LFreezing chamber temperature：0 degrees celsius ~ -18 degrees celsiusRefrigerating chamber temperature：0 degrees celsius ~ 10 degrees celsiusOuter rotor compressor：35DCRefrigerant:：R134a / R600AInput voltage：DC12V/24VInput power：70WEnergy consumption：0.7kw.h/24hFoaming：CyclopentaneProduct size: 480mm W × 445mm D × 845mm HG.W./N.W.：22kg/20kgCertificates：CEColour: SilverEquipped with a convenient lock***We also can supply a compatible solar system for this fridge. Please inquire for more details.***Ideal for those who love to travel without compromising on the comforts of home, this 98L fridge freezer DC compressor is a reliable, eco-friendly choice for your mobile cooling needs.

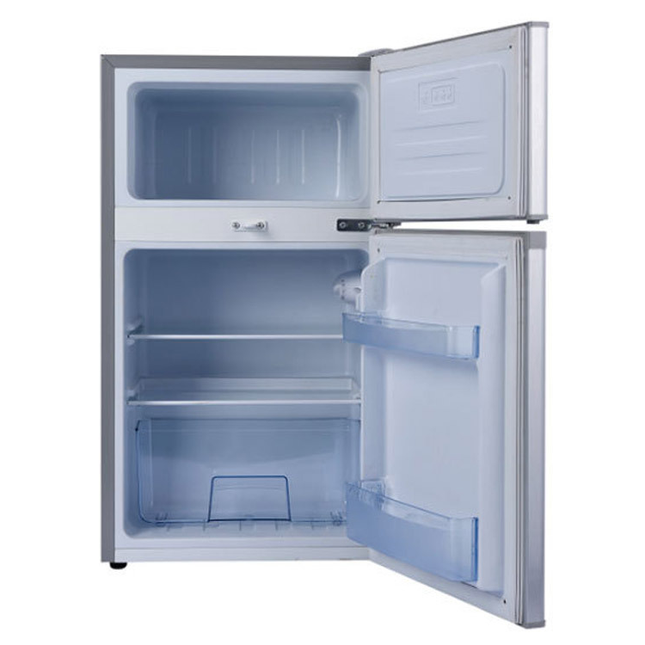

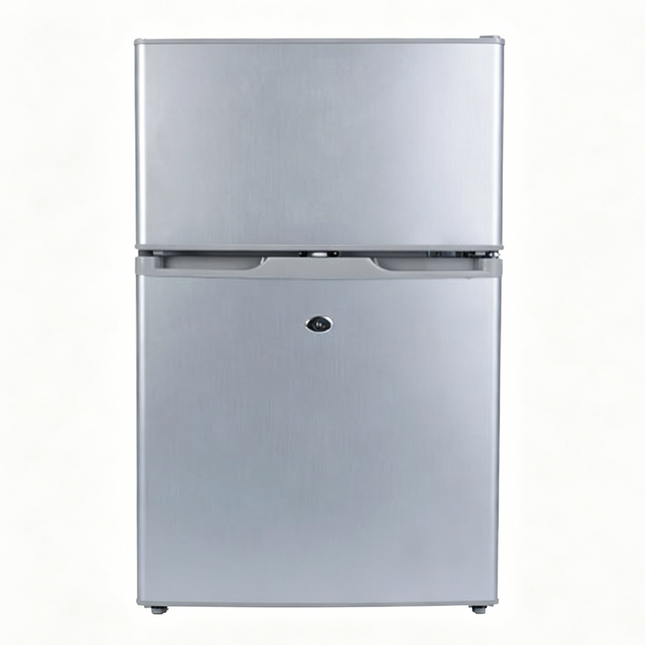

Introducing our latest 108L 12-24V DC Upright Dual-Door Solar-Powered Fridge Freezer with DC Compressor, a perfect addition for your caravan, motor home, or boat. This brand-new, high-efficiency fridge specializes in providing exceptional cooling on the go.The entire machine is warranted for one year, and the compressor is warranted for three years.Key Features
Capacity: A generous 108L, divided into a 41L freezing chamber and a 67L refrigerating chamber.
Temperature Range: The freezing chamber operates between 0 degrees celsius and -18 degrees celsius, while the refrigerating chamber maintains a cool 0 degrees celsius to 10 degrees celsius.
Efficient Compressor: Utilizes a 35DC outer rotor compressor.
Eco-Friendly Refrigerant: Uses R134a refrigerant, known for its low environmental impact.
Dual Voltage Input: Compatible with DC 12V and 24V inputs.
Power Efficiency: Only 60W input power with an energy consumption of 0.6kW.h over 24 hours.
Insulation: Features Cyclopentane foaming for excellent thermal insulation.
Available Capacity:108L
Freezing chamber volume：41LRefrigerating chamber volume：67LFreezing chamber temperature：0 degrees celsius ~ -18 degrees celsiusRefrigerating chamber temperature：0 degrees celsius ~ 10 degrees celsiusOuter rotor compressor：35DCRefrigerant:：R134aInput voltage：DC12V/24VInput power：60WEnergy consumption：0.6kw.h/24hFoaming：CyclopentaneProduct size: 450mm W × 460mm D × 1250mm HG.W./N.W.：32kg/29kgCertificates：CEColour: SilverEquipped with a convenient lock***We also can supply a compatible solar system for this fridge. Please inquire for more details.***Ideal for those who love to travel without compromising on the comforts of home, this 108L fridge freezer DC compressor is a reliable, eco-friendly choice for your mobile cooling needs.

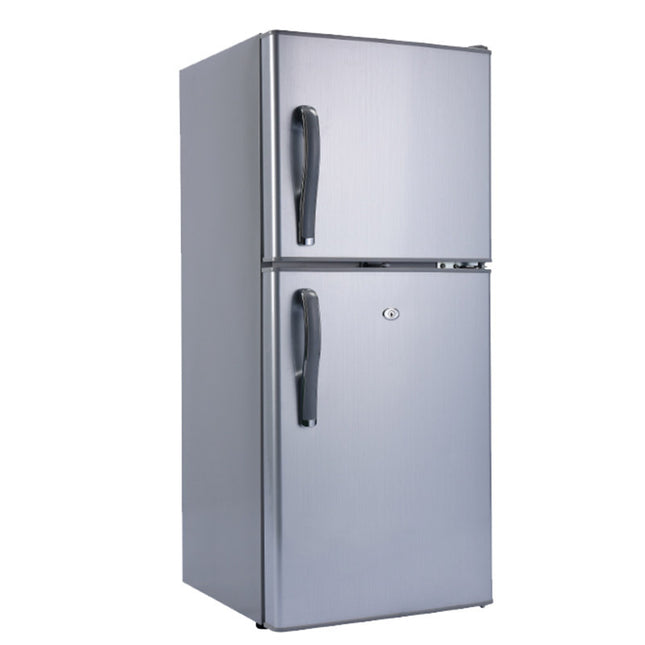

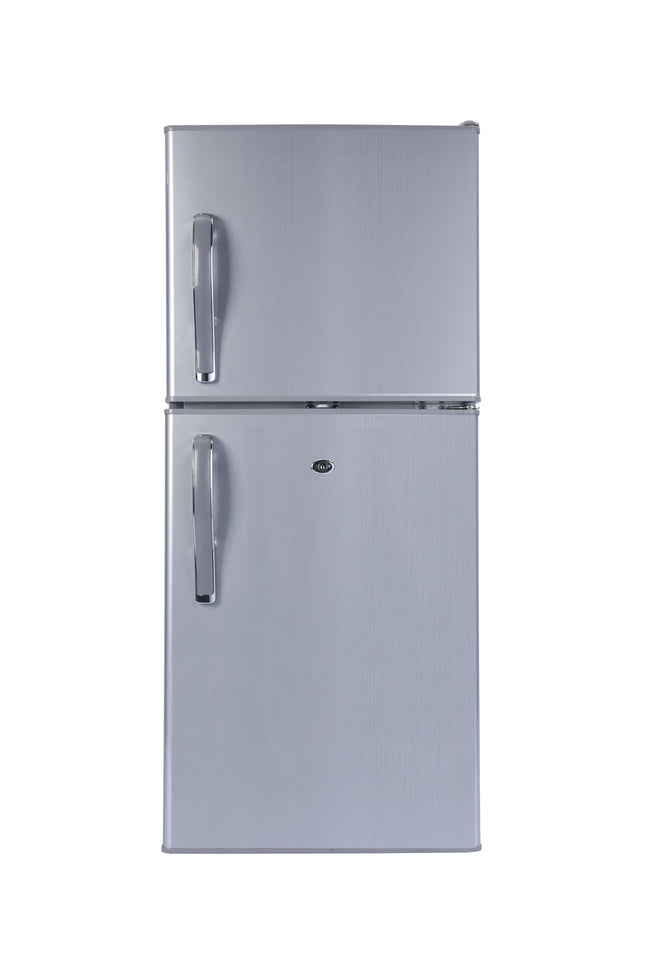

Introducing our latest 118L 12-24V DC Upright Dual-Door Solar-Powered Fridge Freezer with DC Compressor, a perfect addition for your caravan, motor home, or boat. This brand-new, high-efficiency fridge specializes in providing exceptional cooling on the go.The entire machine is warranted for one year, and the compressor is warranted for three years.Key Features
Capacity: A generous 118L, divided into a 39L freezing chamber and a 79L refrigerating chamber.
Temperature Range: The freezing chamber operates between 0 degrees celsius and -18 degrees celsius, while the refrigerating chamber maintains a cool 0 degrees celsius to 10 degrees celsius.
Efficient Compressor: Utilizes a 35DC outer rotor compressor.
Eco-Friendly Refrigerant: Uses R134a refrigerant, known for its low environmental impact.
Dual Voltage Input: Compatible with DC 12V and 24V inputs.
Power Efficiency: Only 58W input power with an energy consumption of 0.58kW.h over 24 hours.
Insulation: Features Cyclopentane foaming for excellent thermal insulation.
Available Capacity:118L
Freezing chamber volume：39LRefrigerating chamber volume：79LFreezing chamber temperature：0 degrees celsius ~ -18 degrees celsiusRefrigerating chamber temperature：0 degrees celsius ~ 10 degrees celsiusOuter rotor compressor：35DCRefrigerant:：R134aInput voltage：DC12V/24VInput power：58WEnergy consumption：0.58kw.h/24hFoaming：CyclopentaneProduct size: 480mm W × 490mm D × 1105mm HG.W./N.W.：31kg/28kgCertificates：CEColour: SilverEquipped with a convenient lock***We also can supply a compatible solar system for this fridge. Please inquire for more details.***Ideal for those who love to travel without compromising on the comforts of home, this 118L fridge freezer DC compressor is a reliable, eco-friendly choice for your mobile cooling needs.
Introducing our latest 68L 12-24V DC 65mm Upright Single Door Solar Deep Freezer with DC Compressor, a perfect addition for your caravan, motor home, or boat. This brand-new, high-efficiency freezer specializes in providing exceptional cooling on the go.The entire machine is warranted for one year, and the compressor is warranted for three years.Key Features
Temperature Range: The freezing chamber operates between 0 degrees celsius and -23 degrees celsius.
Efficient Compressor: Utilizes a 35DC outer rotor compressor.
Eco-Friendly Refrigerant: Uses R134a / R600a refrigerant, known for its low environmental impact.
Dual Voltage Input: Compatible with DC 12V and 24V inputs.
Power Efficiency: Only 41W input power with an energy consumption of 0.41kW.h over 24 hours.
Insulation: Features Cyclopentane foaming for excellent thermal insulation.
Available Capacity:68L
Freezing chamber temperature：0 degrees celsius ~ -23 degrees celsiusOuter rotor compressor：35DCRefrigerant: R134a / R600aInput voltage：DC12V/24VInput power：41WEnergy consumption：0.41kw.h/24hFoaming：Cyclopentane
Ineer light: Optional
Defrost: Manual
Compressor quality: 1
Product size: 670mm W × 661mm D × 640mm H
G.W./N.W.：35kg/30kgCertificates：CEColour: WhiteEquipped with a convenient lock***We also can supply a compatible solar system for this freezer. Please inquire for more details.***Ideal for those who love to travel without compromising on the comforts of home, this 68L freezer DC compressor is a reliable, eco-friendly choice for your mobile cooling needs.
Introducing our latest 158L 12-24V DC 85mm Upright Single Door Solar Deep Freezer with DC Compressor, a perfect addition for your caravan, motor home, or boat. This brand-new, high-efficiency freezer specializes in providing exceptional cooling on the go.The entire machine is warranted for one year, and the compressor is warranted for three years.Key Features
Temperature Range: The freezing chamber operates between 0 degrees celsius and -18 degrees celsius.
Efficient Compressor: Utilizes a 35DC outer rotor compressor.
Eco-Friendly Refrigerant: Uses R134a / R600a refrigerant, known for its low environmental impact.
Dual Voltage Input: Compatible with DC 12V and 24V inputs.
Power Efficiency: Only 75W input power with an energy consumption of 0.75kW.h over 24 hours.
Insulation: Features Cyclopentane foaming for excellent thermal insulation.
Available Capacity:158L
Freezing chamber temperature：0 degrees celsius ~ -18 degrees celsiusOuter rotor compressor：35DCRefrigerant: R134a / R600aInput voltage：DC12V/24VInput power：75WEnergy consumption：0.75kw.h/24hFoaming：Cyclopentane
Ineer light: Yes
Defrost: Manual
Compressor quality: 1
Product size: 840mm W × 661mm D × 840mm H
G.W./N.W.：45kg/41kgCertificates：CEColour: WhiteEquipped with a convenient lock***We also can supply a compatible solar system for this freezer. Please inquire for more details.***Ideal for those who love to travel without compromising on the comforts of home, this 158L freezer DC compressor is a reliable, eco-friendly choice for your mobile cooling needs.
Introducing the latest generation of 12V 310Ah GOLD LiFePO4 (lithium iron phosphate) battery with CATL A-grade cells, offering enhanced safety and reliability.
Features
EVE real grade A cells ensure superior performance and safety.
10-year full warranty and 5-year repair warranty for long-lasting peace of mind.
Compatible with lead-acid chargers and alternators (isolator installed).
Equipped with two temperature sensors for optimized performance.
High energy density and weight savings compared to lead-acid batteries.
Direct replacement without circuit modifications in various applications.
Ideal for RVs, solar energy storage, yachts, automobiles, and water pumps.
High Safety: Constructed with safety in mind, reducing risks associated with traditional batteries.
Water-resistant
Benefits
Exceptional longevity with a service life of over 20 years.
Higher energy density and weight savings for improved efficiency.
High cycle life, faster recharge, and higher maximum discharge rate compared to lead-acid batteries.
Built-in Battery Management System (BMS) for comprehensive protection.
80% capacity retention after 6000 deep cycles.
Automatic overload, short circuit, over-discharge, and overcharge protection.
Maximum continuous discharge current of 150 amps.
Technical Specifications:
Voltage: 12V
Capacity: 310Ah
Charge voltage: 13.8-14.0V
Float voltage: 13.8V
Cut-Off Voltage: 10.8V
Maximum Amp: 150A
Current Amp: 125A
Chemistry: LiFePO4 (LFP)
Discharge operating Temp: -20 to 80°C
Weight: 29kg
Dimensions: 520mm L x 267mm W x 220mm H(228mm include bolt)
Discover our 12V 210Ah LiFePO4 Deep Cycle Solar and Start Battery, an advanced energy storage solution.This listing includes two 12V 210Ah LiFePO4 deep-cycle solar batteries.Key Features
Innovative Design: Features the latest CATL Grade A cells for enhanced safety.
Long-Lasting: Retains 80% capacity after 6000 cycles, with a lifespan of 20 years.
Smart Monitoring: Equipped with an extension monitor and AI-driven BMS for cell balancing.
Warranty: Comes with a 10-year warranty and an additional 5-year repair guarantee.
Performance & Use:
High Energy Density: Lightweight yet power-packed.
Multi-Purpose: Perfect for RVs, solar setups, yachts, vehicles, and water pumps.
Advanced BMS: Offers protection from over-discharge, overcharge, short circuits, and thermal incidents.
Specifications
Battery Chemistry: LiFePO4
Capacity(Ah): Max 210Ah
Nominal Voltage (V): 12.8V
Operating Voltage(V): 10.8 - 14.4V
Energy(kWh): 2.6kWh
Usable Energy(kWh): 2.4kWh
Charge/Discharge Current
Recommend: 80A
Max: 180A
Peak: 300A (500ms, 25°C)
Short-circuit 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimensions: 501 x 185 x 235mm high
Weight: 22kg
Protection & Additional Features:BMS System with Bluetooth connectivityOverload and Short Circuit Protection3A Equalizer for effective current balancingOver-discharge and Overcharge Protection
Introducing our All-in-One Home Solar Energy Storage System:Features advanced Lithium Iron Phosphate (LiFePO4) technology and a top-class battery control system.Utilizes a modular structure, offering flexibility in energy levels and a compact size for easy maintenance.Designed with a modular approach, ensuring quick transportation, installation, and user-friendly operation.Backed by a ten-year warranty and comprehensive one-stop service.Boasts top-tier electric and structural design for a quiet and enjoyable experience.Equipped with a remote control system for the accompanying mobile app, providing visual data.Battery Options:
Model: LBS051100A-A02
Battery Type: LiFePO4
Battery Cabinet Configuration: 1
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Nominal Total Energy: 5.12kWh
Voltage Range: 44.8~57.6V
Standard Charging Current: 50A
Max. Charging Current: 70A
Standard Discharge Current: 50A
Max. Discharging Current: 70A
Net Weight: ~140kg
Dimensions (WDH): 7002301270mm
Ingress Protection: IP65
Model: LBS051200A-A02
Battery Type: LiFePO4
Battery Cabinet Configuration: 2
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Nominal Total Energy: 5.12kWh
Voltage Range: 44.8~57.6V
Standard Charging Current: 50A
Max. Charging Current: 70A
Standard Discharge Current: 50A
Max. Discharging Current: 70A
Net Weight: ~140kg
Dimensions (WDH): 7002301270mm
Ingress Protection: IP65
Experience the future of home solar energy storage with our advanced and reliable system that guarantees silent enjoyment and long-lasting performance for up to 20 years.
DescriptionHigh Current Circuit Breaker – Reliable protection for your electrical systems.Compatible with 12–24V DC – Ideal for automotive, marine, and off-grid applications.Protects Against Power Surges – Prevents damage to your amps and equipment.Versatile Mounting Options – Easily install on a panel or firewall.Unique Push-Button Reset – Quickly reset the breaker or use as a convenient kill switch.Durable, Water-Resistant Housing – Advanced design for superior protection against moisture and environmental elements.Specification
Material: Metal + High-Quality Plastic
Dimensions: Approx. 100mm × 45mm × 40mm
Dual USB Output (3.1A Total) – Charge two devices simultaneously with stable and efficient power delivery.12–24V DC Compatibility – Suitable for cars, trucks, motorcycles, boats, and RVs.Protective Dust Cover – Keeps the ports clean and protected from water, dust, and debris.Smart Charging Technology – Automatically detects connected devices for optimal charging speed.Built-In Safety Protection – Protection against overcurrent, overvoltage, overheating, and short circuits.Durable Construction – Designed for long-lasting performance in automotive and marine environments.Ideal for powering smartphones, GPS units, tablets, and other USB-powered devices on the go.
The TR24 Waterproof Coulomb Meter is a reliable and accurate battery capacity tester designed for monitoring lithium battery systems. With support for up to 100A current and a clear LCD display, it provides real-time data to help you manage and protect your battery efficiently.Built with a waterproof design, the TR24 is suitable for both indoor and outdoor use, making it ideal for solar systems, RVs, marine applications, and off-grid setups.Key FeaturesSupports up to 100A current measurementReal-time monitoring of voltage, current, power, and battery capacityCoulomb counting technology for accurate charge/discharge trackingLCD display for clear and easy readingWaterproof design – suitable for outdoor environmentsDesigned for lithium battery systemsHelps prevent over-discharge and extend battery lifeApplicationsSolar power systemsLithium battery packsRV and campervan setupsMarine and boat applicationsOff-grid and backup power systemsSpecifications
Model: TR24
Type: Battery Capacity Tester / Coulomb Meter
Max Current: 100A
Display: LCD
Function: Voltage, current, power, capacity monitoring
Installation: Easy to install and operate
BETTIN Low Frequency Pure Sine Wave Inverter 48V 8000W Hybrid Inverter With ControllersFeaturesIndustrial frequency sine wave output with AC power complementary function.Adjustable working mode priority: AC mode/battery mode.Supports lead-acid, gel, lithium iron phosphate, ternary lithium batteries, and user-defined battery modes.User-definable voltages: charging voltage/AC supply voltage/battery recovery supply voltage/alarm voltage/protection voltage.Battery under-voltage/over-voltage/overload protection/high temperature protection/charging protection.Selectable AC charging current.Low no-load current for the whole device, inverter efficiency about 90%.Low no-load loss.Screen display selectable in Chinese or English.Restore factory settings.Technical parameters:
Capacity: 8kW
Peak Capacity: 24kW
Battery voltage: 48V
Inverter working mode: AC priority, DC priority, ECO mode, unattended mode, generator mode
LCD display working mode: Normal mode/ ”ON” mode
DC input voltage range: 10.5VDC-15VDC(single battery voltage 12V)
AC input voltage range: 110VAC: (80-130)VAC； 220VAC：(160-260）VAC/(130-280)VAC, can adjust at site
Output Wave: PURE SINE WAVE
Output efficiency: ≈90%
Output voltage: 200V/210V/220V/230V240V, can adjust at site
Output frequency: 50Hz/60Hz, can adjust at site
Transfer time: ＜5ms
Heat-dissipating type: Intelligent temperature control
Working temperature: -10℃~40℃
Inverter size (L*W*Hmm): 560*390*200mm
Net weight: 31.5kg
Gross weight: 36kg
Special voltage and power requirements, can be customized according to customer requirements.
M2-500 500W Wind Turbine
(Pole Not Included)
Features:
Low Start-up Wind Speed: Special-shaped magnet and unique winding structure allow the turbine to start at just 2.5 m/s (for 5-blade version: 1.5 m/s) without any auxiliary starting device.
Quiet Operation: Nylon fiber blades and aerodynamic design ensure smooth and low-noise performance.
Compact & Lightweight: Rare earth permanent magnets reduce the overall volume and weight of the turbine.
High Efficiency: Delivers 100% full output power with extremely high energy conversion efficiency.
Durable & Consistent Quality: Molded construction ensures stable quality and long-term reliability.
Comprehensive Protection: Built-in protections against over-voltage, over-discharge, over-current, and strong wind conditions.
Robust Construction: Die-cast aluminum casing offers excellent corrosion resistance.
Weatherproof: Fully sealed design prevents intrusion from sand, salt spray, and rainwater.
Long Lifespan: Unique heat dissipation structure extends the design life to 15–20 years.
Applications:
Ideal for LED lighting, street signals, security cameras, outdoor telecommunication systems, and off-grid residences. Easily integrates with solar panels to form a wind & solar hybrid off-grid power system, providing consistent and clean energy. Available in 24V for battery charging.
Specifications:
Model Name: M2-500
Rated Power: 500W
Maximum Power: 530W
Rated Voltage: 12V
Start-up Wind Speed: 2.5 m/s
Rated Wind Speed: 11.5 m/s
Net Weight: 20 kg
Wind Wheel Diameter: 1.65 m
Number of Blades: 3
Blades Material: Nylon Fibre
Generator Type: Three-phase Permanent Magnet AC Generator
Magnet: NdFeB Rare Earth
Controller System: Electromagnetic
Speed Regulation: Automatic windward adjustment
Working Temperature: -40℃ to 80℃
Note: Pole not included.
Introducing the New Uninterruptible Power Supply Low-Frequency Pure Sine Inverter!
As a specialized solar service company, we offer quality products and comprehensive support. Our expertise ensures professional, efficient system design solutions tailored to your needs.
Inverter Uses:
Suitable for PV systems.
Ideal for RV modifications.
Compatible with lithium batteries.
Product Features:
Continuous power output.
Universal socket design for all appliance connections.
Fully isolated input and output.
Transformer isolation for power.
Optocoupler isolation for signals.
Independent auxiliary power.
High efficiency over 93%.
Constant power output with real short circuit protection.
SMT chip technology for reliable, stable output.
PWM regulated power, output voltage ±3%.
Specifications:
Rated Power: 6000W
Peak Power: 22000W
Battery Voltage: 48V
Dimensions: 650×220×180 mm
Weight: 39kg
AC Input Voltage Range: 170-260VAC (220V), 85-130VAC (110V)
Input Frequency: 45-65Hz
Battery Voltage Range: 48V
Output Voltage Range: 230V/240V±3% (Inverter mode)
Output Frequency: 50/60±1%
Utility Output Frequency Range: 50 Hz/60 Hz auto-tracking
Output Waveform: Pure sine wave
Efficiency: >85%
Transfer Time: ≤5ms
Compatible Battery Types: Lead-acid, colloidal, lithium-iron, ternary lithium, unconventional batteries
Charging Voltage Range: 48VDC
Protections: Short circuit, high/low voltage, overcharge, overload, high temperature
Overload Protection: Stops at 110%-120% load after 60 seconds, at 150% load after 10 seconds.
New Low-Frequency Pure Sine Wave Uninterruptible Power Supply Inverter Now Available!
As a solar service company focused on technical excellence, we provide high-quality products, extensive service, and support, creating customized, efficient system designs based on your unique needs.
This inverter is versatile:
Ideal for PV systems.
Suitable for RV modifications.
Compatible with lithium batteries.
Key Features:
Continuous power output.
Universal socket design for all appliance connections.
Fully isolated input and output.
Transformer isolation for power.
Optocoupler isolation for signals.
Independent auxiliary power supply.
High efficiency over 93%.
Constant power output with real short-circuit protection.
SMT chip technology for reliable, stable output.
PWM regulated power, output voltage ±3%.
Specifications:
Rated Power: 5000W
Peak Power: 20000W
Battery Voltage: 36V
Dimensions: 650 x 220 x 180 mm
AC Input Voltage Range: 170-260VAC (220V), 85-130VAC (110V)
Input Frequency: 45-65Hz
Battery Voltage Range: 22.5-49.5VDC
Output Voltage Range: 110V/120V/220V/230V/240V±3% (Inverter mode)
Output Frequency: 50/60±1%
Utility Output Frequency Range: 50Hz/60Hz auto tracking
Output Waveform: Pure sine wave
Efficiency: >85%
Transfer Time: ≤5ms
Compatible Battery Types: Lead-acid, colloidal, lithium-iron, ternary lithium, unconventional batteries
Charging Voltage Range: 12-15.5VDC
Protection Functions: Short circuit, high/low voltage, overcharge, overload, high temperature
Overload Protection: Stops at 110%-120% load after 60 seconds, at 150% load after 10 seconds.
Introducing the New Uninterruptible Power Supply Low-Frequency Pure Sine Inverter!
As a specialized solar service company, we offer quality products and comprehensive support. Our expertise ensures professional, efficient system design solutions tailored to your needs.
Inverter Uses:
Suitable for PV systems.
Ideal for RV modifications.
Compatible with lithium batteries.
Product Features:
Continuous power output.
Universal socket design for all appliance connections.
Fully isolated input and output.
Transformer isolation for power.
Optocoupler isolation for signals.
Independent auxiliary power.
High efficiency over 93%.
Constant power output with real short circuit protection.
SMT chip technology for reliable, stable output.
PWM regulated power, output voltage ±3%.
Specifications:
Rated Power: 6000W
Peak Power: 22000W
Battery Voltage: 24V
Dimensions: 650×220×180 mm
Weight: 39kg
AC Input Voltage Range: 170-260VAC (220V), 85-130VAC (110V)
Input Frequency: 45-65Hz
Battery Voltage Range: 24V
Output Voltage Range: 230V/240V±3% (Inverter mode)
Output Frequency: 50/60±1%
Utility Output Frequency Range: 50 Hz/60 Hz auto-tracking
Output Waveform: Pure sine wave
Efficiency: >85%
Transfer Time: ≤5ms
Compatible Battery Types: Lead-acid, colloidal, lithium-iron, ternary lithium, unconventional batteries
Charging Voltage Range: 24VDC
Protections: Short circuit, high/low voltage, overcharge, overload, high temperature
Overload Protection: Stops at 110%-120% load after 60 seconds, at 150% load after 10 seconds.
Uninterruptible Power Supply Low-Frequency Pure Sine Inverter has Arrived!
heavy duty, 23kg 5 years warranty
We are a technically oriented solar service company that provides quality products, extensive service and support to our customers.
With years of accumulated expertise and rich experience, we will create professional and efficient system design solutions for you according to your different needs.
This inverter can be:
1 Used for PV system
2 Suitable for RV modification
3 Compatiblelithium battery
Product features.
1.Continuous power output
2.universal socket design, suitable for all appliances connected to use
3.input & output completely isolated
4.power: transformer isolation
5.Signal: Optocoupler isolation
6.Independent auxiliary power supply
7.Excellent efficiency, greater than 93%
8.Constant (limited) power output, real short circuit protection
9.SMT chip technology, reliable quality, stable output
10.PWM regulated power, output voltage ± 3%
Rated power：3000W
peak power：12000W
voltage：24V
Dimension L×W×H:460×220×180（mm）
ACInputvoltagerange(VAC):170-260VAC（220V) 85-130VAC(110V)
Inputfrequency(Hz):45-65HZ
Battery voltage range:24v
Outputvoltage range(VAC):Inverter mode 110V/120V/220V/230V/240V±3%
Outputfrequency(Hz）:50/60±1%.
Utility output frequency range:50 Hz/60 Hz automatic tracking
Output waveform:Pure sine wave
Efficiency:＞85%
Transfer time(ms):≤5ms
Compatible battery type:Lead-acid batteries/colloidal batteries/lithium-iron batteries/ternary lithium batteries/unconventional batteries
Protection function:Short circuit protection; high voltage protection; low voltage protection; overcharge protection; overload protection; high temperature protection
Overload protection:Overload 110% - 120% of the inverters will stop after 60 seconds, and over-load 150% of the inverters will stop after 10 seconds.
Introducing the New High-End LED Dimmer, Specially Designed for the AU/NZ Market.
This LED dimmer supports both 1 and 2-way switch connections. Its elegant design and high precision capacitance control chip offer easy installation, simplicity in use, and compatibility with a wide range of LED lights. Ideal for LED lighting, ceiling lights, downlights, panel lights, tubes, bulb lights, and TRIAC dimming lamps (must have a dimmable label).
Features:
High-grade, wear-resistant plastic construction, environmentally friendly and safe.
Clear, convenient brightness adjustment with marked switch panel.
Large, easy-grip rotary knob for comfortable use and free rotation.
Simple installation, exceptional quality, fine workmanship, and stylish design, making it perfect for home, office, or hotel use.
Specifications:
Condition: Brand New
2-Way Switch Connection
Material: Plastic
Color: White
Input Voltage: 240V
Power Frequency: 50Hz-60Hz
Maximum Load Power: 200W
Rotary Angle: 320 degrees
Relative Humidity: 85%
Operating Temperature: -10℃ to 50℃
Life Span: >80,000 cycles
Certifications: CE, RoHS, SAA, SDOC
Package Weight: Approx. 75g
Package Includes:
1 x Rotary Dimmer Switch
Ensure your solar installation meets safety and regulatory standards with our Solar PV Label Kit.
This comprehensive kit includes all essential labels for solar PV systems.
Designed for long-lasting use, these high-quality labels provide clear identification, ensuring compliance and safety across your solar setup.
Whether you're a professional installer or a DIY enthusiast, this kit is a must-have for any solar project.
Our Solar Pumping System is designed for remote areas with unreliable or no electrical grid access. It uses a BLDC solar pump controller powered by DC from the PV array to drive brushless DC pumps. On sunny days, it continuously pumps water without batteries. Recommended for water storage.
The portable QB pump has a built-in MPPT controller—no separate installation needed. Just connect panels to pump wires for seamless daytime operation, even on cloudy days.
Key Features:
Built-in MPPT controller.
1-year warranty.
Max pumping distance: 50 meters.
Reliable design operates under adverse conditions, adjusting output to protect components. Shuts down only in extreme cases, automatically restoring full operation when conditions improve.
Materials:
MOTOR: Full Oil Permanent Magnet Brushless DC Motor (Without Hall)
CONTROLLER: 32-bit MCU / FOC / Sine Wave Current / MPPT
Pump Body/OUTLET/INLET: Cast Iron
MOTOR BODY: Die-cast Aluminium
IMPELLER: Brass
SCREW: Stainless Steel
CABLE: 2m Three-core copper cable / 2.0mm2
Technical Specs:
Max lift water head: 25 meters
Max flow rate: 2 m³/h
Pipe diameter: 25mm
Rated Voltage: 24 VDC
Max Open Voltage: 80 VDC
Under Protection Voltage: 17 VDC
Over Protection Voltage: 50 VDC
Rated Current: 12 A
Over Protection Current: 15 A
Peak Protection Current: 18 A
MCU and Controller Mode: 32-bit MCU / FOC / Sine Wave Current / MPPT
Cooling: Natural Heat Dissipation
Operating temperature: -20℃ ~ +50℃
Package Includes:
1X Solar pump with built-in MPPT controller
2X LONGi LR5-28HTH 225W Mono Solar Panel Low Light Performance (12 Years Material Workmanship Warranty, 25 Years Linear Power Output Warranty)
1x 5m Twin Core Solar Cable
**Lithium Battery Lables included**
Ensure your solar installation meets safety and regulatory standards with our Solar Label Kit - Value Pack.
This comprehensive kit includes all essential labels for solar systems, including durable Lithium Battery Labels for identifying your battery components.
Designed for long-lasting use, these high-quality labels provide clear identification, ensuring compliance and safety across your solar setup.
Whether you're a professional installer or a DIY enthusiast, this kit is a must-have for any solar project.
Solar Battery Label Kit
Ensure your solar installation meets safety and regulatory standards with our Solar Battery Label Kit.
Designed for long-lasting use, these high-quality labels provide clear identification, ensuring compliance and safety across your solar setup.
Whether you're a professional installer or a DIY enthusiast, this kit is a must-have for any solar project.
