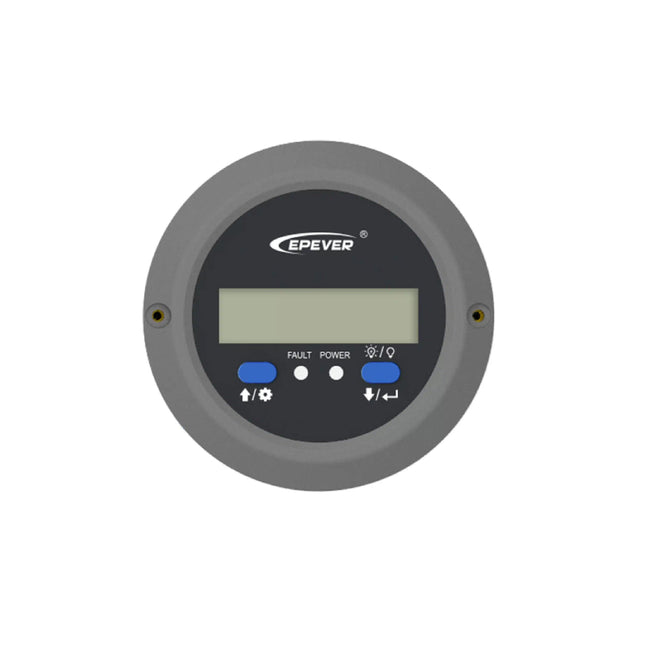

MT91 is a new generation of remote meter specially designed for
the EPEVER inverters. It displays the real-time parameter of the
inverter on one screen. Supporting parameter configuration by the
button operations, which makes the product suitable for different
requirements.
Features
Dual interface design, friendly connection with the EPEVER inverter and other optional modules
LCD screen, real-time dynamic display of system data
Visually error codes, timely notification of warnings and faults
Load ON/OFF button to control the load output directly
Simple installation and friendly operation interface
Technical Specifications
Model: MT91
Compatible products: NPower/TPower/IPower-Plus/IPower
Power supply: 5VDC
Power supply method: Inverter communication port
LCD visual angle: 12' clock
LCD backlight: Yes
Installation method: Surface mounting installation
Self-consumption:
14mA/5V(no backlight)
23mA/5V(backlight)
Working temperature: -20℃～+60℃
Storage temperature: -35℃～+70℃
Dimension: φ100mm X 19.4mm(Diameter X Height)
Mounting dimension: φ100mm X 50mm(Diameter X Height)
Mounting hole size: φ3.5mm
Net Weight: 65g
Compatible products: NPower/IPower-Plus/IPower
XTRA N series controller which can carry different display units(XDB1/XDS1/XDS2) adopt the advanced MPPT control algorithm, it can minimize the maximum power p0int loss rate and loss time, quickly track the maximum power p0int(MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.
Features：
- CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)
- 100% charging and discharging in working environment temperature range
- Optional LCD display units (XDB1/XDS1/XDS2)
- High quality and low failure rate components of ST or IR to ensure service life
- Advanced MPPT technology & ultra-fast tracking speed guarantee tracking efficiency up to 99.5%
- Maximum DC/DC transfer efficiency is as high as 98.3%, full load efficiency is up to 97.3%
- Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
- Accurate recognizing and tracking of multi-peaks maximum power p0oint
- Wide MPP operating voltage range
- Support the lead-acid and lithium batteries, programmable temperature compensation
- Limit charging power & current overrated value
- Real-time energy statistics function
- Power reduction automatically over-temperature value
- Multiple load work modes
- Comprehensive electronic protection
- Isolated RS485 with 5V/200mA protected output for no power devices, with Modbus protocol
- Support monitoring and setting the parameters via APP or PC software
Model: XTRA1206N
Rated charge current: 10A
Rated charge power:
130W/12V
260W/24V
Normal system voltage: 12/24VDC Auto Work
Max. conversion efficiency: ≤98.60%
MPPT tracking efficiency: ≥99.50%
Dimensions(L*W*H)mm: 175*143*48
Gross weight: 0.57KG
5 years Warranty
This model is XDS2 version!
EPEVER WiFi Adapter Accessories for MPPT solar charge controller, Through a local 2.4G WiFi network, the EPEVER WiFi 2.4G RJ45 D can transmit all operational data from the EPEVER solar controller, inverter, or inverter/charger to the EPEVER cloud server in real time. Users can remotely monitor the connected devices and program parameters via the EPEVER server platform and mobile APP.
Parameter :
Model: EPEVER WiFi 2.4G RJ45 D (APP: Solar Guardian)
Working voltage: 5V± 0.5V(Powered by RS485 com. port)
Power consumption Peak emission: 150mA; Idle: 310uA
Enclosure: IP30
Communication method: RS485 Communication parameters: 115200Bps, 8N1
Interface standard: EPEVER communication standard V1-1.0
Work frequency: 2.4 ~ 2.4835GHz
Work temperature range: -40℃~ 85℃
Dimension: 63mm x 19mm x 10mm
Net weight: 7.7g
Package List:
1 X EPEVER WiFi Adapter
1 X Manual
UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/generator charging, and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can
choose energy sources according to actual needs and flexibly take the utility as a supplement. This inverter charger
can raise the system's power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid
systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.
Supports the battery mode or non-battery mode
Surge current and reverse connection protections to support the lithium battery system perfectly
Three charging modes: Solar only, Solar priority, Utility & Solar
Two AC output modes: Utility priority and Inverter priority
High tracking efficiency of MPPT no less than 99.5%
PFC technology which achieves a high power factor of AC to DC charging and reduces the usage of power
grid capacity
Advanced SPWM technology and pure sine wave output
Configurable battery charging current and discharging current
Configurable grid charging current
Self-learning SOC function
4.2 inch LCD to monitor and modify system parameters
Optional WiFi or GPRS Remote control via the RS485 isolated communication port
BMS-Link port and optional BMS-Link communication protocol module
Specifications
Model: UP5000-HM8042
Rated battery voltage: 48VDC
Battery input voltage: 43.2 ~ 64VDC
Max. battery charging current: 80A
Inverter output
Continuous output power: 5000W
Max. surge pow er(3S): 8000W
Output voltage range: 220VAC
Output wave: Pure Sine Wave
Solar charging
Max. PV input power: 4000W
Max. PV charging power: 4000W
Max. PV charging current: 80A
Surge current: 95A
Dimension(H x W x D): 642.5x381.6x149mm
Net Weight: 19kg
**We're the top solar technology company's exclusive distributor in New Zealand**
**Patented battery technology**
**Factory direct sales**
**Extremely competitive prices**

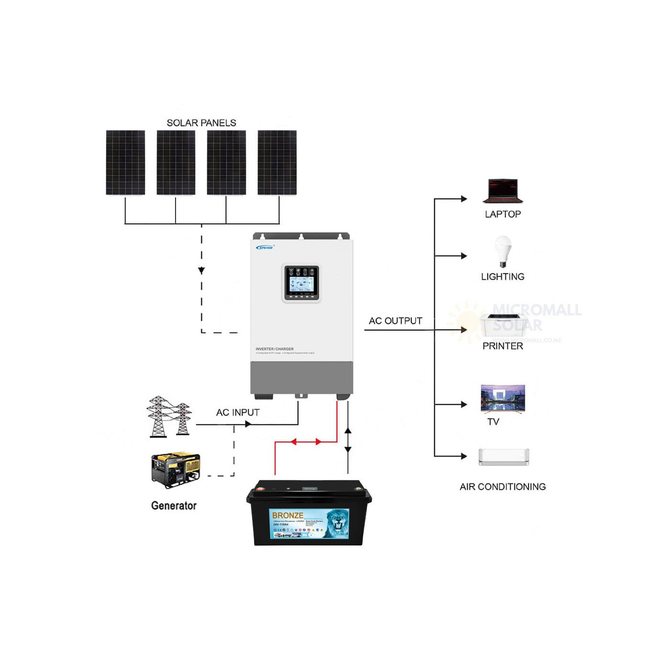

Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.
Package includes:

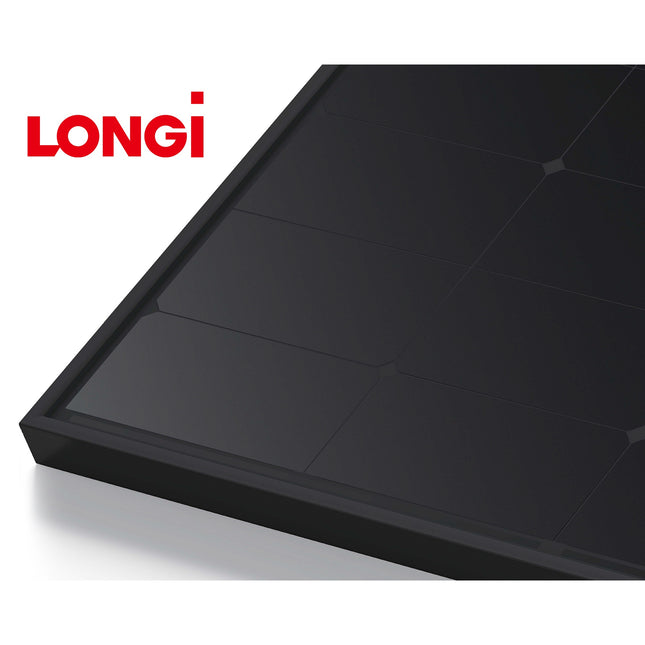

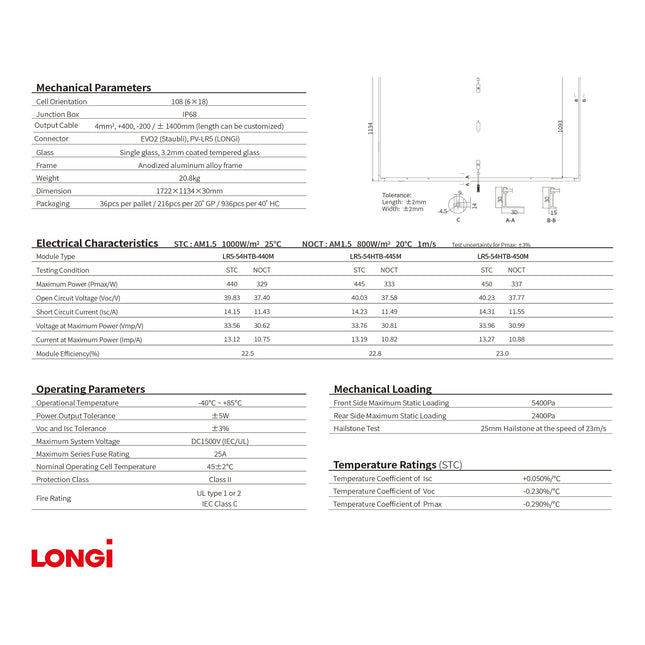

4 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x Epever UPower-Hi 24V 3000W Inverter Charger UP3000-HM10022 (2 Years Warranty)
1 x Micromall Bronze 24V 110Ah LiFePO4 Lithium Battery (6 years warranty + 4 years repair warranty)
1 x 10m Twin 4mm PV Extension Cables with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge Protector
4 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $120. If you wish to upgrade, please contact us.**
UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/generator charging, and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can
choose energy sources according to actual needs and flexibly take the utility as a supplement. This inverter charger
can raise the system's power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid
systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.
Specifications
Model: UP3000-HM10022
Rated battery voltage: 24VDC
Battery input voltage: 21.6 ~ 32VDC
Max. battery charging current: 100A
Inverter output
Continuous output power: 3000W
Max. surge pow er(3S): 6000W
Output voltage range: 220VAC
Output wave: Pure Sine Wave
Solar charging
Max. PV input power: 4000W
Max. PV charging power: 2875W
Max. PV charging current: 100A
Surge current: 60A
Dimension(H x W x D): 642.5x381.6x149mm
Net Weight: 19kg
**We're the top solar technology company's exclusive distributor in New Zealand**
**Patented battery technology**
**Factory direct sales**
**Extremely competitive prices**

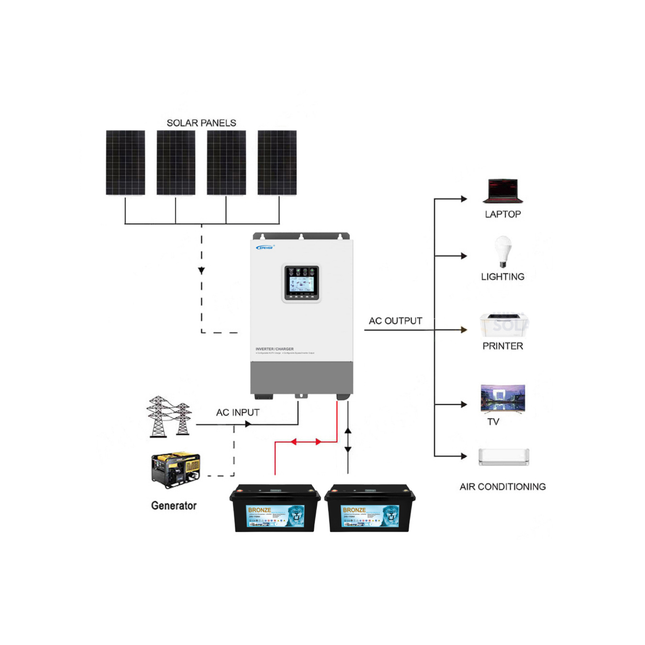

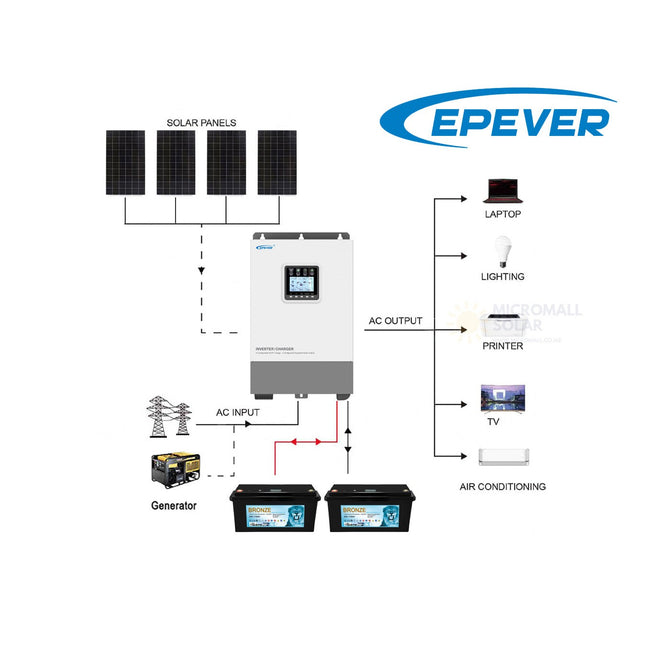

Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.
Package includes:
4 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x Epever UPower-Hi 24V 3000W Inverter Charger UP3000-HM10022 (2 Years Warranty)
2 x Micromall Bronze 24V 110Ah LiFePO4 Lithium Battery (6 years warranty + 4 years repair warranty)
1 x 10m Twin 4mm PV Extension Cables with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge Protector
4 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $120. If you wish to upgrade, please contact us.**
UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/generator charging, and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can
choose energy sources according to actual needs and flexibly take the utility as a supplement. This inverter charger
can raise the system's power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid
systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.
Specifications
Model: UP3000-HM10022
Rated battery voltage: 24VDC
Battery input voltage: 21.6 ~ 32VDC
Max. battery charging current: 100A
Inverter output
Continuous output power: 3000W
Max. surge pow er(3S): 6000W
Output voltage range: 220VAC
Output wave: Pure Sine Wave
Solar charging
Max. PV input power: 4000W
Max. PV charging power: 2875W
Max. PV charging current: 100A
Surge current: 60A
Dimension(H x W x D): 642.5x381.6x149mm
Net Weight: 19kg
**We're the top solar technology company's exclusive distributor in New Zealand**
**Patented battery technology**
**Factory direct sales**
**Extremely competitive prices**

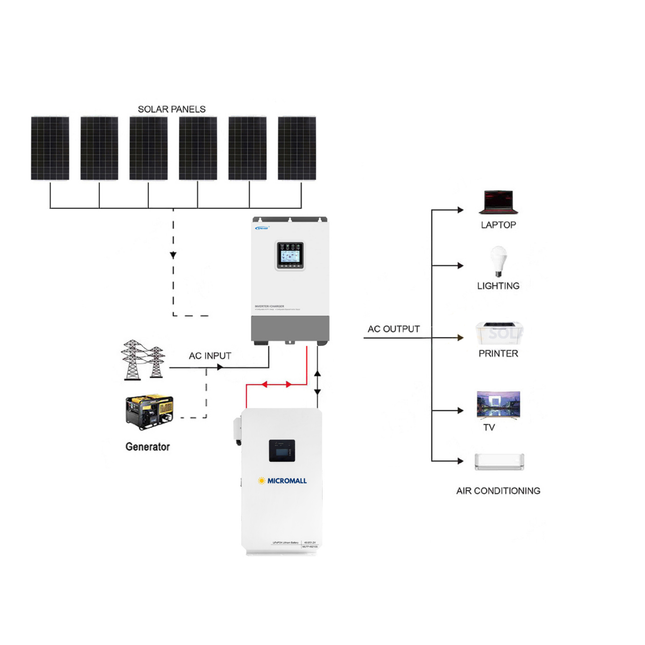

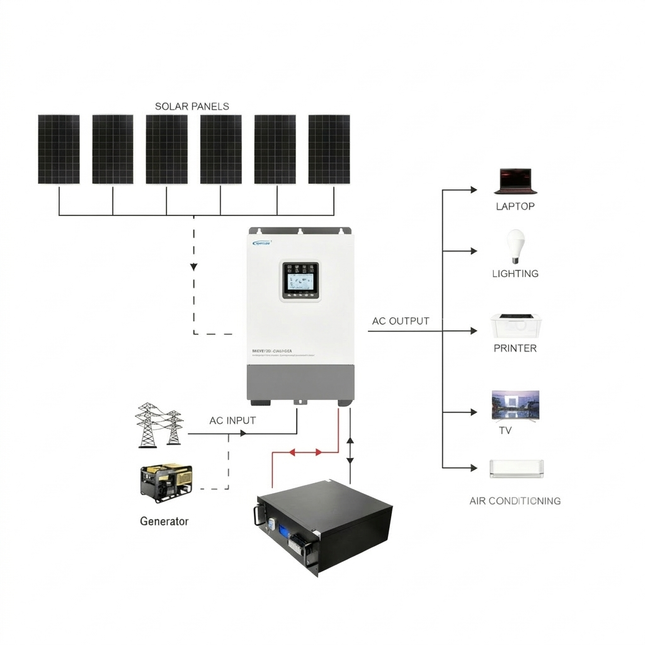

Introducing our exceptional solar off-grid system, equipped with grade A solar panels and a high-quality hybrid solar inverter system.
Package Includes:
6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x Epever UPower-Hi 48V 5000W Inverter Charger UP5000-HM8042 (2 years warranty)
1 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
1 x 10m Twin 6mm PV Extension Cable with MC4 Connectors
2 x 30a PV Fuses
1 x 160v 32a PV Circuit Breaker
1 x Surge Protector
1 X 6 way Fuse Box
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/generator charging, and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can
choose energy sources according to actual needs and flexibly take the utility as a supplement. This inverter charger
can raise the system's power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid
systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.
Specifications
Model: UP5000-HM8042
Rated battery voltage: 48VDC
Battery input voltage: 43.2 ~ 64VDC
Max. battery charging current: 80A
Inverter output
Continuous output power: 5000W
Max. surge pow er(3S): 8000W
Output voltage range: 220VAC
Output wave: Pure Sine Wave
Solar charging
Max. PV input power: 4000W
Max. PV charging power: 4000W
Max. PV charging current: 80A
Surge current: 95A
Dimension(H x W x D): 642.5x381.6x149mm
Net Weight: 19kg
**We're the top solar technology company's exclusive distributor in New Zealand**
**Patented battery technology**
**Factory direct sales**
**Extremely competitive prices**

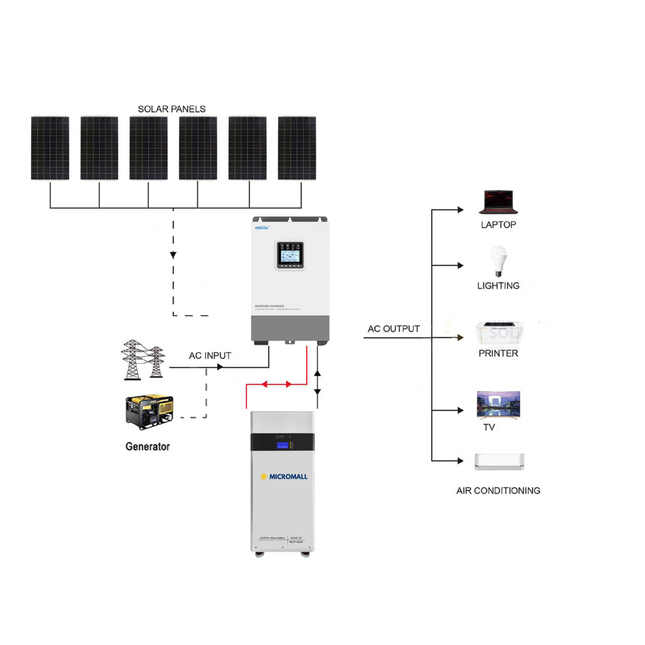

Introducing our exceptional solar off-grid system, equipped with grade A solar panels and a high-quality hybrid solar inverter system.
Package Includes:
6 x 450W N-Type Bifacial Solar Panel Transparent Black Dual Glass (12 Years Product Material & Workmanship, 30 Years Linear Performance Warranty)
1 x Epever UPower-Hi 48V 5000W Inverter Charger UP5000-HM8042 (2 years warranty)
1 x 48V 51.2V 340Ah Lithium Battery LiFePO4 Battery (15-year warranty, 30-year run life)
1 x 10m Twin 6mm PV Extension Cable with MC4 Connectors
2 x PV Fuses
1 x PV Circuit Breaker
1 x Surge Protector
1 X Fuse Box
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/generator charging, and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can
choose energy sources according to actual needs and flexibly take the utility as a supplement. This inverter charger
can raise the system's power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid
systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.
Specifications
Model: UP5000-HM8042
Rated battery voltage: 48VDC
Battery input voltage: 43.2 ~ 64VDC
Max. battery charging current: 80A
Inverter output
Continuous output power: 5000W
Max. surge pow er(3S): 8000W
Output voltage range: 220VAC
Output wave: Pure Sine Wave
Solar charging
Max. PV input power: 4000W
Max. PV charging power: 4000W
Max. PV charging current: 80A
Surge current: 95A
Dimension(H x W x D): 642.5x381.6x149mm
Net Weight: 19kg
**We're the top solar technology company's exclusive distributor in New Zealand**
**Patented battery technology**
**Factory direct sales**
**Extremely competitive prices**
Introducing our exceptional solar off-grid system, equipped with grade A solar panels and a high-quality hybrid solar inverter system.
Package Includes:
6 x 450W N-Type Bifacial Solar Panel Transparent Black Dual Glass (12 Years Product Material & Workmanship, 30 Years Linear Performance Warranty)
1 x Epever UPower-Hi 48V 5000W Inverter Charger UP5000-HM8042 (2 years warranty)
1 x Micromall 48V 51.2V 210Ah LiFePO4 Lithium Battery IP65 Waterproof Deep Cycle Solar Battery (15 years warranty)
1 x 10m Twin 6mm PV Extension Cable with MC4 Connectors
2 x PV Fuses
1 x PV Circuit Breaker
1 x Surge Protector
1 X Fuse Box
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/generator charging, and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can
choose energy sources according to actual needs and flexibly take the utility as a supplement. This inverter charger
can raise the system's power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid
systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.
Specifications
Model: UP5000-HM8042
Rated battery voltage: 48VDC
Battery input voltage: 43.2 ~ 64VDC
Max. battery charging current: 80A
Inverter output
Continuous output power: 5000W
Max. surge pow er(3S): 8000W
Output voltage range: 220VAC
Output wave: Pure Sine Wave
Solar charging
Max. PV input power: 4000W
Max. PV charging power: 4000W
Max. PV charging current: 80A
Surge current: 95A
Dimension(H x W x D): 642.5x381.6x149mm
Net Weight: 19kg
**We're the top solar technology company's exclusive distributor in New Zealand**
**Factory direct sales**
**Extremely competitive prices**
Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.
Package includes:
4 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x Epever UPower-Hi 24V 3000W Inverter Charger UP3000-HM10022 (2 Years Warranty)
1 x 10m Twin 4mm PV Extension Cables with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x Bluetooth APP
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge Protector
4 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $120. If you wish to upgrade, please contact us.**
UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/generator charging, and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can
choose energy sources according to actual needs and flexibly take the utility as a supplement. This inverter charger
can raise the system's power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid
systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.
Specifications
Model: UP3000-HM10022
Rated battery voltage: 24VDC
Battery input voltage: 21.6 ~ 32VDC
Max. battery charging current: 100A
Inverter output
Continuous output power: 3000W
Max. surge pow er(3S): 6000W
Output voltage range: 220VAC
Output wave: Pure Sine Wave
Solar charging
Max. PV input power: 4000W
Max. PV charging power: 2875W
Max. PV charging current: 100A
Surge current: 60A
Dimension(H x W x D): 642.5x381.6x149mm
Net Weight: 19kg
**We're the top solar technology company's exclusive distributor in New Zealand**
**Factory direct sales**
**Extremely competitive prices**
Introducing our exceptional solar off-grid system, equipped with grade A solar panels and a high-quality hybrid solar inverter system.
Package Includes:
6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x Epever UPower-Hi 48V 5000W Inverter Charger UP5000-HM8042 (2 years warranty)
1 x 10m Twin 6mm PV Extension Cable with MC4 Connectors
2 x PV Fuses
1 x PV Circuit Breaker
1 x Surge Protector
1 X Fuse Box
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/generator charging, and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can
choose energy sources according to actual needs and flexibly take the utility as a supplement. This inverter charger
can raise the system's power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid
systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.
Specifications
Model: UP5000-HM8042
Rated battery voltage: 48VDC
Battery input voltage: 43.2 ~ 64VDC
Max. battery charging current: 80A
Inverter output
Continuous output power: 5000W
Max. surge pow er(3S): 8000W
Output voltage range: 220VAC
Output wave: Pure Sine Wave
Solar charging
Max. PV input power: 4000W
Max. PV charging power: 4000W
Max. PV charging current: 80A
Surge current: 95A
Dimension(H x W x D): 642.5x381.6x149mm
Net Weight: 19kg
IPower-Plus is a high-frequency pure sine wave inverter that can convert 12/24/48VDC to 220/230V AC and power the AC loads. It is designed according to the international standard with higher quality, reliability, and safety. Ranging from 500W to 5000W, Ipower-Plus is compatible with lithium-ion batteries perfectly and suits any situation of DC to AC, such as RVs, boats, residentials, and places where require high-quality electrical power.
Product model: IP5000-42-Plus
Continuous Output Power: 5000W
Surge Power: 8000W@5S
Surge Current when Power On: < 65A
Output Voltage: 220VAC (±3%); 230VAC (-7% to +3%)
Output Frequency: 50/60Hz ±0.2%
Output Wave: Pure Sine Wave
Output Distortion THD: THD ≤ 3% (Resistive Load)
Load Power Factor: 0.2-1 (Load VA ≤ Continuous Output Power)
Rated Input Voltage: 48VDC
Input Voltage Range: 43.2~64.0VDC
Rated Output Efficiency: > 91.0%
Max. Output Efficiency: > 94.0% (30% Loads)
No-load Current: < 0.8A
USB Output: Not available
RS485 Communication Port: 5VDC / 200mA
Dimension (LxWxH): 516x231.5x123 mm
Mounting Dimension: 505x145mm
Net Weight: 9kg
Operating Temperature Range: -20°c to +60°c (Refer to the derating curve)
Relative Humidity: < 95% (Non-condensing)
Enclosure: IP20
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA2206N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 20A
Rated Discharging Current: 20A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 60V
Rated Charging Power:
260W/12V
520W/24V
Maximum Conversion Efficiency: 98.30%
Maximum Load Efficiency: 96.70%
Dimension(LxWxH): 217x158x56.5mm
Net Weight: 0.97kg
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA2210N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 20A
Rated Discharging Current: 20A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 100V
Rated Charging Power:
260W/12V
520W/24V
Maximum Conversion Efficiency: 98.30%
Maximum Load Efficiency: 96.40%
Dimension(LxWxH): 217x158x56.5mm
Net Weight: 0.97kg
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA3210N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 30A
Rated Discharging Current: 30A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 100V
Rated Charging Power:
390W/12V
780W/24V
Maximum Conversion Efficiency: 98.60%
Maximum Load Efficiency: 96.60%
Dimension(LxWxH): 230x165x63mm
Net Weight: 1.30kg
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA4210N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 40A
Rated Discharging Current: 40A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 100V
Rated Charging Power:
520W/12V
1040W/24V
Maximum Conversion Efficiency: 98.60%
Maximum Load Efficiency: 96.50%
Dimension(LxWxH): 255x185x67.8mm
Net Weight: 1.72kg
The HP-AHP20A series is a high-frequency inverter charger. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings. This high-quality product provides a stable power supply and is suitable for hybrid power generation systems that combine solar, utility, and oil engine sources. It meets the application requirements for customers seeking cost-effective residential power supply solutions.
Features
Pure sine wave output
Supports battery or non-battery modes
PFC technology reduces the demand on the power grid capacity
Advanced MPPT technology, with max. tracking efficiency higher than 99.5%
Supports charging from multiple types of generators
Battery charging or discharging current limits are compatible with various types of batteries
Adjustable maximum utility charging current for flexible configuration of utility charging power
Large size LCD display for better status monitoring
RS485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring
Comprehensive electronic protections
AC output supports parallel operation, standard configuration of 12 units in parallel
AC output parallel operation supports single-phase and three-phase settings
Model: HP3522-AH1250P20A
Utility Voltage: 176VAC - 264VAC (Default) 90VAC - 280VAC (Configurable)
Utility Frequency: 45Hz - 65Hz
Maximum Utility Charging Current: 110A
Inverter output
Inverter Rated Power: 3500W
3-second Transient Surge Output Power: 7000W
Inverter Output Voltage: 220 / 230VAC +-3%
Inverter Frequency: 50/60Hz +-0.2%
Output Voltage Waveform: Pure sine wave
Dimension(mm): 654L × 291.4W × 163H
Net Weight: 15.3 kg
The Tracer-AN series is the largest and most powerful MPPT charge controller range from EPEVER, supporting up to 5kW of solar panels. For expanded capacity, the addition of the PAL-ADP-50N adapter allows for parallel connections of up to 6 controllers, enabling a scalable system of up to 30kW. Designed for a wide range of applications, the Tracer-AN series features multiple dry contact signals to meet diverse needs.
Key Features
High MPPT Efficiency: Tracks solar power with efficiency above 99.5%.
Maximum Conversion Efficiency: Achieves up to 98% charge conversion.
Battery Compatibility: Supports both lead-acid (Sealed/Gel/Flooded) and lithium-ion (LiFePO4/LiNiCoMnO₂) batteries.
Flexible Power Limits: Includes charging current and power limitation features for system flexibility.
Thermal Management: High-temperature derating function ensures safe charging in hot environments.
Versatile Relay Design: Three relays for utility, generator, and load management.
Scalable Setup: Parallel up to 6 units for larger systems.
Remote Monitoring: Supports remote temperature and voltage sensors for optimal system monitoring.
Reliable Communication: Features isolated RS-485 with 5VDC/200mA and MODBUS protocol for robust communication.
Technical Specifications
Nominal System Voltage: 12/24/36/48VDC (Auto detection)
Battery Type: Lead-acid (Sealed/Gel/Flooded) / Lithium (LiFePO4/LiNiCoMnO₂)
Battery Voltage Range: 8V - 68V
Rated Charge Current: 50A
Charge Power Output:
625W at 12V
1250W at 24V
1875W at 36V
2500W at 48V
Max Conversion Efficiency: 98.30%
Tracking Efficiency: ≥99.5%
Dimensions (L×W×H): 261 × 216 × 119 mm
Net Weight: 3.5 kg
Communication: RS485 (RJ45 Ports)
Enclosure Rating: IP20
The HP-AHP20A series is a high-frequency inverter charger. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings. This high-quality product provides a stable power supply and is suitable for hybrid power generation systems that combine solar, utility, and oil engine sources. It meets the application requirements for customers seeking cost-effective residential power supply solutions.
Features
Pure sine wave output
Supports battery or non-battery modes
PFC technology reduces the demand on the power grid capacity
Advanced MPPT technology, with max. tracking efficiency higher than 99.5%
HP5542-AH1050P20A supports two PV inputs to improve PV utilization
Supports charging from multiple types of generators
Battery charging or discharging current limits are compatible with various types of batteries
Adjustable maximum utility charging current for flexible configuration of utility charging power
Large size LCD display for better status monitoring
RS485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring
AC output supports parallel operation, standard configuration of 12 units in parallel
AC output parallel operation supports single-phase and three-phase settings
Model: HP5542-AH1050P20A
Utility Voltage: 176VAC - 264VAC (Default) 90VAC - 280VAC (Configurable)
Utility Frequency: 45Hz - 65Hz
Maximum Utility Charging Current: 100A
Inverter output
Inverter Rated Power: 5500W
3-second Transient Surge Output Power: 8500W
Inverter Output Voltage: 220 / 230VAC +-3%
Inverter Frequency: 50/60Hz +-0.2%
Output Voltage Waveform: Pure sine wave
Dimension(mm): 679L × 291.4W × 163H
Net Weight: 17.5 kg
EPEVER EP Solar Tracer MPPT Remote MT-52 for BN and A Series MT52 Remote Meter
The MT52 remote meter, compatible with controllers featuring RS485 communication, enables real-time monitoring of the controller's operation and parameter programming. Key features include easy installation and operation, real-time display of fault alarms, local reading of parameters, direct power supply from the controller, and an RJ45 communication port.
Features
Easy to install and operate.
Locally reading of real-time parameters.
Equipped with an RJ45 communication port.
Real-time display of fault alarm.
Powered by the controller directly.
Electrical Parameter
Self-consumption: Backlight ON
Comes with 2 years warranty
Tracer AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard.
Features:
12V/24V/36V/48VDC Auto
High quality & low failure rate components of ST and Infineon to ensure the product’s life
The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
Auto control system to limit the charging power & current go over the rated value
Battery temperature compensation function, Real-time energy recording and statistical function, Automatic over-temperature power reduction function
Load relay control external load switch signal to realize diversified load work modes
All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time.
MODEL: TRACER 8420AN
12VDC / 24VDC /36VDC/48VDC Auto select
Rated Battery Current 80A
Max. Solar Input Voltage 150VDC
Max. PV input power:12V/ 1000W , 24V /2000W, 36V/3000W, 48V/4000W
Dimension 394x 240 x 134 / mm
Weight 6.1kg
The ET-NC G3 series is a new generation of high-current MPPT charge controller. It offers superior MPPT
tracking and conversion efficiency. The series is compatible with various lithium battery types and supports three-stage
charging management to extend battery lifespan. Its exceptional low-power design significantly reduces
static consumption, prolonging system standby time.
Comprehensive electronic protection and flexible communication options (WiFi, Bluetooth, 4G, etc.) further
enhance system reliability and monitoring capabilities. It is widely used in RVs, boats, industrial monitoring, and
small to medium-sized solar power systems.
Features
Supports 12V/24V/36V/48V systems; Charging current: 50A
All metal die-casting shell
Supports two PV inputs
Max. MPPT tracking efficiency: 99.9%; Max. Conversion efficiency: 98.5%
Compatible with AGM, Gel, Flooded, LiFePO4 batteries, etc.
Constant voltage output function: Enables direct load supply with sufficient PV energy
Communication interface with electrical isolation
Real-time data recording, event logging, and power statistics function
EMC compliant (CLASS B)
Model: ET5420NC G3
Battery Rated Voltage: 12/24/48VDC or Auto
Controller Operating Voltage Range: 8–62V
Battery Type: AGM (Default) / Gel / Flooded / User
Lithium Battery Type: LiFePO4 / Li (NiCoMn)O2 / User
Rated Charging/Discharging Current: 50A
Rated Charging Power: 650W/12V; 1,300W/24V; 2,600W/48V
Maximum Charging Power: 650W/12V; 1,300W/24V; 2,600W/48V
PV Maximum Open-circuit Voltage: 200V (@ lowest temperature); 180V (@ 25℃)
Tracking Efficiency: ≥ 99.5%
Maximum Conversion Efficiency: 98.3%
Dimension (Length × Width × Height)
Controller & White Terminal Cover: 307 × 253 ×143mm
Controller Only: 307 × 202 ×134mm
Net Weight: 4.79kg
