EPEVER EP Solar Tracer MPPT Remote MT-52 for BN and A Series MT52 Remote Meter
The MT52 remote meter, compatible with controllers featuring RS485 communication, enables real-time monitoring of the controller's operation and parameter programming. Key features include easy installation and operation, real-time display of fault alarms, local reading of parameters, direct power supply from the controller, and an RJ45 communication port.
Features
Easy to install and operate.
Locally reading of real-time parameters.
Equipped with an RJ45 communication port.
Real-time display of fault alarm.
Powered by the controller directly.
Electrical Parameter
Self-consumption: Backlight ON
Introducing the brand-new EPEVER XTRA N Series Solar Charge Controller, a state-of-the-art product designed for optimal solar system performance and durability.
The XTRA N Series Controller boasts a digitally controlled self-adaptive three-stage charging mode, extending battery lifespan and enhancing system performance. With comprehensive electronic protection, it safeguards against overcharge, overdischarge, and PV & battery reverse polarity, making your solar system more reliable and durable. This versatile controller is ideal for various applications including RVs, household systems, and field monitoring.
Product Details:
Model: Tracer 4210AN MPPT Charge Controller
12V / 24V DC Auto
Rated Charge Current: 40A
Max Input Power: 12V @ 520W | 24V @ 1040W
Max PV Open Circuit Voltage: 100VDC (92V at 25°C)
Battery Type: Lead-acid (Gel, Sealed, Flooded) and Lithium
Battery Voltage Range: 9V~32V
Common-Negative Ground Controller
Charging Power and Current Limitation Function
User Programmable for Battery Types, Load Control, etc.
Key Features:
CE Certified (LVD EN/IEC62109, EMC EN61000-6-1/3)
Operates efficiently across a wide range of temperatures, with 100% charging and discharging
Optional LCD display units available: XDB1/XDS1/XDS2
Crafted with high-quality, low-failure-rate components from ST or IR to ensure longevity
Advanced MPPT technology with ultra-fast tracking speed, delivering up to 99.5% tracking efficiency
High transfer efficiency of 98.3% DC/DC, and full load efficiency of up to 97.3%
Weight: 2.3kg
Package Includes:
1 x Tracer 4210AN MPPT Charge Controller
Warranty:
Covered by a 12-month warranty for your peace of mind.
Invest in the EPEVER XTRA N Series Controller for a dependable and enduring solar system experience!
Introducing the XTRA N Series Solar Charge Controller:
Brand new epever solar charge controller
Self-adaptive three-stage charging mode for extended battery lifespan and improved system performance
Comprehensive electronic protection against overcharge, overdischarge, PV & battery reverse polarity, ensuring reliability and durability
Suitable for various applications such as RVs, household systems, field monitoring, and more
12 months warranty included
Specifications (Tracer 2210AN MPPT Charge Controller):
Voltage: 12V / 24V DC (Auto)
Max Input Power: 12V @ 260W | 24V @ 520W
Max PV Open Circuit Voltage: 100VDC (92V at 25°C temperature)
Battery Types: Lead-acid (Gel, Sealed, Flooded) and Lithium
Battery Voltage Range: 9V~32V
Common-Negatived Ground Controller
Charging Power and Current Limitation Function
User programmable for battery types, load control, etc.
Key Features:
CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3)
100% charging and discharging in working environment temperature range
Optional LCD display units available (XDB1/XDS1/XDS2)
High-quality components ensure reliability with low failure rate (ST or IR)
Advanced MPPT technology with ultra-fast tracking speed (efficiency up to 99.5%)
Maximum DC/DC transfer efficiency as high as 98.3%, full load efficiency up to 97.3%
Accurate recognition and tracking of multi-peaks maximum power point
Lightweight design (0.96kg) and compact dimensions (21715856.5mm)
Included in the package:
1 x Tracer 2210AN MPPT Charge Controller
Upgrade your solar charging system with the XTRA N Series Solar Charge Controller for enhanced performance and reliability.
EPEVER IPower Plus 24V 3000W Pure Sine Wave Inverter
Overview
IPower Plus series
Pure Sine Wave Inverter
IPower-Plus is a high-frequency pure sine wave inverter which adopts digital intelligent control technology. The inverter brings lower inrush current of input, faster dynamic response, better impact resistance from load, more reliable of operation, also supports lithium batteries. This product fits any situation of DC to AC, such as RVs, boats, residen- tials, and places where require high quality of electrical power.
Features
Pure sine wave output Input to output electrical isolation Digital dual closed-loop control of voltage and current Input surge current suppression for lithium battery systems Output power factor up to 1 Simple system wiring & 180 degrees rotating LCD Input Protection: Reverse polarity, Low-voltage, Over-voltage Output Protection: Overload, Short circuit, Overheating Phone and PC remote control through RS485 port Extra external switch port Safety (EN/IEC62109) & EMC approved by international standards
IP3000-22-PLUS
Continuous output power: 3000W@35°C @Rated input voltage
Surge power: 6000W@5S
Surge current when power on: 90%
Max. output efficiency: >94%(30% loads)
No-load current:
EPEVER WiFi Adapter Accessories for MPPT solar charge controller, Through a local 2.4G WiFi network, the EPEVER WiFi 2.4G RJ45 D can transmit all operational data from the EPEVER solar controller, inverter, or inverter/charger to the EPEVER cloud server in real time. Users can remotely monitor the connected devices and program parameters via the EPEVER server platform and mobile APP.
Parameter :
Model: EPEVER WiFi 2.4G RJ45 D (APP: Solar Guardian)
Working voltage: 5V± 0.5V(Powered by RS485 com. port)
Power consumption Peak emission: 150mA; Idle: 310uA
Enclosure: IP30
Communication method: RS485 Communication parameters: 115200Bps, 8N1
Interface standard: EPEVER communication standard V1-1.0
Work frequency: 2.4 ~ 2.4835GHz
Work temperature range: -40℃~ 85℃
Dimension: 63mm x 19mm x 10mm
Net weight: 7.7g
Package List:
1 X EPEVER WiFi Adapter
1 X Manual
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure

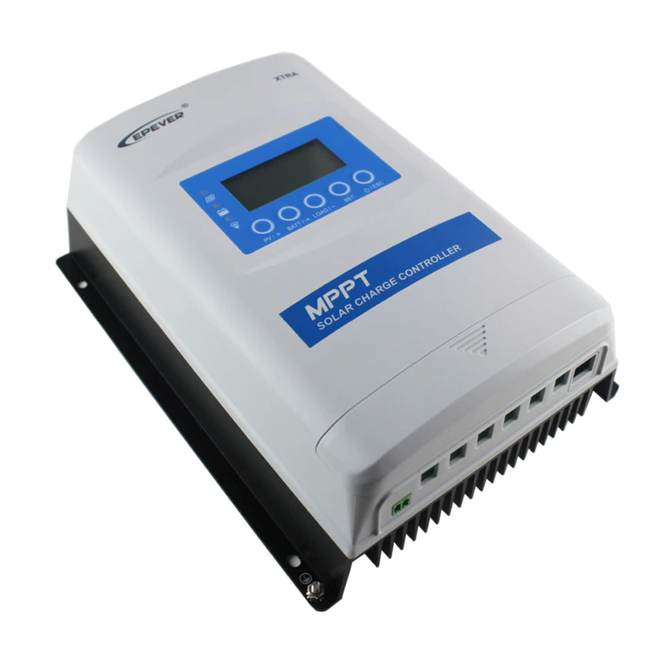

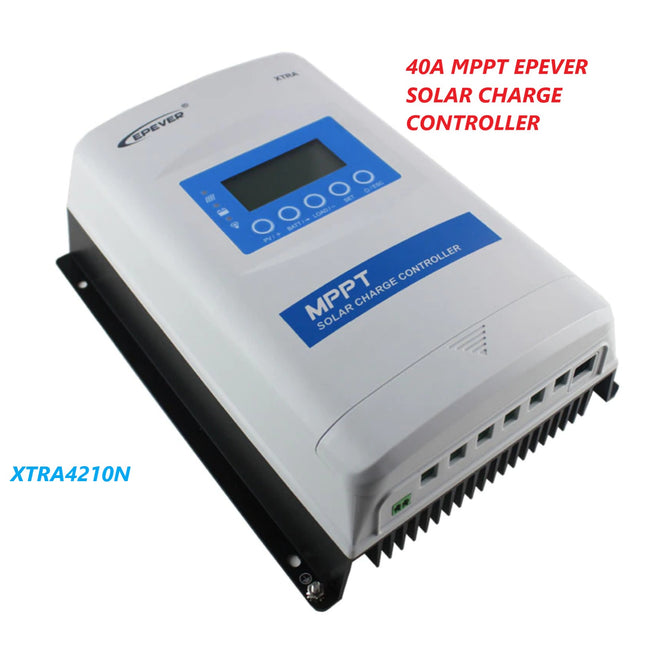

Model: XTRA4210N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 40A
Rated Discharging Current: 40A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 100V
Rated Charging Power:
520W/12V
1040W/24V
Maximum Conversion Efficiency: 98.60%
Maximum Load Efficiency: 96.50%
Dimension(LxWxH): 255x185x67.8mm
Net Weight: 1.72kg
EPEVER IPower Plus 12V 2000W Pure Sine Wave Inverter
Overview
IPower Plus series
Pure Sine Wave Inverter
IPower-Plus is a high-frequency pure sine wave inverter which adopts digital intelligent control technology. The inverter brings lower inrush current of input, faster dynamic response, better impact resistance from load, more reliable of operation, also supports lithium batteries. This product fits any situation of DC to AC, such as RVs, boats, residen- tials, and places where require high quality of electrical power.
Features
Pure sine wave output Input to output electrical isolation Digital dual closed-loop control of voltage and current Input surge current suppression for lithium battery systems Output power factor up to 1 Simple system wiring & 180 degrees rotating LCD Input Protection: Reverse polarity, Low-voltage, Over-voltage Output Protection: Overload, Short circuit, Overheating Phone and PC remote control through RS485 port Extra external switch port Safety (EN/IEC62109) & EMC approved by international standards
Model: IP2000-12-PLUS
Continuous output power: 2000W@35°C@ Rated input voltage
Surge power: 4000W@5S
Surge current when power on: 88%
Max. output efficiency: >94%(30% loads)
No-load current:

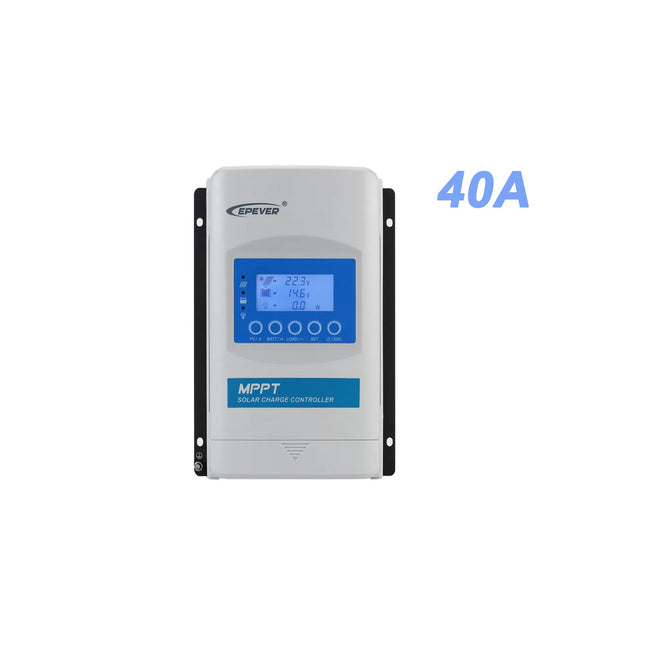

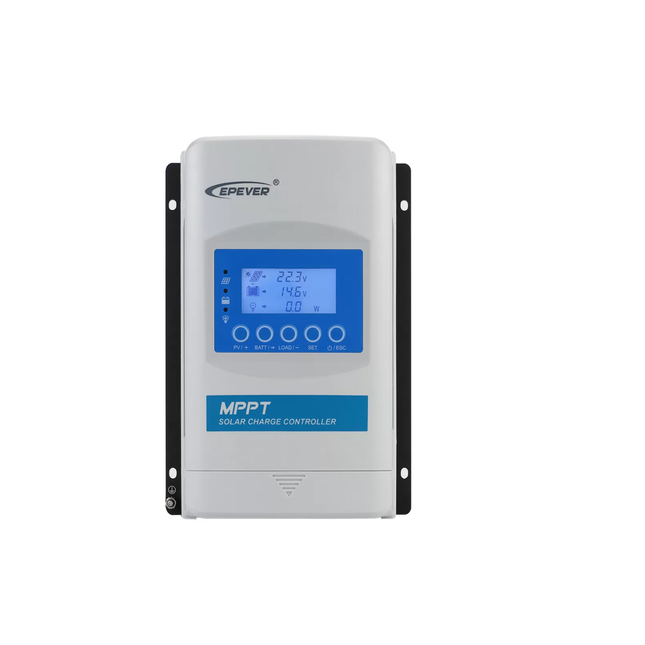

Introducing the EPEVER XTRA4415N-XDS2 40A MPPT Solar Charge Controller, a high-performance device designed for 12/24/36/48V systems, capable of handling up to 150V.
Key Features:
Utilizes advanced MPPT technology with up to 99.5% tracking efficiency.
Achieves DC/DC transfer efficiency up to 98%, with full load efficiency at 97.4%.
Offers a broad MPP operating voltage range.
Features low temperature protection and a lithium battery charging self-activation function.
Includes power and current limitation beyond rated specifications.
Equipped with real-time energy monitoring.
Supports multiple load operation modes.
Provides comprehensive electronic protection for safety.
Compatible with both lead acid and LiFePO4 batteries.
Over temperature protection with power reduction in high heat.
Optional LCD display units (XDB1/XDS1/XDS2) for enhanced usability.
Built with high-quality, durable components from ST or IR.
Isolated RS485 with protected 5V/200mA output, using standard Modbus protocol.
Remote monitoring and settings adjustment via APP or PC software.
Dust and waterproof with an IP32 rating.
CE certified (LVD IEC62109, EMC EN3/1-6-61000).
Specifications:
Nominal voltage: Auto 12/24/36/48VDC
Charge/discharge current: 40A
Battery voltage range: 8-68V
Max PV open circuit voltage: 150V
Max PV input power: 520W (12V), 1040W (24V), 1560W (36V), 2080W (48V)
Conversion efficiency: 98.5%; Load efficiency: 97.2%
Dimensions: 255x189x83.2mm; Weight: 2.47kg
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA2210N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 20A
Rated Discharging Current: 20A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 100V
Rated Charging Power:
260W/12V
520W/24V
Maximum Conversion Efficiency: 98.30%
Maximum Load Efficiency: 96.40%
Dimension(LxWxH): 217x158x56.5mm
Net Weight: 0.97kg
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure

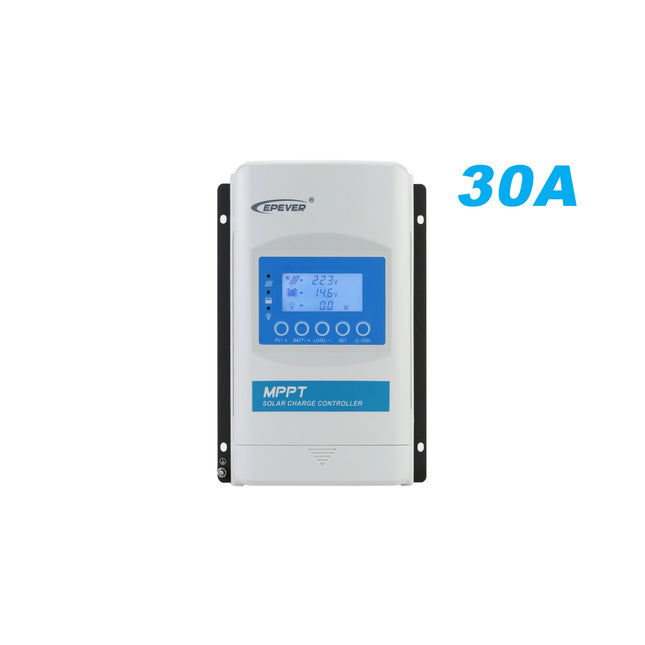

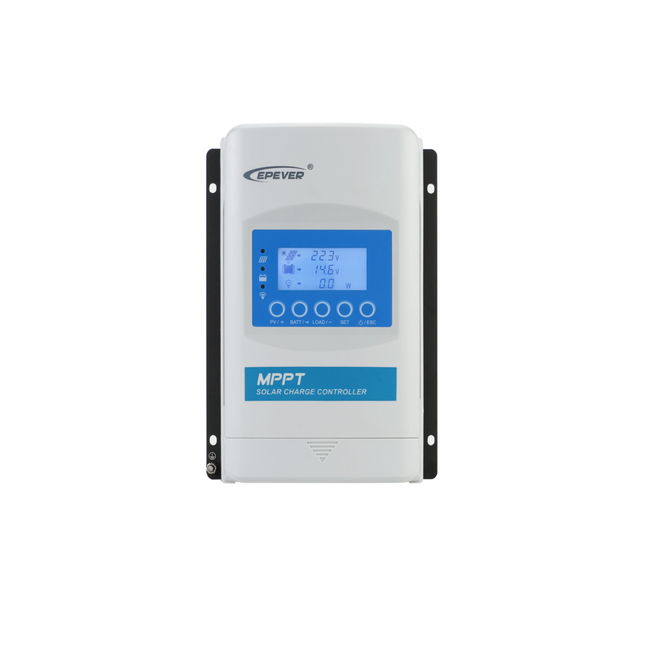

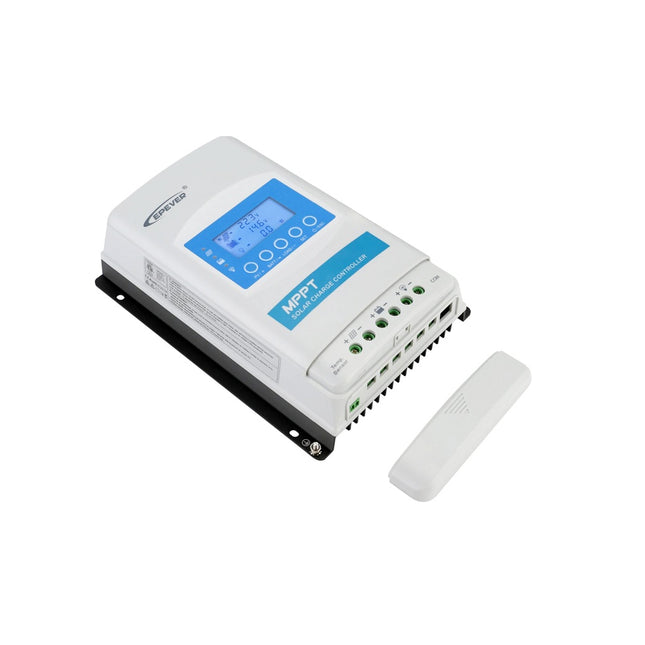

Model: XTRA3210N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 30A
Rated Discharging Current: 30A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 100V
Rated Charging Power:
390W/12V
780W/24V
Maximum Conversion Efficiency: 98.60%
Maximum Load Efficiency: 96.60%
Dimension(LxWxH): 230x165x63mm
Net Weight: 1.30kg
Comes with 5 year warranty

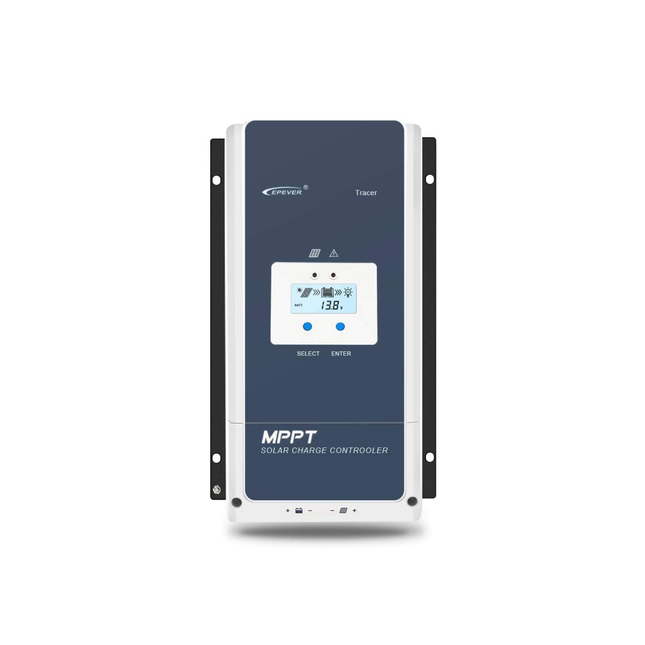

Tracer-AN Series is the largest charge controller series in EPEVER's product range and can take up to 5KW solar panels. For even more power, the user can use PAL-ADP-5ON to connect max. 6 units of a controller in parallel for up to 30kW system. The multiple dry contact signals are designed for a diversified application.
Features
MPPT tracking efficiency above 99.5%
Maximum charge conversion efficiency as high as 98%
Support lead-acid and LiFePO4 batteries
Common negative grounding, Charging current up to 100A
Charging power and current limitation function
High-temperature charging power derating function
3 relays design for different demand: utility, generator and load
Support up to 6 units in parallel
Remote temperature and voltage sensor design
Isolated Rs-485 with 5VDC/200mA and MODBUS protocol

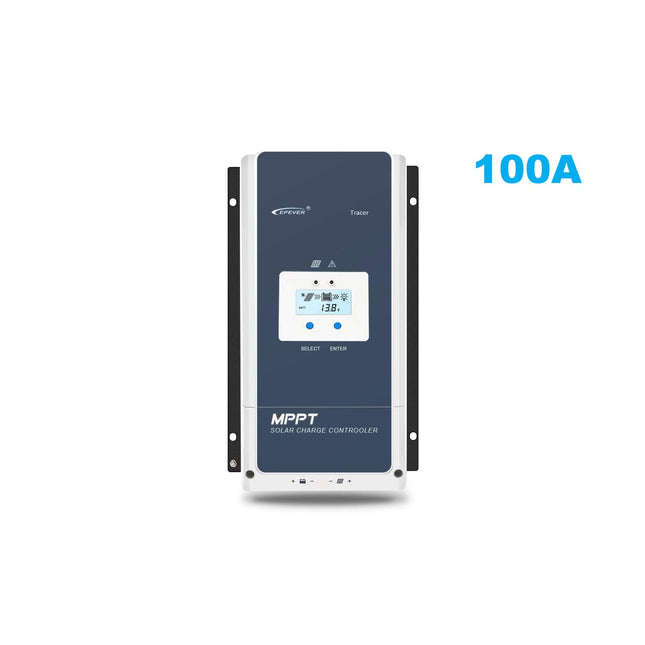

Model: Tracer10420AN
Nominal system voltage: 12/24/36/48VDC/Auto
Battery type: Lead-acid/Lithium/User
Battery input voltage range: 8V - 68V
Rated charge current: 100A
Rated charge power:
1250W/12V
2500W/24V
3750W/36V
5000W/48V
Max. conversion efficiency: 98.50%
Tracking efficiency: >=99.5%
Max. PV open circuit voltage: 200V
MPP voltage range: (Battery Voltage+2V) - 144V
Enclosure: IP20
Communication interface: RS485
Dimensions(LxWxH)(mm): 394x242x143
Net weight: 7.4kg

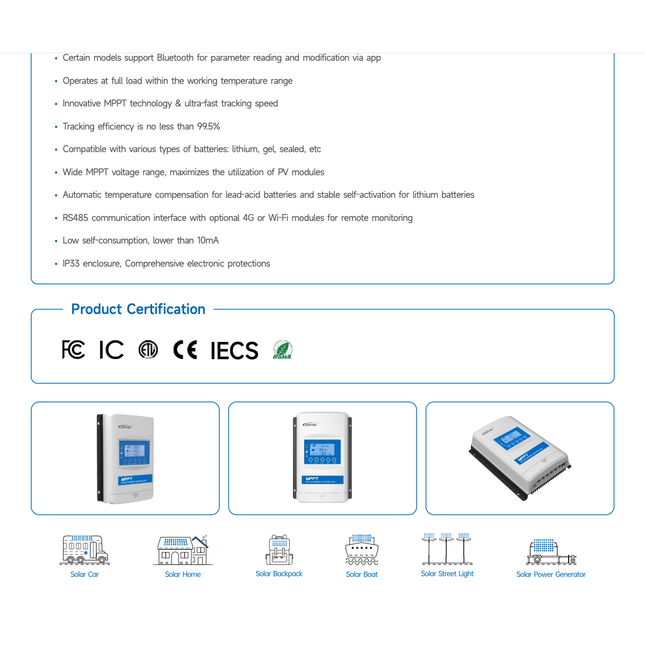

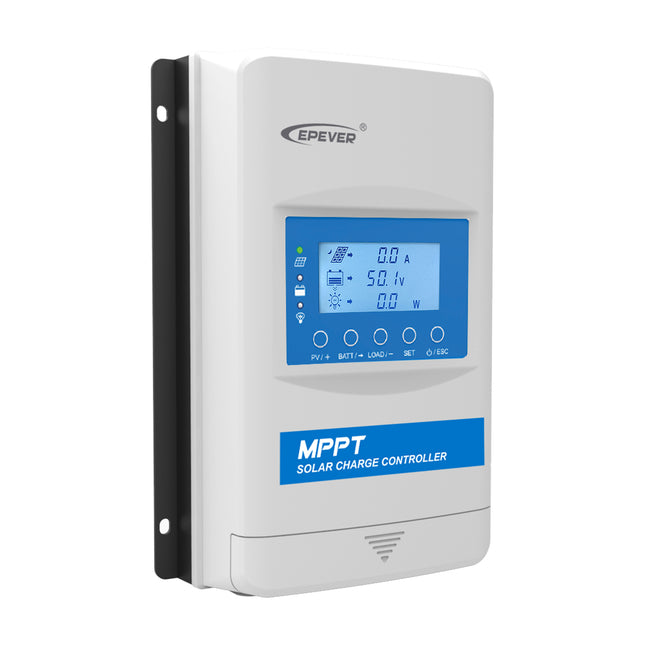

Introducing the Epever Solar Charge Controller - XTRA2206N (20A):
Brand new Epever solar charge controller
XTRA N series controller featuring self-adaptive three-stage charging mode for extended battery lifespan and improved system performance
Comprehensive electronic protection for overcharge, overdischarge, PV & battery reverse polarity, ensuring reliability and durability in your solar system
Suitable for various applications including RV, household systems, field monitoring, and more
Comes with a 12-month warranty
Specifications:
Model: XTRA2206N G3
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 20A
Rated Discharging Current: 20A
Controller Work Voltage Range: 8~32V
PV Maximum Open-circuit Voltage:
60V(At minimum operating environment temperature)
46V(At 25℃ environment temperature)
MPPT Voltage Range: (Battery voltage+2V)~36V
Rated Charging Power:
260W/12V
520W/24V
Maximum Conversion Efficiency: 98.30%
Maximum Load Efficiency: 96.70%
RS485 Port: 5VDC/200mA(RJ45)
Dimension (L x W x H): 217×158×56.5mm
Mounting Size (L x W): 160×149mm
Net Weight: 0.97kg
Upgrade your solar system with the Epever XTRA2206N Solar Charge Controller for efficient and reliable power management.
XTRA N series controller which can carry different display units(XDB1/XDS1/XDS2) adopt the advanced MPPT control algorithm, it can minimize the maximum power p0int loss rate and loss time, quickly track the maximum power p0int(MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.
Features：
- CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)
- 100% charging and discharging in working environment temperature range
- Optional LCD display units (XDB1/XDS1/XDS2)
- High quality and low failure rate components of ST or IR to ensure service life
- Advanced MPPT technology & ultra-fast tracking speed guarantee tracking efficiency up to 99.5%
- Maximum DC/DC transfer efficiency is as high as 98.3%, full load efficiency is up to 97.3%
- Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
- Accurate recognizing and tracking of multi-peaks maximum power p0oint
- Wide MPP operating voltage range
- Support the lead-acid and lithium batteries, programmable temperature compensation
- Limit charging power & current overrated value
- Real-time energy statistics function
- Power reduction automatically over-temperature value
- Multiple load work modes
- Comprehensive electronic protection
- Isolated RS485 with 5V/200mA protected output for no power devices, with Modbus protocol
- Support monitoring and setting the parameters via APP or PC software

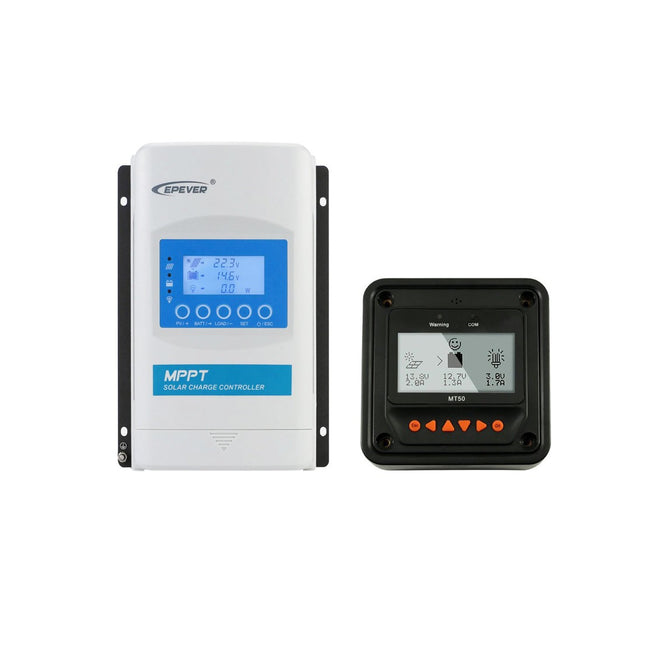

Model: XTRA3210N
Rated charge current: 30A
Rated charge power:
390W/12V
780W/24V
Max.PV Array Power:
580W/12V
1170W/24V
Max.PV open circuit voltage:
92V(25℃)
100V (minimum operating temperature)
5 years Warranty
XTRA N series controller which can carry different display units(XDB1/XDS1/XDS2) adopt the advanced MPPT control algorithm, it can minimize the maximum power p0int loss rate and loss time, quickly track the maximum power p0int(MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.
Features：
- CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)
- 100% charging and discharging in working environment temperature range
- Optional LCD display units (XDB1/XDS1/XDS2)
- High quality and low failure rate components of ST or IR to ensure service life
- Advanced MPPT technology & ultra-fast tracking speed guarantee tracking efficiency up to 99.5%
- Maximum DC/DC transfer efficiency is as high as 98.3%, full load efficiency is up to 97.3%
- Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
- Accurate recognizing and tracking of multi-peaks maximum power p0oint
- Wide MPP operating voltage range
- Support the lead-acid and lithium batteries, programmable temperature compensation
- Limit charging power & current overrated value
- Real-time energy statistics function
- Power reduction automatically over-temperature value
- Multiple load work modes
- Comprehensive electronic protection
- Isolated RS485 with 5V/200mA protected output for no power devices, with Modbus protocol
- Support monitoring and setting the parameters via APP or PC software

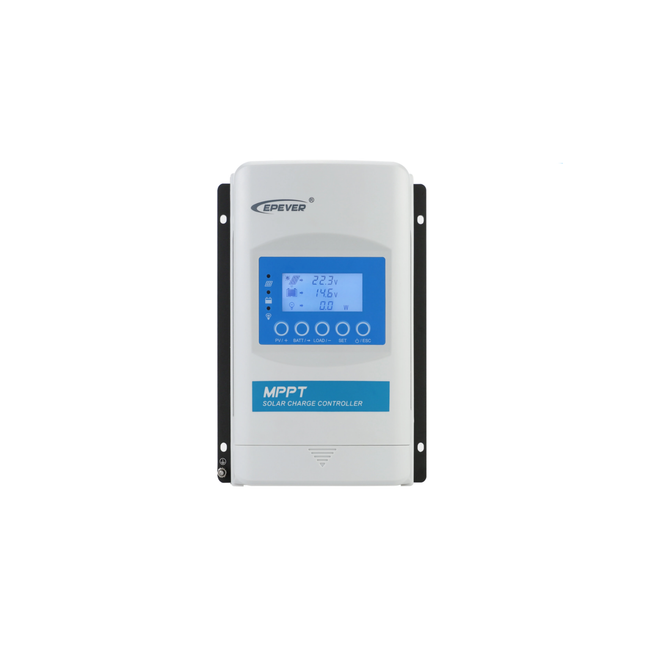

Model: XTRA1210N
Rated charge current: 10A
Rated charge power:
130W/12V
260W/24V
Normal system voltage: 12/24VDC Auto Work
Max. conversion efficiency: ≤98.60%
MPPT tracking efficiency: ≥99.50%
Dimensions(L*W*H)mm: 175*143*48
Gross weight: 0.57KG
5 years Warranty
This model is XDS2 version!
Come with 5 years warranty
Tracer AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard.
Features:
CE certification(LVD EN/IEC62109, EMC EN61000-6-1/3)
High quality & low failure rate components of ST and Infineon to ensure the product’s life
The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
Auto control system to limit the charging power & current go over the rated value
Battery temperature compensation function, Real-time energy recording and statistical function, Automatic over-temperature power reduction function
Load relay control external load switch signal to realize diversified load work modes
All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time.

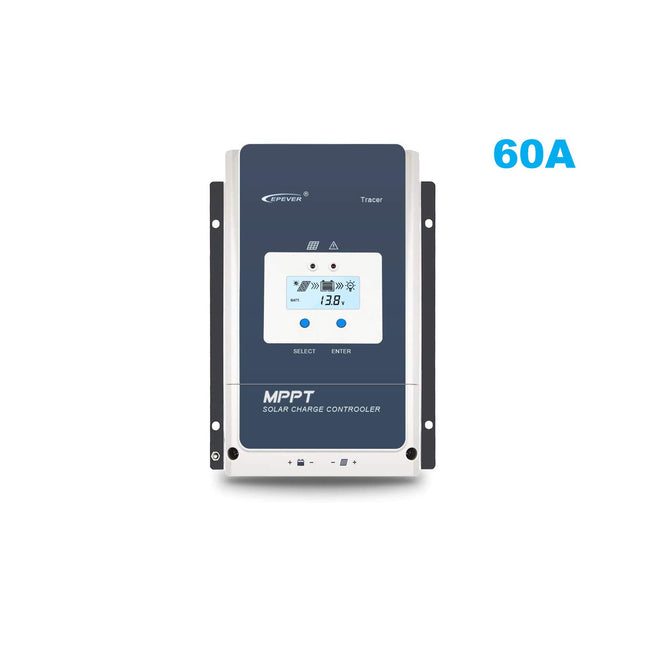

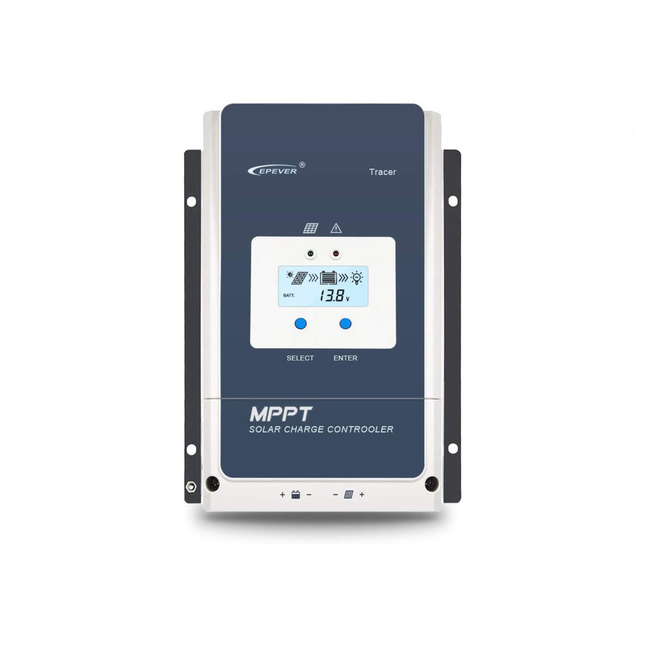

MODEL: TRACER 6420AN
12VDC / 24VDC /36VDC/48VDC Auto select
Rated Battery Current 60A
Max. Solar Input Voltage 200VDC
Max. PV input power:12V/ 750W , 24V /1500W, 36V/2250W, 48V/3000W
Dimension 340x 236 x 119 / mm
Weight 4.5kg
EPEVER IPower Plus 24V 2000W Pure Sine Wave Inverter
Overview
IPower Plus series
Pure Sine Wave Inverter
IPower-Plus is a high-frequency pure sine wave inverter which adopts digital intelligent control technology. The inverter brings lower inrush current of input, faster dynamic response, better impact resistance from load, more reliable of operation, also supports lithium batteries. This product fits any situation of DC to AC, such as RVs, boats, residen- tials, and places where require high quality of electrical power.
Features
Pure sine wave output Input to output electrical isolation Digital dual closed-loop control of voltage and current Input surge current suppression for lithium battery systems Output power factor up to 1 Simple system wiring & 180 degrees rotating LCD Input Protection: Reverse polarity, Low-voltage, Over-voltage Output Protection: Overload, Short circuit, Overheating Phone and PC remote control through RS485 port Extra external switch port Safety (EN/IEC62109) & EMC approved by international standards
Model: IP2000-22-PLUS
Continuous output power: 2000W@35°C@ Rated input voltage
Surge power: 4000W@5S
Surge current when power on: 91%
Max. output efficiency: >93%(30% loads)
No-load current:
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA2206N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 20A
Rated Discharging Current: 20A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 60V
Rated Charging Power:
260W/12V
520W/24V
Maximum Conversion Efficiency: 98.30%
Maximum Load Efficiency: 96.70%
Dimension(LxWxH): 217x158x56.5mm
Net Weight: 0.97kg
Tracer series AN controller adopts MPPT technology (Maximum Power Point Tracking). The advanced tracking algorithm make the solar module operate at ideal voltage which the solar modules can produce the maximum available power. Compared to conventional PWM controller, MPPT technology increase charge efficiency up to 25% and decrease the power of solar array needed. Tracer has the ability to step-down the higher voltage solar array to recharge a lower voltage battery bank.
come with 5 years warranty.
New A-series Tracer has all the features of earlier Tracer models, and has a built in display. Fully USER definable settings using optional MT-50 ($49) or PC cable ($15) suitable for a wide range of battery types, and load timer, day/night, or disconnect settings - this makes it compatible with most LITHIUM BATTERIES. The MT-50 display is not required for selecting any of the three standard battery settings. 3 Stage charging: Bulk, Boost and Float, plus Equalize function. Settings for Flooded, Gel, Sealed batteries or user defined settings, contain algorithms to suit all lead acid battery types. Temperature Probe $25；eBOX WIFI $35
Suitable for use on 12 and 24 VDC systems
MPPT Technology is around 98% efficient, which is much better than the old PWM type charging that is around 75% efficient
MPPT technology takes the difference in voltage between your batteries and your solar panels and converts it into CHARGING AMPS for up to 45% + more output from your panels!
Can take any Solar Input that is higher than your Battery Voltage and charge your batteries!
Example: You can have a 24VDC solar panel and a 12VDC battery system, and the MPPT controller will turn the extra voltage into Amps!
Peak conversion efficiency of 97 %
High Tracking efficiency of 99%

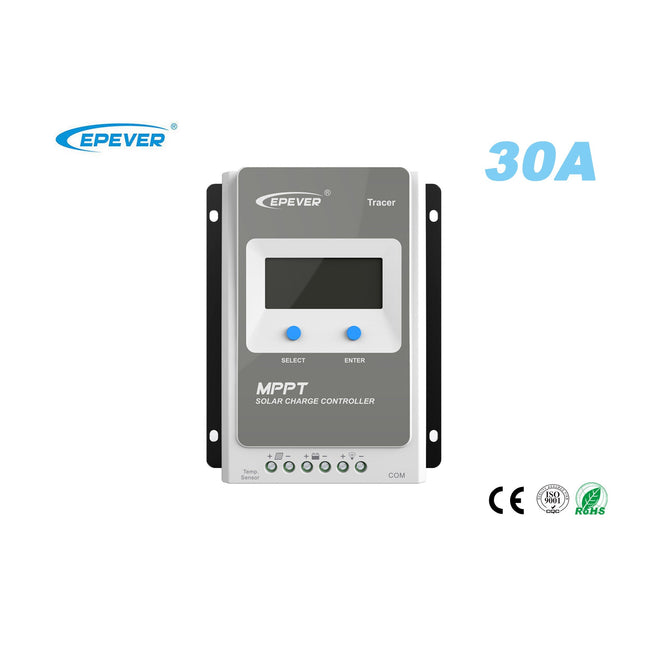

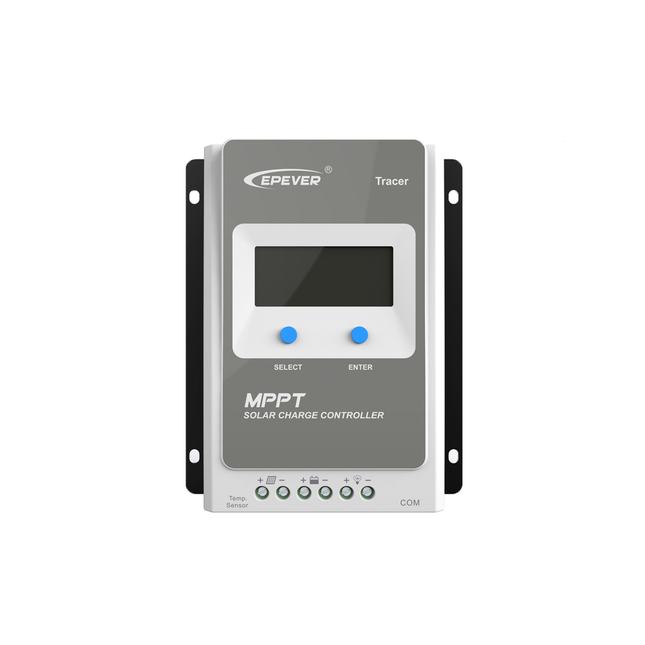

MODEL: TRACER 3210AN
12VDC / 24VDC Auto
Rated Battery Current 30A
Max. Solar Input Voltage 100VDC
Max. PV input power:12V/ 390W , 24V /780W
Dimension 228x 164 x 55 / mm
Weight 1.2kg

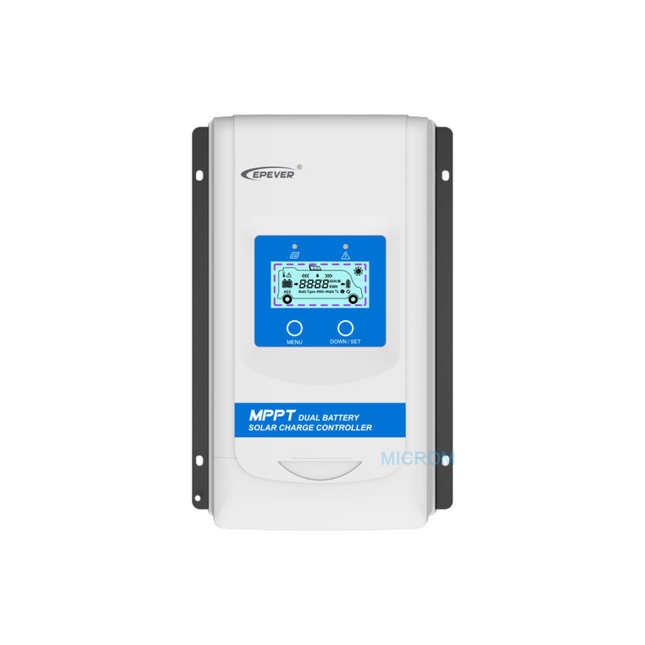

EPEVER New 30A Dual Battery MPPT Solar Controller DR3210N
5 years warranty!
DuoRacer Series MPPT Dual Battery Solar Charge Controller 20A is designed for charging two batteries at the same time in a solar system. This controller supports multiple life battery types, including Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn, which is suitable for RV, Camper, Boat, and small applications. The device recognizes the start battery system voltage automatically, and trickle charges the battery when the conditions are satisfied. The controller adopts the advanced MPPT control algorithm by Epsolar, which will minimize the maximum power point loss rate and loss time and fast-track the maximum power point(MPP) of the PV array to obtain the maximum energy from the solar array under any conditions.
Features:
Maximum Power Point Tracking technology with ultra-fast tracking speed and tracking efficiency at no less than 99.5% guaranteed
Advanced MPPT control algorithm to minimize the MPPlost rate and lost time
A wider range of the MPP operation voltage to improve the PV module utilization
Auto control function of charging power & charging current limitation(BATT1)
High quality and low failure rate components of ST, TI and Infineon to ensure the product life
Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life
BATT1 type can be set via LED/LCD
The DuoRacer switches into the low-power mode when there is no manual operation for a long time and charging conditions are not satisfied (PV
DuoRacer Series MPPT Dual Battery Solar Charge Controller 20A is designed for charging two batteries at the same time in a solar system. This controller supports multiple life battery types, including Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn, which is suitable for RV, Camper, Boat, and small applications. The device recognizes the start battery system voltage automatically, and trickle charges the battery when the conditions are satisfied. The controller adopts the advanced MPPT control algorithm by Epsolar, which will minimize the maximum power point loss rate and loss time and fast-track the maximum power point(MPP) of the PV array to obtain the maximum energy from the solar array under any conditions.
Features:
Maximum Power Point Tracking technology with ultra-fast tracking speed and tracking efficiency at no less than 99.5% guaranteed
Advanced MPPT control algorithm to minimize the MPPlost rate and lost time
A wider range of the MPP operation voltage to improve the PV module utilization
Auto control function of charging power & charging current limitation(BATT1)
High quality and low failure rate components of ST, TI and Infineon to ensure the product life
Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life
BATT1 type can be set via LED/LCD
The DuoRacer switches into the low-power mode when there is no manual operation for a long time and charging conditions are not satisfied (PV
IPower-Plus is a high-frequency pure sine wave inverter that can convert 12/24/48VDC to 220/230V AC and power the AC loads. It is designed according to the international standard with higher quality, reliability, and safety. Ranging from 500W to 5000W, Ipower-Plus is compatible with LiFePO4 batteries perfectly and suits any situation of DC to AC, such as RVs, boats, residentials, and places where require high-quality electrical power.
Product model: IP5000-42-Plus
Continuous Output Power: 5000W
Surge Power: 8000W@5S
Surge Current when Power On: < 65A
Output Voltage: 220VAC (±3%); 230VAC (-7% to +3%)
Output Frequency: 50/60Hz ±0.2%
Output Wave: Pure Sine Wave
Output Distortion THD: THD ≤ 3% (Resistive Load)
Load Power Factor: 0.2-1 (Load VA ≤ Continuous Output Power)
Rated Input Voltage: 48VDC
Input Voltage Range: 43.2~64.0VDC
Rated Output Efficiency: > 91.0%
Max. Output Efficiency: > 94.0% (30% Loads)
No-load Current: < 0.8A
USB Output: Not available
RS485 Communication Port: 5VDC / 200mA
Dimension (LxWxH): 516x231.5x123 mm
Mounting Dimension: 505x145mm
Net Weight: 9kg
Operating Temperature Range: -20°c to +60°c (Refer to the derating curve)
Relative Humidity: < 95% (Non-condensing)
Enclosure: IP20
EPEVER IPower Plus 12V 3000W Pure Sine Wave Inverter
Overview
IPower Plus series
Pure Sine Wave Inverter
IPower-Plus is a high-frequency pure sine wave inverter which adopts digital intelligent control technology. The inverter brings lower inrush current of input, faster dynamic response, better impact resistance from load, more reliable of operation, also supports lithium batteries. This product fits any situation of DC to AC, such as RVs, boats, residen- tials, and places where require high quality of electrical power.
Features
Pure sine wave output Input to output electrical isolation Digital dual closed-loop control of voltage and current Input surge current suppression for lithium battery systems Output power factor up to 1 Simple system wiring & 180 degrees rotating LCD Input Protection: Reverse polarity, Low-voltage, Over-voltage Output Protection: Overload, Short circuit, Overheating Phone and PC remote control through RS485 port Extra external switch port Safety (EN/IEC62109) & EMC approved by international standards
Model: IP3000-12-PLUS
Continuous output power: 3000W@35°C @Rated input voltage
Surge power: 6000W@5S
Surge current when power on: 87%
Max. output efficiency: >94%(30% loads)
No-load current:
IPower-Plus is a high-frequency pure sine wave inverter that can convert 12/24/48VDC to 220/230V AC and power the AC loads. It is designed according to the international standard with higher quality, reliability, and safety. Ranging from 500W to 5000W, Ipower-Plus is compatible with LiFePO4 batteries perfectly and suits any situation of DC to AC, such as RVs, boats, residentials, and places where require high-quality electrical power.
Product model: IP3000-42-Plus
Continuous Output Power: 3000W
Surge Power: 6000W @ 5S
Surge Current when Power On: < 65A
Output Voltage: 220VAC (±3%); 230VAC (-7% to +3%)
Output Frequency: 50/60Hz ±0.2%
Output Wave: Pure Sine Wave
Output Distortion THD: THD ≤ 3% (Resistive Load)
Load Power Factor: 0.2-1 (Load VA ≤ Continuous Output Power)
Rated Input Voltage: 48VDC
Input Voltage Range: 43.2~64.0VDC
Rated Output Efficiency: > 92.5%
Max. Output Efficiency: > 94.5% (30% Loads)
No-load Current: < 0.5A
USB Output: Not available
RS485 Communication Port: 5VDC / 200mA
Dimension (LxWxH): 491×231.5×123mm
Mounting Dimension: 465×145mm
Net Weight: 7kg
Operating Temperature Range: -20℃ to +60℃ (Refer to the derating curve)
Relative Humidity: < 95% (Non-condensing)
Enclosure: IP20
The HP-AHP20A series is a high-frequency inverter charger. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings. This high-quality product provides a stable power supply and is suitable for hybrid power generation systems that combine solar, utility, and oil engine sources. It meets the application requirements for customers seeking cost-effective residential power supply solutions.
Features
Pure sine wave output
Supports battery or non-battery modes
PFC technology reduces the demand on the power grid capacity
Advanced MPPT technology, with max. tracking efficiency higher than 99.5%
Supports charging from multiple types of generators
Battery charging or discharging current limits are compatible with various types of batteries
Adjustable maximum utility charging current for flexible configuration of utility charging power
Large size LCD display for better status monitoring
RS485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring
Comprehensive electronic protections
AC output supports parallel operation, standard configuration of 12 units in parallel
AC output parallel operation supports single-phase and three-phase settings
Model: HP3522-AH1250P20A
Utility Voltage: 176VAC - 264VAC (Default) 90VAC - 280VAC (Configurable)
Utility Frequency: 45Hz - 65Hz
Maximum Utility Charging Current: 110A
Inverter output
Inverter Rated Power: 3500W
3-second Transient Surge Output Power: 7000W
Inverter Output Voltage: 220 / 230VAC +-3%
Inverter Frequency: 50/60Hz +-0.2%
Output Voltage Waveform: Pure sine wave
Dimension(mm): 654L × 291.4W × 163H
Net Weight: 15.3 kg
