The SRNE MC4885N25 is a high-performance MPPT solar charge controller, ideal for off-grid solar systems. With 99.9% MPPT tracking efficiency, it ensures maximum power output from solar panels.
Key Features:
For off-grid application: Connect to photovoltaic and supply power to the battery.
User-Friendly
Easy to install and simple to use
Natural cooling, absolutely quiet
Safety
Complete charge protection mechanism
High-quality components for stable operation
All-in-One
Supports multiple battery types
Support 1-10 PCS in parallel
Efficient
MPPT with up to 99.9% efficiency
Support solar panel 2 in series/more in parall
Intelligent
Supports TTL, RS485 communication
Supports Bluetooth with mobile APP
Specifications:
Model: MC4885N25
PV INPUT
Max.Voltage of Open Circuit: 250Vdc
MPPT Voltage Range : (Battery voltage + 2V) - 180V
System Voltage: 12V/24V/36V/48V Auto
Rated Charging Current: 85A
Max PV Input Power:
1100W/12V
2200W/24V
3300W/36V
4400W/48V
Efficiency:
MPPT Tracking Efficiency: >99%
Max Charging Conversion Efficiency: ≤98%
Communication: TTL/RS485/Built-in Bluetooth
Operating Temperature: -35°C to 65°C
Protection Level: IP32
Weight: 5.7kg
Dimensions: 314 × 227 × 121mm
Perfect for large off-grid solar systems, the ML4860N15 provides high efficiency, intelligent control, and reliable performance for solar power management.
SRNE MD1230N05 MD Series DC-DC Charger with MPPT Dual-Battery Controller
Smart Charging. Anytime, Anywhere.
Designed for off-grid and mobile applications such as RVs, caravans, boats, and 4WD vehicles.
Versatile Charging for Dual-Battery Systems
Supports charging from both solar panels (PV) and vehicle alternator
Charges both starter battery and leisure (auxiliary) battery simultaneously
Compatible with 12V and 24V alternator systems
For off-grid application
Can be connected to both PV and an alternator
Can charge both the leisure battery and the starter battery
User-Friendly
Easy to install and simple to use
Natural cooling, absolutely quiet
Safety
360 degrees of security from hardware to software
All-in-One
4 charging modes，be your reliable power steward
Helps you save space and wire
Efficient
MPPT with up to 99.9% efficiency
Support solar panels 2 in series/2 in parallel connection
Intelligent
Supports RV-C communication
MODEL: MD1230N05
PV INPUT
Max.Voltage of Open Circuit: 55Vdc
MPPT Voltage Range: 17-36Vdc
Max.PV Input Current: 27A
Max.PV Input Power: 400W
LEISURE BATTERY
Battery Type: Lead-acid / Li-ion / User Defined
Rated Battery Voltage: 12Vdc
Battery Voltage Range: 9-16Vdc
Max.MPPT Charging Current: 30A
Max.Alternator Charging Current: 35A
STARTER BATTERY / ALTERNATOR
Battery Type: Lead-acid
Rated Battery Voltage: 12/24Vdc
Max.MPPT Charging Voltage: 13.8V
Max.MPPT Charging Current: ≤15A
Max.Alternator Input Voltage
Conventional Alternator: 13.2-16Vdc / 26.4-32Vdc
Euro 6 Standard Alternator: 12-16Vdc / 24-32Vdc
Alternator Charging Mode: Buck, Boost, Buck-Boost
EFFICIENCY
MPPT Tracking Efficiency: >99%
Max. Charging Conversion Efficiency: 98%
COMMUNICATION
Embedded Interfaces: TTL, Remote Switch
External Modules: Bluetooth (with APP)
GENERAL
Weight: 1.92kg
Dimension: 221x175.8x92.4mm
Protection Degree: IP32
Operating Temperature Range: -35°C - 65°C
SRNE MD1250N05 MD Series DC-DC Charger with MPPT Dual-Battery Controller
Smart Charging. Anytime, Anywhere.
Designed for off-grid and mobile applications such as RVs, caravans, boats, and 4WD vehicles.
Versatile Charging for Dual-Battery Systems
Supports charging from both solar panels (PV) and vehicle alternator
Charges both starter battery and leisure (auxiliary) battery simultaneously
Compatible with 12V and 24V alternator systems
For off-grid application
Can be connected to both PV and an alternator
Can charge both the leisure battery and the starter battery
User-Friendly
Easy to install and simple to use
Natural cooling, absolutely quiet
Safety
360 degrees of security from hardware to software
All-in-One
4 charging modes，be your reliable power steward
Helps you save space and wire
Efficient
MPPT with up to 99.9% efficiency
Support solar panels 2 in series/2 in parallel connection
Intelligent
Supports RV-C communication
MODEL: MD1250N05
PV INPUT
Max.Voltage of Open Circuit: 55Vdc
MPPT Voltage Range: 17-36Vdc
Max.PV Input Current: 45A
Max.PV Input Power: 700W
LEISURE BATTERY
Battery Type: Lead-acid / Li-ion / User Defined
Rated Battery Voltage: 12Vdc
Battery Voltage Range: 9-16Vdc
Max.MPPT Charging Current: 50A
Max.Alternator Charging Current: 60A
STARTER BATTERY / ALTERNATOR
Battery Type: Lead-acid
Rated Battery Voltage: 12/24Vdc
Max.MPPT Charging Voltage: 13.8V
Max.MPPT Charging Current: ≤15A
Max.Alternator Input Voltage
Conventional Alternator: 13.2-16Vdc / 26.4-32Vdc
Euro 6 Standard Alternator: 12-16Vdc / 24-32Vdc
Alternator Charging Mode: Buck, Boost, Buck-Boost
EFFICIENCY
MPPT Tracking Efficiency: >99%
Max. Charging Conversion Efficiency: 98%
COMMUNICATION
Embedded Interfaces: TTL, Remote Switch
External Modules: Bluetooth (with APP)
GENERAL
Weight: 2.15kg
Dimension: 221x175.8x92.4mm
Protection Degree: IP32
Operating Temperature Range: -35°C - 65°C

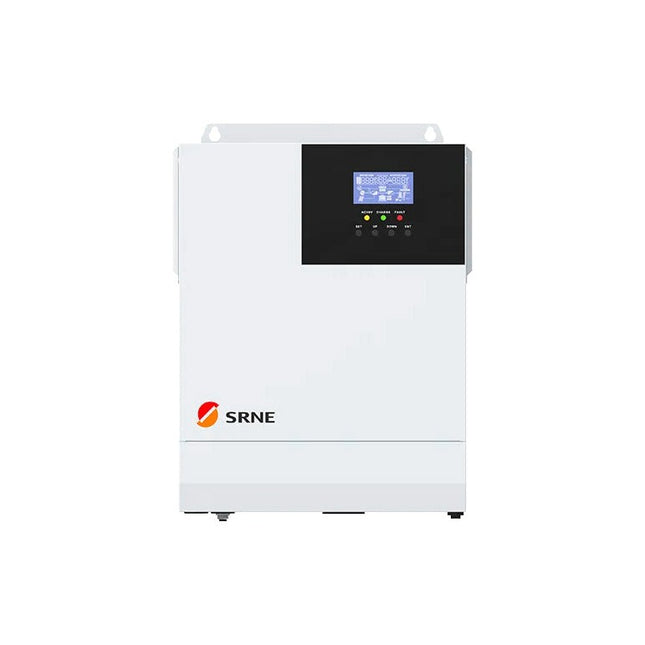

HF Series All-in-One Hybrid Solar Inverter
Integrated Solar Charging, Energy Storage, and Pure Sine Wave AC Output
The HF Series is a next-generation, all-in-one hybrid inverter that combines solar energy conversion, battery charging/storage, and pure sine wave AC output in a compact and high-performance system. Built with DSP control and an advanced control algorithm, it delivers fast response, high reliability, and meets industrial-grade standards.
Key Features
Full Digital Control & SPWM Technology
Dual Output Modes
Flexible Charging Modes
High-Efficiency MPPT Charging
Power Saving Mode
Smart Cooling System
Compatible with 24V storage batteries
Multiple charging and on-load modes to maximise energy use
Efficient heat dissipation, prolonging system life
Support remote monitoring of equipment operating parameters
MODEL: HF2430S60-100
INVERTER OUTPUT
Rated Output Power: 3000W
Max.Peak Power: 6000VA
Rated Output Voltage: 230Vac Single-Phase
Load Motor Capacity: 2HP
Rated Frequency: 50/60Hz
Waveform: Pure sine wave
BATTERY
Battery Type: Lead-Acid / Li-ion / User-Define
Rated Battery Voltage: 24V
Battery Volatge Range: 20 - 33Vdc
Max. Solar Charging Current: 60A
Max. Grid/Generator Charging Current: 80A
Max. Hybrid Charging Current: 140A
SOLAR INPUT
No. Of MPPT: 1
Max.PV Array Power: 1600W
Max. Input Current: 40A
Max. Open Circuit Voltage: 108Vdc
MPPT Voltage Range: 30 - 90Vdc
GRID/GENERATOR INPUT
Input Voltage Range: 170 - 280Vac
Input Frequency Range: 50/60Hz
Bypass Overload Current: 30A
EFFICIENCY
MPPT Tracking Efficiency: 99.9%
Max. Efficiency: 92%
GENERAL DATA
Dimension: 378 x 280 x 103mm
Weight: 6.8kg
Protection Degree: IP20 Only Indoor
External Module (Optional): Wi-Fi/GPRS
Communication: RS485/CAN/USB/Dry Contact
Warranty: 2 years
The SRNE MC48100N25 is a high-performance MPPT solar charge controller, ideal for off-grid solar systems. With 99.9% MPPT tracking efficiency, it ensures maximum power output from solar panels.
Key Features:
For off-grid application: Connect to photovoltaic and supply power to the battery.
User-Friendly
Easy to install and simple to use
Natural cooling, absolutely quiet
Safety
Complete charge protection mechanism
High-quality components for stable operation
All-in-One
Supports multiple battery types
Support 1-10 PCS in parallel
Efficient
MPPT with up to 99.9% efficiency
Support solar panel 2 in series/more in parall
Intelligent
Supports TTL, RS485 communication
Supports Bluetooth with mobile APP
Specifications:
Model: MC48100N25
PV INPUT
Max.Voltage of Open Circuit: 250Vdc
MPPT Voltage Range : (Battery voltage + 2V) - 180V
System Voltage: 12V/24V/36V/48V Auto
Rated Charging Current: 100A
Max PV Input Power:
1320W/12V
2640W/24V
3960W/36V
5280W/48V
Efficiency:
MPPT Tracking Efficiency: >99%
Max Charging Conversion Efficiency: ≤98%
Communication: TTL/RS485/Built-in Bluetooth
Operating Temperature: -35°C to 65°C
Protection Level: IP32
Weight: 5.7kg
Dimensions: 314 × 227 × 121mm
Perfect for large off-grid solar systems, the MC48100N25 provides high efficiency, intelligent control, and reliable performance for solar power management.

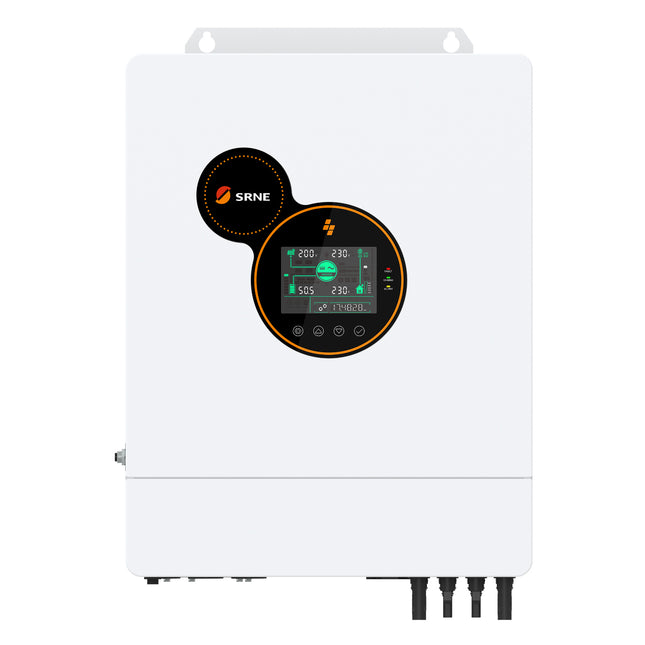

SRNE 6KW Single Phase Hybrid Solar Inverter HYP4860S100-H
***2-Year Warranty***
Key Features
Advanced MPPT technology with up to 99.9% tracking efficiency
Supports parallel operation up to 6 units (up to 36kW total system power)
Time-slot charging and discharging function to reduce electricity costs during peak and off-peak periods
Off-grid operation with optional battery-free output mode
Modern industrial-grade design with a clean, professional appearance
Supports BMS communication for lithium battery systems

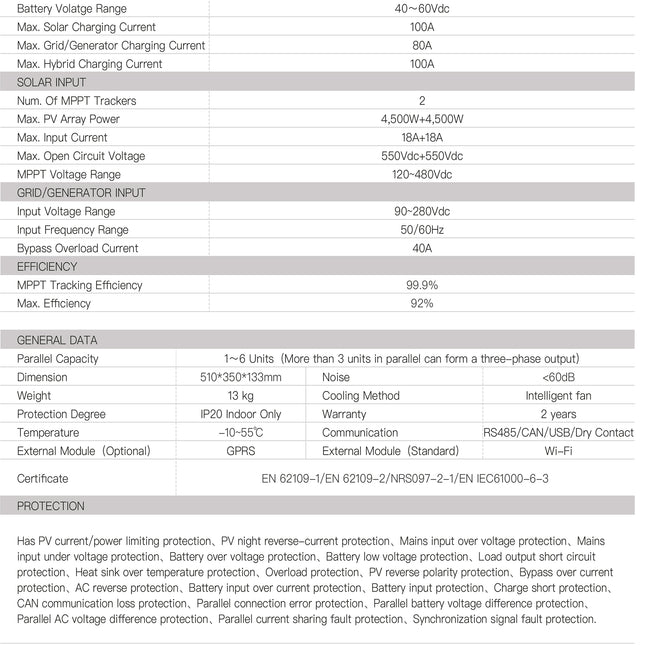

Model: HYP4860S100-H
Inverter Output
Rated Output Power: 6,200 W
Maximum Output Power: 12,400 VA
Rated Output Voltage: 230 Vac (L / N / PE, Single Phase)
Motor Load Capacity: Up to 5 HP
Rated AC Frequency: 50 / 60 Hz
Waveform: Pure Sine Wave
Transfer Time: 10 ms (typical)
Battery Specifications
Supported Battery Types: Lithium-ion, Lead-acid, User-defined
Rated Battery Voltage: 48 V
Battery Voltage Range: 40 – 60 Vdc
Max. Solar Charging Current: 100 A
Max. Grid / Generator Charging Current: 80 A
Max. Hybrid Charging Current: 100 A
Solar Input
MPPT Trackers: 2
Max. PV Array Power: 4,500 W + 4,500 W
Max. Input Current: 18 A + 18 A
Max. Open Circuit Voltage: 550 Vdc + 550 Vdc
MPPT Voltage Range: 120 – 480 Vdc
Grid / Generator Input
Input Voltage Range: 90 – 280 Vac
Input Frequency Range: 50 / 60 Hz
Bypass Overload Current: 40 A
Efficiency
MPPT Tracking Efficiency: Up to 99.9%
Maximum System Efficiency: 92%
General Information
Parallel Capability: 1–6 units
(More than 3 units in parallel can form a three-phase output system)
Dimensions (W × H × D): 510 × 350 × 133 mm
Net Weight: 13 kg
