Mustpower PV3000 VHM series is very economical pure sine wave solar inverter, Inbuilt with 80A MPPT charger; Solar/AC priority is configurable, when setting solar priority, solar will charge batteries as first priority, and AC can also charge batteries when solar charger current is too lower, in this way system charge is optimazed best. it enables inverter to operate with all kinds of home appliances.
3 Steps charging
Overload and short-circuit protection
Set charging voltage/charging current
Battery low voltage shutdown point can be set to 10/10.5/11/11.5/12V
Power-save mode
Set utility priority /battery priority
Set utility input wide/narrow voltage range
Inverter voltage can be set to 220V/230V/240V
Inverter frequency can be set to 50Hz/60Hz
Set utility charging on/off switch
Inbuilt 80A MPPT Solar Charge Controller
Acid or Lithium Select
WIFI remote monitoring (optional)
With BMS lithium battery communication function (CAN port)
Model: PV30-6048 VHM
Nominal Battery System Voltage: 48VDC
INVERTER OUTPUT
Rated Power: 6 KW
Surge Rating: 18000VA
Waveform: Pure sine wave / same as input (bypass mode)
Nominal Output Voltage RMS: 220V / 230V / 240VAC (±10% RMS)
Output Frequency: 50Hz / 60Hz ±0.3Hz
AC INPUT
Voltage: 230VAC
Selectable Voltage Range: 155 - 265VAC(For personal computers)
Frequency Range: 50Hz / 60Hz(Auto sensing) 40 - 80Hz
CHARGER
Maximum Charge Current: 40A
SOLAR CHARGER
Maximum PV Array Power: 5000W
Maximum PV Charge Current: 80A±4A
DC Voltage: 24V/ 48V auto work
MPPT Range @ Operating Voltage: 30 - 230VDC @ 24V/ 60 - 230VDC @ 48V
Maximum PV Array Open Circuit Voltage: 245VDC
Dimensions (WxHxD): 531x305x202mm
Package Dimensions (WxHxD): 686x400x319mm
2 Years Warranty
PV1900 EXP is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1900 EXP Series can run without battery. The Maximum PV array open circuit voltage can reach 500V and MPPT voltage is 150 - 450Vdc, which Can help customers make full use of solar energy.
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
MAX PV Array Open Circuit Voltage: 500V (450V for parallel)
Can provide the power to the load without battery
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
WIFI remote monitoring (optional)
Dual outputs for smart load management(optional)
Can communicate with lithium batteries
MODEL: PV19-6048 EXP
Nominal Battery System Voltage: 48VDC
INVERTER OUTPUT
Rated Power: 6000VA / 6000W
Surge Power: 12000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): 230VAC+-5%(Setting)
Inverter Efficiency(Peak): 92%
Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage: 230VAC
Selectable Voltage Range: 170 - 280VAC(UPS) / 90 - 280VAC(APL) / 184 - 253VAC(VED4105)
Frequency Range: 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage: 48VDC
Floating Charge Voltage: 54.8VDC
Overcharge Protection: 60VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage: 500VDC (450V for parallel)
Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power: 6000W
Maximum Solar Charge Current: 120A
Maximum AC Charge Current: 100A
Maximum Charge Current: 120A
Dimensions (WxHxD): 309 x 505 x 147mm
2 Years Warranty
PV1800 PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which Can help customers make full use of solar energy.
Features:
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
MAX PV Array Open Circuit Voltage: 450V
Can provide the power to the load without battery
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
Parallel operation with up to 3 units
WIFI remote monitoring (optional)
MODEL: PV18-3024 PRO
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated Power: 3000VA / 3000W
Surge Power: 6000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): 230VAC±5%(Setting)
Inverter Efficiency(Peak): 90%
Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage: 230VAC±5%
Selectable Voltage Range: 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range: 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage: 24VDC
Floating Charge Voltage: 27.4VDC
Overcharge Protection: 30VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage: 450VDC
Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power: 4000W
PV Array MPPT Voltage Range: 150~430 VDC
Maximum Solar Charge Current: 80A/100A
Maximum AC Charge Current: 60A/80A
Maximum Charge Current: 80A/100A
MECHANICAL SPECIFICATIONS
Machine Dimensions: 322 x 486 x 134mm
Package Dimensions: 426 x 560 x 260.5mm
Net Weight: 8kg
Gross Weight: 9.5kg
2 Years Warranty
SRNE LSW-5 WiFi Monitor Module Stick Logger
Wireless Monitoring for SRNE MPPT Hybrid Solar Inverters
Product Overview
The LSW-5 WiFi Module is a plug-and-play wireless monitoring device designed specifically for SRNE MPPT Hybrid Inverters (HF / ASF / ASP Series). It enables real-time remote monitoring of your solar power system via web portal or mobile app, helping you stay informed and in control—anytime, anywhere.
Compatibility Notice:
This WiFi module is only compatible with SRNE MPPT Hybrid Inverters from the HF, ASF, and ASP Series.
It is not compatible with HES or HESP series inverters.
Key Features
Seamless WiFi Connectivity
Connects directly to your inverter via the dedicated WiFi port, enabling real-time system data monitoring through your smartphone or computer.
Web & Mobile App Access
Monitor key performance indicators such as input/output power, battery status, and load levels from the official SRNE monitoring platform.
Wide Compatibility Range
Supports inverter models with output power from 2kW to 5.5kW, including:
2kW / 3kW / 3.5kW / 5kW / 5.5kW.
Optimized for MPPT Solar Hybrid Systems
Designed to work with SRNE hybrid inverters that combine solar and grid power, ensuring efficient energy conversion and stable backup power.
Remote System Diagnostics & Alerts
Enables fault detection, performance tracking, and system alerts to ensure your energy system is running smoothly.
Why Choose LSW-5?
Hassle-free installation and intuitive setup
Real-time performance insights at your fingertips
Compact, durable design for long-term operation
Ideal for home solar, RV, off-grid cabins, and backup systems
Model: LSW-5
Input: DC 5V-12V 1.5W
PV1800 PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which Can help customers make full use of solar energy.
Features:
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
MAX PV Array Open Circuit Voltage: 450V
Can provide the power to the load without battery
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
Parallel operation with up to 3 units
WIFI remote monitoring (optional)
MODEL: PV18-5248 PRO
Nominal Battery System Voltage: 48VDC
INVERTER OUTPUT
Rated Power: 5200VA / 5200W
Surge Power: 10400W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): 230VAC±5%(Setting)
Inverter Efficiency(Peak): 90%
Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage: 230VAC±5%
Selectable Voltage Range: 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range: 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage: 48VDC
Floating Charge Voltage: 54.8VDC
Overcharge Protection: 60VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage: 450VDC
Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power: 5000W/6000W
PV Array MPPT Voltage Range: 150~430 VDC
Maximum Solar Charge Current: 80A/100A
Maximum AC Charge Current: 60A/80A
Maximum Charge Current: 80A/100A
MECHANICAL SPECIFICATIONS
Machine Dimensions: 309 x 505 x 147mm
Package Dimensions: 375 x 655 x 269mm
Net Weight: 14kg
Gross Weight: 16.4kg
2 Years Warranty
The HP-AHP20A series is a high-frequency inverter charger. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings. This high-quality product provides a stable power supply and is suitable for hybrid power generation systems that combine solar, utility, and oil engine sources. It meets the application requirements for customers seeking cost-effective residential power supply solutions.
Features
Pure sine wave output
Supports battery or non-battery modes
PFC technology reduces the demand on the power grid capacity
Advanced MPPT technology, with max. tracking efficiency higher than 99.5%
HP5542-AH1050P20A supports two PV inputs to improve PV utilization
Supports charging from multiple types of generators
Battery charging or discharging current limits are compatible with various types of batteries
Adjustable maximum utility charging current for flexible configuration of utility charging power
Large size LCD display for better status monitoring
RS485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring
AC output supports parallel operation, standard configuration of 12 units in parallel
AC output parallel operation supports single-phase and three-phase settings
Model: HP5542-AH1050P20A
Utility Voltage: 176VAC - 264VAC (Default) 90VAC - 280VAC (Configurable)
Utility Frequency: 45Hz - 65Hz
Maximum Utility Charging Current: 100A
Inverter output
Inverter Rated Power: 5500W
3-second Transient Surge Output Power: 8500W
Inverter Output Voltage: 220 / 230VAC +-3%
Inverter Frequency: 50/60Hz +-0.2%
Output Voltage Waveform: Pure sine wave
Dimension(mm): 679L × 291.4W × 163H
Net Weight: 17.5 kg
The SRNE HF4850S80-H is a high-efficiency solar charge inverter designed for off-grid and backup power systems. It combines pure sine wave AC output, MPPT solar charging, and battery management in one compact unit. With smart monitoring, multiple battery support, and hybrid charging, it ensures reliable and stable power for homes, businesses, and RVs.
Key Features
Reliable Power Output
5,000W rated power, 10,000VA peak power
Supports motor loads up to 4HP
High-Efficiency Solar Charging
5,200W max. PV input, 99.9% MPPT efficiency
Flexible Battery Compatibility
Works with Li-ion, Lead-Acid, and custom batteries
Hybrid Power Support
Supports mains and generator input (90-280V AC)
10ms switching time for uninterrupted power
Safe & Durable
2-year warranty
Specifications
Inverter Output
Rated Power: 5,000W
Peak Power: 10,000VA
Output Voltage: 230V AC (L/N/PE)
Waveform: Pure Sine Wave
Motor Load Capacity: 4HP
Frequency: 50Hz/60Hz
Switching Time: 10ms
Battery
Type: Li-ion / Lead-Acid / User-Defined
Voltage: 48VDC
Voltage Range: 40-60VDC
Max. Charging Current: 80A
PV Input
MPPT Trackers: 1
Max. PV Power: 5,200W
Max. PV Open Circuit Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
Mains/Generator Input
AC Input Voltage: 90-280V AC
Frequency: 50Hz/60Hz
Bypass Overload Current: 40A
Efficiency
MPPT Efficiency: 99.9%
Battery Inverter Efficiency: 92%
General
Size: 426×322×126mm
Weight: 10.9kg
Protection: IP20 (Indoor Use)
Operating Temperature: -15°C to 55°C
Cooling: Internal Fan
Noise Level:
The SRNE HF2430S80-H is a high-efficiency solar charge inverter designed for off-grid and backup power systems. It combines pure sine wave AC output, MPPT solar charging, and battery management in one compact unit. With smart monitoring, multiple battery support, and hybrid charging, it ensures reliable and stable power for homes, businesses, and RVs.
Key Features
Reliable Power Output
3,300W rated power, 6,000VA peak power
Supports motor loads up to 2HP
High-Efficiency Solar Charging
4,000W max. PV input, 99.9% MPPT efficiency
Flexible Battery Compatibility
Works with Li-ion, Lead-Acid, and custom batteries
Hybrid Power Support
Supports mains and generator input (90-280V AC)
10ms switching time for uninterrupted power
Safe & Durable
2-year warranty
Specifications
Inverter Output
Rated Power: 3,300W
Peak Power: 6,000VA
Output Voltage: 230V AC (L/N/PE)
Waveform: Pure Sine Wave
Motor Load Capacity: 2HP
Frequency: 50Hz/60Hz
Switching Time: 10ms
Battery
Type: Li-ion / Lead-Acid / User-Defined
Voltage: 24VDC
Voltage Range: 20-33VDC
Max. Charging Current: 80A
PV Input
MPPT Trackers: 1
Max. PV Power: 4,000W
Max. PV Open Circuit Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
Mains/Generator Input
AC Input Voltage: 90-280V AC
Frequency: 50Hz/60Hz
Bypass Overload Current: 30A
Efficiency
MPPT Efficiency: 99.9%
Battery Inverter Efficiency: 92%
General
Size: 378×280×103mm
Weight: 6.9kg
Protection: IP20 (Indoor Use)
Operating Temperature: -10°C to 55°C
Cooling: Internal Fan
Noise Level:
HF Series All-in-One Hybrid Solar Inverter
Integrated Solar Charging, Energy Storage, and Pure Sine Wave AC Output
The HF Series is a next-generation, all-in-one hybrid inverter that combines solar energy conversion, battery charging/storage, and pure sine wave AC output in a compact and high-performance system. Built with DSP control and an advanced control algorithm, it delivers fast response, high reliability, and meets industrial-grade standards.
Key Features
Full Digital Control & SPWM Technology
Dual Output Modes
Flexible Charging Modes
High-Efficiency MPPT Charging
Power Saving Mode
Smart Cooling System
Compatible with 24V storage batteries
Multiple charging and on-load modes to maximise energy use
Efficient heat dissipation, prolonging system life
Support remote monitoring of equipment operating parameters
MODEL: HF2430S60-100
INVERTER OUTPUT
Rated Output Power: 3000W
Max.Peak Power: 6000VA
Rated Output Voltage: 230Vac Single-Phase
Load Motor Capacity: 2HP
Rated Frequency: 50/60Hz
Waveform: Pure sine wave
BATTERY
Battery Type: Lead-Acid / Li-ion / User-Define
Rated Battery Voltage: 24V
Battery Volatge Range: 20 - 33Vdc
Max. Solar Charging Current: 60A
Max. Grid/Generator Charging Current: 80A
Max. Hybrid Charging Current: 140A
SOLAR INPUT
No. Of MPPT: 1
Max.PV Array Power: 1600W
Max. Input Current: 40A
Max. Open Circuit Voltage: 108Vdc
MPPT Voltage Range: 30 - 90Vdc
GRID/GENERATOR INPUT
Input Voltage Range: 170 - 280Vac
Input Frequency Range: 50/60Hz
Bypass Overload Current: 30A
EFFICIENCY
MPPT Tracking Efficiency: 99.9%
Max. Efficiency: 92%
GENERAL DATA
Dimension: 378 x 280 x 103mm
Weight: 6.8kg
Protection Degree: IP20 Only Indoor
External Module (Optional): Wi-Fi/GPRS
Communication: RS485/CAN/USB/Dry Contact
Warranty: 2 years
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Manufacturer Warranty**
SUN-8K-SG04LP3-AU | 8kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Model: SUN-8K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 190
Max. Discharging Current (A): 190
Charging Curve: 3 Stages / Equalization
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 12000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 19.5+19.5
No. of MPP Trackers/Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 8000
Max AC Output Active Power (W): 8000
AC Output Rated Current (A): 11.6
Max. AC Output Current (A): 11.6
Max. Continuous AC Passthrough (A):45
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)
Protection Degree: IP65
Professional installation and service support.
Dedicated communication with battery service assistance.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
Higher yields / Safe & Reliable / Smart / User-friendly
Suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN-8K-SG05LP1-AU. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 190A
Support storing energy from diesel generator
Model: SUN-8K-SG05LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 190
Max. Discharging Current (A): 190
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 12000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 34+34
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
AC Output Data
Rated AC Output Active Power (W): 8000
Max AC Output Active Power (W): 8000
AC Output Rated Current (A): 34.8
Max. AC Output Current (A): 34.8
Max. Continuous AC Passthrough (A): 50
Peak Power (off grid): 2 time of rated power, 10 S
Max. Efficiency: 97.60%
General Data
Weight (kg): 24.9
Cabinet size (mm): 330W x 580H x232D(Excluding connectors and brackets)
Protection Degree: IP65
Professional installation and service support.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**4th Generation AU Version Inverter**
**10-Year Warranty**
SUN-5K-SG04LP3-AU | 6kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 16pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-6K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 150
Max. Discharging Current (A): 150
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 9000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 19.5+19.5
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 6000
Max AC Output Active Power (W): 6000
AC Output Rated Current (A): 8.7
Max. AC Output Current (A): 8.7
Max. Continuous AC Passthrough (A): 45
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)
Protection Degree: IP65
Install info professional service support! Communication with battery service support!
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**4th Generation AU Version Inverter**
**10-Year Warranty**
SUN-5K-SG04LP3-AU | 5kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 16pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-5K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 120
Max. Discharging Current (A): 120
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 7500
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 19.5+19.5
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 5000
Max AC Output Active Power (W): 5000
AC Output Rated Current (A): 7.2
Max. AC Output Current (A): 7.2
Max. Continuous AC Passthrough (A): 45
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)
Protection Degree: IP65
Install info professional service support! Communication with battery service support!
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-50K-SG01HP3-AU-BM4 | 50kW | Three Phase | 4 MPPT | Hybrid Inverter | HV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
100% unbalanced output；each phase
AC couple to retrofifit existing solar system
*Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 100A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-50K-SG01HP3-AU-BM4
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-800
Max. Charging Current (A): 50+50
Max. Discharging Current (A): 50+50
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Input: 2
PV String Input Data
Max. PV Input Power (W): 75000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated PV Input Voltage (V): 600
Max. Operating PV Input Current (A): 36+36+36+36
Max. Input Short-Circuit Current (A): 55+55+55+55
No. of MPP Trackers/No. of Strings MPP Tracker: 4/2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W): 50000
Max. AC Input/Output Apparent Power (VA): 50000
Rated AC Input/Output Current (A): 72.5
Max. AC Input/Output Current (A): 72.5
Max. Continuous AC Passthrough (grid to load) (A): 200
Peak Power (off-grid) (W): 1.5 times of rated power, 10s
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Cabinet Size (WxHxD mm): 527×894×294 (Excluding Connectors and Brackets)
Weight (kg): 80
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**4th Generation AU Version Inverter**
**10-Year Warranty**
SUN-3K-SG04LP1-AU | 3kW | Single Phase | MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 70A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-3K-SG04LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 70
Max. Discharging Current (A): 70
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 4500
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13
Max. Input Short-Circuit Current (A): 17
No. of MPP Trackers/No. of Strings MPP Tracker: 1/1
AC Output Data
Rated AC Output Active Power (W): 3000
Max AC Output Active Power (W): 3000
AC Output Rated Current (A): 13
Max. AC Output Current (A): 13
Max. Continuous AC Passthrough (A): 35
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Install info professional service support! Communication with battery service support!
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**4th Generation AU Version Inverter**
**10-Year Warranty**

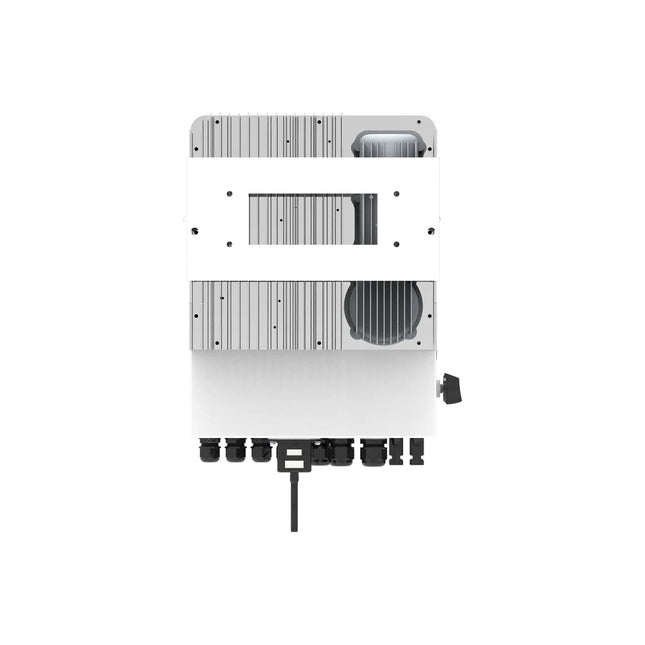

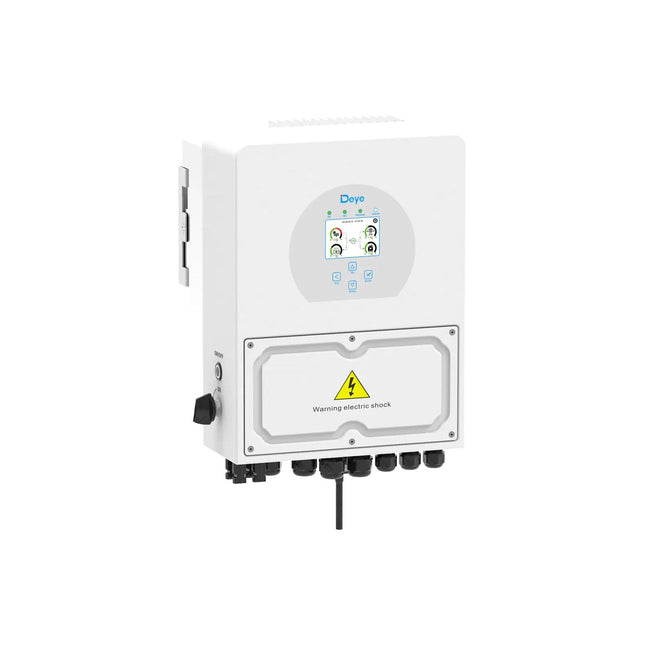

SUN-3.6K-SG04LP1-AU | 3.6kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 90A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-3.6K-SG04LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 90
Max. Discharging Current (A): 90
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 5400
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 17+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 3600
Max AC Output Active Power (W): 3600
AC Output Rated Current (A): 15.7
Max. AC Output Current (A): 15.7
Max. Continuous AC Passthrough (A): 35
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Install info professional service support! Communication with battery service support!
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-29.9K-SG01HP3-AU-BM3 | 29.9kW | Three Phase | 2 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase
High voltage battery, higher efficiency
AC couple to retrofit existing solar system
Max. charging/discharging current of 100A
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-29.9K-SG01HP3-AU-BM3
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-800
Max. Charging Current (A): 50+50
Max. Discharging Current (A): 50+50
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 2
PV String Input Data
Max. DC Input Power (W): 44850
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Range (V): 150-850
Rated PV Input Voltage (V): 600
PV Input Current (A): 36+36+36
No.of MPP Trackers: 3
No.of Strings per MPP Tracker: 2+2+2
AC Output Data
Rated AC Output and UPS Power (W): 29900
Rated Apparent Output Power (VA): 29900
AC Output Rated Current (A): 43.4
Max. AC Output Current (A): 43.4
Max. Continuous AC Passthrough (A): 200
Peak Power (Off Grid): 1.5 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 80
Cabinet size (mm): 527W×894H×294D (Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-20K-SG01HP3-AU-AM2 | 20kW | Three Phase | 2 MPPT | Hybrid Inverter | HV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 50A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-20K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-700
Max. Charging Current (A): 37
Max. Discharging Current (A): 37
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 30000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated DC Input Voltage(V): 600
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
AC Output Data
Rated AC Output Active Power (W): 20000
Max AC Output Active Power (W): 20000
AC Output Rated Current (A): 29
Max. AC Output Current (A): 29
Max. Continuous AC Passthrough (grid to load) (A): 80
Peak Power (off grid): 1.5 times of rated power, 10s
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 30.5
Cabinet size (mm): 408W x 638H x237D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-16K-SG01LP1-AU | 16kW | Single Phase | 3 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Colorful touch LCD, IP65 protection degree
6 time periods for battery charging/discharging
Max. charging/discharging current of 290A
Support storing energy from diesel generator
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Model: SUN-16K-SG01LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 290
Max. Discharging Current (A): 290
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 24000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 16000
Max AC Output Active Power (W): 16000
AC Output Rated Current (A): 69.6
Max. AC Output Current (A): 69.6
Max. Continuous AC Passthrough (A): 100
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 48
Cabinet size (mm): 464W x 763H x282D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-15K-SG05LP3-AU-SM2 | 15kW | Three Phase | 2 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 350A
Support storing energy from diesel generator
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Model: SUN-15K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 280
Max. Discharging Current (A): 280
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Input Power (W): 22500
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Range (V): 160-650
Rated PV Input Voltage (V): 550
Max. Operating PV Input Current (A): 36+36
No.of MPP Trackers: 2
No.of Strings per MPP Tracker: 2+2
AC Output Data
Rated AC Output and UPS Power (W): 15000
Rated Apparent Output Power (VA): 15000
AC Output Rated Current (A): 21.8
Max. AC Output Current (A): 21.8
Max. Continuous AC Passthrough (A): 70
Peak Power (Off Grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 50.6
Cabinet size (mm): 456W×750H×268.5D (Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-15K-SG01HP3-AU-AM2 | 15kW | Three Phase | 2 MPPT | Hybrid Inverter | HV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 50A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-15K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-700
Max. Charging Current (A): 37
Max. Discharging Current (A): 37
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 22500
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated DC Input Voltage(V): 600
Max. Operating PV Input Current (A): 26+20
Max. Input Short-Circuit Current (A): 39+30
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+1
AC Output Data
Rated AC Output Active Power (W): 15000
Max AC Output Active Power (W): 15000
AC Output Rated Current (A): 21.8
Max. AC Output Current (A): 21.8
Max. Continuous AC Passthrough (grid to load) (A): 80
Peak Power (off grid): 1.5 times of rated power, 10s
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 30.5
Cabinet size (mm): 408W x 638H x237D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-12K-SG04LP3-AU | 12kW | Three Phase | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 16pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-12K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 240
Max. Discharging Current (A): 240
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 18000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+13
Max. Input Short-Circuit Current (A): 39+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 12000
Max AC Output Active Power (W): 12000
AC Output Rated Current (A): 17.4
Max. AC Output Current (A): 17.4
Max. Continuous AC Passthrough (A): 45
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-12K-SG02LP1-AU-AM3 | 12kW | Single Phase | 3 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-12K-SG02LP1-AU-AM3
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 250
Max. Discharging Current (A): 250
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV access power(W): 24000
Max. DC Input Power (W): 18000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/
No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 12000
Max AC Output Active Power (W): 12000
AC Output Rated Current (A): 52.2
Max. AC Output Current (A): 52.2
Max. Continuous AC Passthrough (A): 60
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 35.6
Cabinet size (mm): 420W x 670H x 233D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-10K-SG02LP1-AU-AM3 | 10kW | Single Phase | 3 MPPT | Hybrid Inverter | LV-Baterio Subtenita
Higher yields / Safe & Reliable / Smart / User-friendly
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-10K-SG02LP1-AU-AM3
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 220
Max. Discharging Current (A): 220
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 9999
Max. AC Input/Output Apparent Power (VA): 9999
AC Output Rated Current (A): 43.5
Max. AC Output Current (A): 43.5
Max. Continuous AC Passthrough (A): 60
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Cabinet size (mm): 420W×670H×233 D(Excluding connectors and brackets)
Weight (kg): 35.6
Protection Degree: IP65
Grid Regulation: AS/NZS 4777.2
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
